Description:
Product Application
This series adopted wide guide rail, make machine have good wear-resistant capacity. Made of resin sand that dealt with electric furnace smelting ,which bestows the machine with a high rigidity. The adoption of ball screws with bearing at both end has ensured the machine a stable accuracy.
Specifications:
|
ITEM |
XK7125 |
|
Size of worktable (length×width) |
1000mm×250mm |
|
T slot (width × qty × spaces) |
16mm×3×60mm |
|
Max loading weight on worktable |
60Kg |
|
X-Axis travel |
500mm |
|
Y-Axis travel |
320mm |
|
Z-Axis travel |
450mm |
|
Distance between spindle nose and table |
105-500mm |
|
Distance between spindle center and column |
297mm |
|
Spindle taper |
BT40 |
|
Max. spindle speed |
4500r/min |
|
Spindle motor power |
3.7Kw |
|
Rapid feeding speed: X,Y,Z axis |
6m/min |
|
Feeding speed |
0-2000mm/min |
|
Min. set unit |
0.001mm |
|
Max. size of tool |
φ60×175mm |
|
Loosing and clamping way for tool |
Clamp by disc springLoose manuallyClamp by disc spring.Loose pneumatically |
|
Max. loading weight of Tool |
3.5Kg |
|
N.W (include machine stand) |
900Kg |
|
Packing size( L X W X H) |
1220×1380×1650mm |
Machine tool basic configuration:
1.CNC System Siemens
2.Spindle motor:
3.7KW(Servo)
3.Spindle :BT30 spindle unit (taiwan brand )
4,.Air power drawbar
5.lead screw:Taiwan TBI
6.Bearing:HBB
7.Electronic parts :Siemens
8.Simple Protective cover
Detailed Images:
 |
|
|

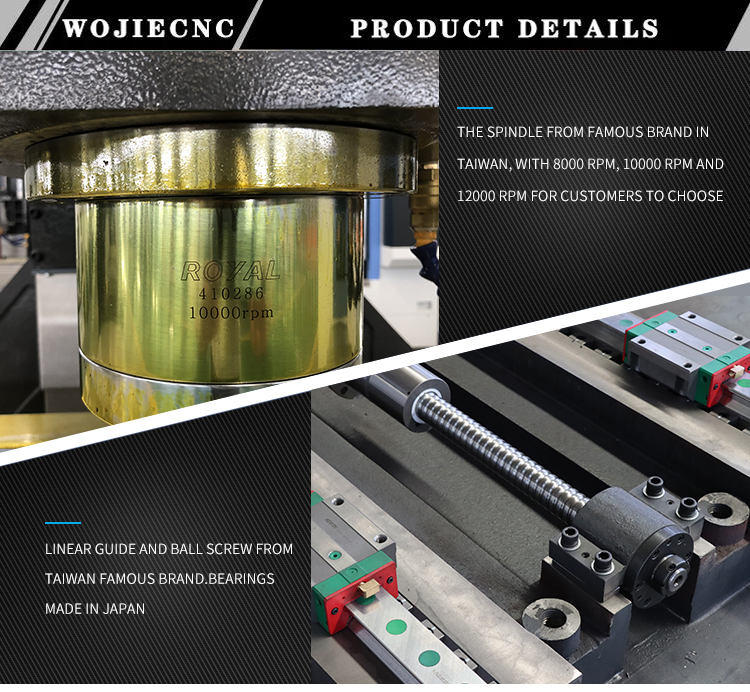

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40.
2. Spindle speed 8000rpm , can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.
|

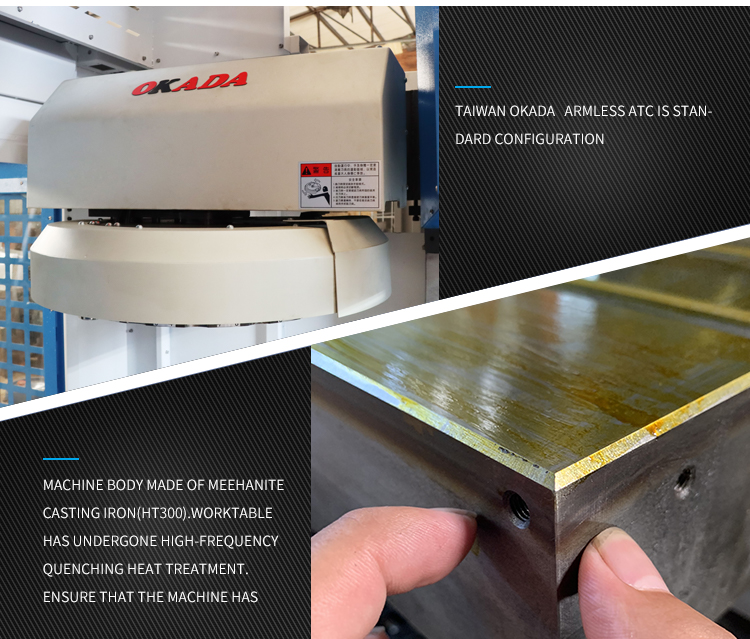

TAIWAN TOOL MAGAZINE
1. Standard 12 tools Hat tpye, Tool change time 4.5 seconds.
2. Brand: OKADA.
|
|
|
 |
|
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail,positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.
|
LEAD SCREW AND COUPLING
1.Taiwan precision lead screw.
2. Lead screw bearing use FAG bearing, Coupling R+W directly connected.
|
 |
|
|

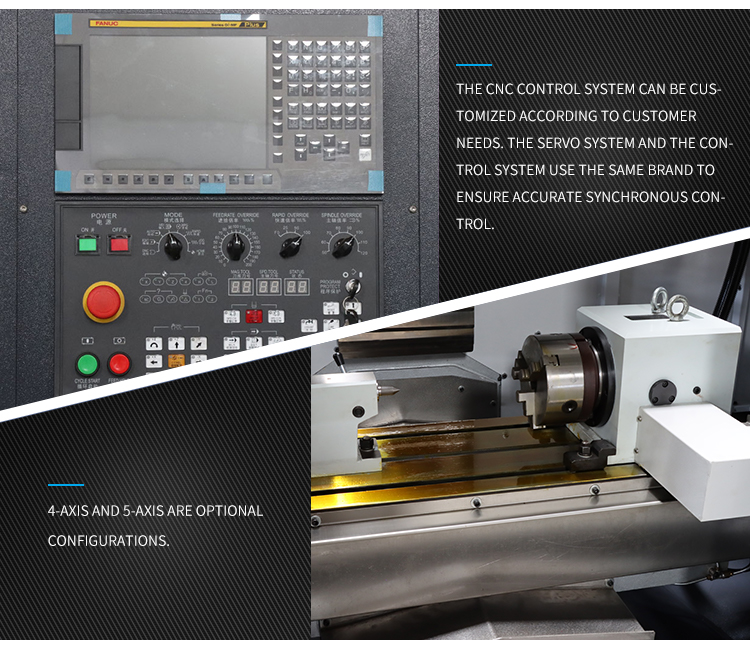

CONTROL SYSTEM
Standard: GSK / KND control.
Optional : Siemens , FANUC, Syntec ect
|
DELIXI ELECTRICAL COMPONENTS
1. With safety electrical components.
2. Optional :SCHNEIDER Brand
|
 |
 |
|
LUBRICATION SYSTEM
Automatic lubrication device.
|
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
