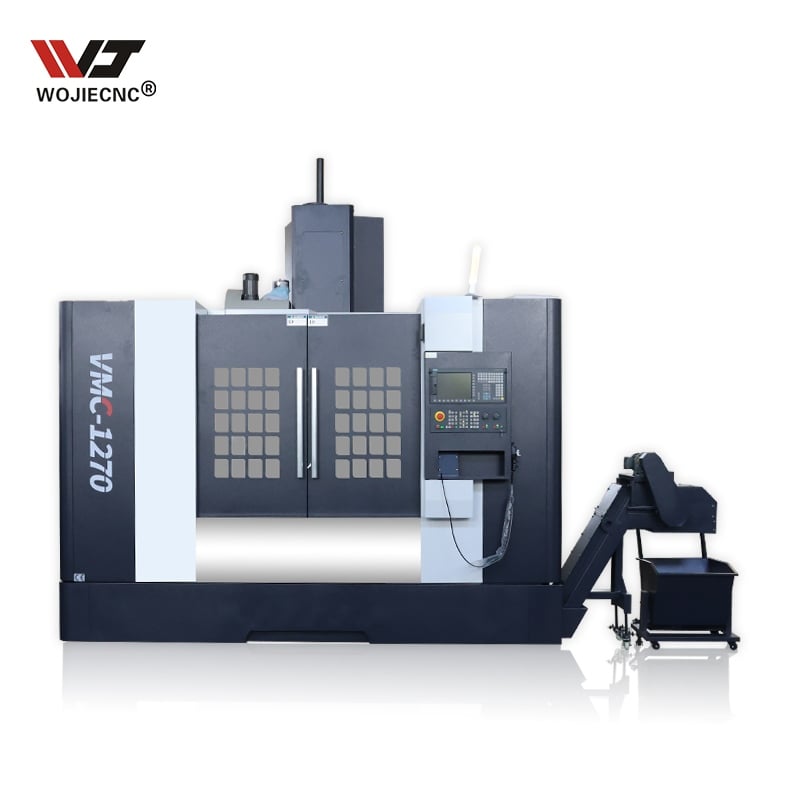

Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Specifications:
| Workbench size (mm) | 700x1300 |
| Workbench load bearing (kg) | 900 |
| Workbench T-slot (number-size x spacing) | 7-18x100 |
| X-axis left and right travel (mm) | 1200 |
| Y-axis front and rear travel (mm) | 700 |
| Z-axis up and down stroke (mm) | 600 |
| Distance between spindle nose and work surface | 120-720 |
| Distance between spindle center and column guide surface | 835 |
| Maximum spindle speed (rpm) | 10000 |
| Max. table loading capacity | 1200Kg |
| Spindle | BT40/150 |
| Main motor power | 11KW |
| X axis rapid feed | 30m/min |
| Y axis rapid feed | 30m/min |
| Z axis rapid feed | 24m/min |
| Cutting feed | 1-10m/min |
| Tool changer type Tools capacity | 24T arm type |
| X-axis ball screw specifications | 4012 |
| Y-axis ball screw specifications | 4012 |
| Z-axis ball screw specifications | 4012 |
| X-axis guide rail | 45 rollers*3 slider |
| Y-axis guide rail | 55 roller*2 slider |
| Z-axis guide | 45 rollers*3 slider |
| Positioning accuracy | ±0.0075mm |
| Repeat positioning accuracy | ±0.005mm |
| Net weight | 7800kg |
Detailed Images:
 |
|
|
CONTROL SYSTEM
Standard: GSK / KND control. Optional : Siemens , FANUC, Syntec ect.
|
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40.
2. Spindle speed 8000rpm , can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.
|
|
|
 |
|

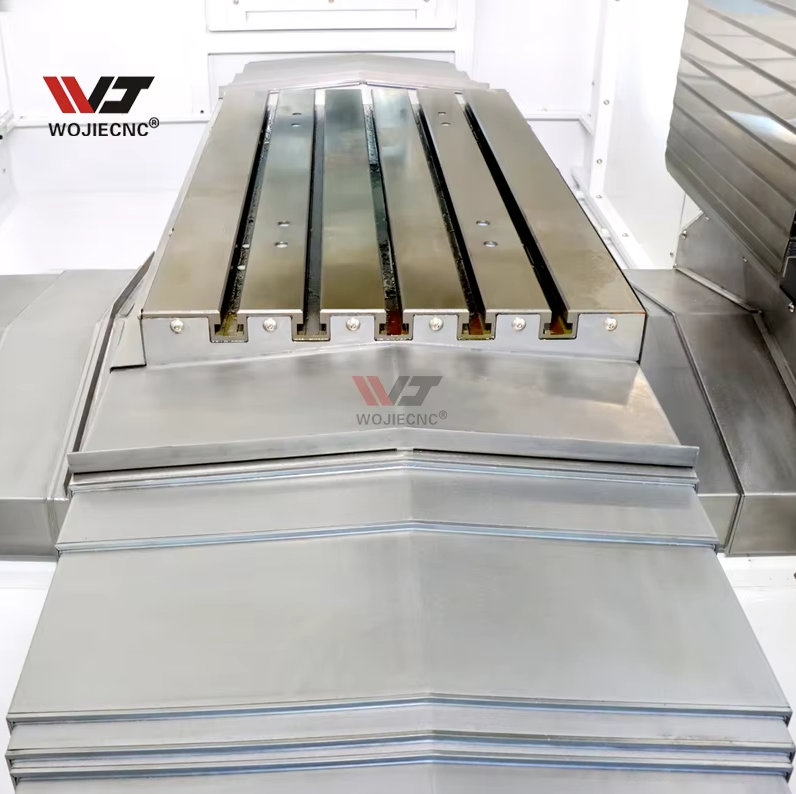

WORKBENCH
High-frequency quenching for better rigidity.
|

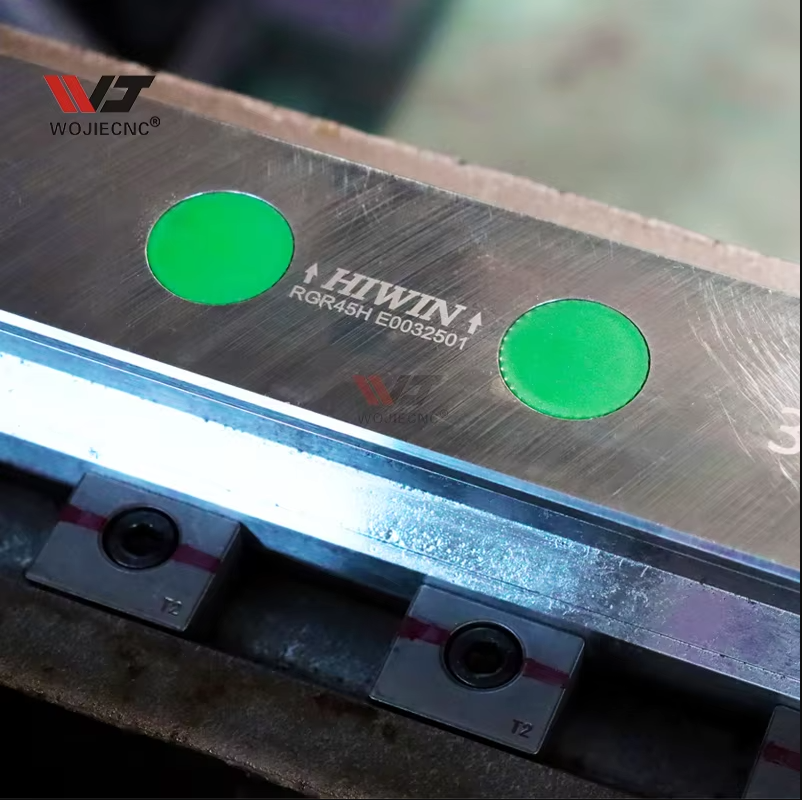

TAIWAN BRAND LINEAR GUIDE WAY
3-axis linear guide using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
|
 |
|
|
TAIWAN TOOL MAGAZINE
1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 2-3 seconds.
|

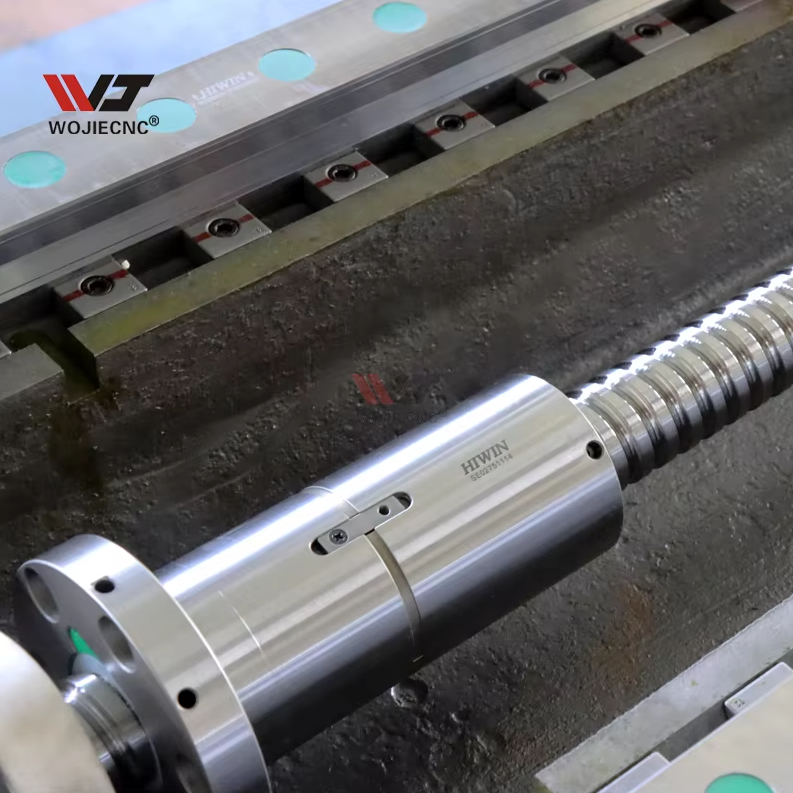

TAIWAN BRAND SCREW
3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
|
|
|
 |
|

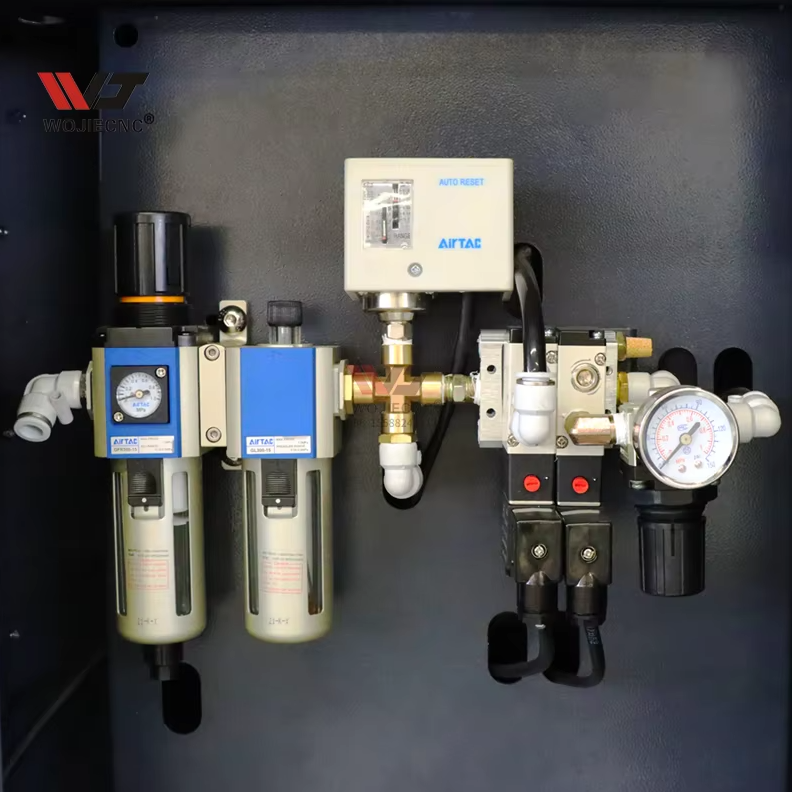

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
|

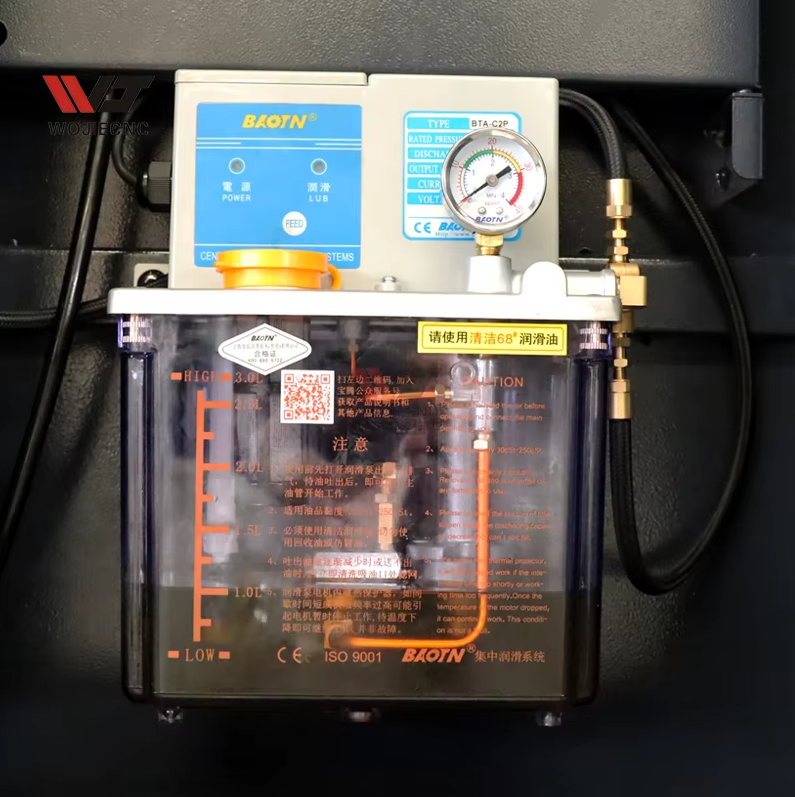

LUBRICATION SYSTEM
Automatic centralized lubrication device.
|
|
|
|
|

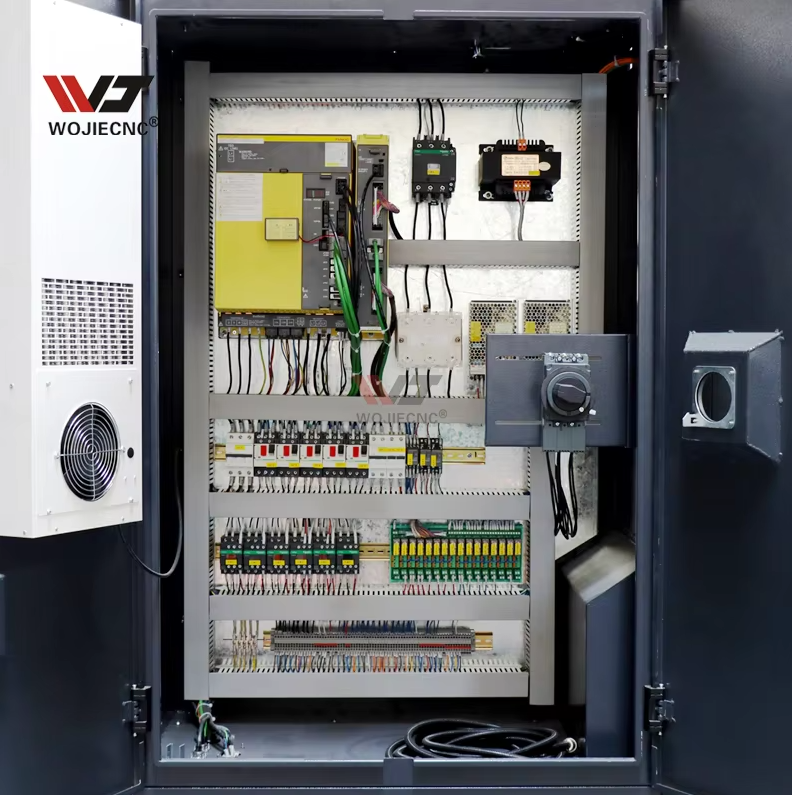

DELIXI ELECTRICAL COMPONENTS
1. With safety electrical components. 2. Optional :SCHNEIDER Brand
|

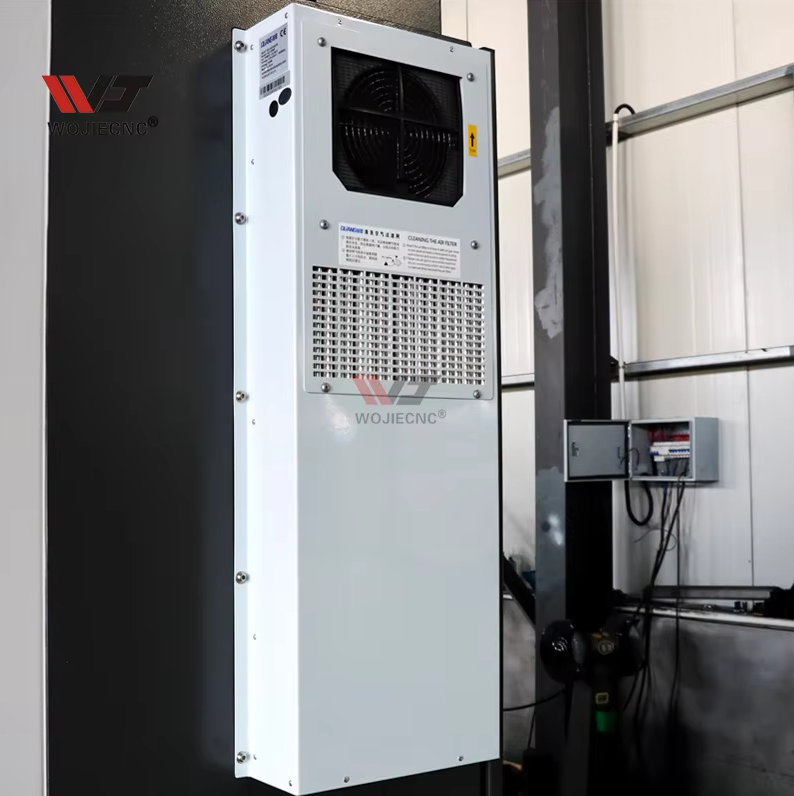

HEAT EXCHANGE
Standard configuration: Electrical cabinet heat exchanger. Optional configuration: Electrical cabinet air conditioner.
|
