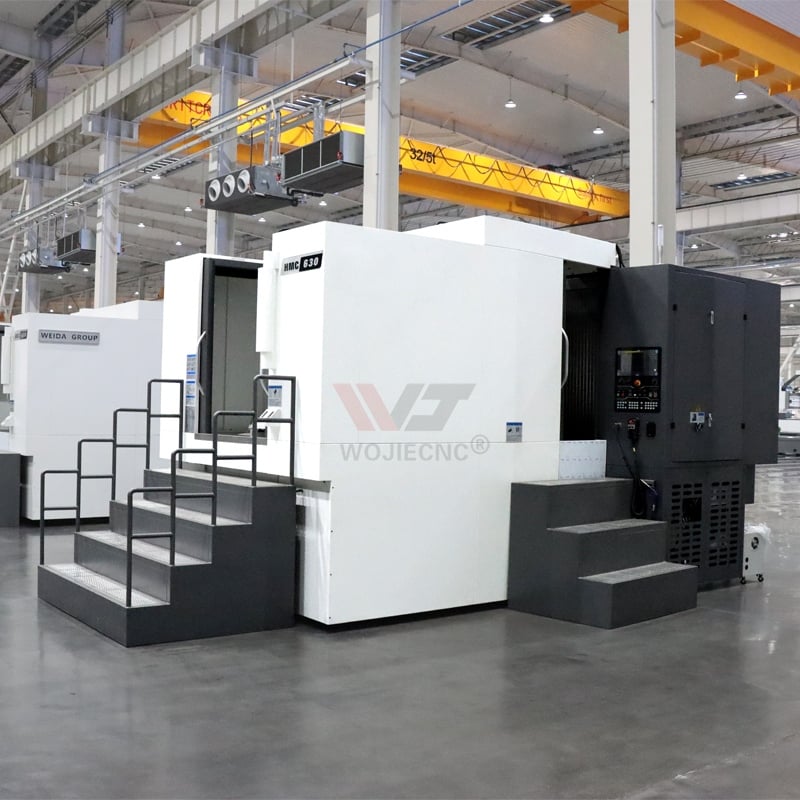

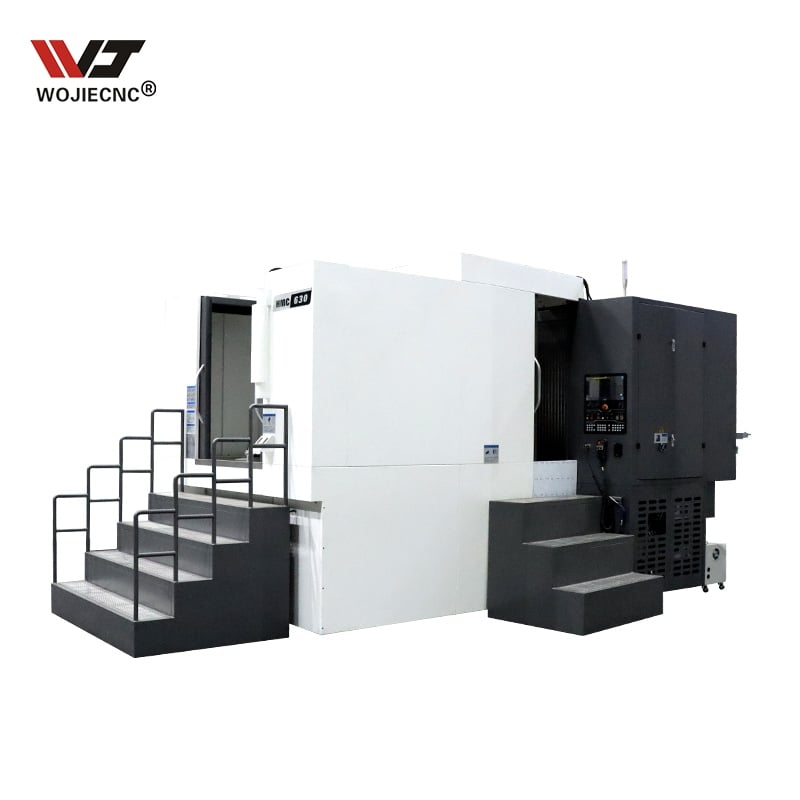

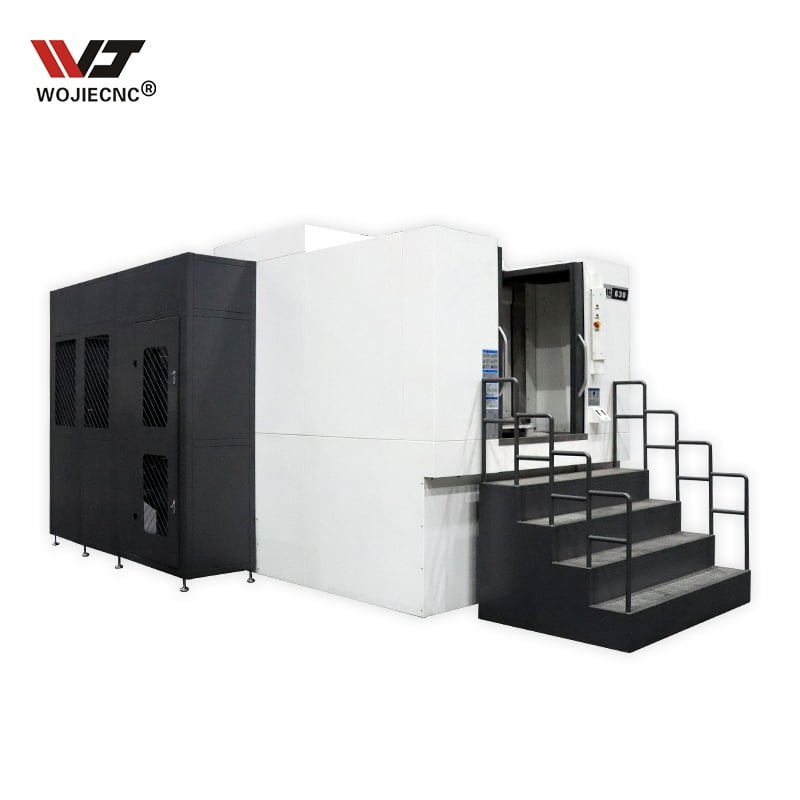

WOJIE CNC Horizontal Machining Center HMC630 CNC Horizontal Milling Machine With High Quality

Description:

Product Application

HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.

Specifications:

Category	Parameters	HMC500	HMC630	HMC800
TRAVEL	X-axis	800mm	1100mm	1300mm
	Y axis (spindle box lifting)	650mm	800mm	900mm
	Z axis (column moves forward and backward)	800mm	900mm	1100mm
	Distance from spindle end face to worktable center	150-950mm	145-1045mm	255-1355mm
	Distance from spindle center to worktable	100-750mm	20-820mm	30-930mm
Feed	X-axis rapid movement	24m/min	24m/min	20m/min
	Y axis rapid movement	20m/min	20m/min	20m/min
	Z axis rapid movement	20m/min	20m/min	20m/min
	cutting feed	1-10m/min	1-10m/min	1-10m/min
	Three-axis screw (C3 level grinding)	4012/5012/4012	5012/5012/5012	5012/5012/5012
	Three-axis linear rail (roller)	45/45/45	45/45/45	55/55/55
	Three-axis servo motor torque (new generation)	15/28B/28 N.m	18/28B/28 N.m	28/35B/35 N.m
	Three-axis servo motor torque (FANUC)	βiS30/30B/30	βiS30/30B/30	βiS40/40B/40
	Turntable servo motor torque (new generation)	15N.m	18N.m	28N.m
	Turntable servo motor torque (FANUC)	βiS12	βiS22	βiS22
Worktable	Workbench area	500×500mm	630×630mm	800×800mm
	weight capacity	600Kg	1500Kg	2500Kg
	Minimum segmentation accuracy	One degree per degree/thousandth of a degree	once a minute	-
	T-slot	5×18×100mm	5×18×125mm	5×22×160mm
Spindle	Standard configuration	Belt type BT40-150	Belt type BT40-150	Belt type BT40-150
	Rotating speed	8000 rpm	8000 rpm	8000 rpm
	Spindle taper hole	BT40	BT40	BT40
	Main motor power (new generation)	11KW	15KW	23KW
	Main motor power (FANUC)	βil12/10000	βil15/8000	βilP30/6000
Accuracy	Positioning accuracy (JIS standard)	±0.005/300mm	±0.005/300mm	±0.005/300mm
	Repeat positioning accuracy (JIS standard)	±0.004mm	±0.004mm	±0.005mm
Other	weight	9000Kg	11000Kg	14500Kg
	Overall dimensions (including pedals)	3340×4480×2700mm	3600×4680×2800mm	4400×5400×3500mm

Standard configuration:

Control system: GSK

Spindle taper :TAIWAN BT40

Guide rail type:Linear guideway (Taiwan HIWIN )

Electrical fittings（Schneideri）

Tool magazine : 24T

Taiwan spindle 8000 rpm

Main motor power 15KW

4 screw conveyors, 1 chain conveyor

Table turning on 0.001 degrees Select the configuration: Control system: Fanuc/Mitsubishi/SIEMENS

Spindle taper :TAIWAN BT50

Detailed Images:

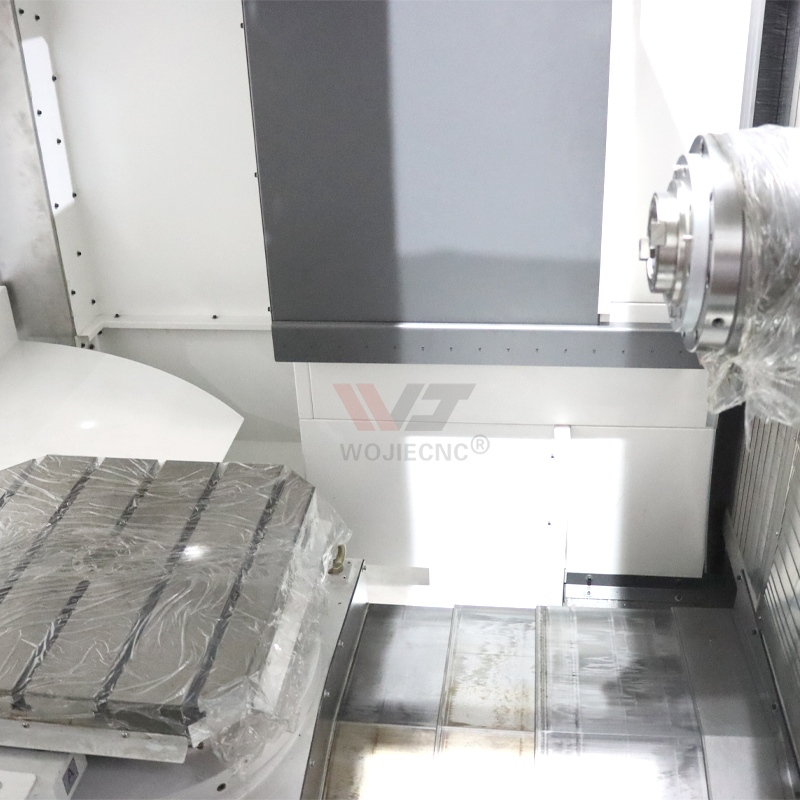

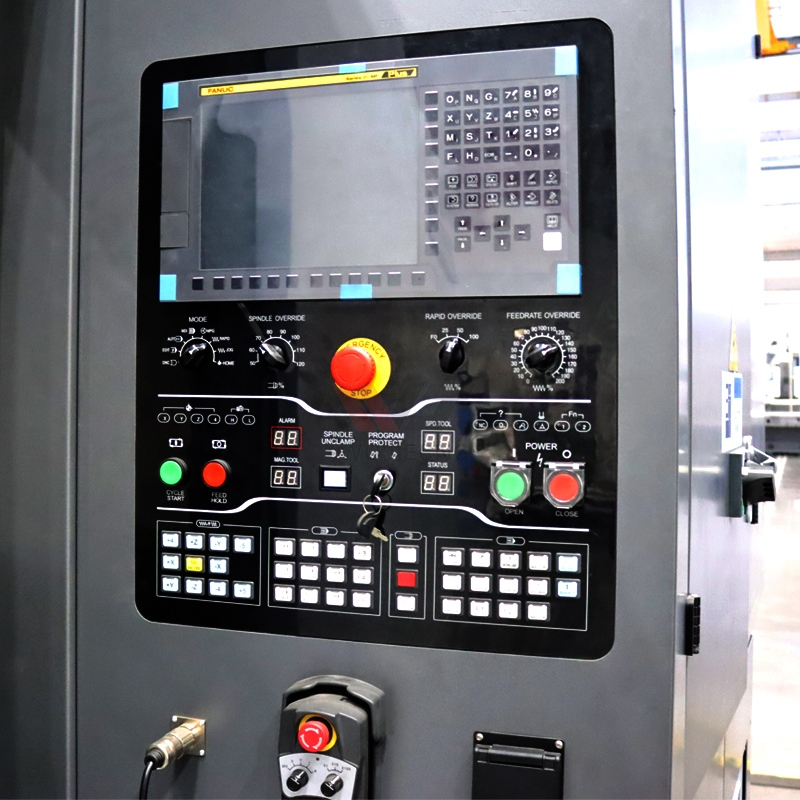

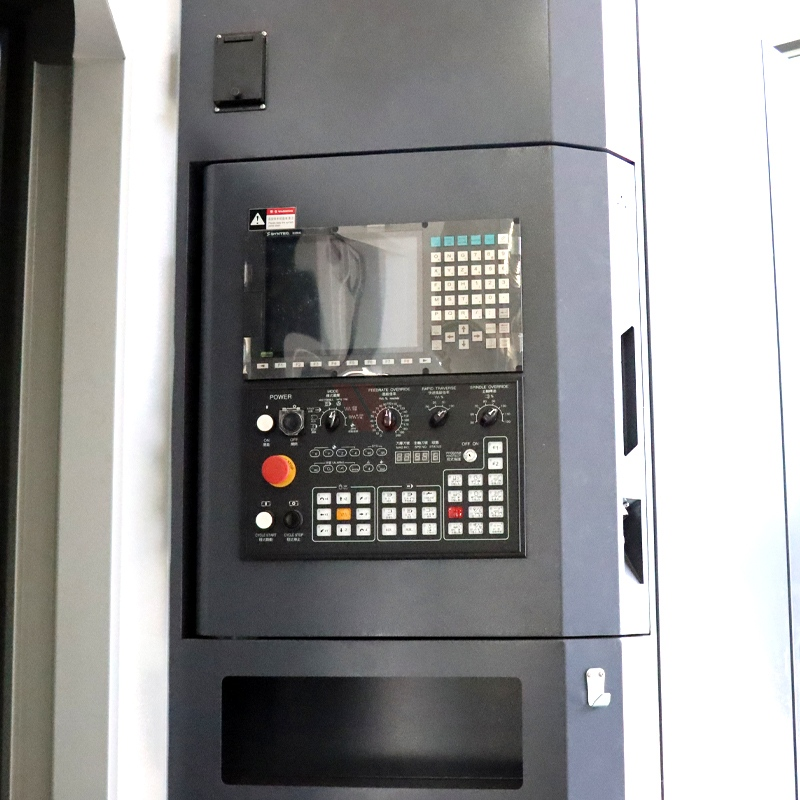

Horizontal Machining Work Area The rigid, precision-built work area (spindle + table) delivers high stability and accuracy for heavy-duty horizontal machining tasks.	FANUC Control Panel The advanced FANUC control system offers intuitive operation, precise overrides, and a clear interface, enabling efficient programming and stable machining control.

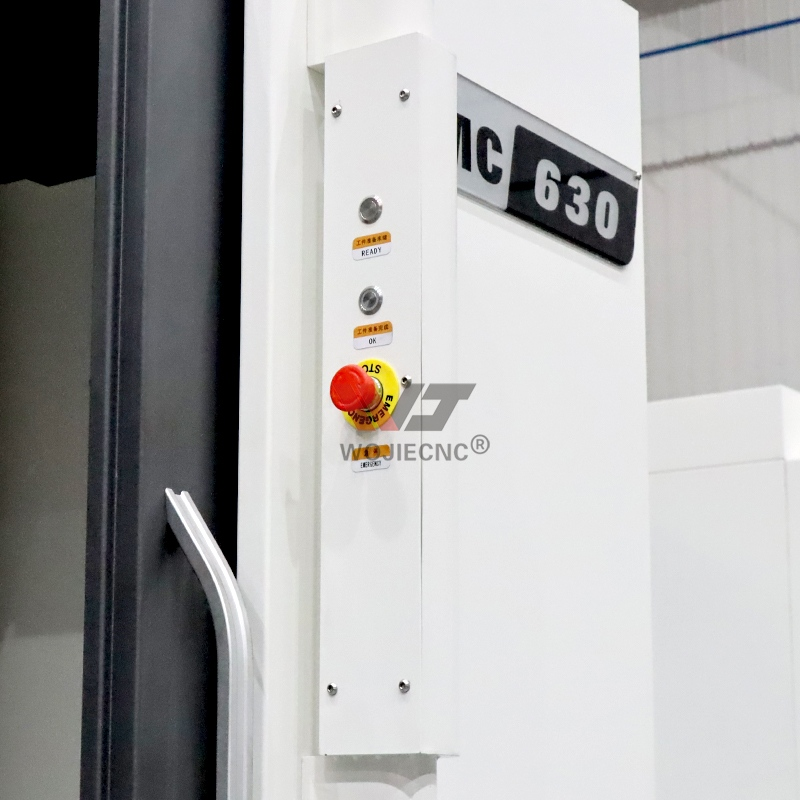

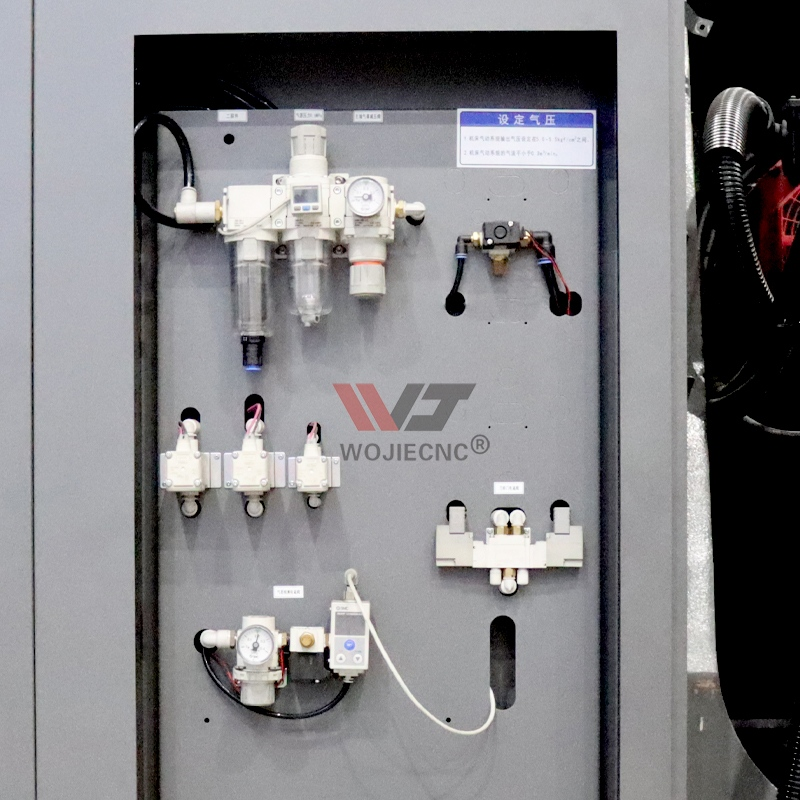

Pneumatic Control Unit This integrated pneumatic unit filters, regulates, and monitors air supply precisely, ensuring stable and reliable operation of the machine’s pneumatic systems.	Safety Control Panel The side safety panel includes emergency stop and status indicators, ensuring quick response to emergencies and clear machine status monitoring.

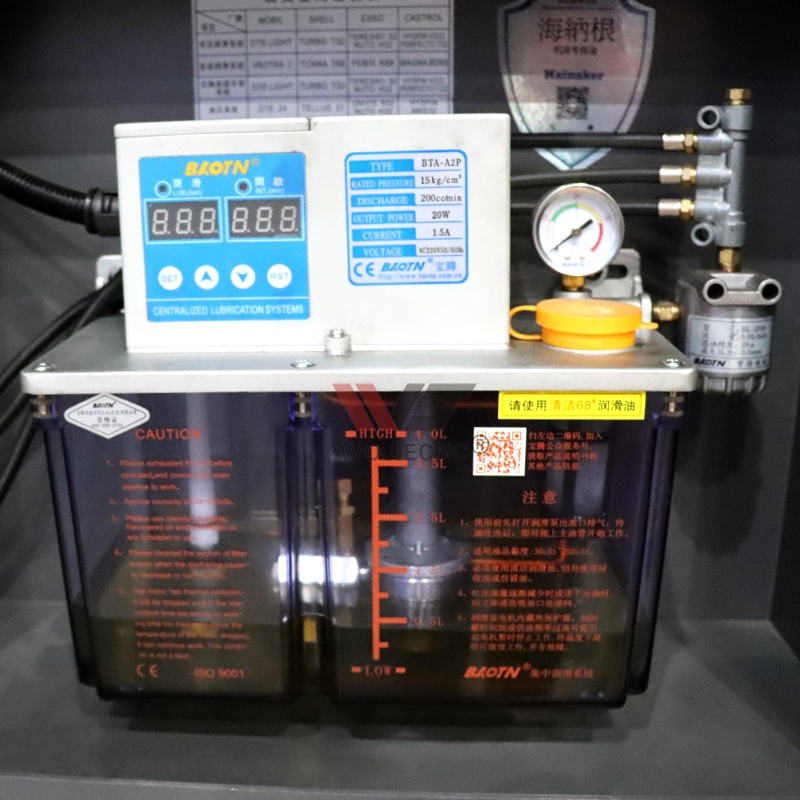

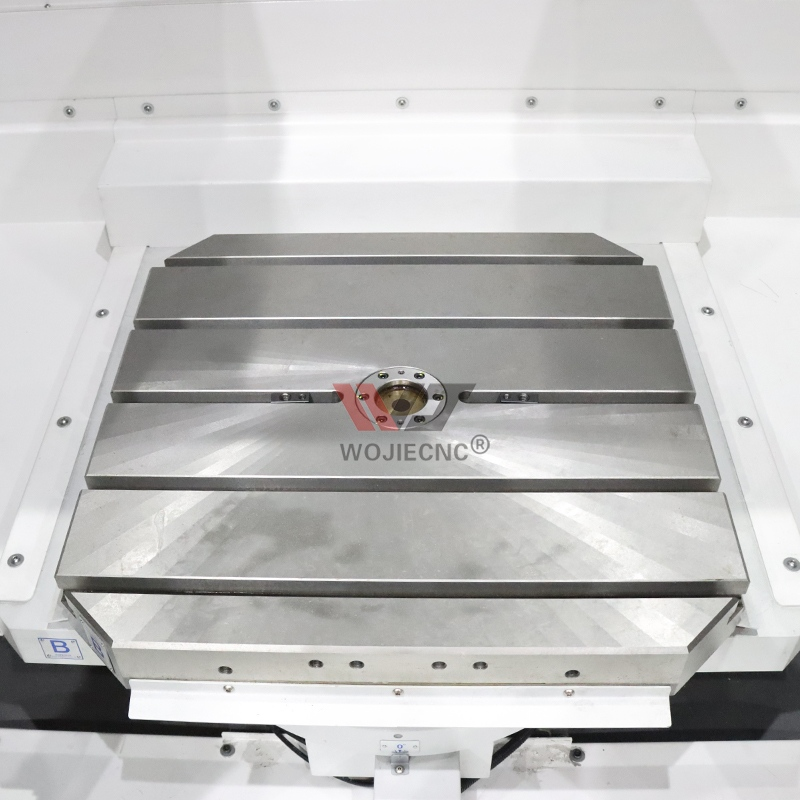

T-Slot Worktable The high-precision T-slot table offers strong clamping and stable workpiece fixation, suitable for a wide range of heavy cutting applications.	Centralized Lubrication System The automatic lubrication system delivers precise oil supply to key components, reducing wear, extending machine life, and maintaining machining accuracy.

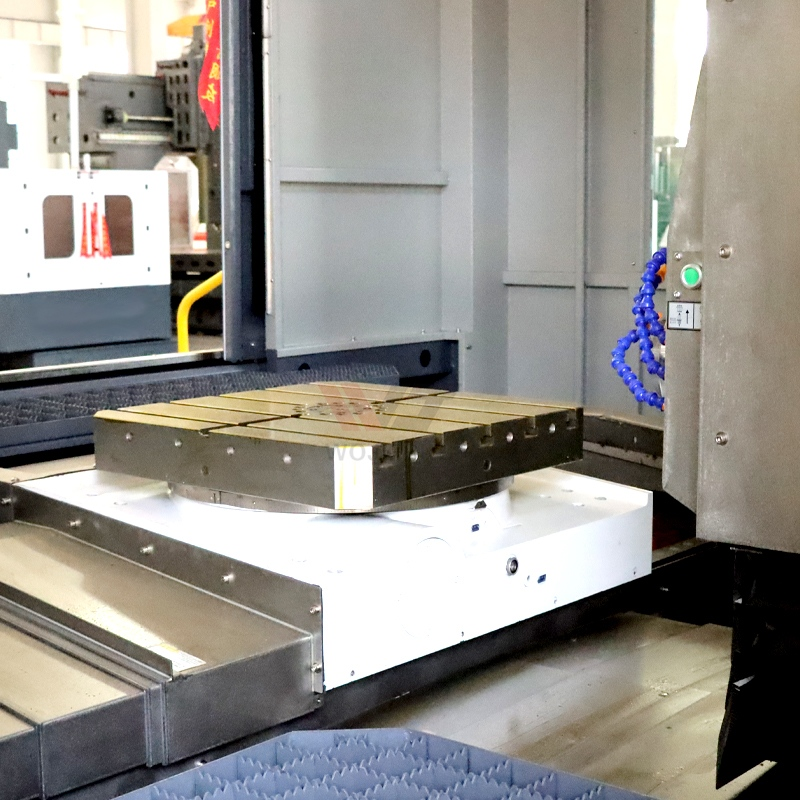

MITSUBISHI Control Panel The reliable Mitsubishi control system ensures smooth operation, with user-friendly controls and high stability for consistent machining performance.	Rotary Table The heavy-duty rotary table provides precise positioning and flexible workpiece orientation, ideal for multi-face machining in one setup.
