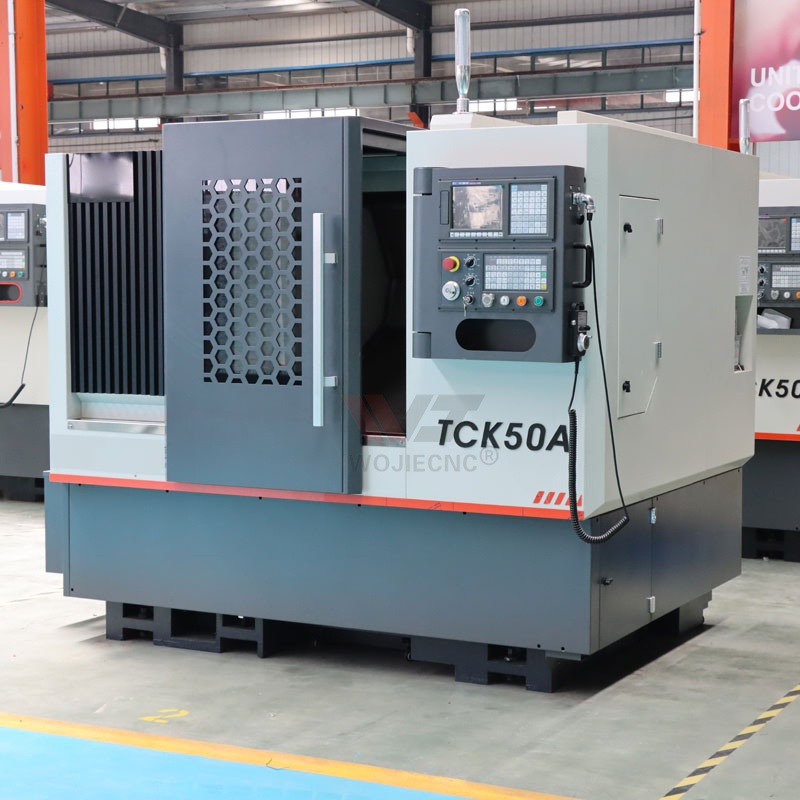

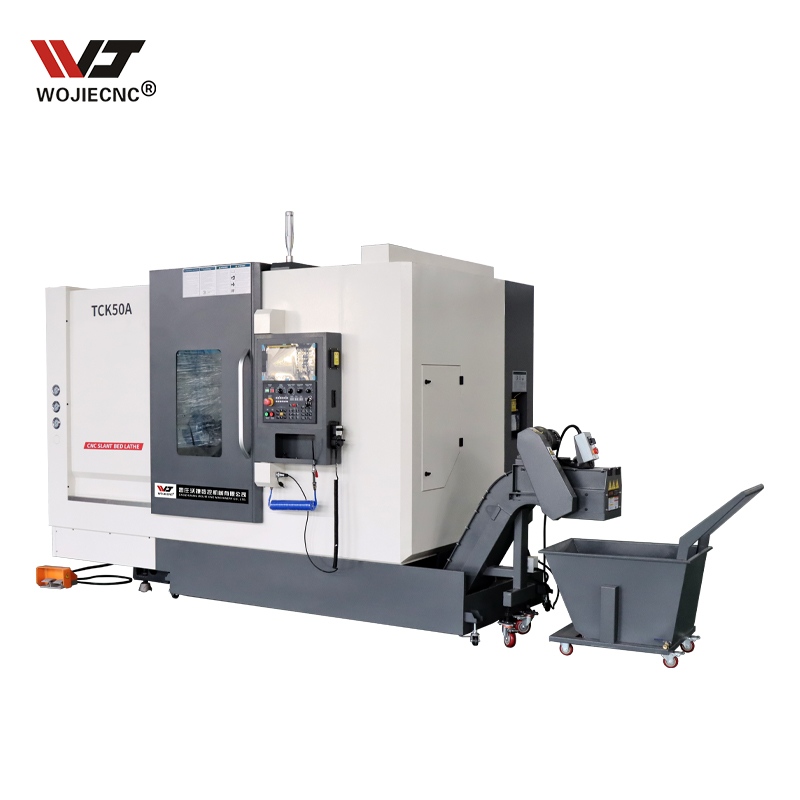

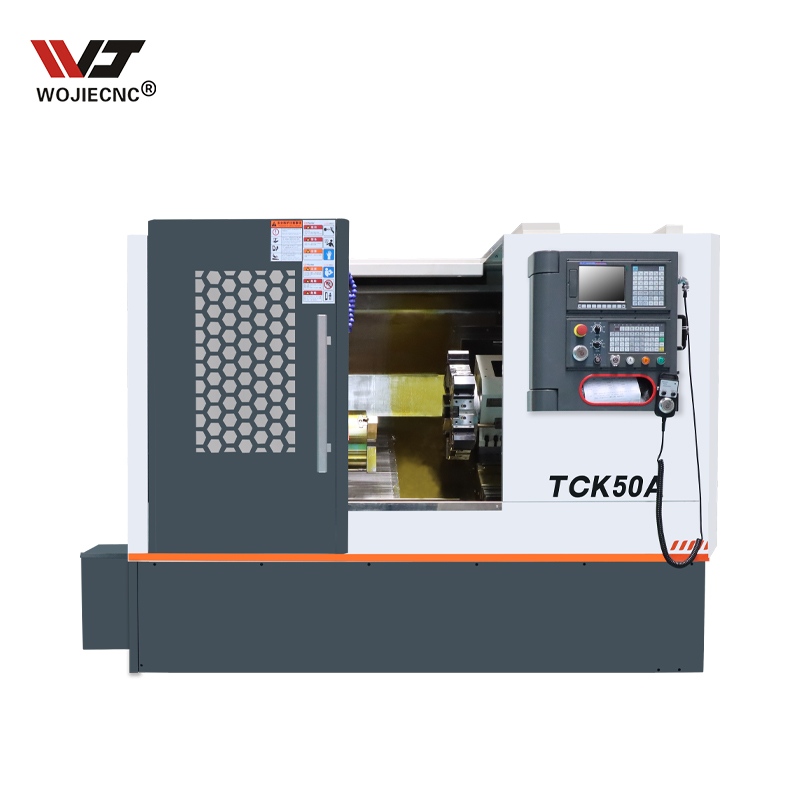

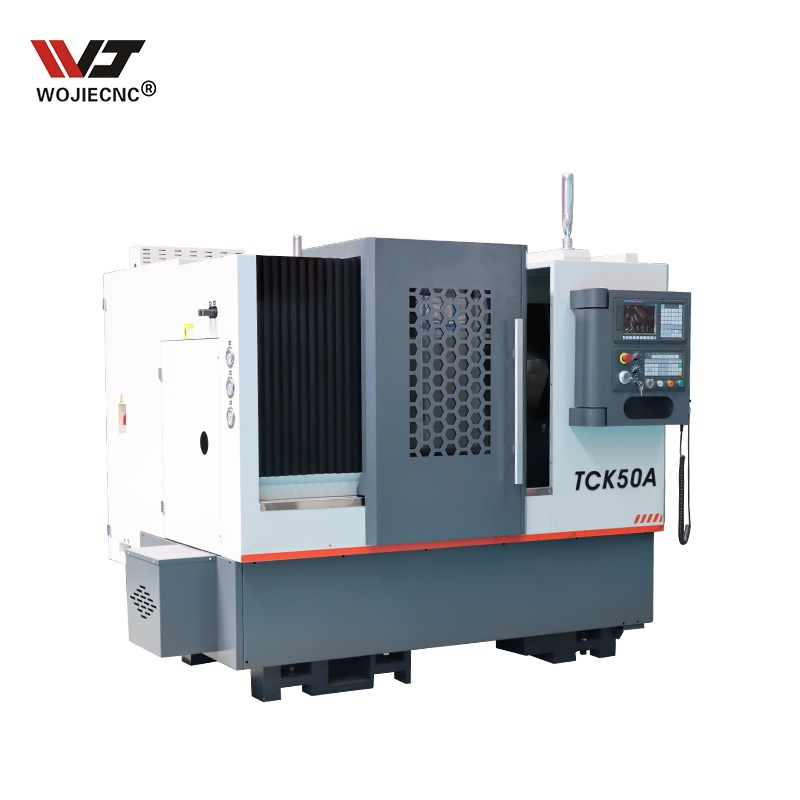

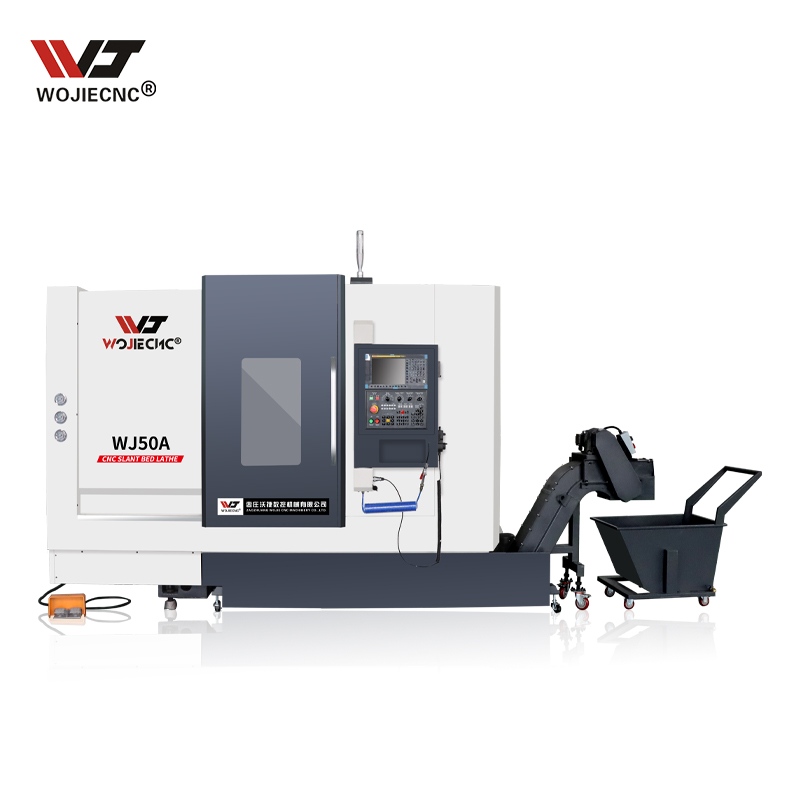

WJ50A Custom Lathe Cnc Horizontal Lathe Machine Slat Bed Cnc Lathe with Live Tool

Description:

Product Application

WJ50A CNC lathe uses a 30° beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the machine a high degree of rigidity. The bed material is made of high-density cast iron, which has high strength and good shock absorption. The increased chip evacuation design ensures smooth machine cutting. The guide rail adopts 35-standard precision linear ball guide rail, which has high feed precision, small friction resistance, good rigidity, high resistance to vibration and deformation, and enables users to obtain higher machining precision, faster moving speed and production efficiency.

Specifications:

SPECIFICATIONS	Units	WJ36A	WJ46A	WJ50A
Swing over bed	mm	360	460	560
Swing over cross slide	mm	170	170	260
Distance between centers	mm	300	350	350/500
Spindle bore	mm	48	56	66
Bar capacity	mm	40	45	55
Spindle speed steps	-	Stepless	Stepless	Stepless
Spindle nose type	-	A2-5	A2-5	A2-6
Spindle speed	rpm	4000	3500	3000
Turret/tool post	-	63-8T/12T	80-8T/12T	100-8T/12T
X axis travel	mm	310	240	240
Z axis travel	mm	350	400	400/450
X axis motor torque	N.m	6	7.5	7.5/10
Z axis motor torque	N.m	6	7.5	7.5/10
Main spindle motor	kw	3.7	5.5	7.5/11
Hydraulic tailstock quill dia.	mm	65	70	70
Hydraulic tailstock quill taper	-	MT4	MT5	MT5
Hydraulic tailstock travel	mm	220	200	200/450
Hydraulic tailstock quill traverse	mm	50	80	80
Guide rail type	-	Slant bed linear rail	Slant bed linear rail	Slant bed linear rail
Machine weight	kg	2100	2600	2800/3000
Overall dimension	mm	2100x1450x1700	2500x1700x1890	2500x1700x1890

Detailed Images:

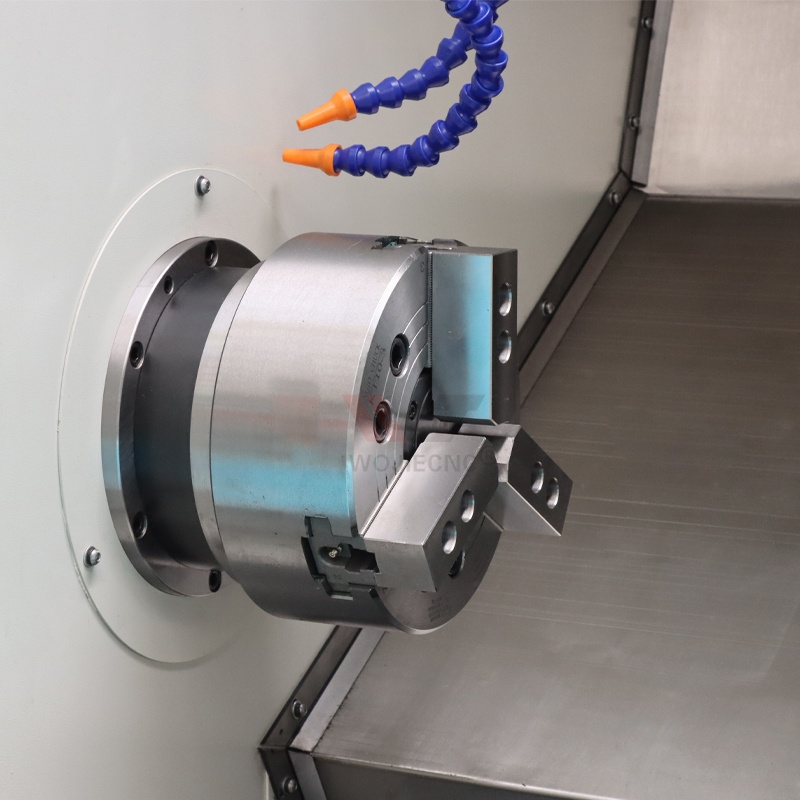

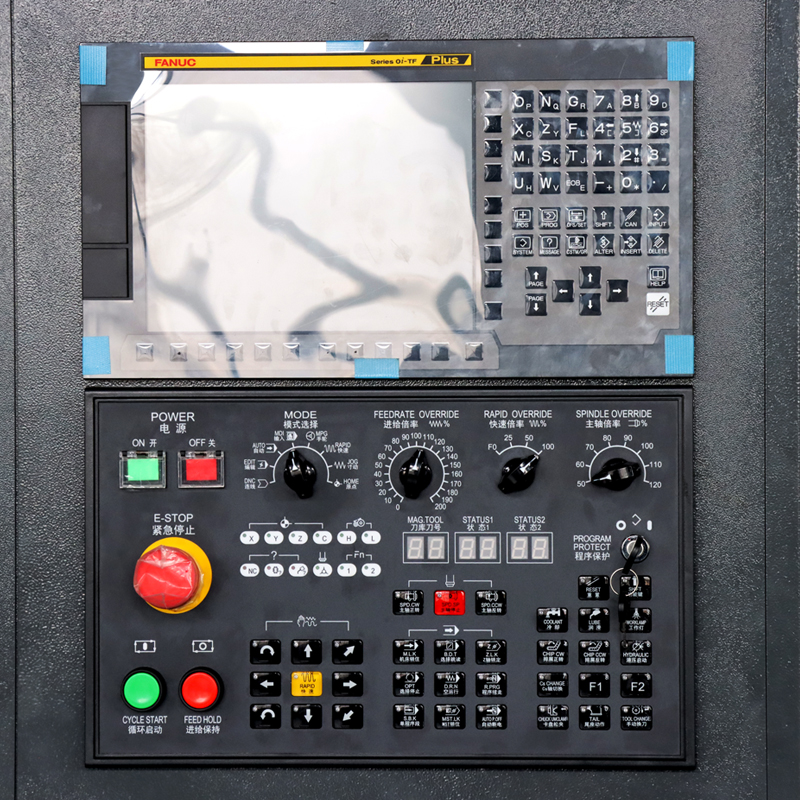

Control System Standard system:GSK988TA. Can optional: Fanuc, Siemens, Syntec etc.	Hydraulic chuck Standard configuration:8" Optional configuration: 10" / 12" hydraulic chuck.

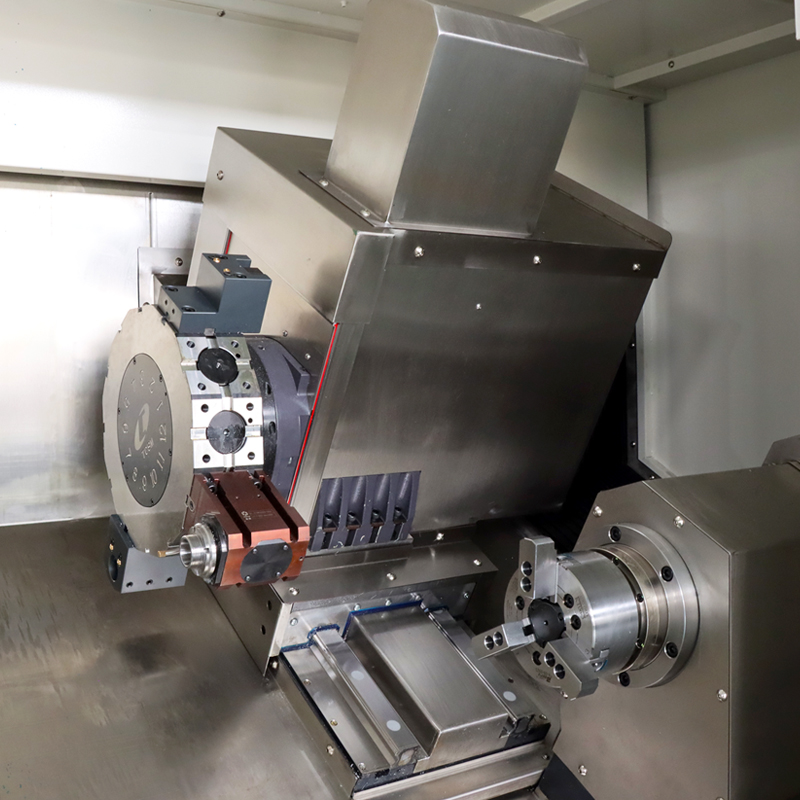

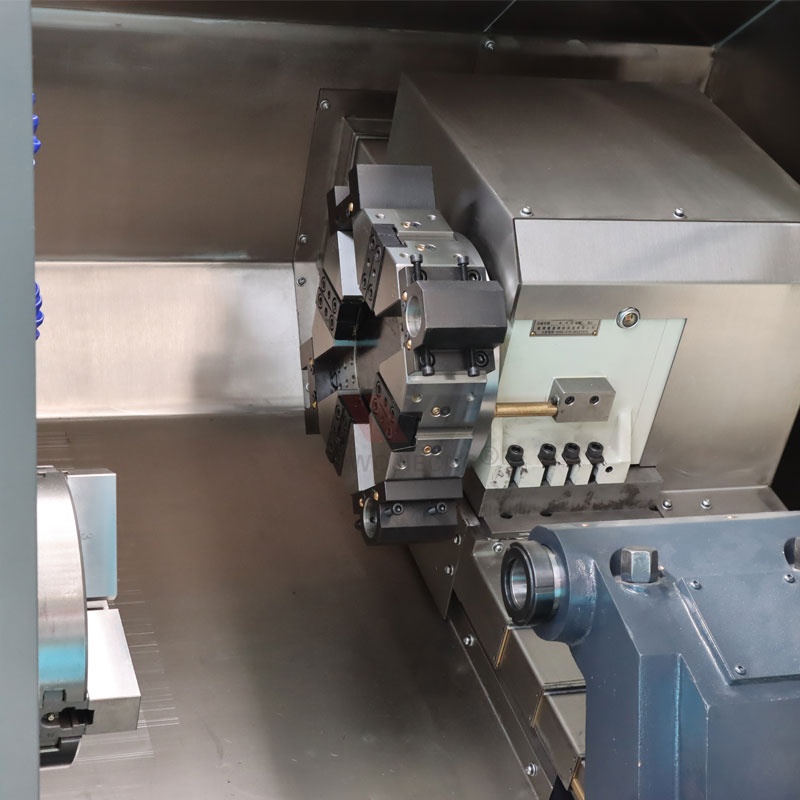

Tailstock standard is hydraulic turret	Turret 12 station power turret

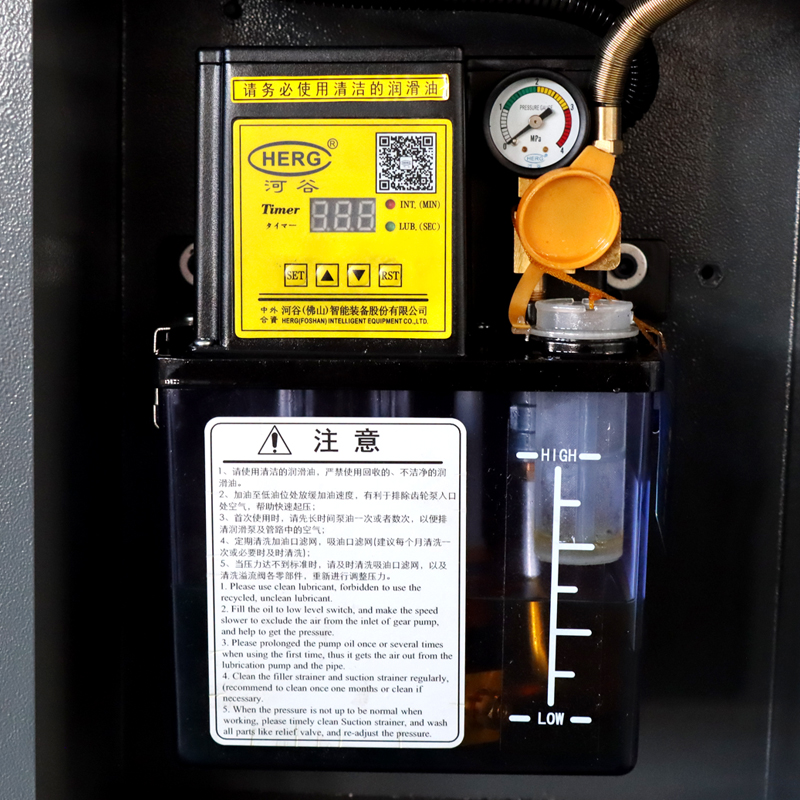

Lead screw and linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.
