WJ56D Cnc Lathe Machine Price Cnc 2 Axis Lathe Cnc Lathe Turning Milling Protype Part

Description:

Product Application

The bed of the CNC slant bed lathe has an inclination of 30 degrees. The overall box structure greatly enhances the overall rigidity and stability of the machine tool. It also has the function of absorbing shock, reducing tool loss, improving workpiece quality, and providing users with high quality during use. Efficiency and high reliability guaranteed. It is mainly used for cutting internal and external cylindrical surfaces of shaft parts or disk parts, internal and external conical surfaces with any cone angle, complex rotating internal and external curved surfaces, and cylindrical and conical threads. It can also be used for grooving, drilling, reaming, reaming and boring.

Specifications:

Milling lathe mashine Model	WJ56D
Spindle motor	11KW
Spindle speed range rpm	50-4000
Spindle speed	Stepless
Spindle hole mm	65
Spindle nose type	A2-6
Line rail	taiwan
Station servo tower (knife library)	8
Chuck form	Hydraulic chuck
Chuck size	8inch 200mm
Tailstock	Hydraulic
Pneumatic bar feeder	yes
Swing over bed mm	560
Swing over cross slide mm	300
Max. turning diameter mm	280
Max. Process length mm	500/1000
X axis travel mm	200
Z axis travel mm	550
Through the bar diameter mm	50
Max. travel of tailstock mm	450
Tailstock taper mm	MT5
X axis rapid traverse m/min	24
Z axis rapid traverse m/min	24
Machine weight kg	4250
Overall dimension mm	2200×1600×1850

Detailed Images:

Automatic Lubrication System

Component Name

Centralized Automatic Lubrication System ( Moving Parts Protection)

Detailed Description

This is a timed automatic lubrication system dedicated to lubricating the high-wear components: linear guides, ball screws, and spindle bearings.

· Precision Lubrication: Automatically delivers quantitative lubricant at preset intervals, ensuring uniform oil film coverage for moving parts.

· Monitoring & Alerts: Equipped with a clear oil level gauge and pressure meter to alert operators of low oil levels or system blockages, preventing dry friction and premature component wear.

· Efficiency: Eliminates manual lubrication work, reduces maintenance labor costs, and extends the service life of core components—critical for maintaining the long-term machining precision.

Electrical Control Cabinet

Component Name

Integrated Electrical Control Cabinet (Power & Control Core)

Detailed Description

This enclosed electrical cabinet houses the core electrical components, including FANUC servo drives, relay modules, circuit breakers, and I/O terminals.

· Reliability: Adopts industrial-grade electrical components with strict wiring standards (neat, labeled circuits) to ensure stable signal transmission and prevent electrical interference.

· Safety Protection: Equipped with overload protection, short-circuit protection, and emergency power-off circuits to safeguard the machine from electrical failures and protect operators.

· Maintenance-Friendly: Modular component design simplifies troubleshooting and part replacement, reducing long-term maintenance costs.

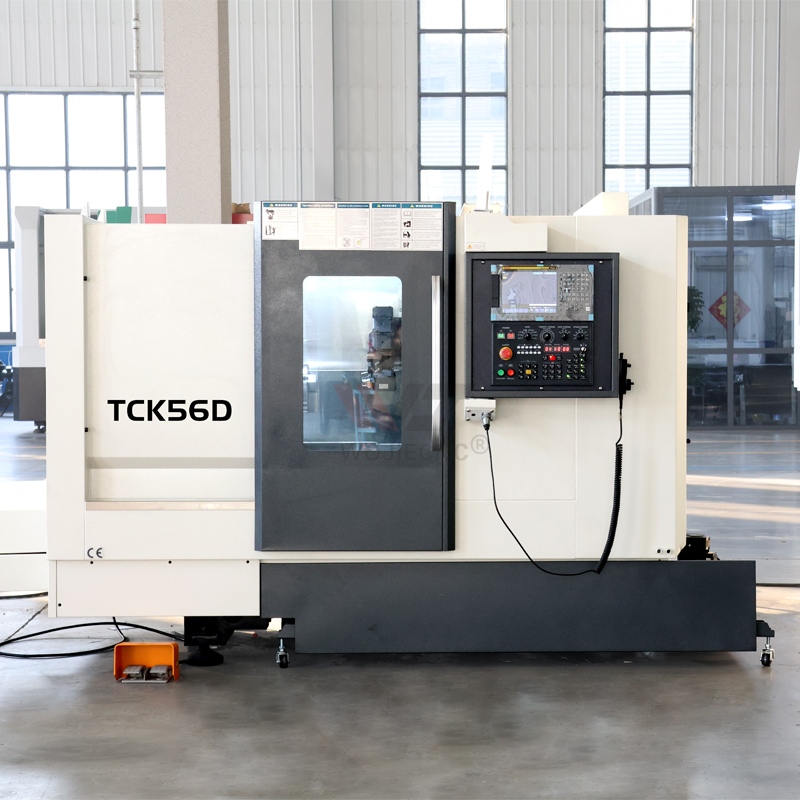

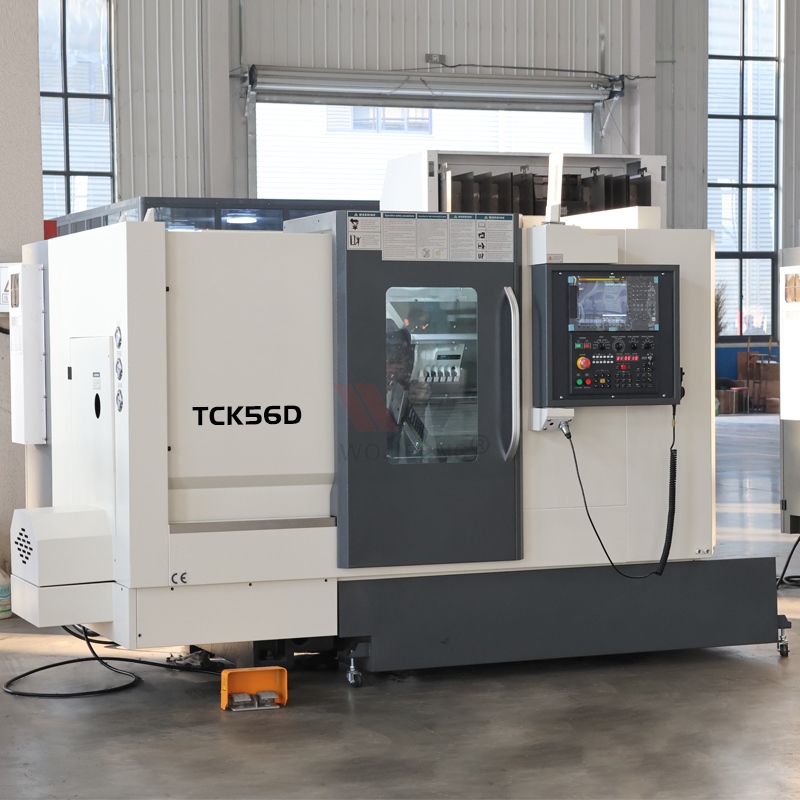

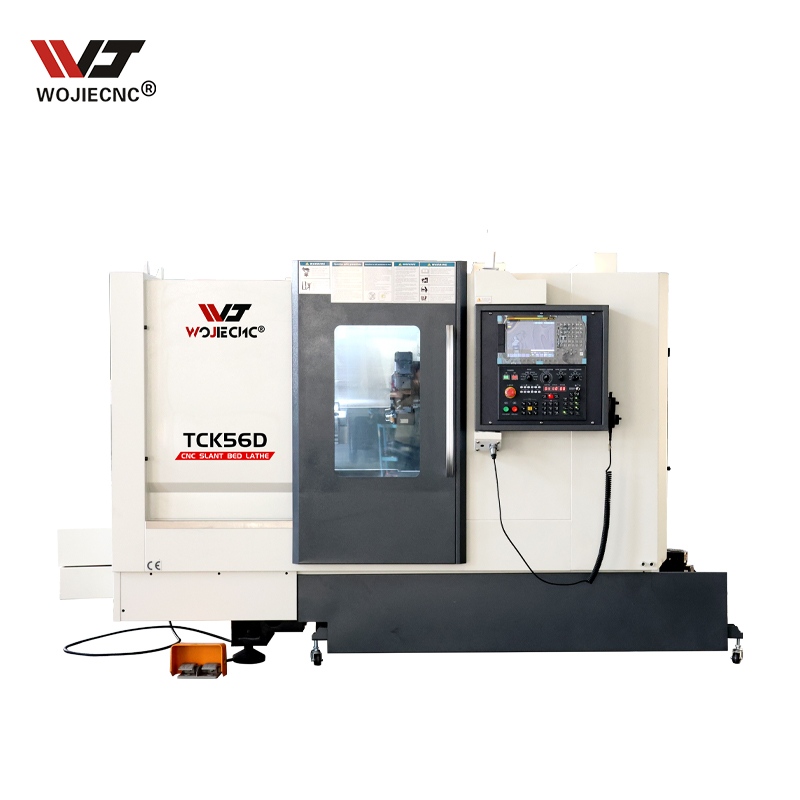

Short English Introduction (for TCK56D Double Spindle CNC Lathe)

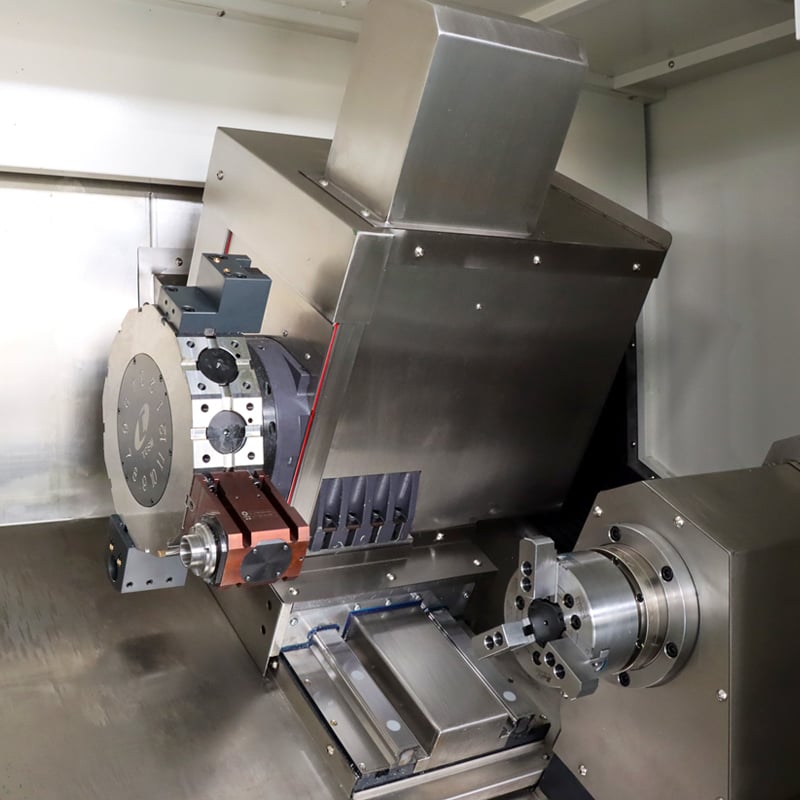

The WOJIECNC TCK56D is a 45° slant-bed CNC lathe with a dual-spindle structure. It enables one-time clamping to finish both-end machining of workpieces, greatly improving production efficiency and machining accuracy. Equipped with a servo turret, it is ideal for high-volume processing of precision shaft components.

FANUC CNC Control System & Operation Panel

Component Name

FANUC CNC Control Panel ( Core Control Unit)

Detailed Description

This is the central control hub of the lathe, equipped with a high-precision FANUC CNC system—renowned for its stability and user-friendly operation. The panel integrates a color LCD display, multi-function operation keys, and dedicated control knobs.

· Core Functions: Enables program input/edit, real-time monitoring of machining coordinates/spindle speed/feed rate, and one-click switching between manual (JOG), automatic, MDI (Manual Data Input), and dry run modes.

· Safety & Efficiency: Features a prominent red emergency stop button for immediate power cut-off in hazardous situations; optimized key layout reduces operator fatigue and minimizes production downtime.

· Compatibility: Supports complex turning processes (OD/ID turning, threading, taper cutting, grooving) and delivers high repeatability, making the WJ56D ideal for high-volume precision machining.

Optional Configurations:

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
