Description:
Product Application

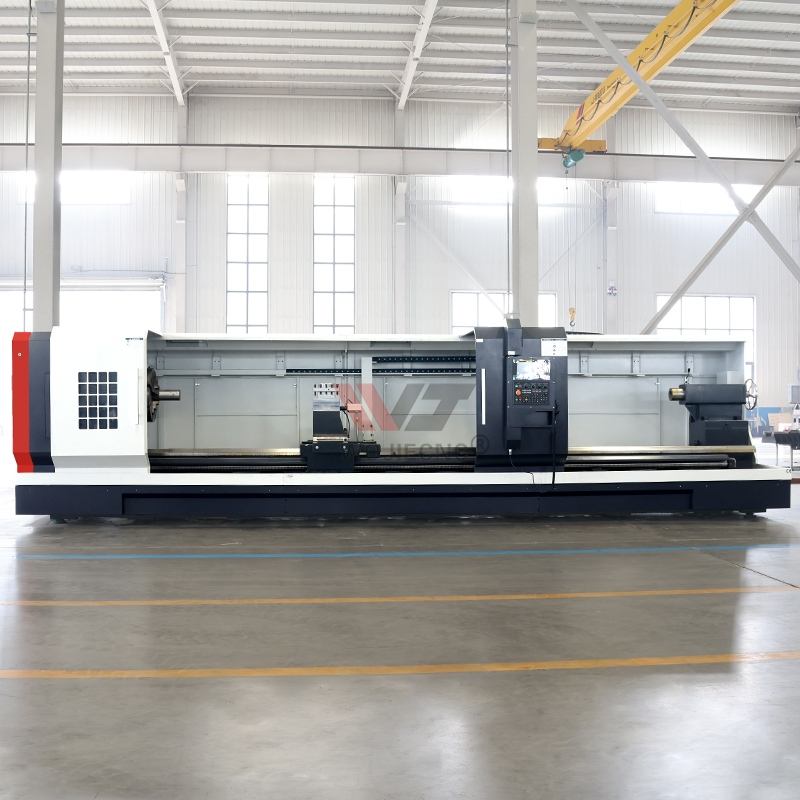

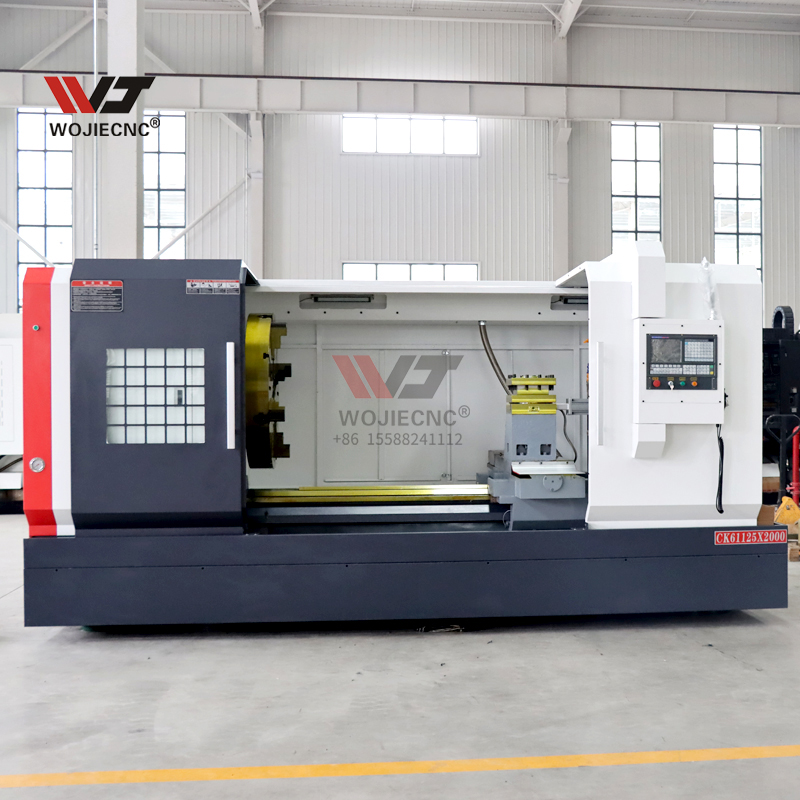

The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.
Specifications:
|
SPECIFICATIONS |
Units |
CK61125 |
|
Swing over bed |
mm |
1250 |
|
Swing over cross slide |
mm |
850 |
|
Distance between centers |
mm |
4000 |
|
Guideway width |
mm |
755 |
|
Max. load capacity |
T |
6/10 |
|
Spindle bore |
mm |
130 |
|
Spindle bore taper |
- |
Metric φ140/MT6 |
|
Spindle nose type |
- |
A2-15 |
|
Spindle speed steps |
- |
VF. 4 steps |
|
Spindle speed range |
rpm |
4-300 |
|
Chuck |
mm |
φ1000 4-jaw manual |
|
Turret/tool post |
- |
Eletric 4 position |
|
Tool size |
mm |
40 x 40 |
|
X axis travel |
mm |
620 |
|
Z axis travel |
mm |
3850 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
6000 |
|
Tailstock quill diameter |
mm |
φ160 |
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock quill travel |
mm |
300 |
|
Main spindle motor |
kw |
22 |
|
Coolant pump motor |
kw |
0.125 |
|
Weight for 4000 |
kg |
13500 |
|
Dimension for 4000 |
mm |
7500x2250x2300 |
Standard Accessories:
1.System: GSK
2.3-jaw manual chuck
3.4-station electric turret
4.Frequency spindle motor
5.Stepless speed changer
6.Manual tailstock
7.Lighting system
8.Cooling system
Detailed Images:
 |
 |
|

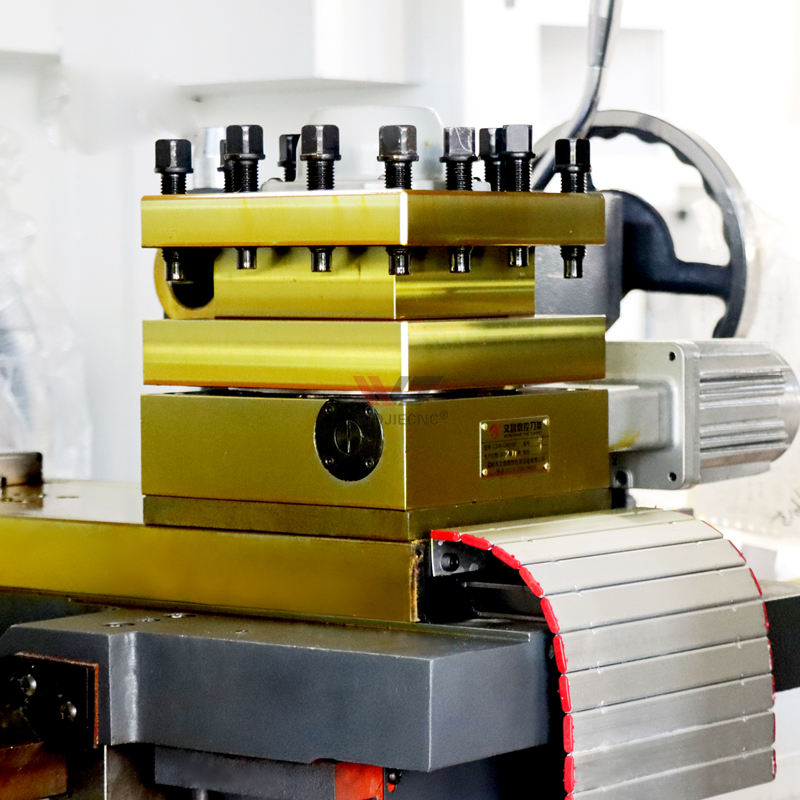

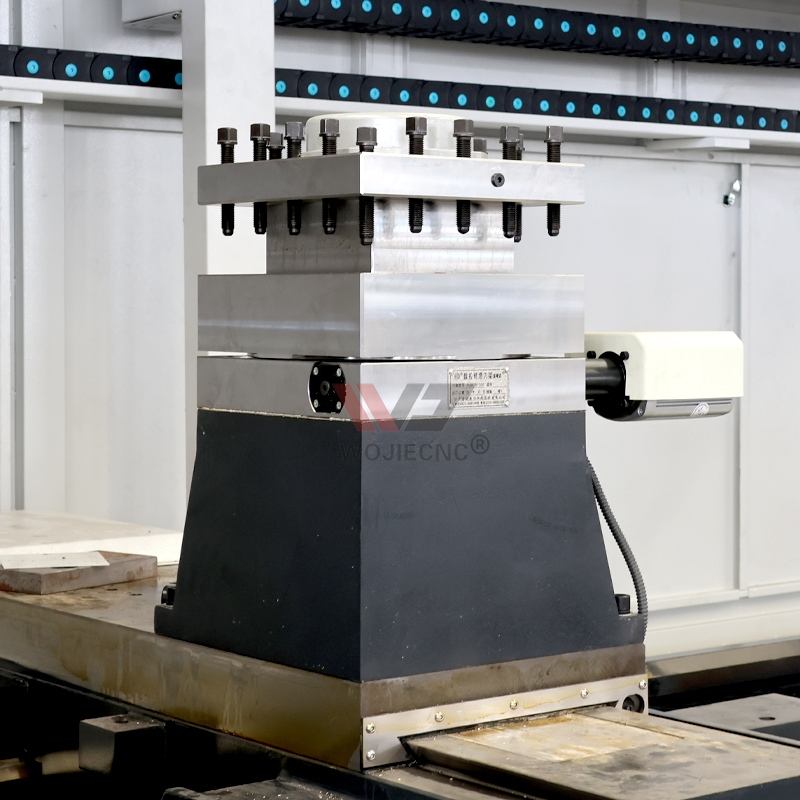

ELECTRIC TOOL POST/TURRET
Standard with 4 position electric tool post
|

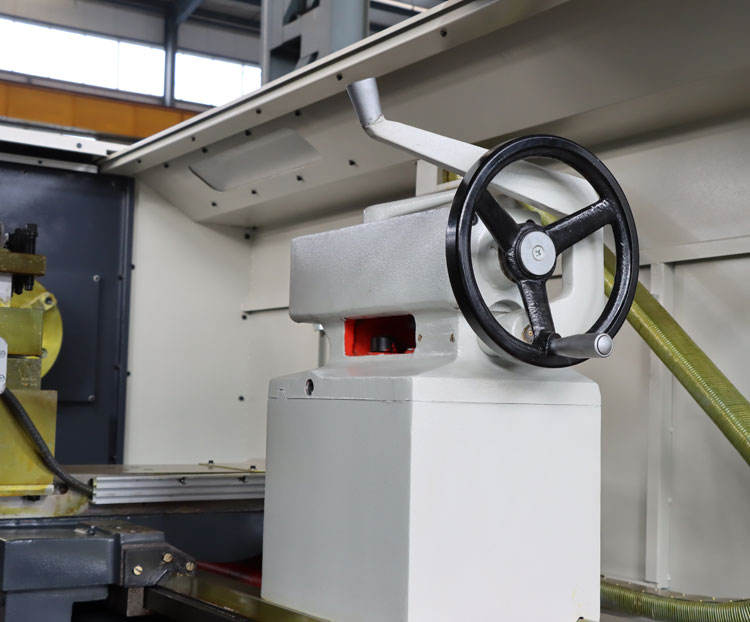

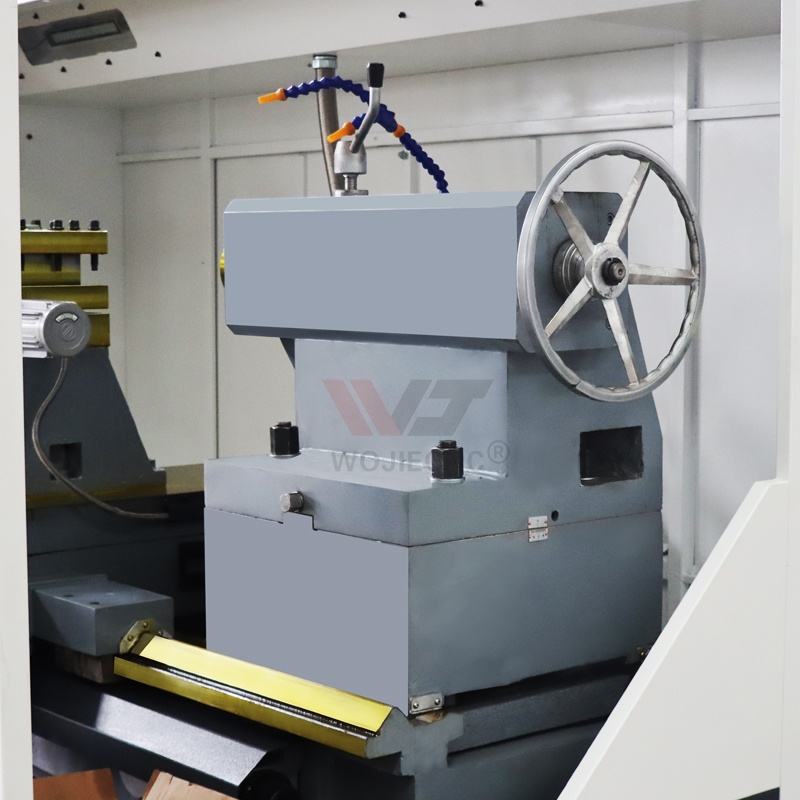

TAIL STOCK
Standard with Manual tailstock
|
 |
 |
|

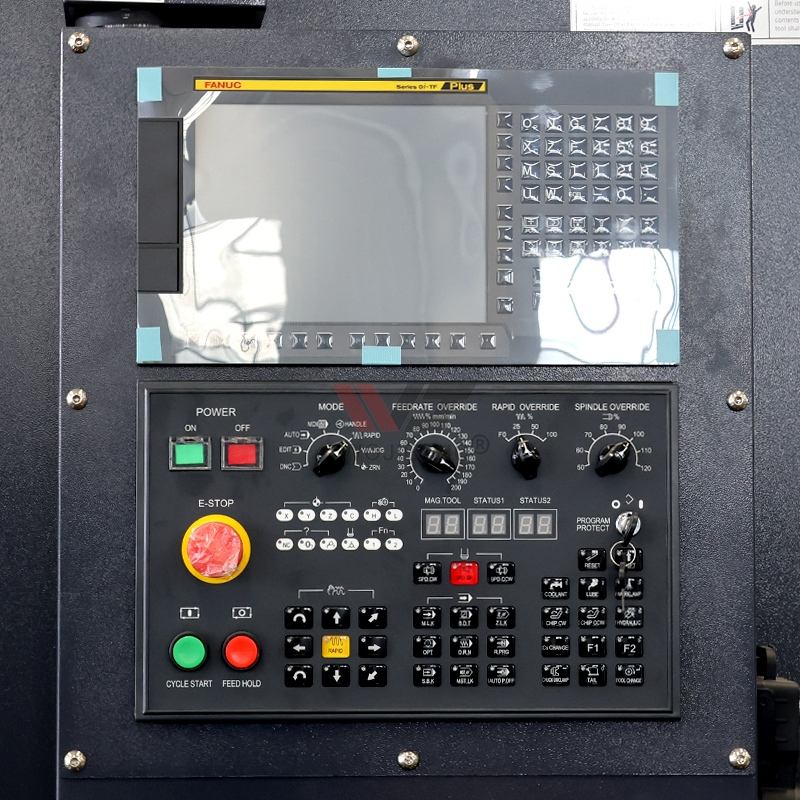

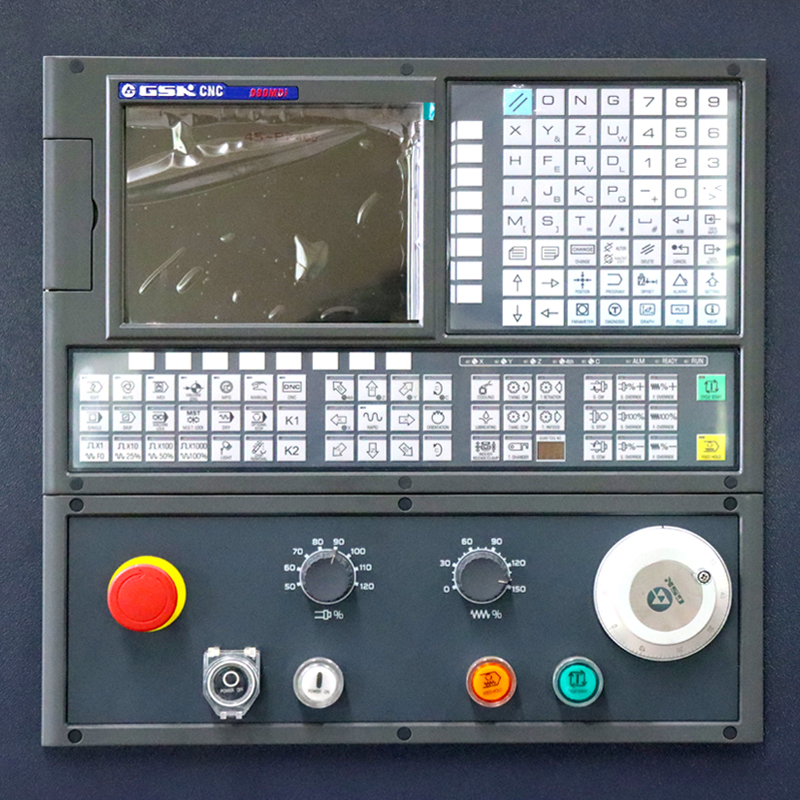

SYSTEM
Standsrd is GSK System
Optional : Fanuc/Siemens/KND...
|
MANUAL CHUCK
Standard: 3-jaw manual chuck
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
