Description:
Product Application
Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
Specifications:
| ITEM | XK7132 | XK7136 |
| CNC milling machine | XK7132 | XK7136 |
| Table size | 1000×320 | 1250×360 |
| Max. table load | 300kg | 400kg |
| T slot qty-width*distance | 3-14×110 | 3-14×80 |
| spindle speed | 60-8000 r p m | 60-8000 r p m |
| spindle nose to table surface | 125-520mm | 120-580 |
| Spindle center to Column surface | 360 | 460 |
| Spindle taper | BT40 | BT40 |
| Main motor power | 5.5kw (servo) | 5.5kw (servo) |
| X axis travel | 600mm | 900mm |
| Y axis travel | 400mm | 400mm |
| Z axis travel | 480mm | 500mm |
| X/Y/Z axis rapid feed | 8/8/6m/min | 5/5/4m/min |
| Positioning accuracy | ±0.01mm | ±0.01mm |
| Repeatability accuracy | ±0.005mm | ±0.005mm |
| Net Weight | 2500kg | 2650kg |

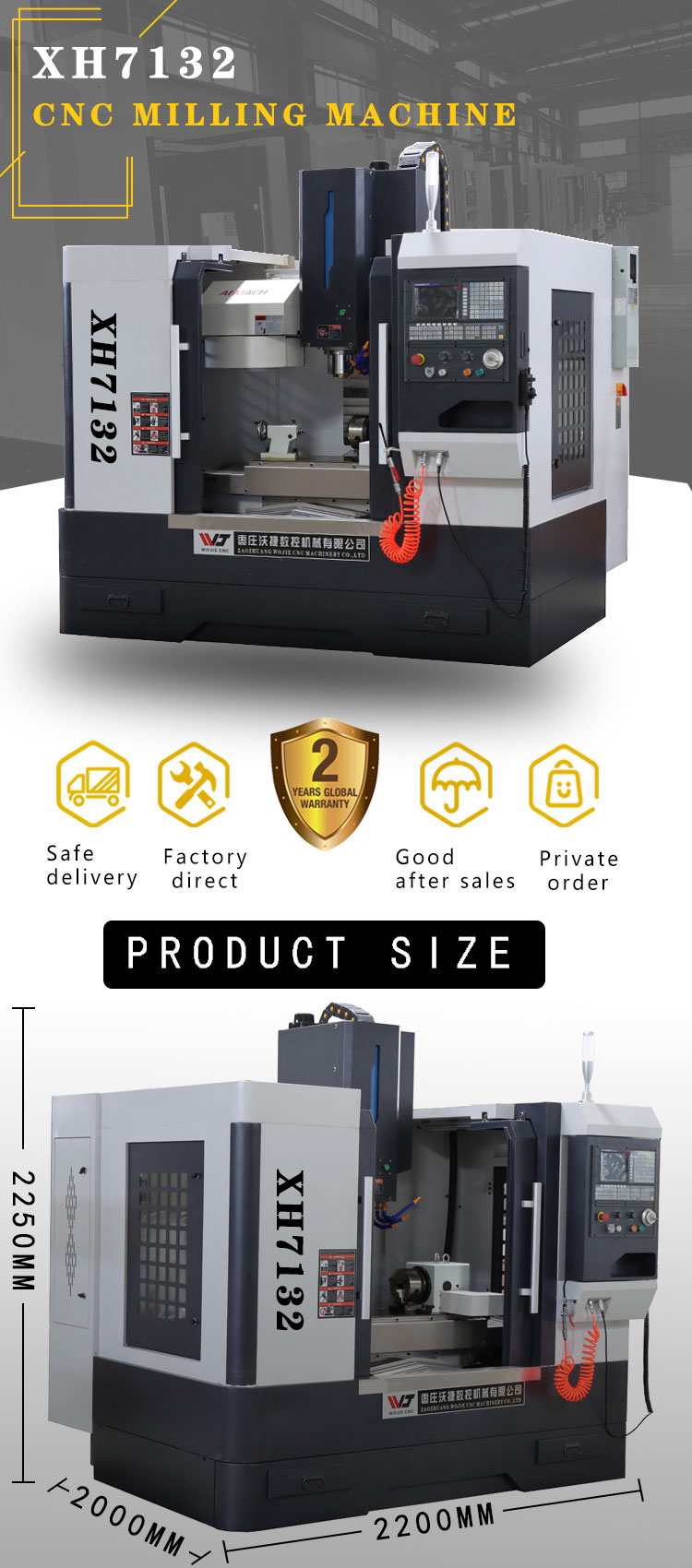

| Overall Dimension | 1900×1800×2100 | 2220×1850×2250 |
Product main technical specifications
Standard Configuration:
·KND-1000MI
·X/Y/Z axes SIEMENS servo motor&driver
·Servo spindle motor&driver
·10T FUNNEL type tool magazine
·Full closed cover
Optional configuration:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection
Detailed Images:
 |
|
|
High-Precision Spindle Unit
This golden spindle unit is the core of the XH7132, featuring BT40 taper and a max speed of up to 8000 rpm. It delivers stable, high-torque cutting performance, ensuring excellent machining accuracy and surface finish for metal parts. The advanced design also reduces vibration during high-speed operation.
|
Automatic Tool Changer (ATC)
The OKADA automatic tool changer enables fast, reliable tool exchange, significantly reducing non-cutting time. It works seamlessly with the BT40 spindle system, supporting efficient production for small-batch and complex part machining.
|
|
|
 |
|
Linear Guideway System
The X/Y/Z axes are equipped with high-precision linear guideways, which offer low friction, high rigidity, and excellent positioning accuracy. This design ensures smooth, precise movement of the machine table, ideal for high-speed contouring and fine machining tasks.
|
Ball Screw Drive System
The ball screw drive provides precise, backlash-free power transmission for the axes. Combined with the linear guideways, it guarantees the machine’s ±0.01mm positioning accuracy and ±0.005mm repeatability, meeting the demands of high-precision component manufacturing.
|
 |
|
|
Advanced CNC Control Panel
The XH7132 is equipped with a user-friendly CNC control panel, featuring a large touchscreen and intuitive operation keys. It supports precise programming, real-time monitoring, and flexible parameter adjustment, ensuring stable and efficient control of the machining process. The emergency stop button and handwheel provide enhanced operational safety.
|
Electrical Control Cabinet
This well-organized electrical cabinet houses high-quality servo drives, PLC modules, and wiring components. It ensures stable power supply and signal transmission, enabling reliable long-term operation of the machine. The modular design also simplifies maintenance and troubleshooting.
|
 |
 |
|
Automatic Lubrication System
The automatic lubrication unit delivers timed, precise lubrication to linear guides and ball screws. It effectively reduces friction and wear, extending the service life of key components while maintaining consistent machining accuracy.
|
Pneumatic Control System
The pneumatic system provides clean, regulated air pressure for tool clamping, chip removal, and other auxiliary functions. It ensures reliable and responsive operation of pneumatic components, supporting efficient and automated production workflows.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
