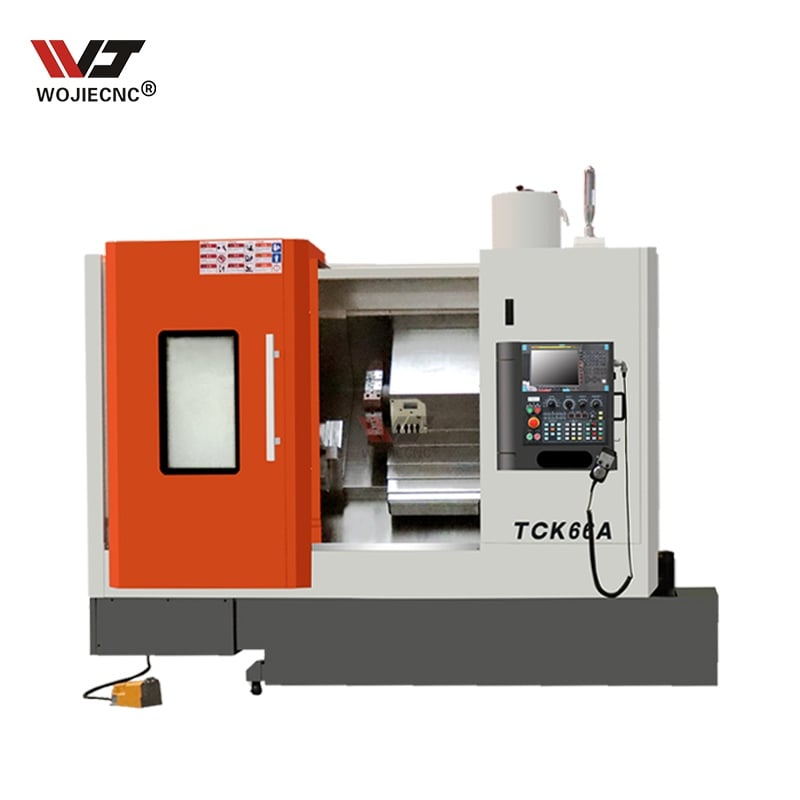

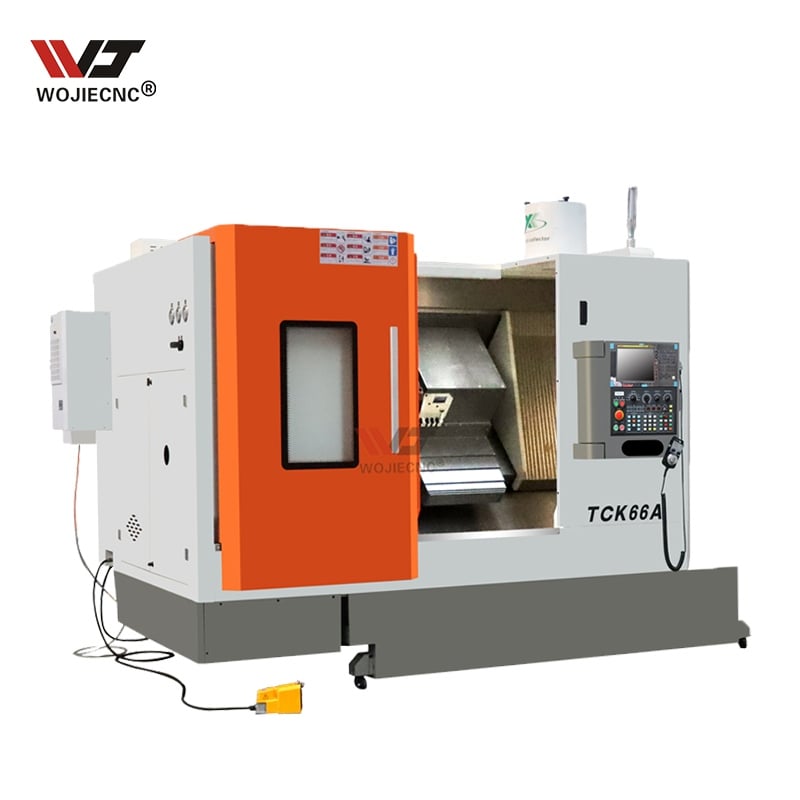

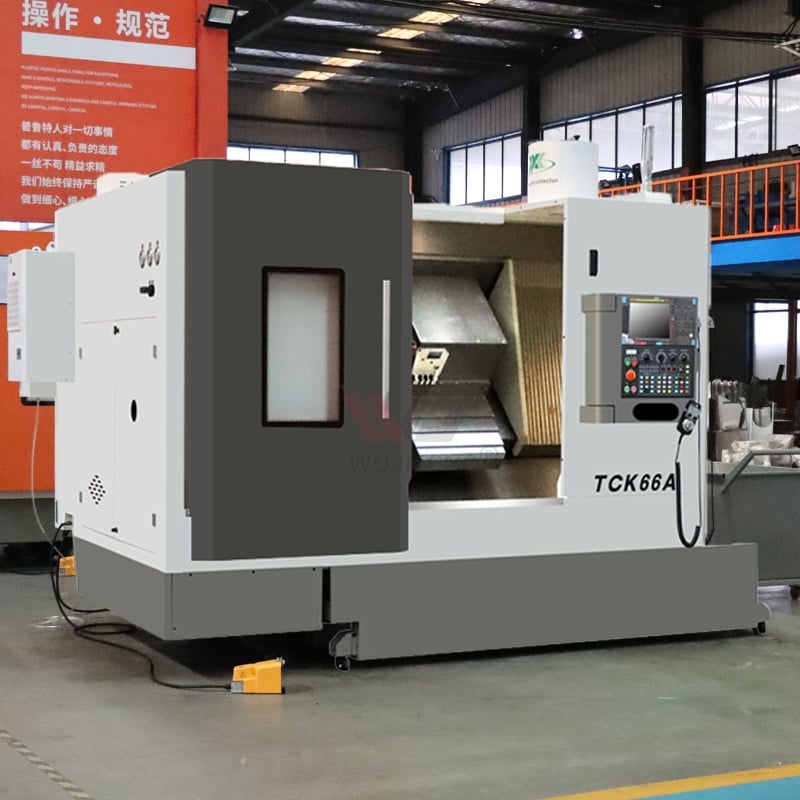

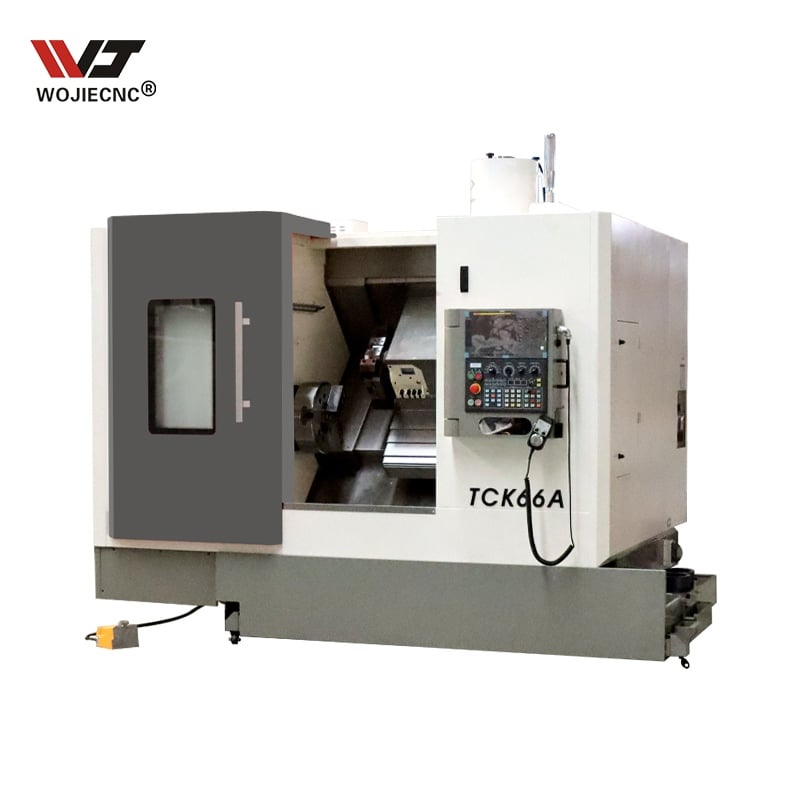

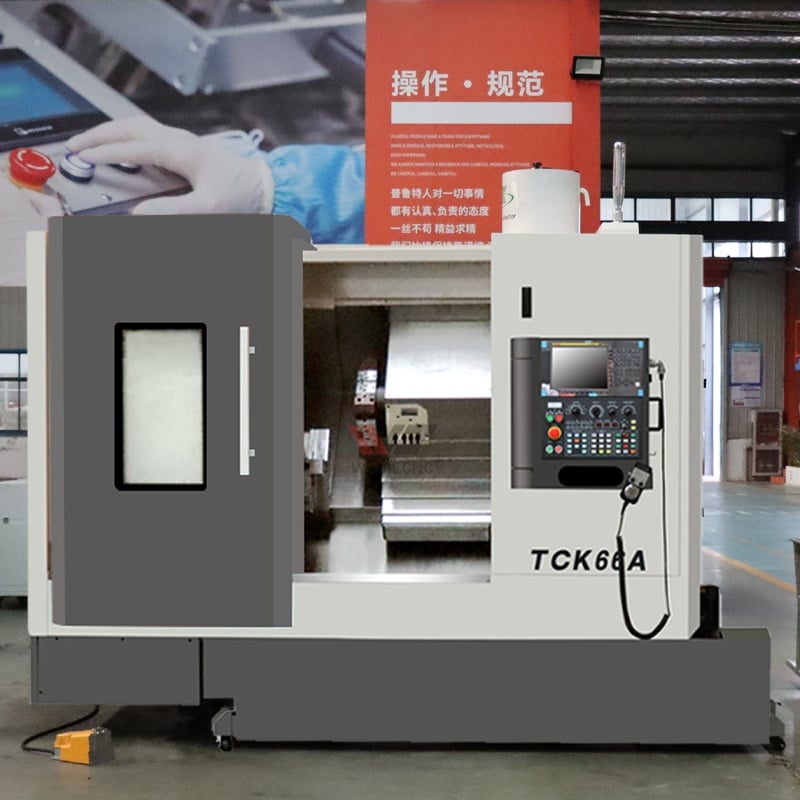

WOJIE High Precision CNC Lathe 2 Axes WJ66A CNC Lathe for Metal

Description:

Specifications:

Specifications	Unit	WJ66A
The maximum turning diameter on the bed	mm	660
The maximum turning diameter on the carriage	mm	400
Maximum processing length	mm	700
Maximum bar diameter	mm	75
Maximum Disc Processing Diameter	mm	500
Spindle end form		A2-8
Spindle through hole diameter	Φ/mm	85
Spindle speed range	r/min	0-2800
Spindle shift mode		Stepless speed regulation
Spindle motor power	KW	11
Chuck form		Hydraulic chuck
Chuck size	Inch	10"
X-axis rapid traverse speed	m/min	24
Z-axis rapid movement speed	m/min	24
X axis servo motor torque	N.m	10
Z axis servo motor torque	N.m	10
X-axis travel	mm	260
Z axis travel	mm	800
Rail form	mm	Linear Guides
Tool holder form		12-station
Tool size (square cutter/boring cutter size)	mm	25x25
Tailstock form		Hydraulic
Tailstock diameter	Φ/mm	100
Tailstock sleeve travel	mm	700
Tailstock sleeve taper		MT5#
Machine weight	kg	5500
Machine size	mm	470021002150

Detailed Images:

Automatic Lubrication System

Component Name

Centralized Automatic Lubrication System Moving Parts Protection)

Detailed Description

This is a timed automatic lubrication system dedicated to lubricating the high-wear components: linear guides, ball screws, and spindle bearings.

· Precision Lubrication: Automatically delivers quantitative lubricant at preset intervals, ensuring uniform oil film coverage for moving parts.

· Monitoring & Alerts: Equipped with a clear oil level gauge and pressure meter to alert operators of low oil levels or system blockages, preventing dry friction and premature component wear.

· Efficiency: Eliminates manual lubrication work, reduces maintenance labor costs, and extends the service life of core components—critical for maintaining the long-term machining precision.

Electrical Control Cabinet

Component Name

Integrated Electrical Control Cabinet (Power & Control Core)

Detailed Description

This enclosed electrical cabinet houses the core electrical components, including FANUC servo drives, relay modules, circuit breakers, and I/O terminals.

· Reliability: Adopts industrial-grade electrical components with strict wiring standards (neat, labeled circuits) to ensure stable signal transmission and prevent electrical interference.

· Safety Protection: Equipped with overload protection, short-circuit protection, and emergency power-off circuits to safeguard the machine from electrical failures and protect operators.

· Maintenance-Friendly: Modular component design simplifies troubleshooting and part replacement, reducing long-term maintenance costs.

TCK66A CNC Lathe – Turret Detail

This image displays the 6-station hydraulic turret of the TCK66A slant bed lathe. Designed for quick tool indexing and high repeatability, it delivers stable clamping and precise positioning for turning operations. The robust, rigid structure ensures reliable performance in heavy-duty cutting, while the compact layout supports efficient tool changes to boost machining productivity.

FANUC CNC Control System & Operation Panel

Component Name

FANUC CNC Control Panel ( Core Control Unit)

Detailed Description

This is the central control hub of the lathe, equipped with a high-precision FANUC CNC system—renowned for its stability and user-friendly operation. The panel integrates a color LCD display, multi-function operation keys, and dedicated control knobs.

· Core Functions: Enables program input/edit, real-time monitoring of machining coordinates/spindle speed/feed rate, and one-click switching between manual (JOG), automatic, MDI (Manual Data Input), and dry run modes.

· Safety & Efficiency: Features a prominent red emergency stop button for immediate power cut-off in hazardous situations; optimized key layout reduces operator fatigue and minimizes production downtime.

· Compatibility: Supports complex turning processes (OD/ID turning, threading, taper cutting, grooving) and delivers high repeatability, making the ideal for high-volume precision machining.
