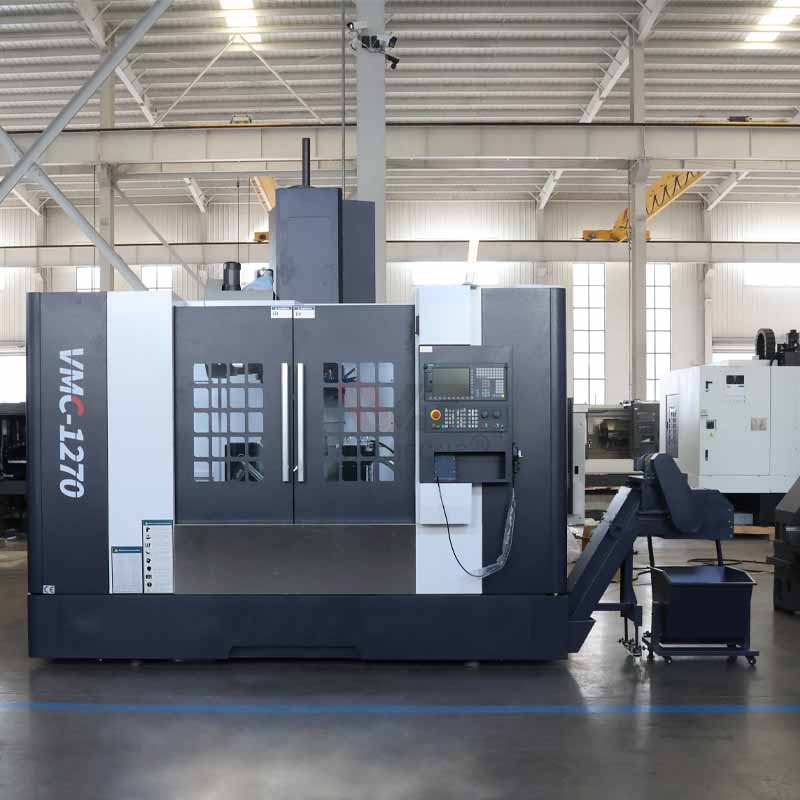

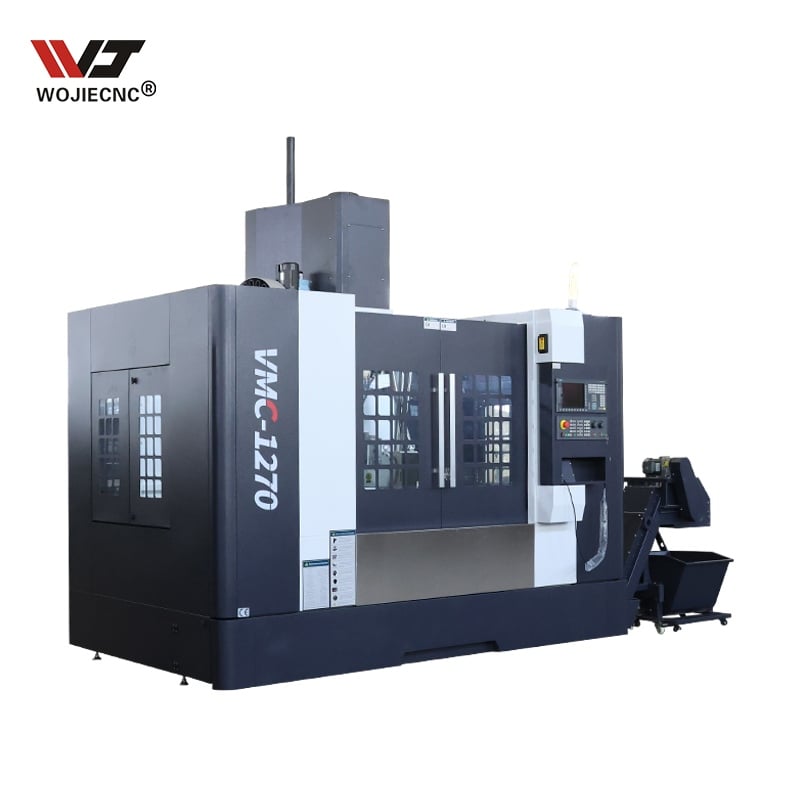

Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis
Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis
Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis
Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis

Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis

Inquiry
  • Description
  • Specifications
  • Detailed Images
  • Company Introduction

Description:

Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Specifications:

Workbench size (mm)

700x1300

Workbench load bearing (kg)

900

Workbench T-slot (number-size x spacing)

7-18x100

X-axis left and right travel (mm)

1200

Y-axis front and rear travel (mm)

700

Z-axis up and down stroke (mm)

600

Distance between spindle nose and work surface

120-720

Distance between spindle center and column guide surface

835

Maximum spindle speed (rpm)

10000

Max. table loading capacity

1200Kg

Spindle

BT40/150

Main motor power

11KW

X axis rapid feed

30m/min

Y axis rapid feed

30m/min

Z axis rapid feed

24m/min

Cutting feed

1-10m/min

Tool changer type Tools capacity

24T arm type

X-axis ball screw specifications

4012

Y-axis ball screw specifications

4012

Z-axis ball screw specifications

4012

X-axis guide rail

45 rollers*3 slider

Y-axis guide rail

55 roller*2 slider

Z-axis guide

45 rollers*3 slider

Positioning accuracy

±0.0075mm

Repeat positioning accuracy

±0.005mm

Net weight

7800kg

Detailed Images:

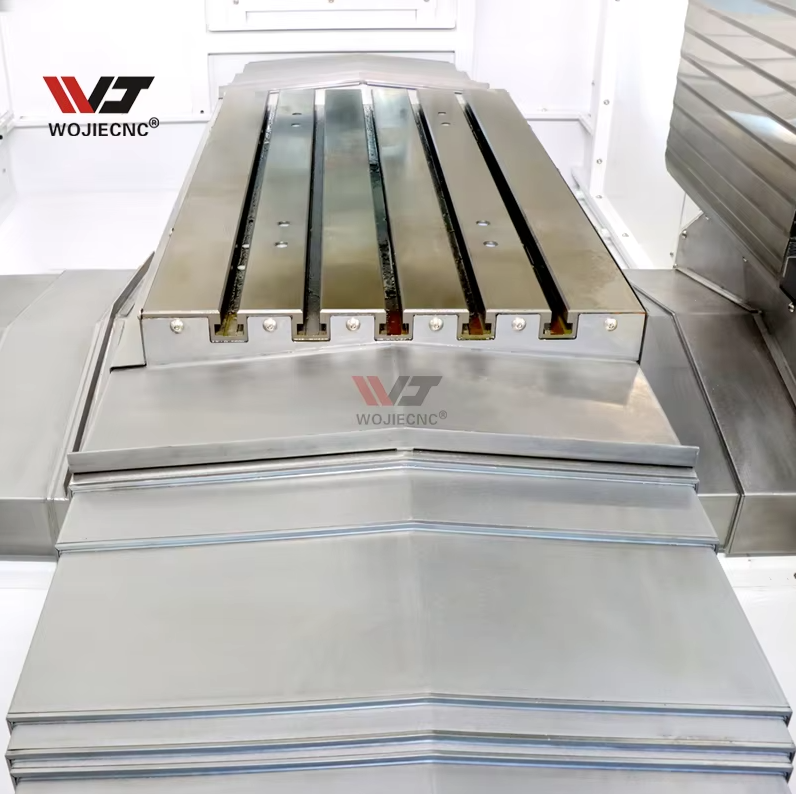

WORKBENCH
High-frequency quenching for better rigidity.
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40.
2. Spindle speed 8000rpm , can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.


TAIWAN BRAND LINEAR GUIDE WAY
3-axis linear guide using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
TAIWAN BRAND SCREW
3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.

TAIWAN TOOL MAGAZINE
1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 2-3 seconds.

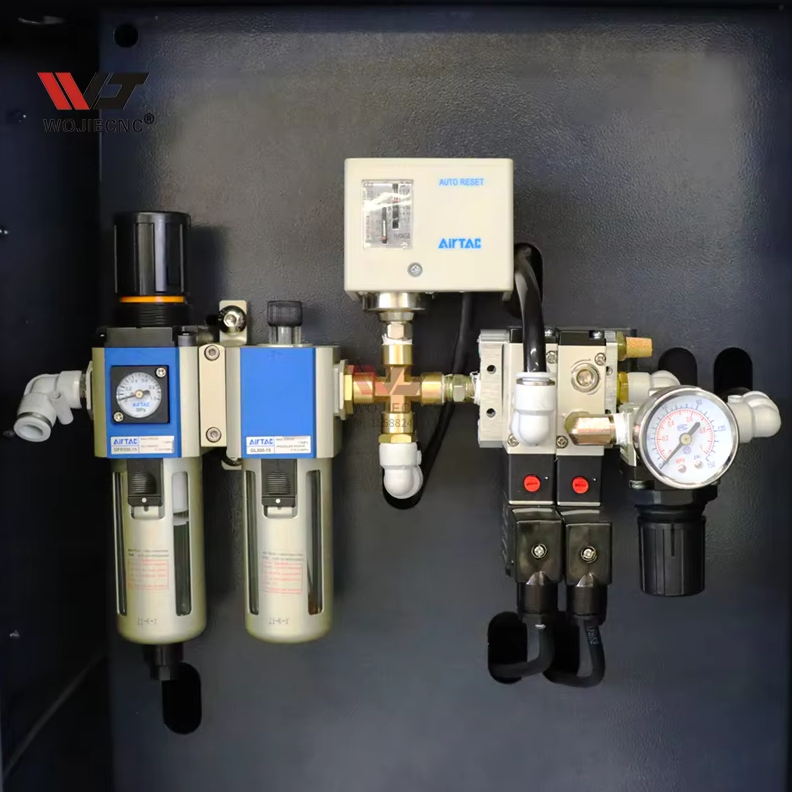

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.


CONTROL SYSTEM
Standard: GSK / KND control.
Optional : Siemens , FANUC, Syntec ect.
DELIXI ELECTRICAL COMPONENTS
1. With safety electrical components.
2. Optional :SCHNEIDER Brand


LUBRICATION SYSTEM
Automatic centralized lubrication device.

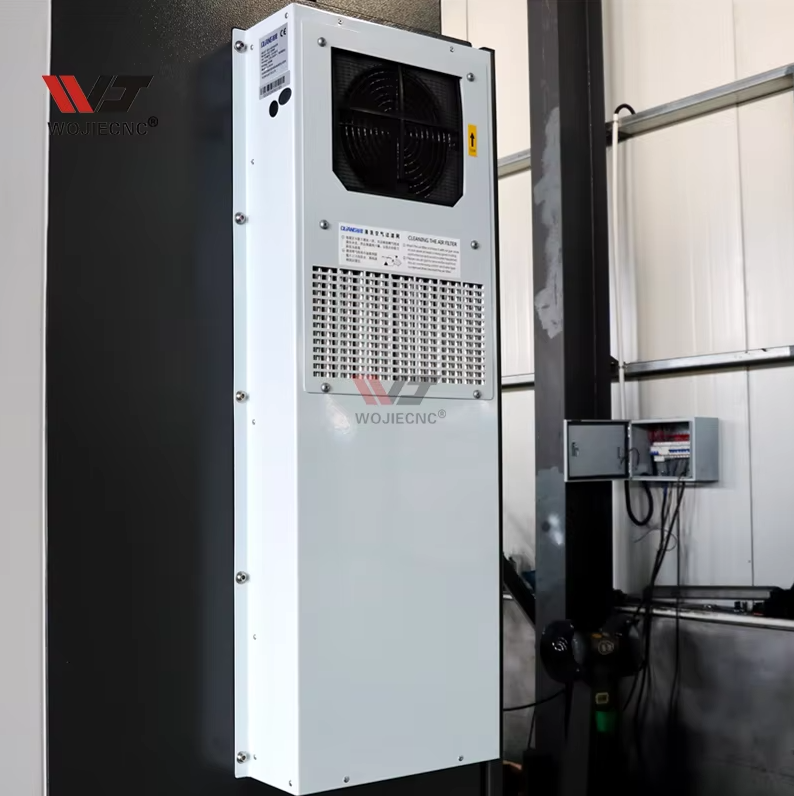

HEAT EXCHANGE
Standard configuration: Electrical cabinet heat exchanger.
Optional configuration: Electrical cabinet air conditioner.

Company Introduction:


ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
