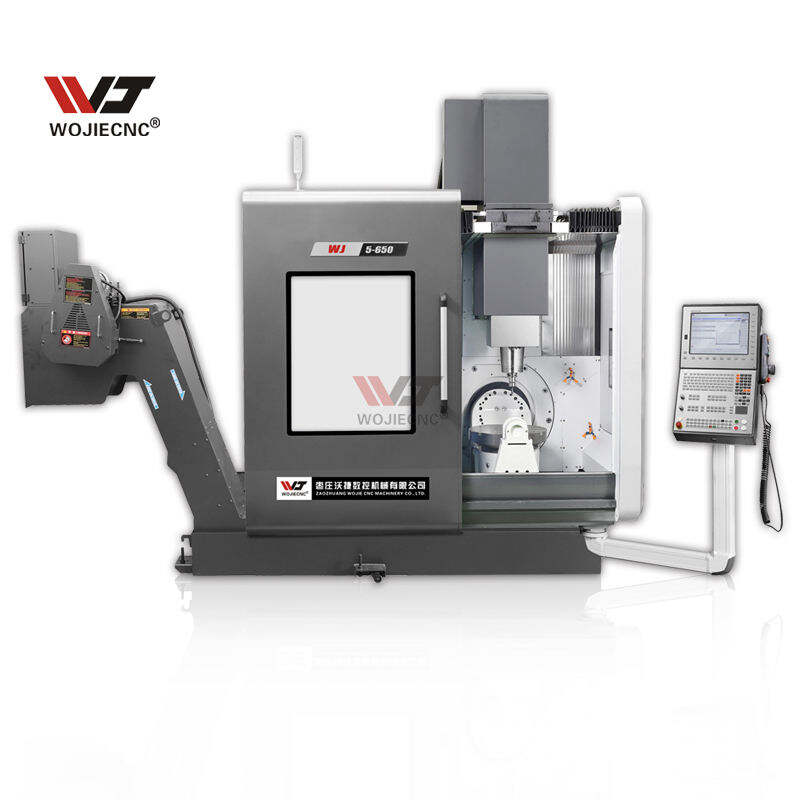

WJ5-650 5 Axis CNC Milling Machine 5 Axis CNC Machining Center with Rotating Table

Description:

Place of Origin:	China
Brand Name:	WOJIE
Model Number:	WJ5-650
Certification:	Provided
Minimum Order Quantity:	1 set
Price:	1 - 3 sets $182,666
Price:	5 sets $168,888
Number of Axes	5
Spindle Motor Power	25 kw
Spindle Motor Power	37.5 kw
Packaging Details:	470039003400 mm
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	Unlimited stock

Standard Configuration:

GSK System

X, Y, Z, A, C full-axis scale

fully closed-loop control

Cradle type AC direct drive rotary table

Spindle oil cooler

Chain type chip conveyor

Air conditioner

Center through

Specifications:

specification	Units	WJ5-650
Table size	mm	Φ650
T-slot size	mm	14H8
Table center hole	mm	φ50H8
Max.table load	kg	850
X-axis travel	mm	600
Y-axis travel	mm	650
Z-axis travel	mm	600
A-axis rotation range	°	±120
C-axis rotation range	°	360
Distance from spindle nose to table surface	mm	150-750
Spindle taper	--	HSK-A63
Max.spindle speed	rpm	15000
Spindle motor power	kW	25/37.5
Max.torque of spindle	N.m	91.7/37.5
Tool magazine type	--	Flat Chain Type
Tool magazine capacity	pcs	40
Max.diameter tool(full/Empty)	mm	Φ76/Φ125
Max.tool length	mm	300
Max.tool weight	kg	8
Tool change time(T-T)	S	2~~4
Rapid feed speed(X/Y/Z)	mm/min	36000/36000/36000
Cutting feed speed(X/Y/Z)	mm/min	1-10000/1-10000/1-10000
Positioning accuracy(X/Y/Z)	mm	0.008
Positioning accuracy(A/C)	mm	5
Repeat positioning accuracy(X/Y/Z)	kg	0.005
Repeat positioning accuracy(A/C)	mm	4
Machine weight	kg	15000
Machine overall size(LWH)	mm	460038403300

Detailed Images:

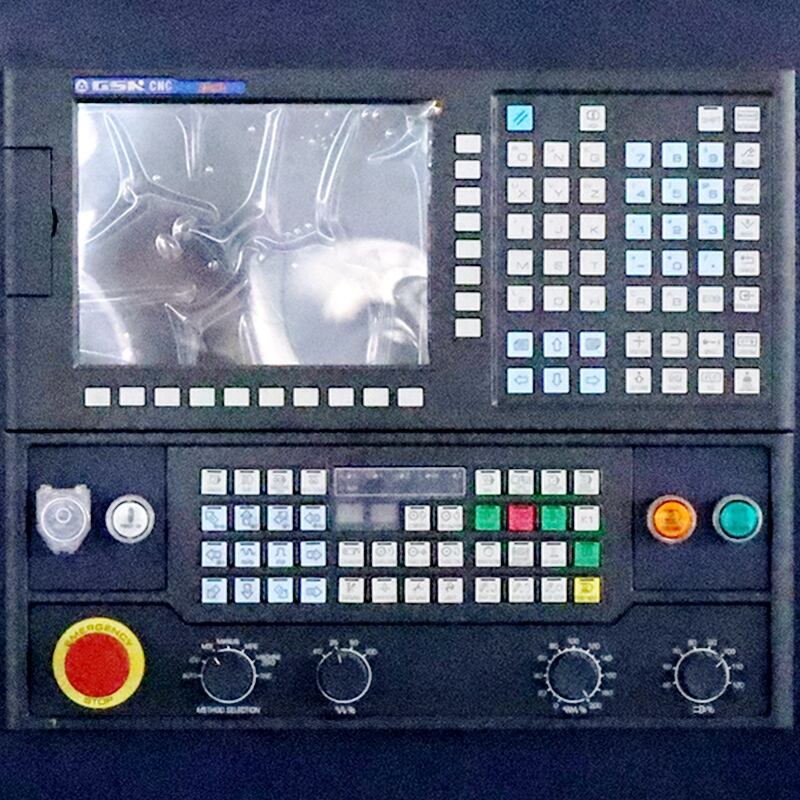

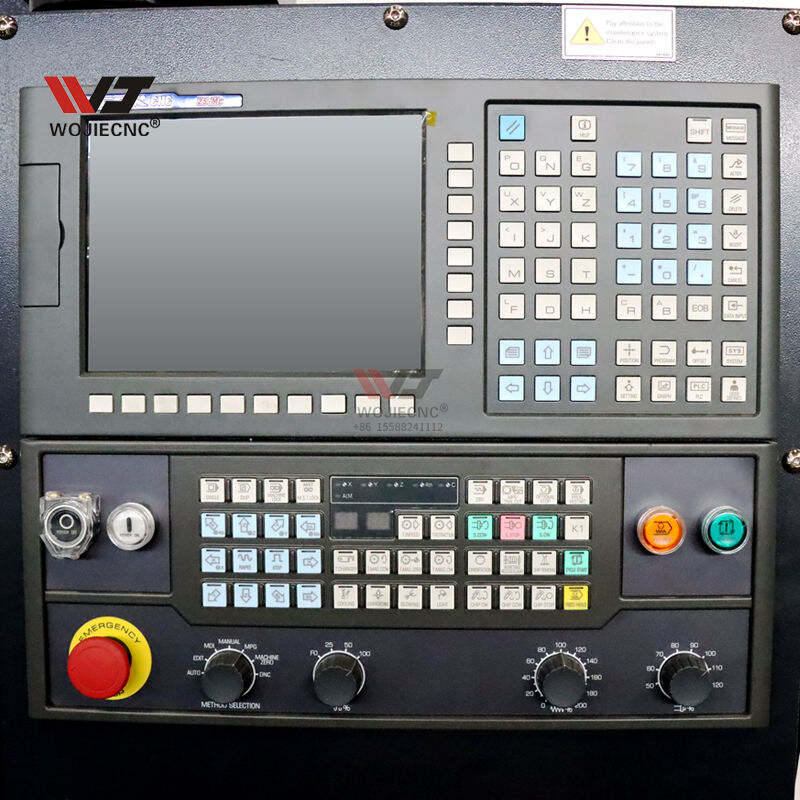

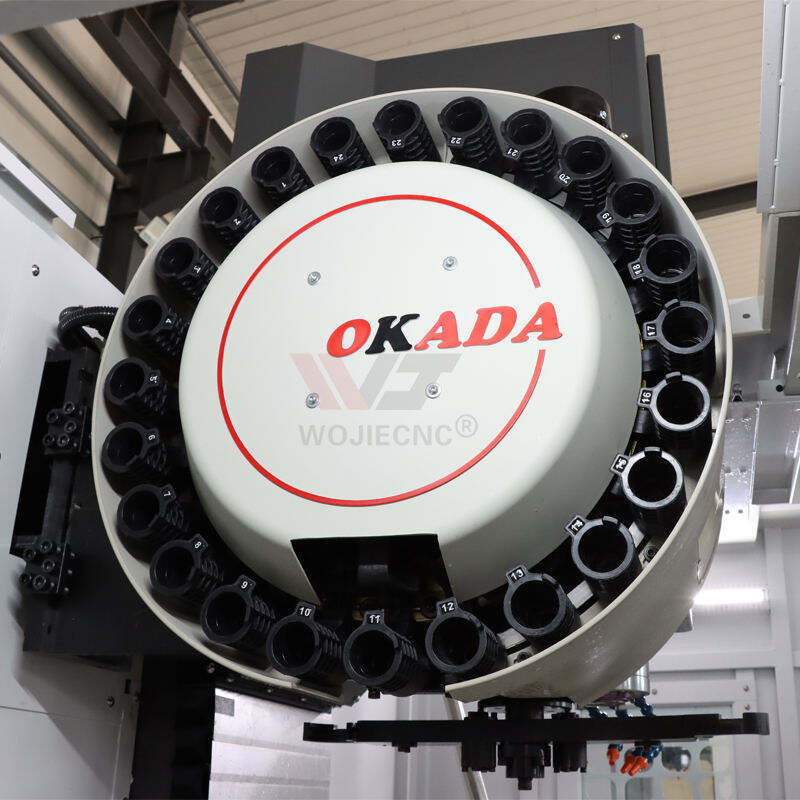

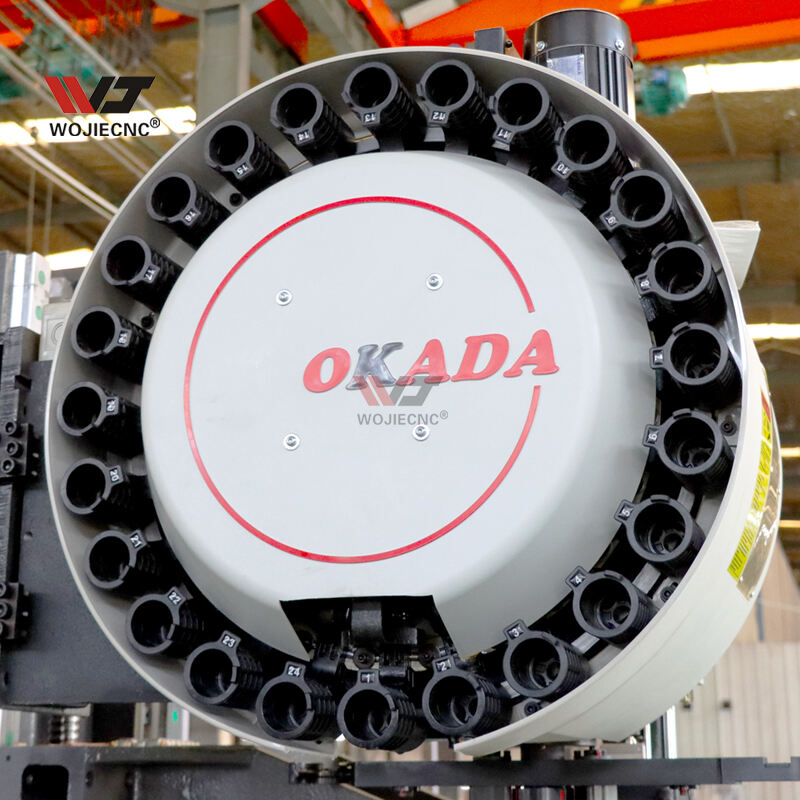

CONTROL SYSTEM GSK System	TAIWAN TOOL MAGAZINE 1. Taiwan OKADA arm 24 tool magazine. 2.tool change time only 2-3 seconds.

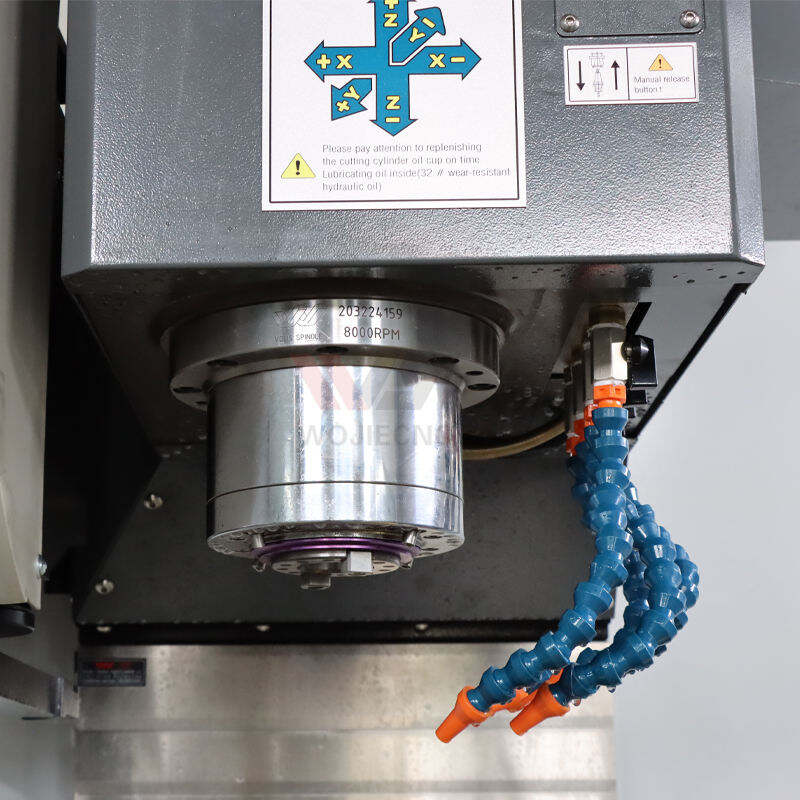

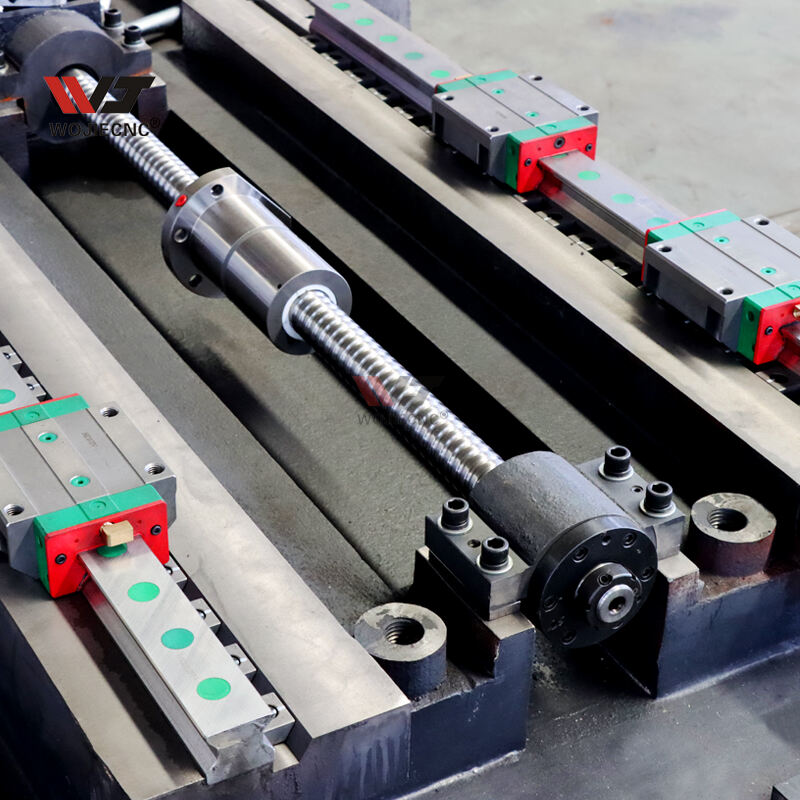

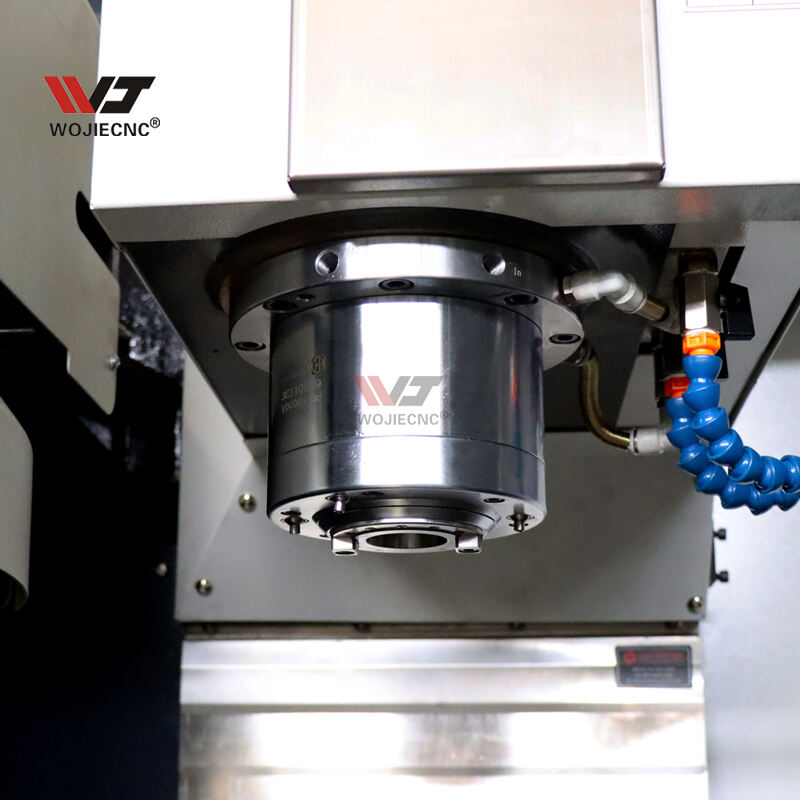

TAIWAN SPINDLE 1. Spindle taper is HSK-A63. 2. Spindle speed 15000rpm.	TAIWAN LEAD SCREW AND LINEAR GUIDE WAY 1. Taiwan Hiwin/PMI

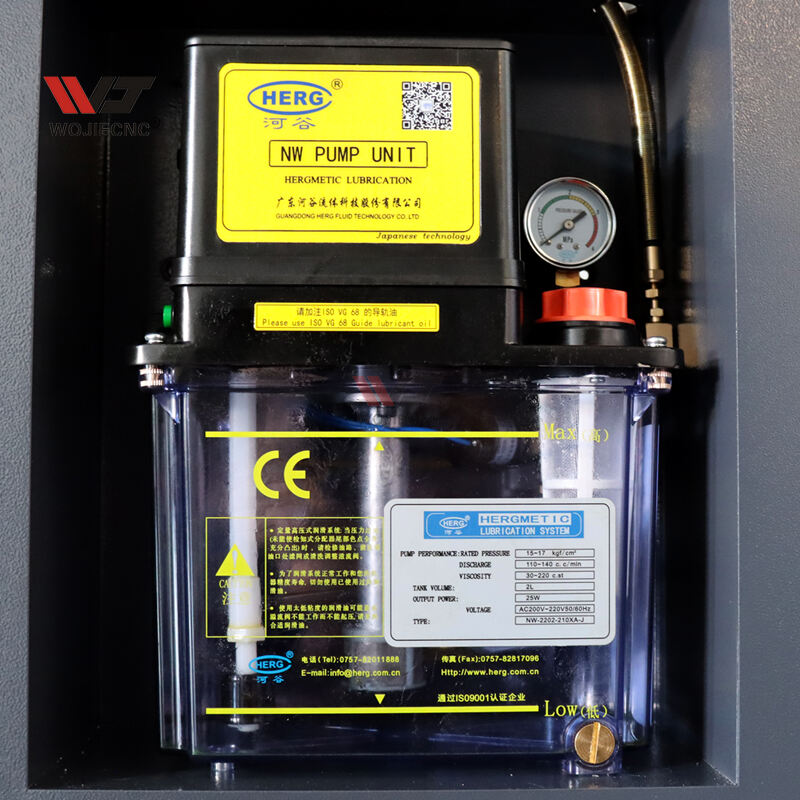

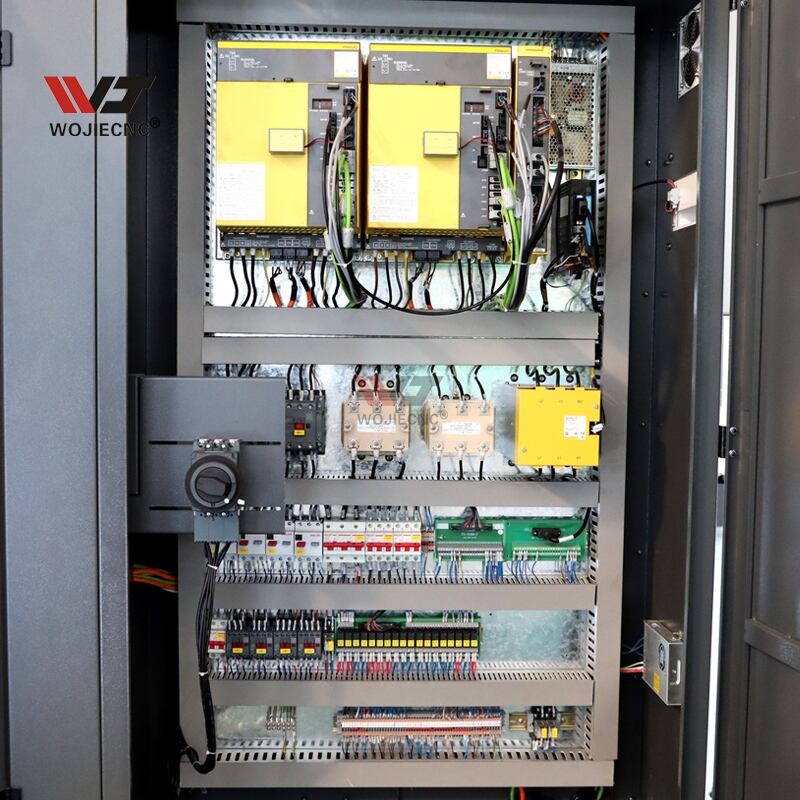

DELIXI ELECTRIC BOX	AUTOMATIC LUBRICATION SYSTEM

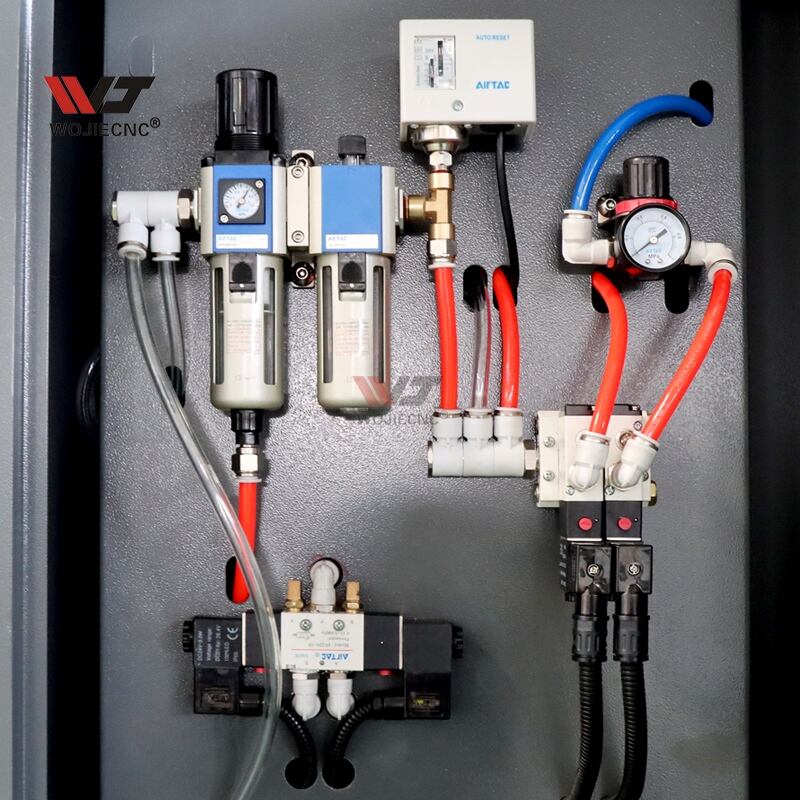

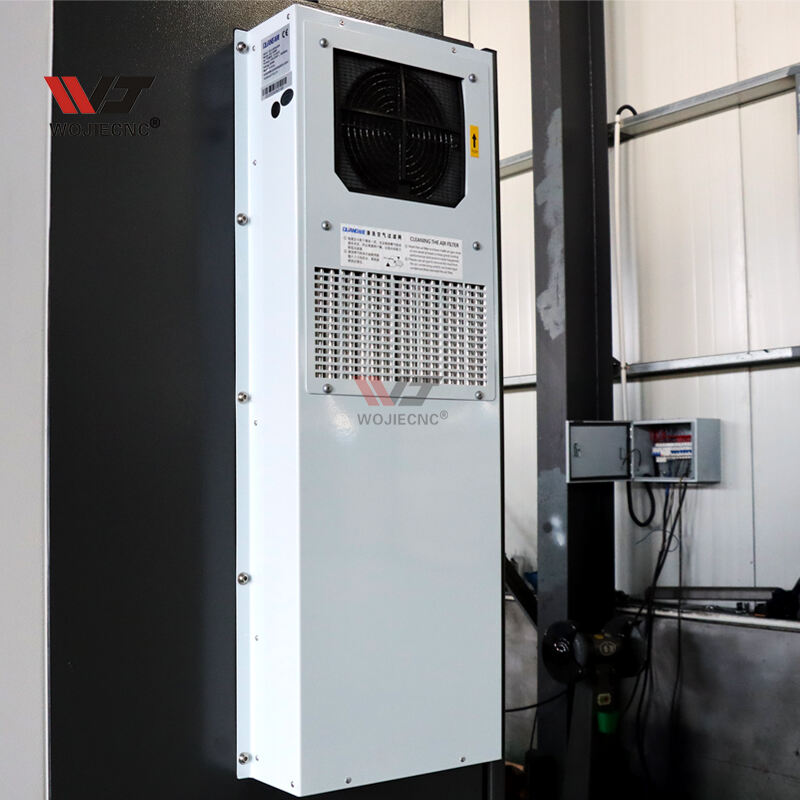

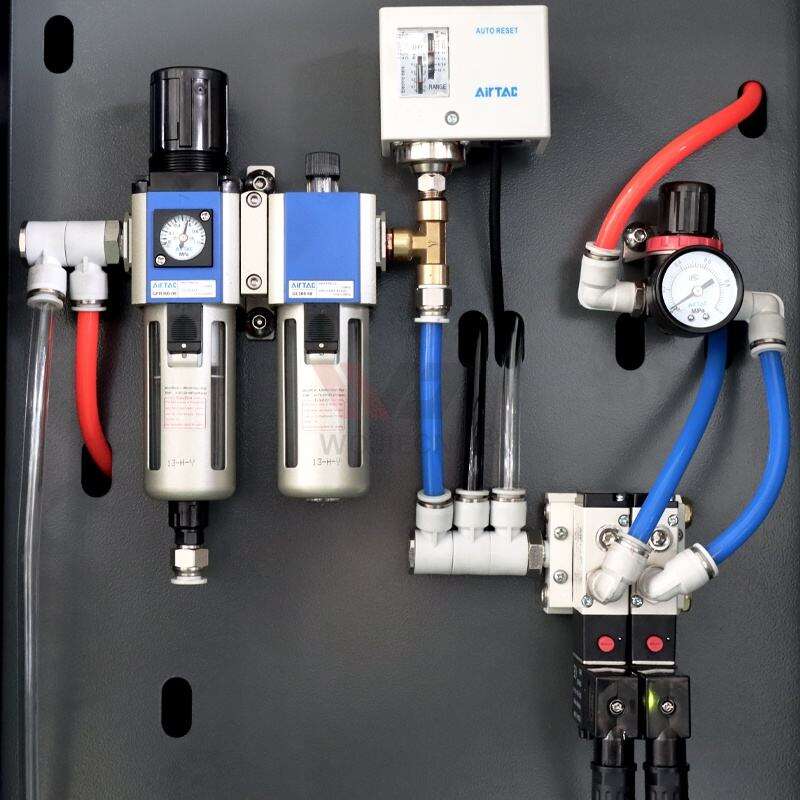

PNEUMATIC COMPONENTS	HEAT EXCHANGE

Optional Configurations:

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready ,

we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days.

if some special machines will be some longer. The ship time is about 30 days to Europe, America.

If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
