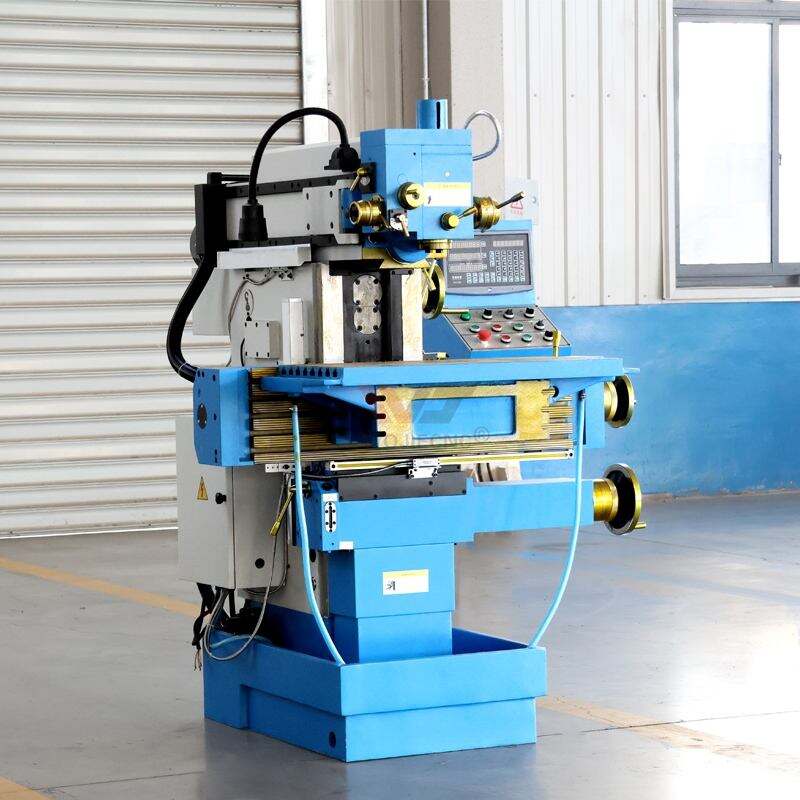

X8140 Universal Milling Machine Knee Type Manual Milling Machine for Metal Processing
|
Attribute |
Value |
|
Type |
VERTICAL |
|
Machining capacity |
Light Duty |
|
Table travel (X) (mm) |
350 |
|
Table travel (Y) (mm) |
350 |
|
Table travel (Z) (mm) |
350 |
|
Spindle taper |
ISO40 |
|
Range of spindle speed (r.p.m) |
55 - 315 |
|
Weight (kg) |
1200 |
|
Warranty |
1 Year |
|
Max. table load (kg) |
200 |
|
Place of origin |
Shandong, China |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
1.1.1 Universal tool milling machine
A multi-functional machining equipment that can perform various types of cutting processes such as boring, milling, drilling, and slotting.
Specifications:
|
Specification |
Sub-item |
X8140 |
|
Working table |
(H) Working table (W×L) |
400×800 mm |
|
|
(V) Working table (L×W) |
950×250 mm |
|
X Y Z Travel |
- |
500/350/400 mm |
|
H/V spindle speed steps/range |
- |
18 steps, 40-2000 rpm |
|
X Y Z feeds: steps/range |
- |
18 steps, 10-500 mm/min |
|
Vertical Spindle head |
Vertical travel of quill |
60 mm |
|
|
Axial inclination left and right |
±90° |
|
Spindle Taper hole |
- |
ISO40 |
|
Work table |
Horizontal swivel |
±360° |
|
|
F,B |
±30° |
|
|
L,R |
±30° |
|
Motor power |
- |
3kW/1.5kW |
|
Max. table load |
- |
400 kg |
|
Overall dimensions (L×W×H) |
- |
1820×1640×1700 mm |
|
Packing dimensions (L×W×H) |
- |
1850×1700×1750 mm |
|
N.W |
- |
2300 kg |
|
G.W |
- |
2500 kg |
Detailed Images:
 |
 |
|

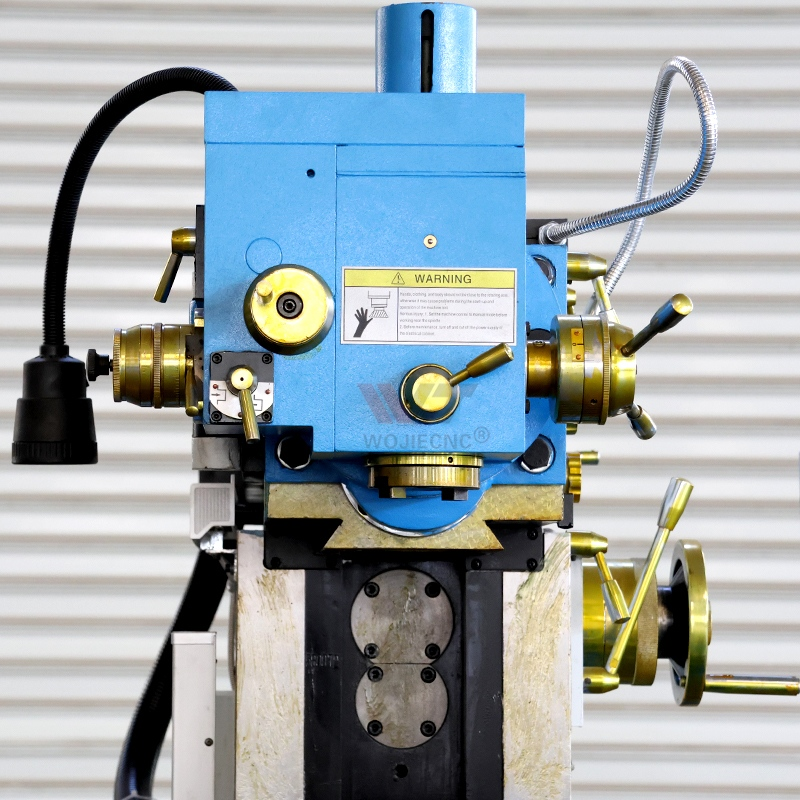

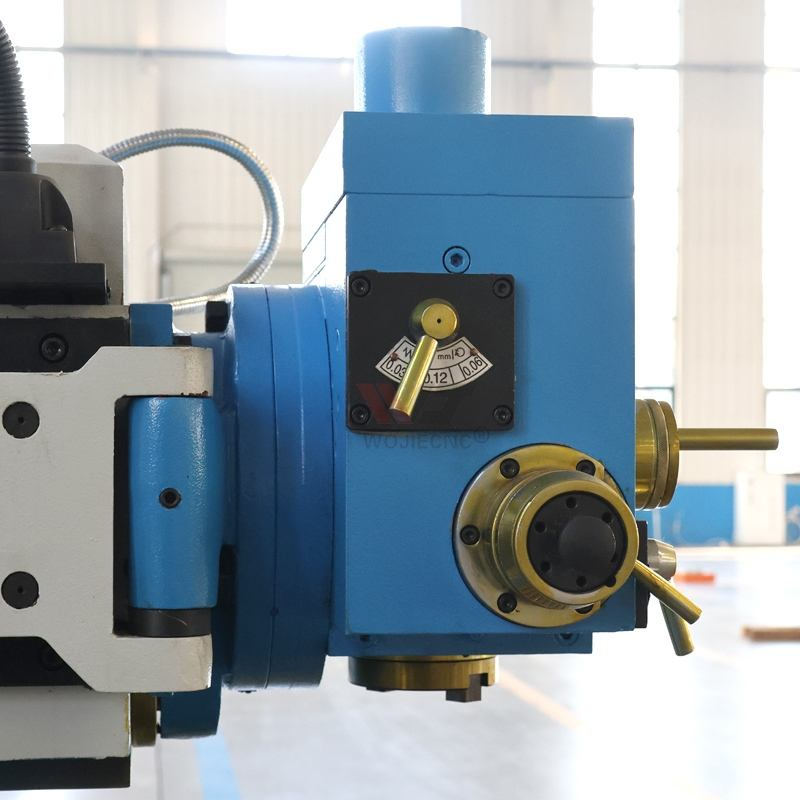

Milling Head Assembly
The X8140 features a heavy-duty, swiveling milling head that supports vertical and horizontal milling operations. The robust structure delivers stable cutting performance, while the manual adjustment handles enable precise angle and feed control for diverse metalworking tasks.
|

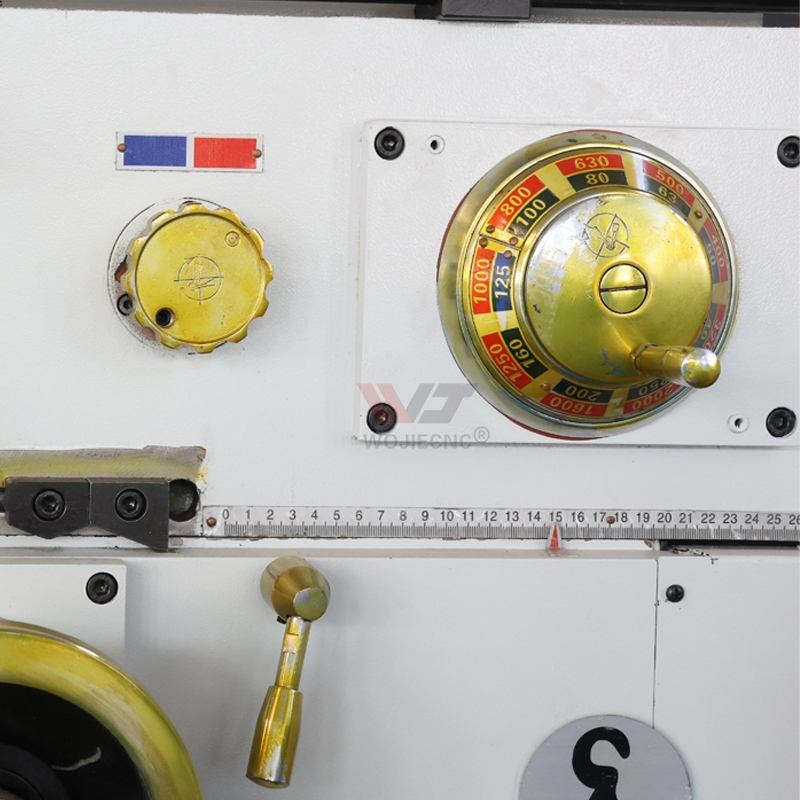

Speed Control & Lubrication System
The X8140 is powered by a reliable multi-speed gearbox, offering a wide range of spindle speeds to match different cutting tools and materials. The centralized lubrication system ensures smooth operation, extends component lifespan, and reduces maintenance needs.
|
 |
 |
|

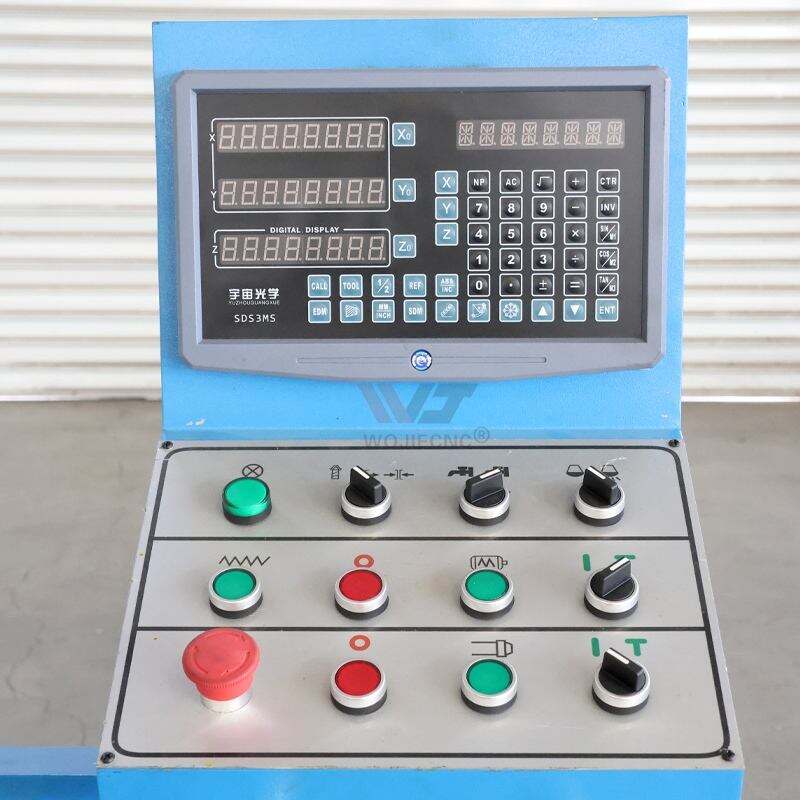

Control Panel & DRO System
Equipped with a high-precision DRO system and ergonomic control panel, the X8140 allows operators to easily monitor machining coordinates, adjust feed rates, and control spindle operations. The clearly labeled buttons and emergency stop ensure safe, efficient operation for both manual and semi-automatic machining.
|
Feed Mechanism & Tool Post
The machine is fitted with a durable automatic feed system and adjustable tool post, supporting longitudinal, cross, and vertical feeds for efficient batch production. The manual override handles allow fine-tuning for complex operations and custom machining requirements.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
