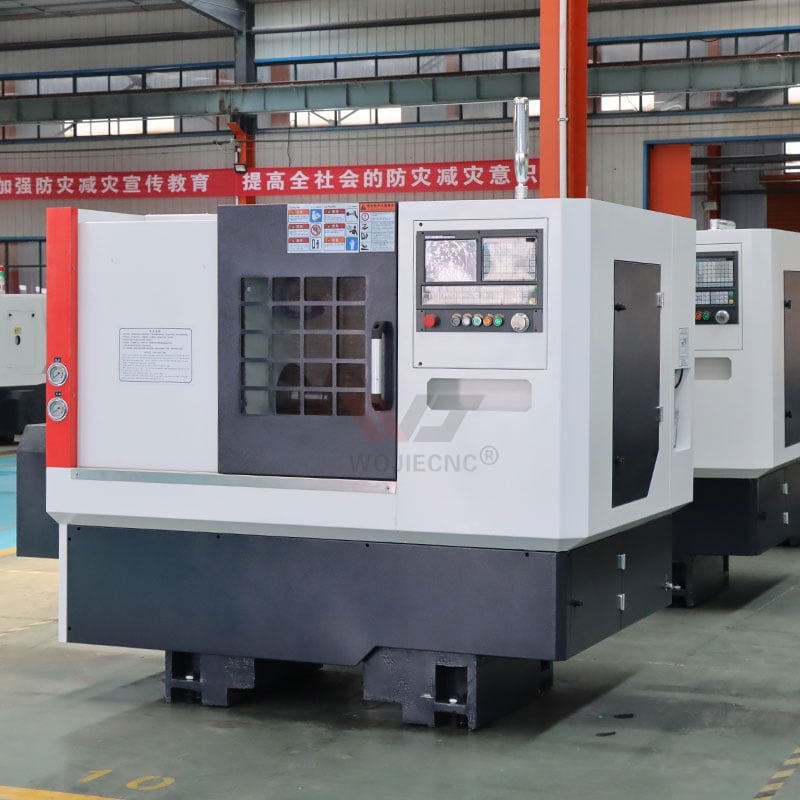

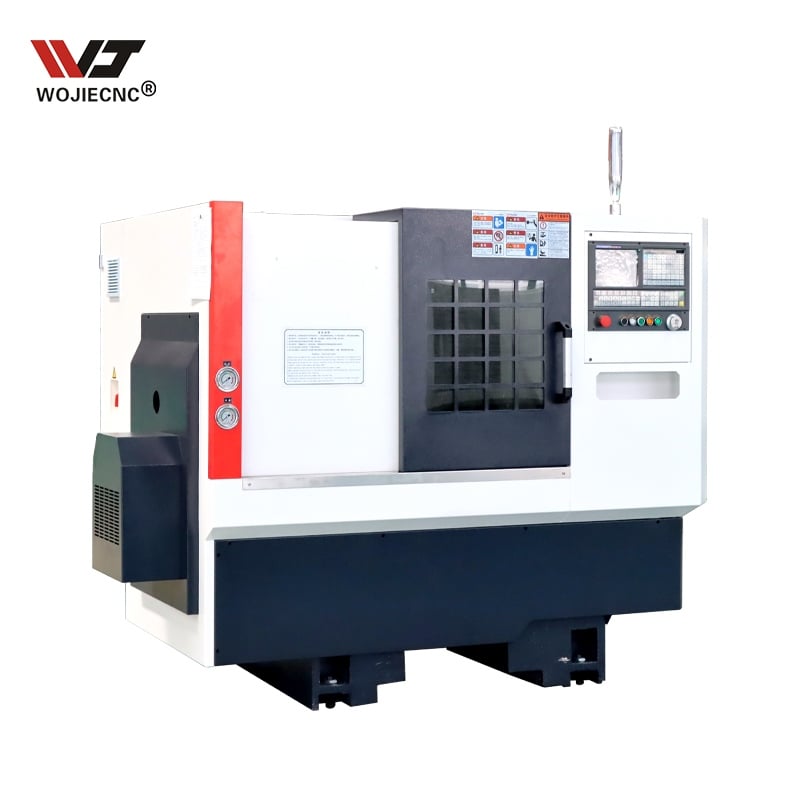

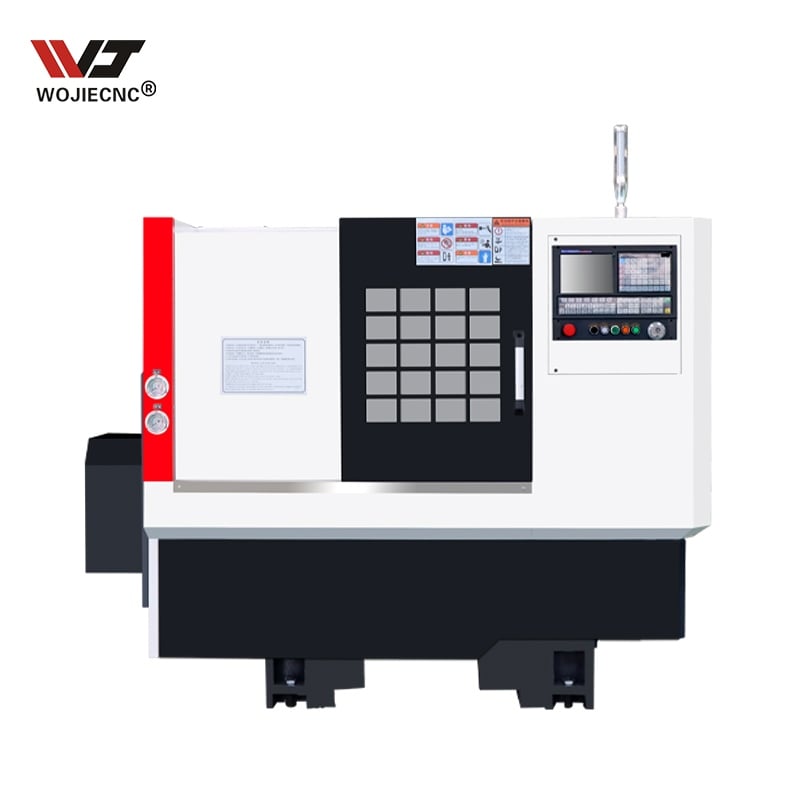

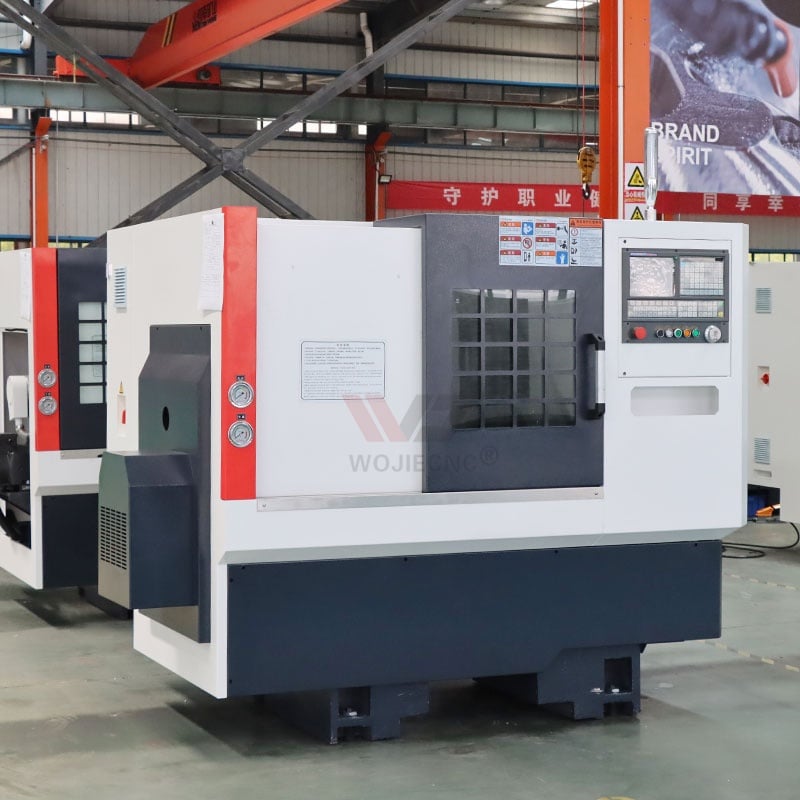

Precision WOJIE Automatic Horizontal Single Spindle Medium Duty WJ6340 Slant Bed 2-Axis CNC Lathe Machine
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product description:
This series of machine tools adopts an integral bed with a 30° bevel angle, and the bed material is HT300. It is cast using resin sand technology and has a reasonable internal rib layout. The guide rail adopts imported linear roller guide rail, which has improved feeding accuracy, small friction resistance, good rigidity, high resistance to vibration and deformation, allowing users to obtain higher processing accuracy, increase the speed of rapid movement, and obtain higher production efficiency.
Specifications:
|
SPECIFICATIONS |
Units |
WJ6340 |
|
Swing over Bed |
mm |
400 |
|
Swing over Cross Slide |
mm |
140 |
|
Distance between Centers |
mm |
200 |
|
X/Z-axis Travel |
mm |
400/300 |
|
Spindle Unit |
mm |
140 |
|
Spindle Nose Type |
- |
A2-5 |
|
Spindle Bore |
mm |
48 |
|
Bar Capacity |
mm |
40 |
|
Spindle Speed Range |
rpm |
3500 |
|
Chuck Size |
In |
6 |
|
Spindle Motor |
kw |
3.7/5.5 |
|
X/Z-axis Repeatability |
Mm |
+/-0.003 |
|
X/Z-axis Feed Motor Torque |
Nm |
6/6 |
|
Cutting Tool Size |
mm |
20*20 |
|
Machine Weight |
kg |
2200kg |
|
Overall Dimensions |
mm |
2200*1530*1780 |

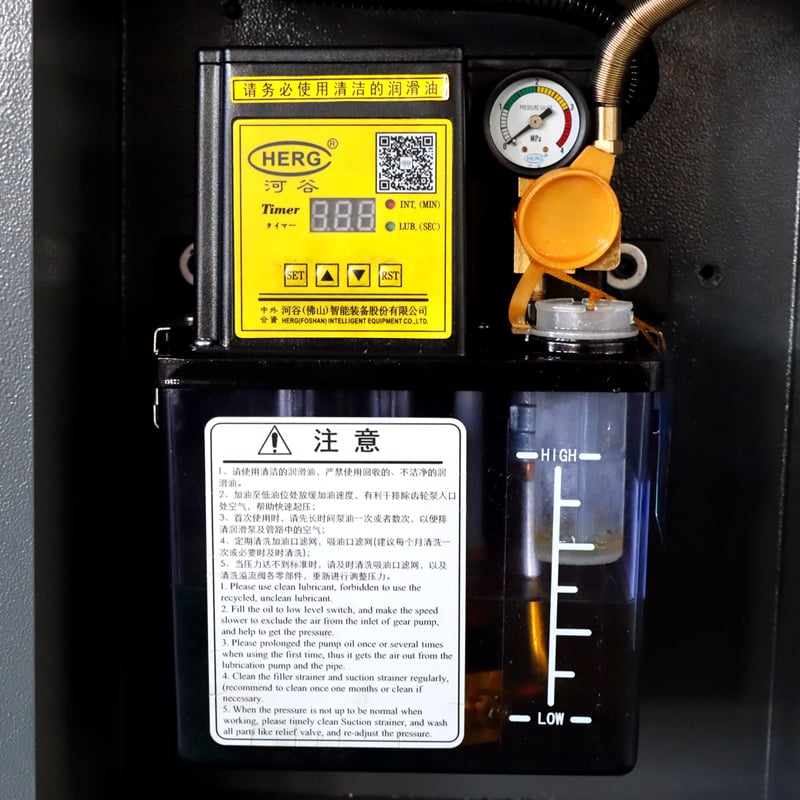

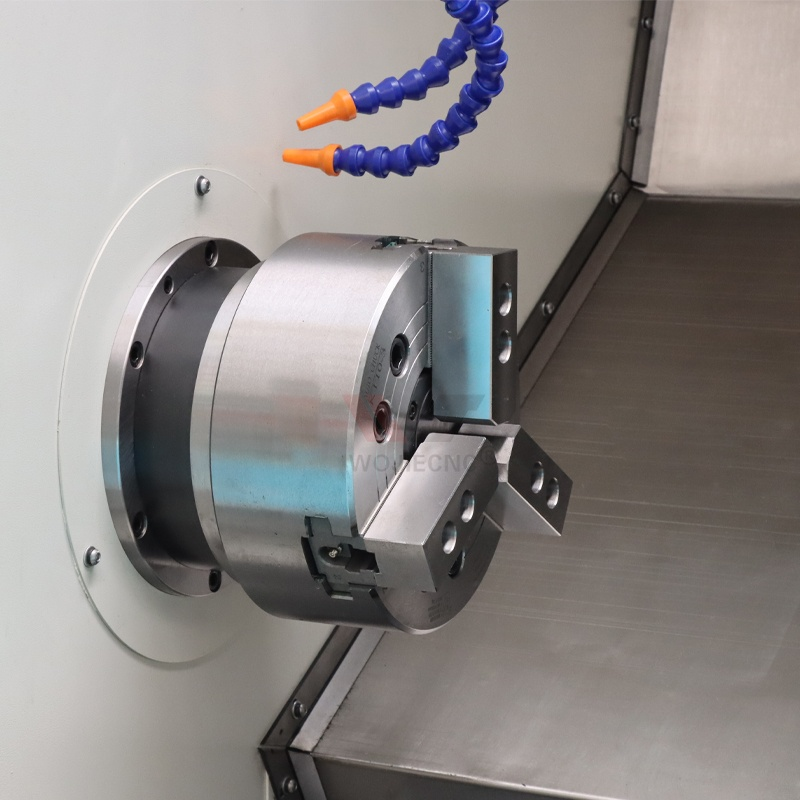

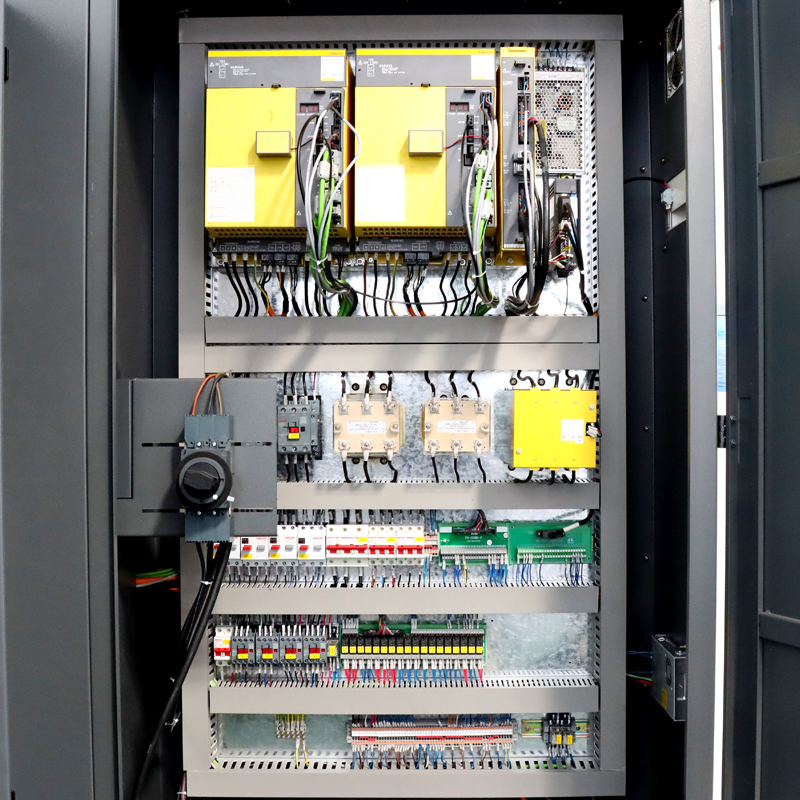

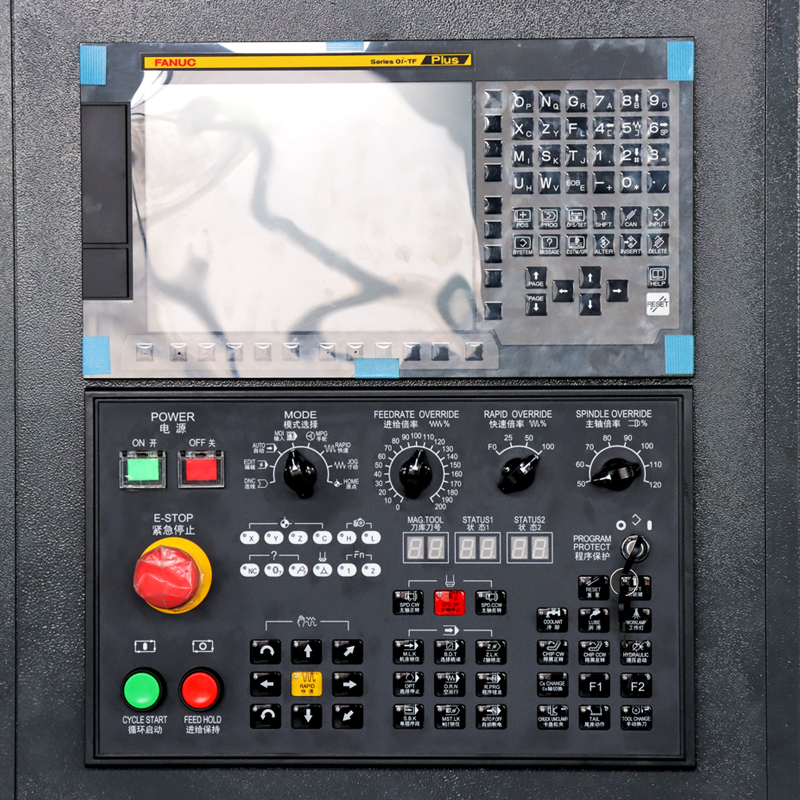

Detailed Images:
Optional Configurations:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
