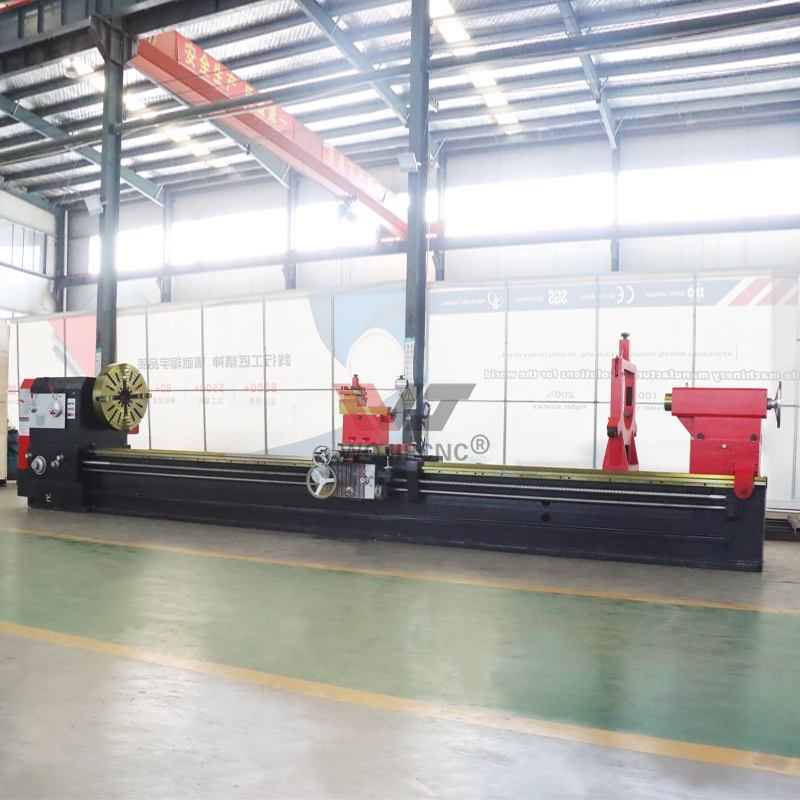

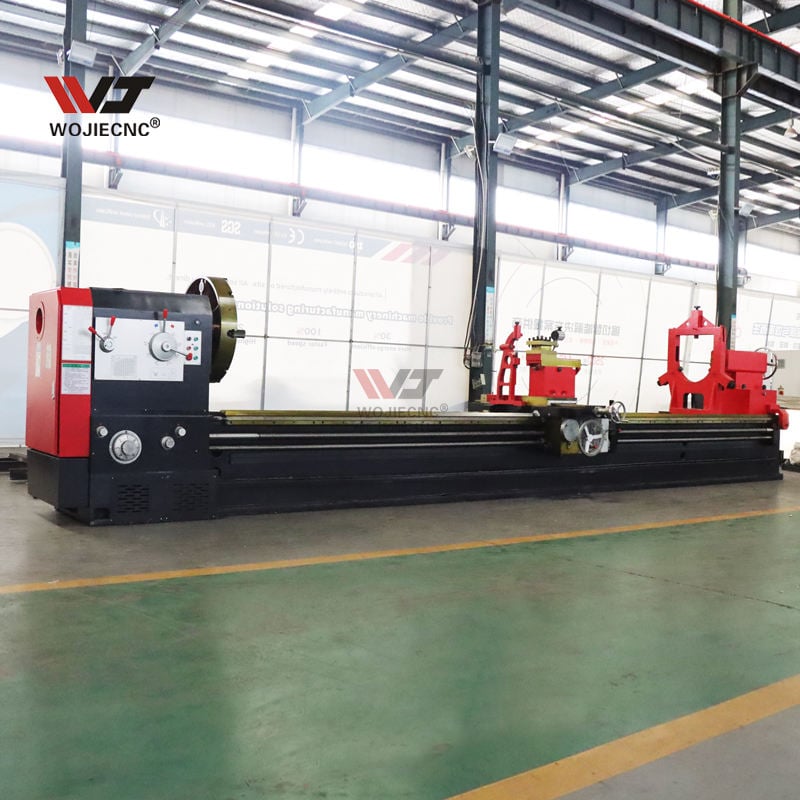

Heavy Duty Metal Lathe Machine CW61125 Manual Lathe for Metal Machining for Long Workpieces

Description:

FEATURES

1.One-piece bed adopts high strength iron to ensure rigidity and precision

2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance

3. Headstock gears hardened and ground to achieve precision and low noise

Specifications:

Specification	Unit	CW61100L	CW61125L	CW61140L	CW61160L
Swing over bed	mm	1000	1250	1400	1600
Swing over cross slide	mm	610	850	1000	1200
Distance between centers	mm	1500/2000/3000/4000/5000/6000	1500/2000/3000/4000/5000/6000	1500/2000/3000/4000/5000/6000	1500/2000/3000/4000/5000/6000
Guideway width	mm	755	755	755	755
Max. load capacity	T	6	6	6	6
Spindle bore	mm	130	130	130	130
Spindle bore taper	-	Metric φ140/MT6	Metric φ140/MT6	Metric φ140/MT6	Metric φ140/MT6
Spindle nose type	-	A2-15	A2-15	A2-15	A2-15
Spindle speed steps	-	FWD. 21 steps	FWD. 21 steps	FWD. 21 steps	FWD. 21 steps
Spindle speed range	rpm	3.15-315	3.15-315	3.15-315	3.15-315
Chuck	mm	φ1000 4-jaw manual	φ1000 4-jaw manual	φ1000 4-jaw manual	φ1000 4-jaw manual
Turret/tool post	-	Manual turret 4 position	Manual turret 4 position	Manual turret 4 position	Manual turret 4 position
Tool shank size	mm	45×45	45×45	45×45	45×45
X axis travel	mm	520	620	620	620
Z axis travel	mm	1350/1850/2850/3850/4850/5850	1350/1850/2850/3850/4850/5850	1350/1850/2850/3850/4850/5850	1350/1850/2850/3850/4850/5850
X axis feed grade/range	mm/r	56/0.05-6	56/0.05-6	56/0.05-6	56/0.05-6
Z axis feed grade/range	mm/r	56/0.1-12	56/0.1-12	56/0.1-12	56/0.1-12
X axis rapid traverse	mm/min	1870	1870	1870	1870
Z axis rapid traverse	mm/min	3740	3740	3740	3740
Metric thread grade/range	mm	44/1-120	44/1-120	44/1-120	44/1-120
Inch thread grade/range	T.P.I	31/28-3/8	31/28-3/8	31/28-3/8	31/28-3/8
Module thread grade/range	mm	45/0.5-60	-	-	-
DP thread grade/range	D.P.	30/56-1	-	-	-
Tailstock quill diameter	mm	φ160	φ160	φ160	φ160
Tailstock quill taper	-	MT6	MT6	MT6	MT6
Tailstock quill travel	mm	300	300	300	300
Main spindle motor	kW	22	22	22	22
Rapid traverse motor	kW	1.5	1.5	1.5	1.5
Coolant pump motor	kW	0.125	0.125	0.125	0.125
Width × Height	mm	2000×1800	2000×1950	2250×2050	2250×2150
Length	mm	4600/5100/6100/7100/8100/9100	4600/5100/6100/7100/8100/9100	4600/5100/6100/7100/8100/9100	4600/5100/6100/7100/8100/9100
Net weight	T	9.6/10.1/10.7/11.7/12.7/13.7	10.6/11.1/11.7/12.7/13.7/14.7	11.2/11.7/12.3/13.3/14.3/15.3	13.1/13.6/14.2/15.2/16.2/17.2

Detailed Images:

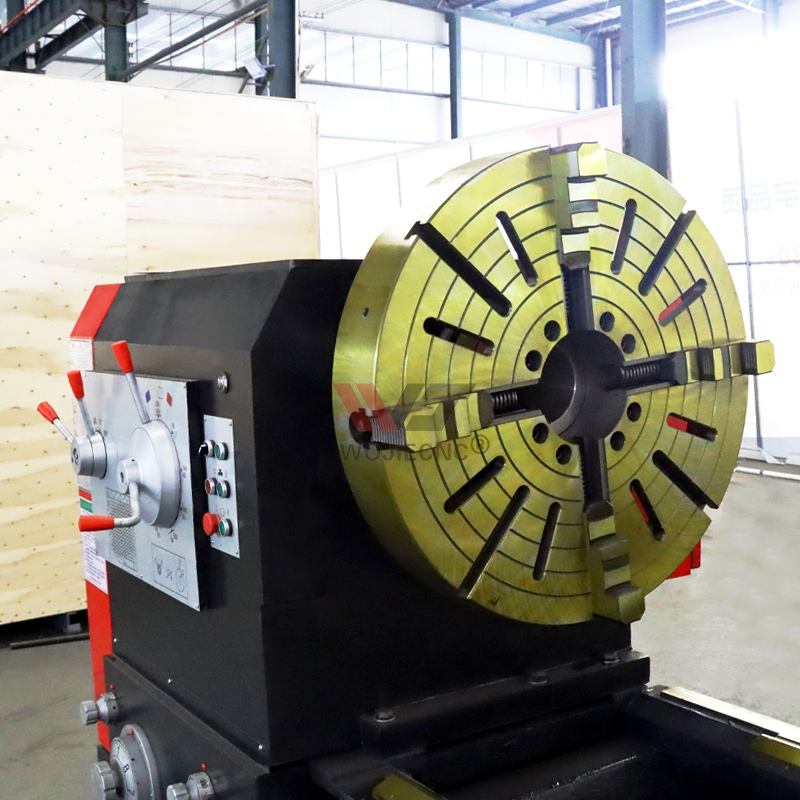

Spindle Head & 4-Jaw Chuck This view highlights the heavy-duty spindle assembly of the CW61125 lathe, equipped with a large-diameter 4-jaw independent manual chuck. Designed for clamping irregular, large-diameter, or heavy workpieces, it offers high gripping force and precision alignment. The robust spindle housing ensures stable rotation, even under full-load machining conditions, making it ideal for heavy-duty turning operations.	Roller-Type Steady Rest This is a high-precision roller-type steady rest for the CW61125 lathe. Unlike standard steady rests, it uses hardened rollers to support the workpiece, minimizing friction and surface damage. This design is ideal for high-speed turning, long shafts, or high-precision applications, ensuring concentricity and reducing chatter.

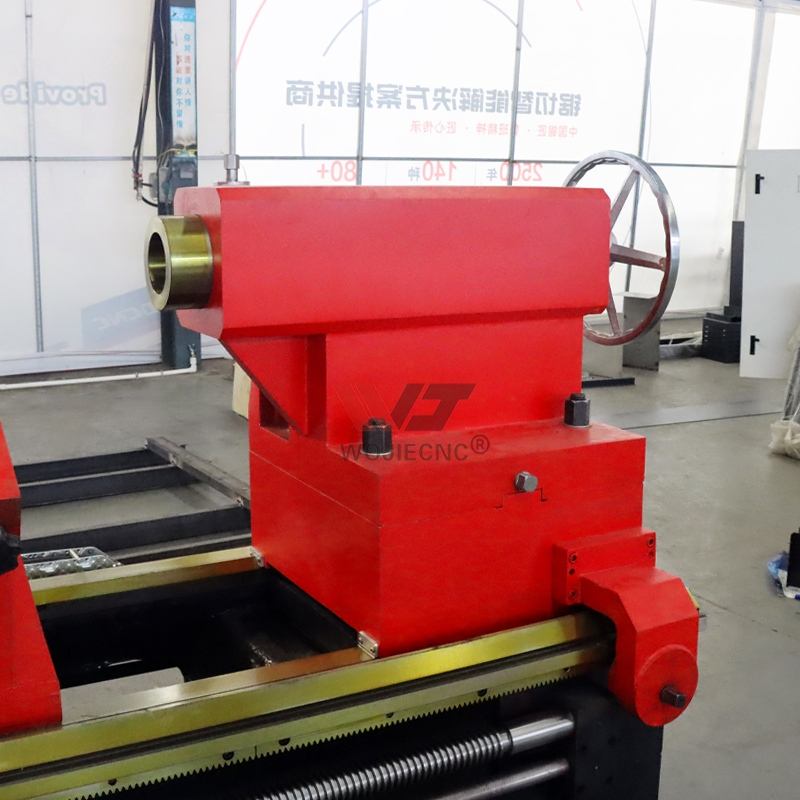

Tailstock Assembly The heavy-duty tailstock is designed to support the opposite end of workpieces, as well as perform drilling, boring, and tapping operations. It features a large quill with precise handwheel control for smooth feed and lock. Its robust design ensures alignment and rigidity, even when working with maximum-length workpieces up to 6000mm.	Steady Rest This shows the lathe’s heavy-duty steady rest, an essential accessory for supporting long, slender, or flexible workpieces during turning. It prevents deflection and vibration, ensuring high accuracy and surface finish when machining shafts or pipes. The rigid, cast-iron construction provides excellent stability under heavy cutting loads.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.

Contact Us:

Recommended Products

High Speed Automatic Flat Bed CNC Lathe Machine CK6150 Horizontal CNC Lathe CK 6150*1000 for Metal

Universal Precision Manual Lathe Machine CA6150 1000mm 2000mm for Metal Turning

WOJIE High Precision CNC Lathe 2 Axes WJ66A CNC Lathe for Metal

Siemens System CNC Machining Center VMC1270 Taiwan Brand Spindle CNC Milling Machine With 4 Axis

General-Purpose Manual X5032 Milling Machine General Milling Machine for Metal

Automatic Slotting B5020 B5032 Keyway Vertical Slotting Machine

Attribute	Value
Type	Horizontal
Machining Capacity	Heavy Duty
Max. length of workpiece (mm)	6000
Voltage	380V
Machinery test report	Provided
Warranty	1 Year
Range of spindle speed (r.p.m)	4 - 640 r.p.m
Place of origin	Shandong, China
Weight (kg)	13000
Max. weight of workpiece (kg)	3000
Width of bed (mm)	600
