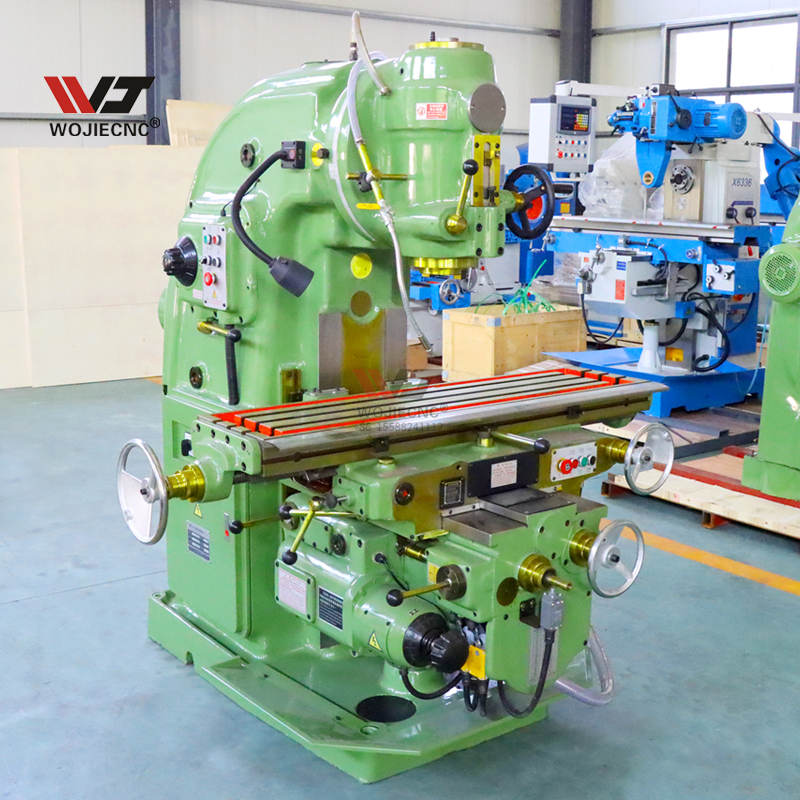

General-Purpose Manual X5032 Milling Machine General Milling Machine for Metal

General-Purpose Manual X5032 Milling Machine General Milling Machine for Metal

Item	Specification
Type	Universal
Machining Capacity	Heavy Duty
Table Travel (X) (mm)	720/700
Table Travel (Y) (mm)	255/240
Table Travel (Z) (mm)	1325*320
Spindle Taper	ISO50
Range of Spindle Speed (r.p.m)	60 - 1500 r.p.m
Weight (kg)	2600
Warranty	1 Year
Max. Table Load (kg)	500
Place of Origin	Shandong, China

Description
Specifications
Detailed Images
Company Introduction

Description:

Product Application

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Product main technical Specifications:

Specifications	Units	X5032
Table size	mm	1325×320
Table load	kg	500
T slot (number-width-pitch)	mm	3-18-70
Table travel	mm	700/680 (X)255/240 (Y)370/350 (Z)
Range of table feed	mm/min	XY: 23.5-1180Z: 8-394
Rapid speed of table	mm/min	XY: 2300Z: 770
Spindle taper	-	ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)
Swivel angle of vertical milling head	°	±45
Distance between spindle nose and table surface	mm	45-415
Spindle motor power	kw	7.5
Feed motor power	kw	1.5
Weight	kg	2900/3200
Overall dimension	mm	2300×1770×2000

Detailed Images:

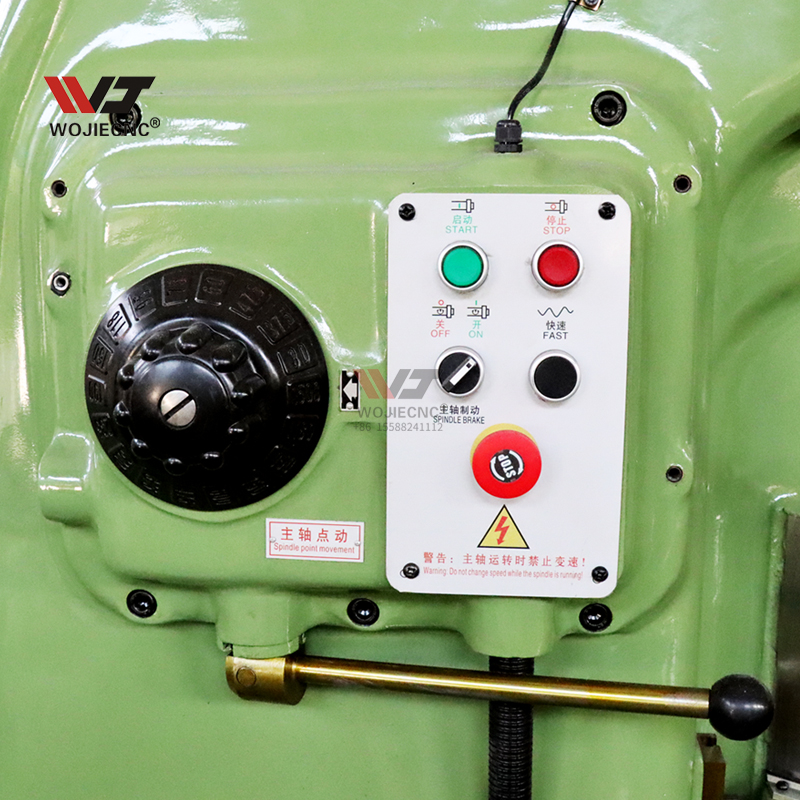

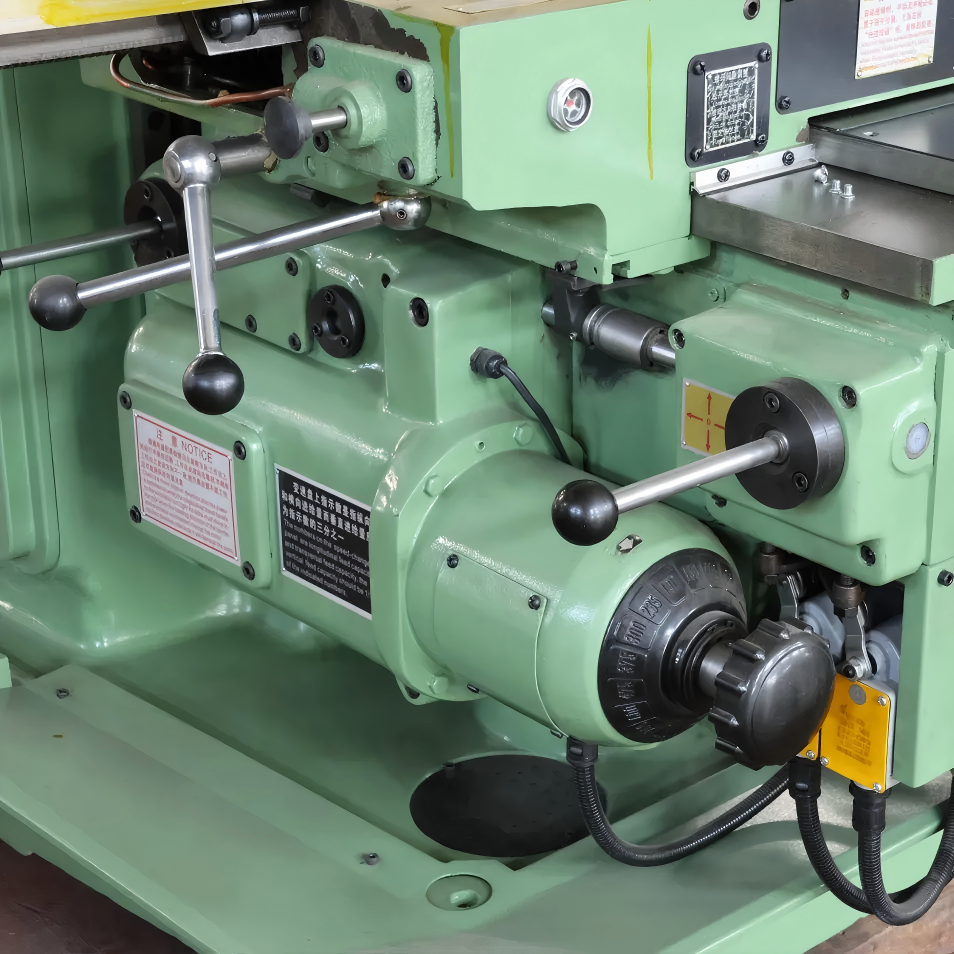

Speed Shift Handle	X/Y/Z AUTO FEED X/Y/Z axis auto feed improve processing time

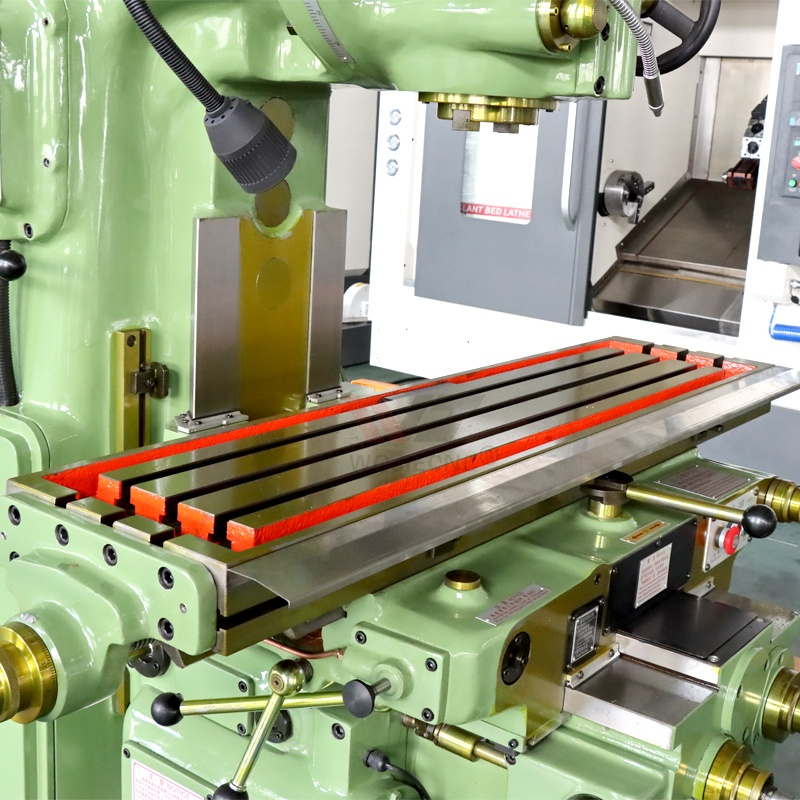

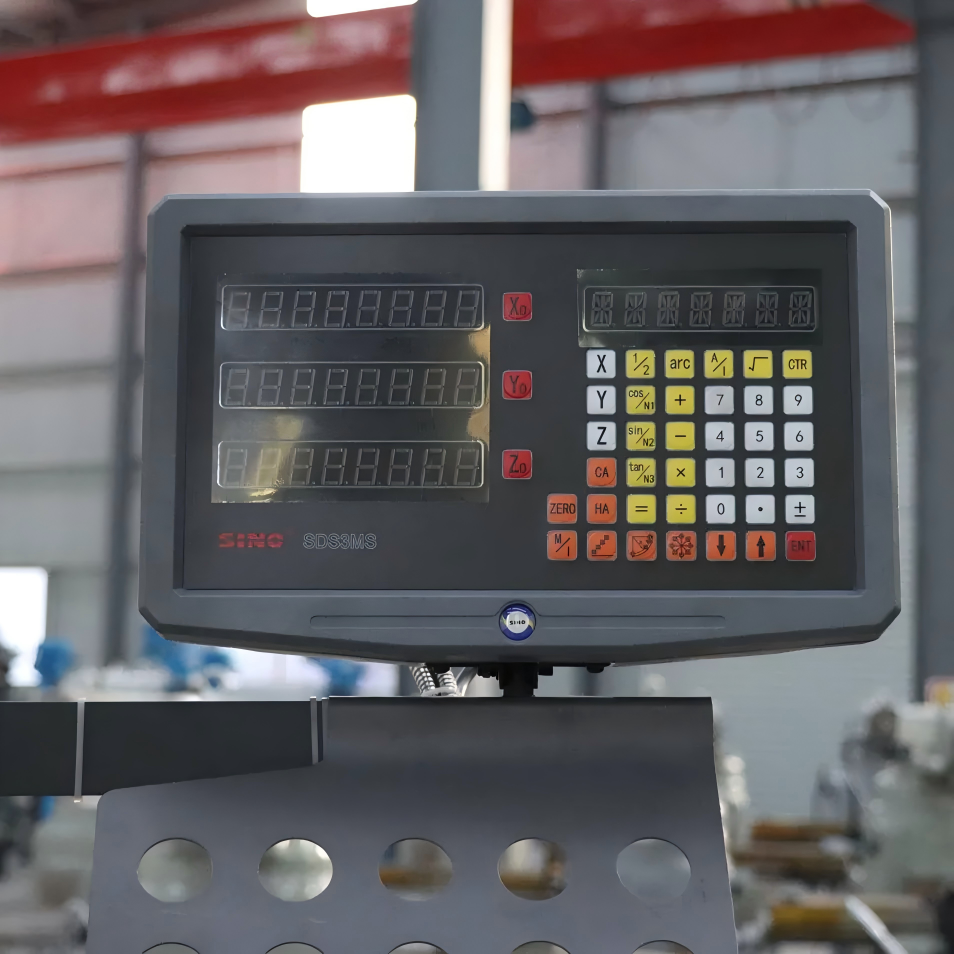

3 Axis DRO 3 axis digital readout is optional, need extra cost.	WORKTABLE Ultra-audio quenching, precision grinding and scraping guide.

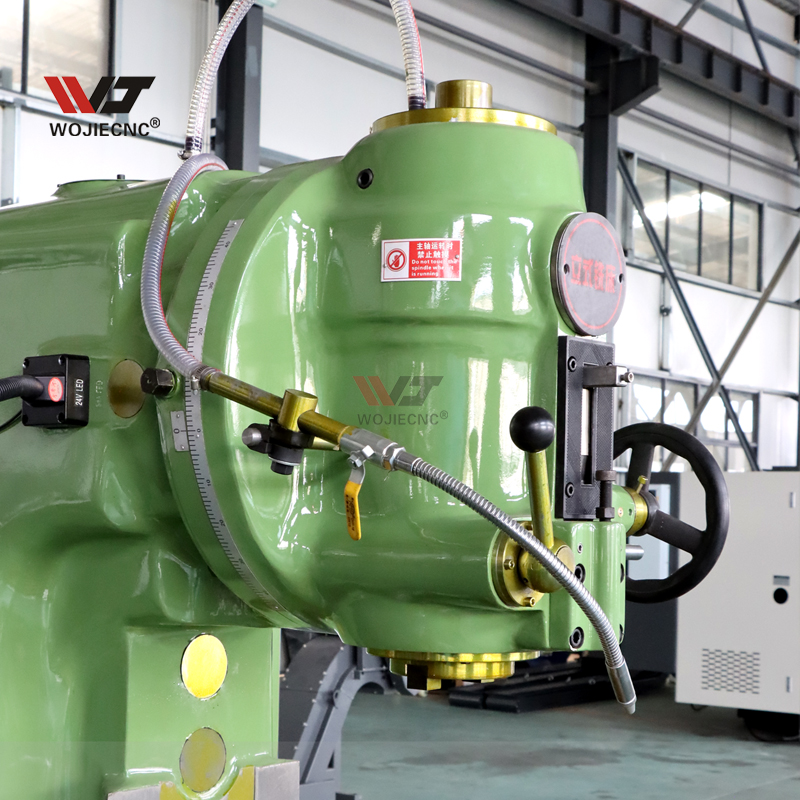

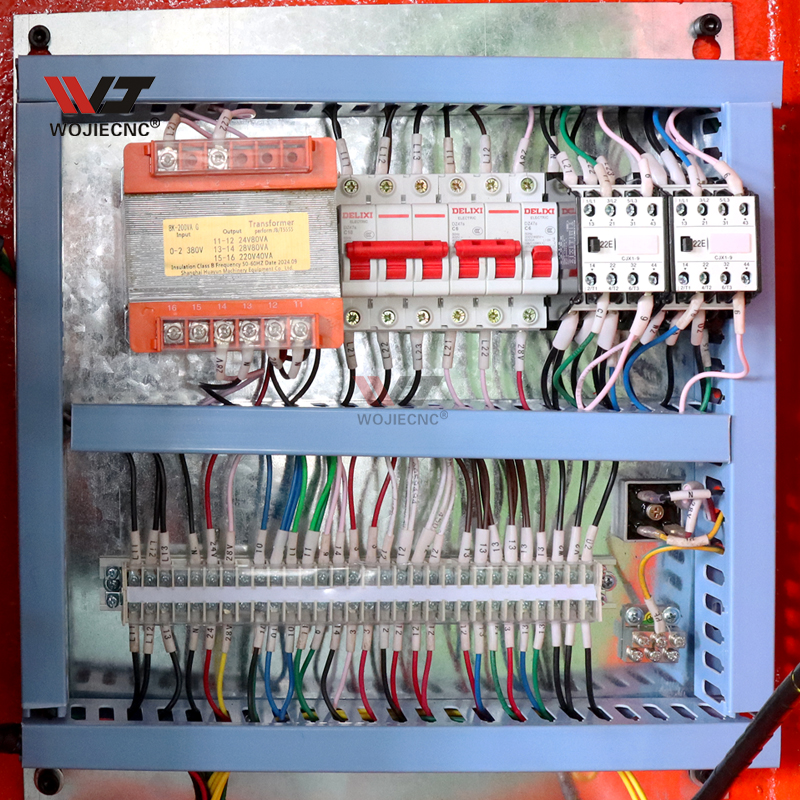

VERTICAL MILLING Spindle taper 7:24 ISO50. Spindle speed: 30-1500rpm (18 steps)	ELECTRICAL BOX DELIXI and SCHNEIDER, CE as standard equipment.
