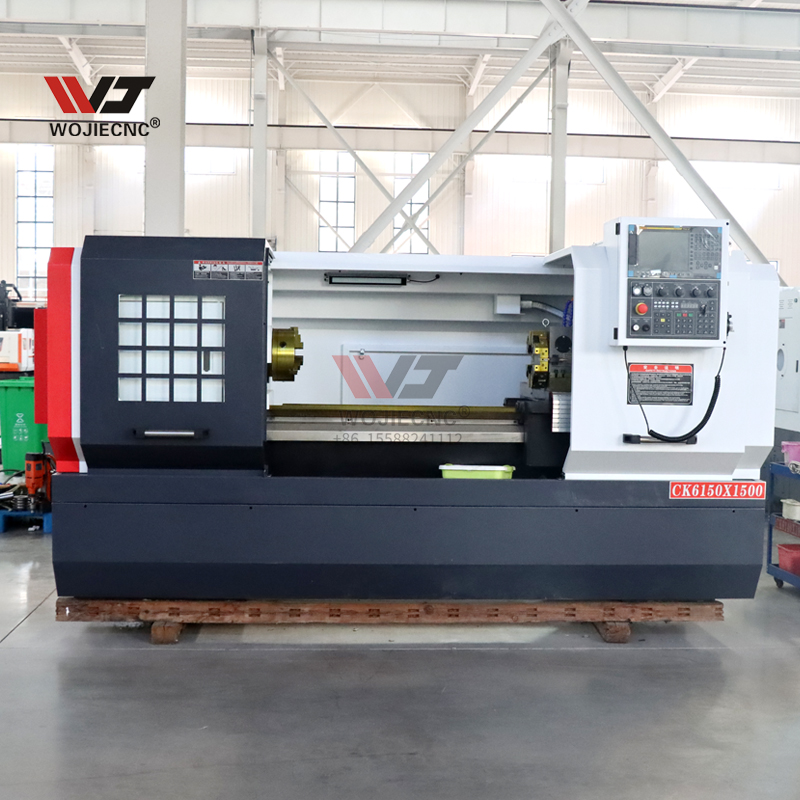

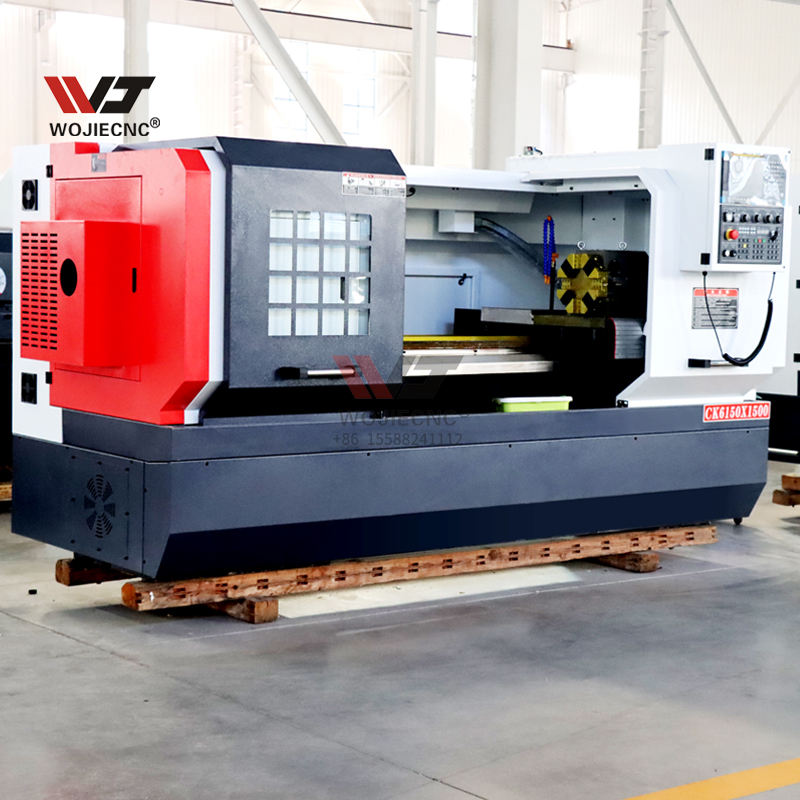

CAK6161 CE Automatic CNC Lathe Machine Single Spindle Multifunctional Flat Bed Turning Lathe Machine
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.
Specifications:
| Technical Parameter | CAK6161-1500 |
| Max. Swing over bed | 610mm |
| Max. Work piece Length | 1500mm |
| Spindle taper | MT6 |
| Chuck size | C6 (D8) |
| Spindle bore | 105mm |
| Spindle speeds (12steps) | 21-1500rpm (I 162-1500 II 66-550 III 21-150) |
| Tail stock center sleeve travel | 150mm |
| Tail stock center sleeve taper | MT5 |
| Positioning accuracy | ±0.015mm |
| Repositioning accuracy | ±0.006mm |
| X/Z rapid traverse | 4/6m/min |
| Spindle motor | 11kw |
| Machine size | 3150×1450×1700mm |
| Machine weight | 2800kg |
Standard Accessories:
1.System: GSK
2.3-jaw manual chuck
3.4-station electric turret
4.Frequency spindle motor
5.Stepless speed changer
6.Manual tailstock
7.Lighting system
8.Cooling system
Detailed Images:
 |
|
|

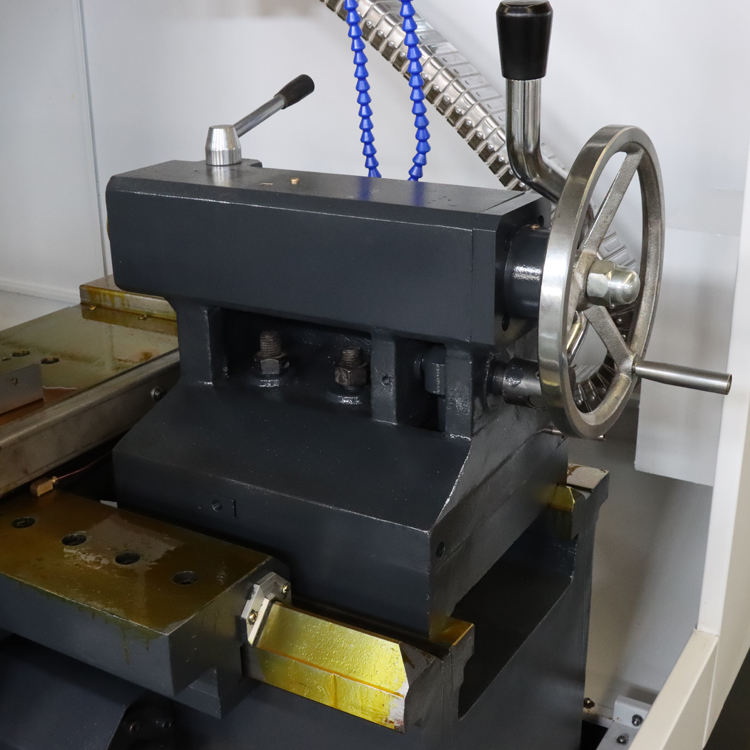

TAILSTOCK
Standard with Manual tailstock
|
ELECTRIC TOOL POST/TURRET
Standard with 4 position electric tool post
|
|
|
 |
|
HARD GUIDEWAY
1. High frequency quenching guide rail with hardness HRC52
2. One mountain, one flat guideway
|

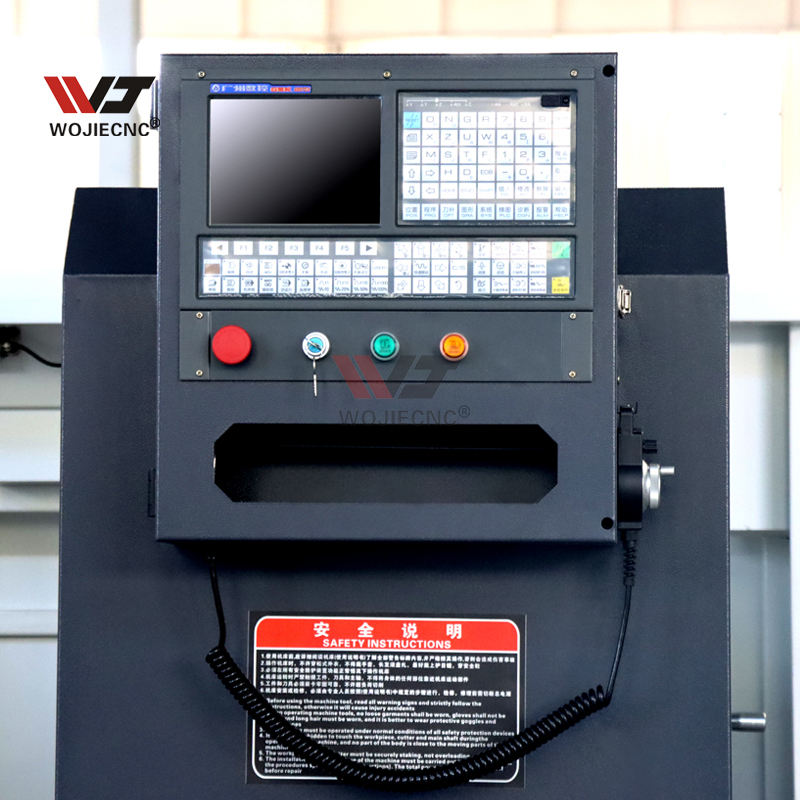

SYSTEM Standsrd is GSK System
Optional : Fanuc/Siemens/KND...
|
 |
|
|

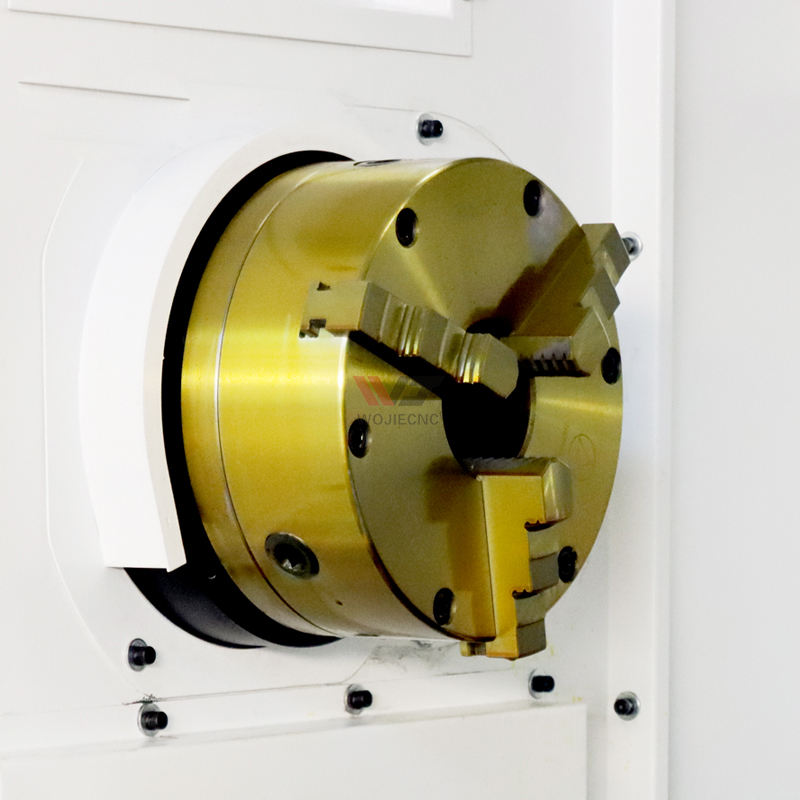

MANUAL CHUCK
Standard: 3-jaw manual chuck
|
SPINDLE BORE
Standard Spindle bore 52mm, 80mm as optional
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
