Description:
Product Application
The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts.
Specifications:
| Table size | mm | 1400x700 |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Max. worktable load | kg | 1400 |
| T slot(number-width-pitch) | 5-18x110 | |
| Max. spindle speed | rpm | 10000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 15 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-8000 |
| Guide rail type | Linear rail | |
| Distance from spindle axis to column surface | mm | 773 |
| Distance between spindle nose and worktable surface | mm | 160-860 |
| Positioning accuracy | mm | ±0.005 |
| Repeat positioning accuracy | mm | ±0.003 |
| Tool magazine | Arm 24 | |
| Max. tool diameter | mm | φ112 Adjacent)/ φ200(Apart) |
| Max.tool weight | kg | 18 |
| Machine weight | kg | 11000 |
| Overall dimension | mm | 3870x3165x2920 |
Standard Accessories:
System: GSK25I
24T arm type tool magazine
3 axis linear rail
Spindle servo motor 7.5kw
Spindle taper BT40
Spindle speed 8000 rpm
3 color warning light
LED work light
Hand wheel
Electrical cabinet heat exchanger
Leveling horn
Full cover
Optional Accessories:
Auto chip conveyor and chip bucket
Spindle oil cooler
Air condition for electrical cabinet
Oil and water separation(oil skimmer)
Angle head
10000/12000rpm
Detailed Images:
 |
|
|
MACHINE CONSTRUCT
1. High strength high quality cast iron.
2. long span bed base and vertical column structure.
|
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40.
2. Spindle speed 8000rpm , can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.
|
|
|
 |
|
LEAD SCREW AND COUPLING
1.Taiwan precision lead screw.
2. Lead screw bearing use FAG bearing, Coupling R+W directly connected.
|
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail,positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.
|
 |
|
|
TAIWAN TOOL MAGAZINE
1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 2-3 seconds.
|

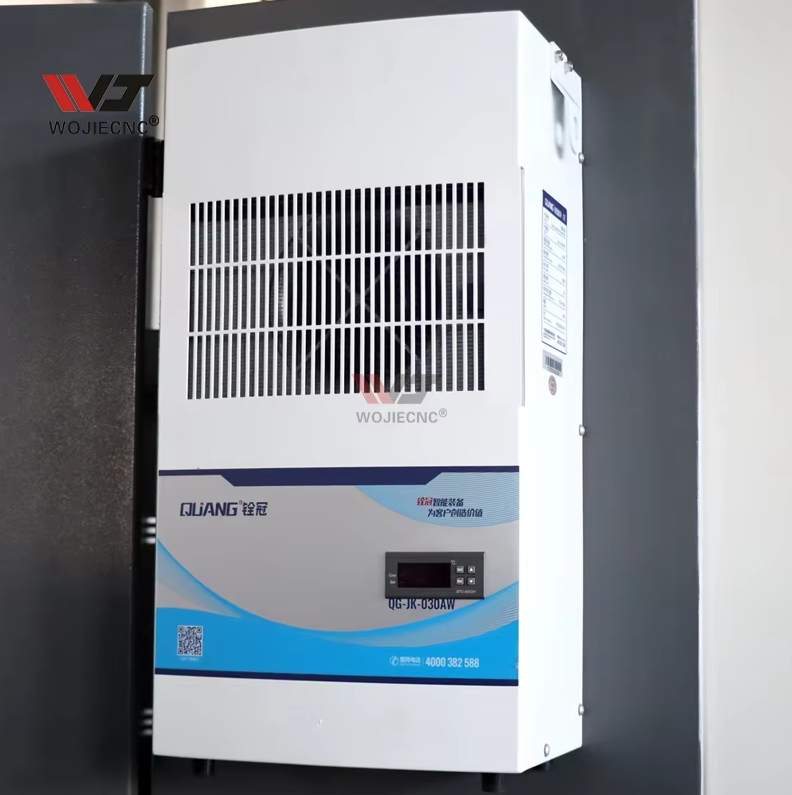

AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.Cooling the electric box better.
|
|
|
 |
|
CONTROL SYSTEM
Standard: GSK / KND control.
Optional : Siemens , FANUC, Syntec ect.
|
DELIXI ELECTRICAL COMPONENTS
1. With safety electrical components.
2. Optional :SCHNEIDER Brand
|
|
|
|
|

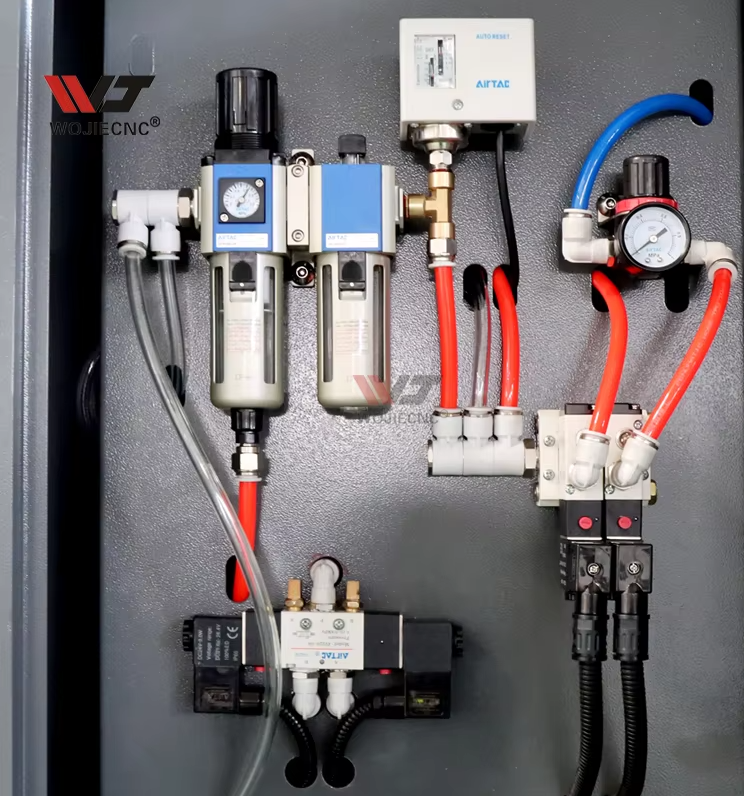

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
|

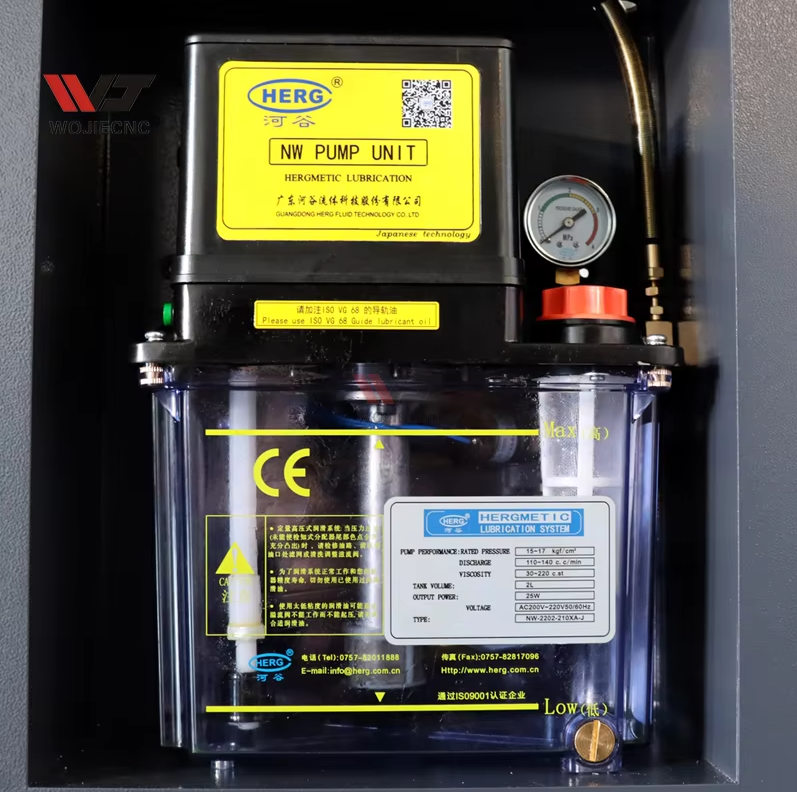

LUBRICATION SYSTEM
Automatic lubrication device.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
