Description:
Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Specifications:
| Model | GMC2518 |
| X axis (transverse movement of worktable) | 2500mm |
| Y axis (saddle longitudinal movement) | 1800mm |
| Z axis (ram vertical lifting) | 1000mm |
| Distance from spindle end face to worktable (BT50) | 150-1150mm |
| Gantry width | 1800mm |
| Gantry height | 1300mm |
| X-axis rapid movement | 15m/min |
| Y axis rapid movement | 15m/min |
| Z-axis rapid movement | 10m/min |
| cutting feed | 1-7 m/min |
| Three-axis screw (C3 level grinding) | 5010 |
| Three-axis guide rail | 55Roller /55Roller/hard rail |
| Workbench area | 2500*1600mm |
| weight capacity | 7000Kg |
| T-slot | 9×22×180mm |
| Spindle Standard configuration | Belt type BT50 |
| Spindle Rotating speed | 6000rpm |
| Spindle taper hole | BT50 |
| Spindle Main motor power (FANUC) | 22 kw |
| Positioning accuracy (JIS standard) | ±0.005/300mm |
| Repeat positioning accuracy (JIS standard) | ±0.005mm |
| Weight | About 25000Kg |
| Dimensions | 6500*4000*4000mm |
Standard Accessories:
GSK System
24 Arm type tool magazine
Taiwan spindle BT40
Chain chip conveyor
Sprial chip conveyor
Automatic lubrication system
Cooling system
Heat Exchange
Pneumatic system
Full Cover machine enclosure
Optional Accessories:
System:FANUC,Siemens,GSK etc
4 axis or 5 axis
Spindle center coolant
Higher speed of Spindle
Air conditioner
Gear Box
Detailed Images:
 |
|
|

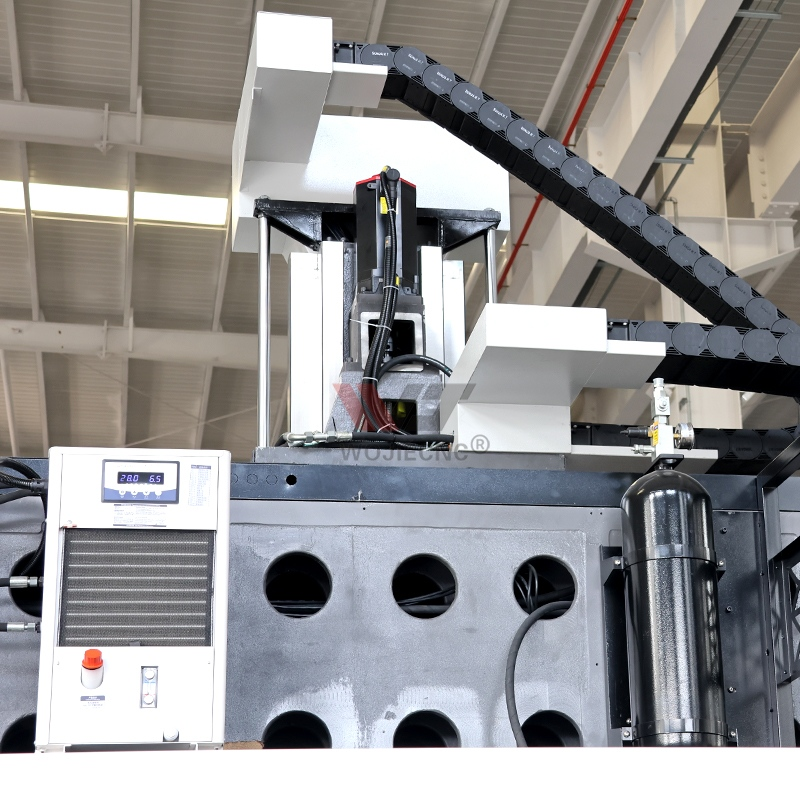

Spindle & Automatic Tool Changer (ATC) System
The high-performance spindle unit delivers robust cutting power and high-speed machining capability, supported by a reliable linear guideway and servo drive system for precise positioning. The enclosed protective structure ensures stable operation under heavy-duty cutting conditions.
|

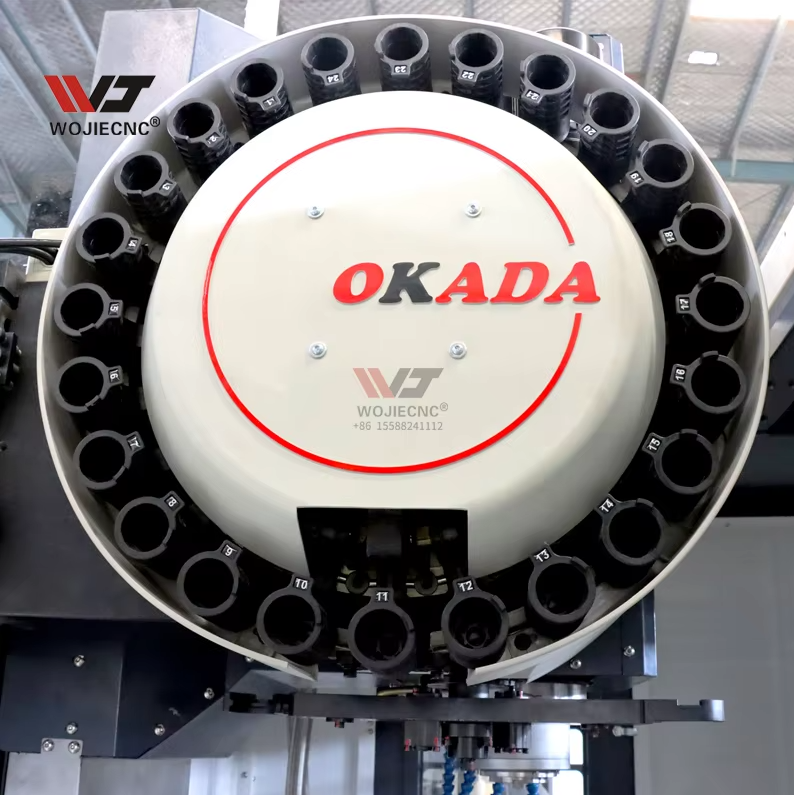

OKADA Tool Magazine
This 30-position random-access tool magazine (OKADA brand) enables fast tool exchange and automatic tool selection, significantly reducing non-cutting time. It is compatible with a wide range of cutting tools, supporting complex multi-process machining tasks.
|
|
|
 |
|

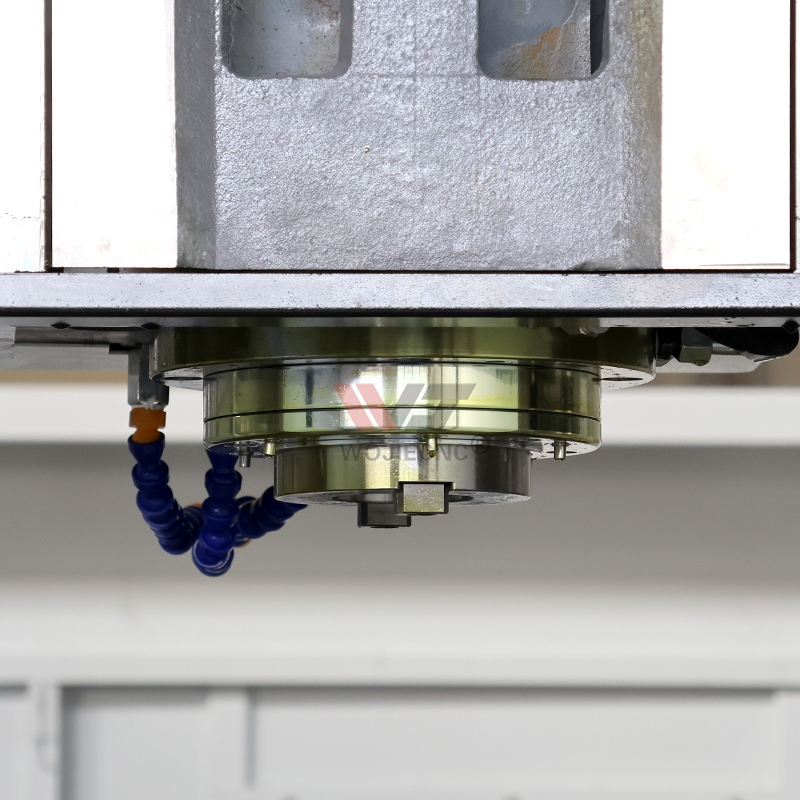

Spindle Head & Worktable Interface
The heavy-duty spindle head assembly features a rigid structure and high-precision bearings, ideal for high-speed milling and heavy cutting. The enclosed worktable design effectively prevents chip and coolant splash, creating a safe and clean machining environment.
|

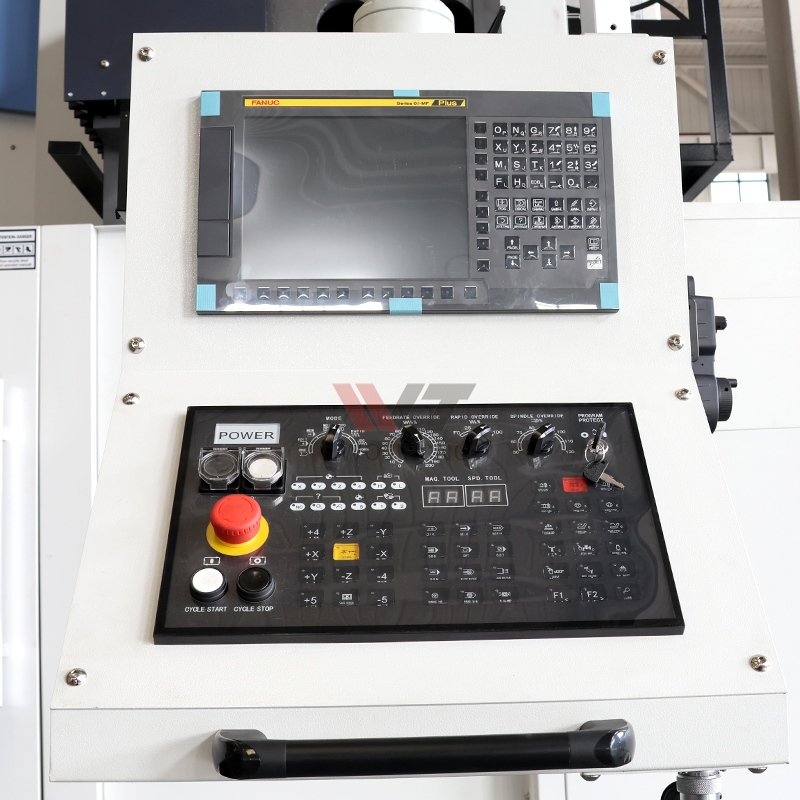

CNC Control System
Equipped with an advanced CNC control panel (featuring a large touchscreen and full-function keyboard), it offers intuitive operation, high-precision contour control, and support for multi-axis machining. The emergency stop and manual override functions ensure operational safety and flexibility.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
