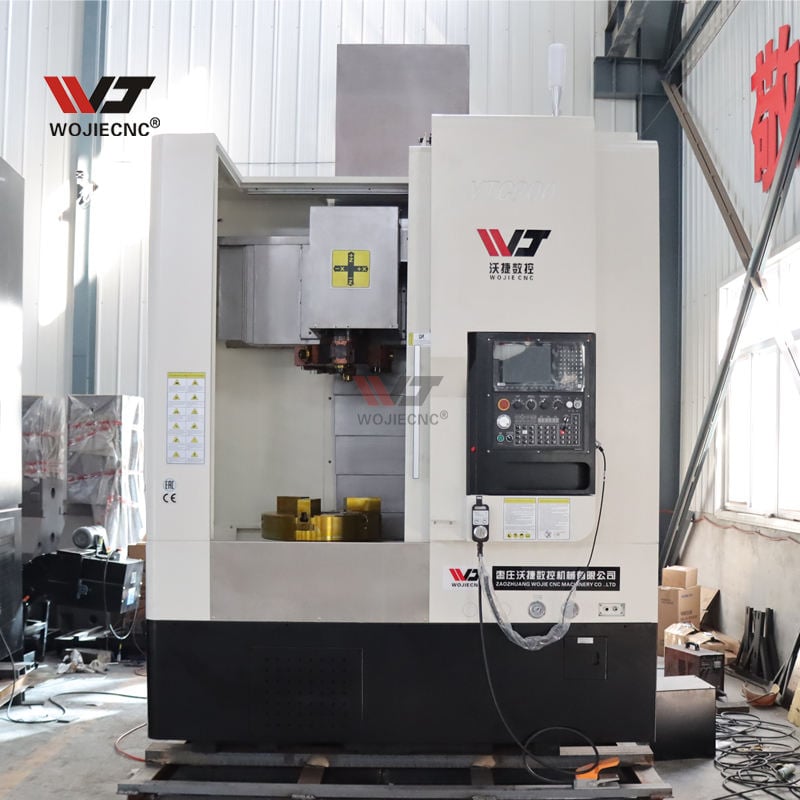

Chinese WOJIE Brand Cnc Vertical Turning Lathe VTC900 Single Column CNC Vertical Lathe Machine

Item	Specification
Max. Swing Diameter	900 mm
Max. Turning Diameter	800 mm
Max. Workpiece Height	700 mm
Spindle Speed Range	20–500 rpm
Spindle Motor Power	22–30 kW
Turret Stations	8 stations
Positioning Accuracy	±0.02 mm
Repeat Positioning Accuracy	±0.01 mm
Machine Weight	8500 kg

Description
Specifications
Detailed Images
Company Introduction

Description:

Product Application

This machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.

Product main technical Specifications:

Item	Technical parameters
Processing range
Maximum turning diameter of workpiece	950mm
Maximum turning diameter	900mm
Tool holder vertical movement distance	700mm
Tool rest horizontal movement distance	650mm
Spindle unit
Spindle model	A2-11
Spindle speed range	20-800rpm
Spindle motor power	22/30kW
Feed
X-axis rapid feed rate	8m/min
Z axis rapid feed rate	8m/min
Cutting feed rate	0.1-5000mm/min
X-axis motor power and torque	2.4 kW /15NM
Z-axis motor power and torque	2.4 kW /15NM Brake
Tool holder and chuck
Tool holder form	12-station hydraulic turret
Hydraulic chuck diameter	610mm
Machine tool accuracy
Machine tool positioning accuracy	±0.008mm
Machine tool repeatability	±0.008mm
Machine tool dimensions and weight
Machine Weight (Approx.)	≈8500kgs
Machine tool dimensions	320030003000mm

Detailed Images:

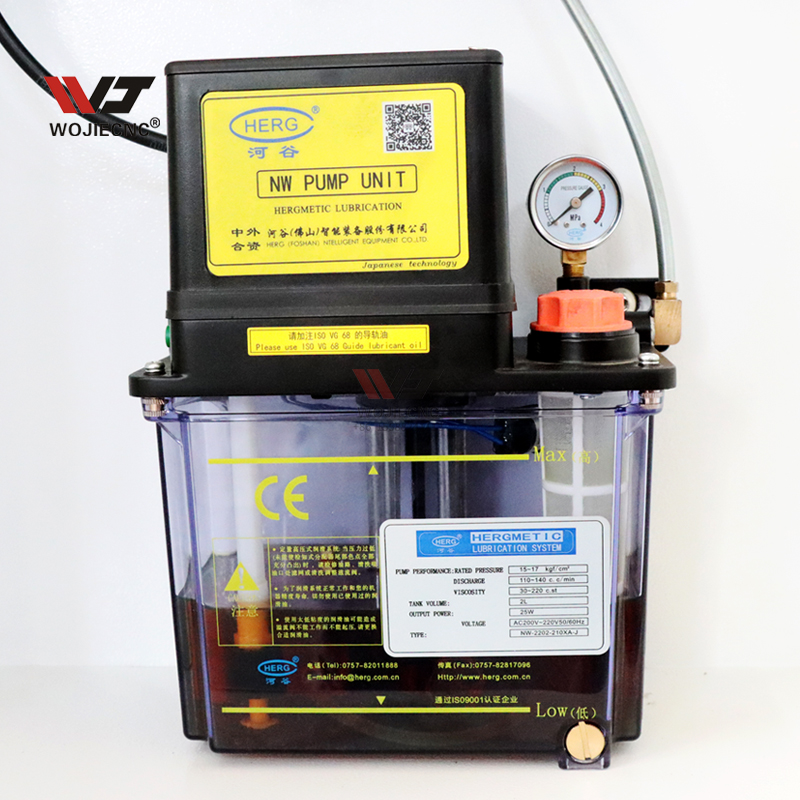

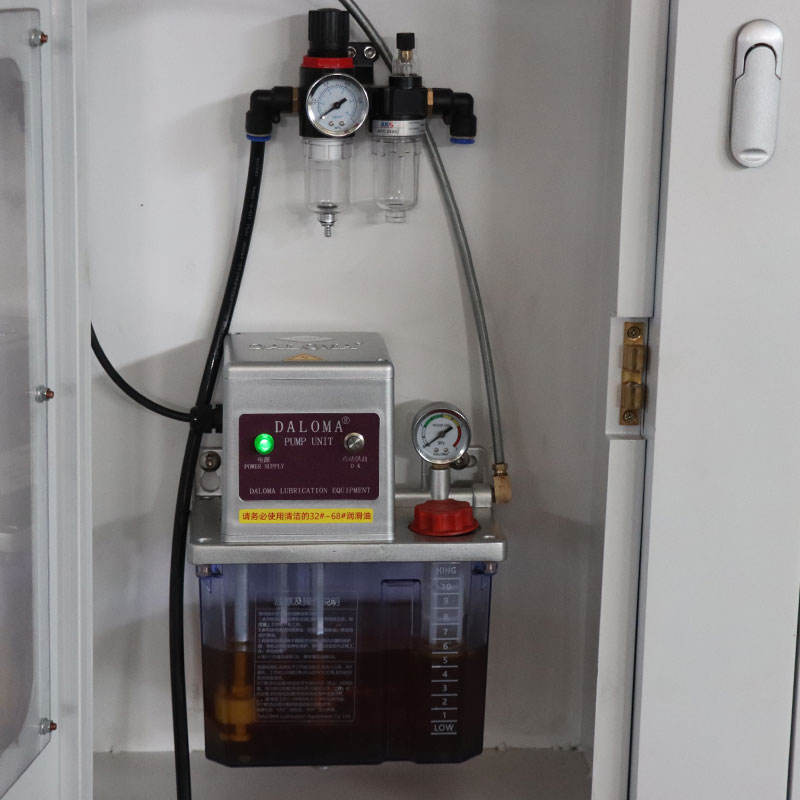

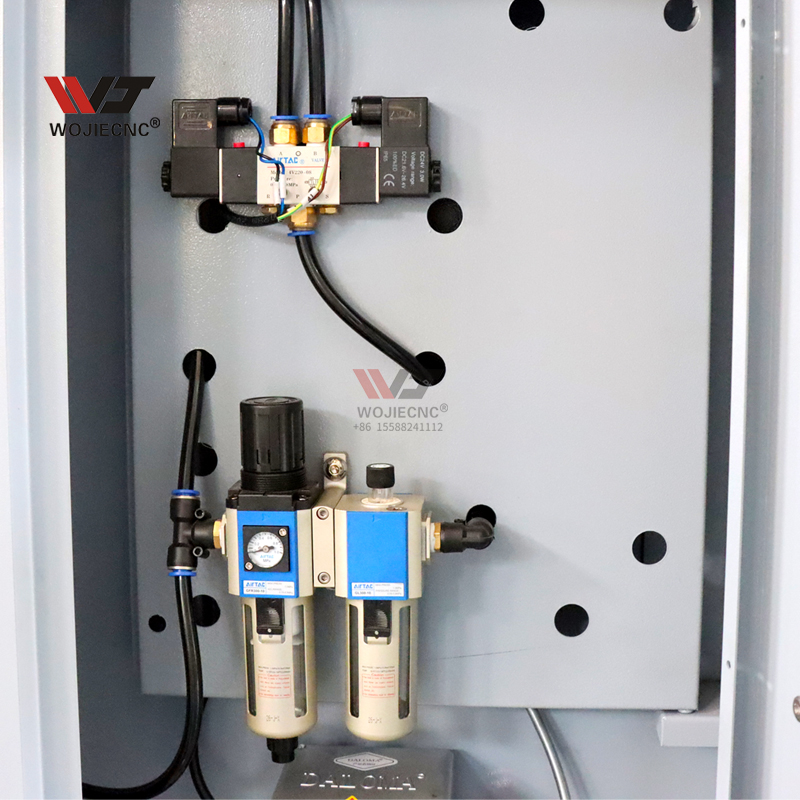

Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming.

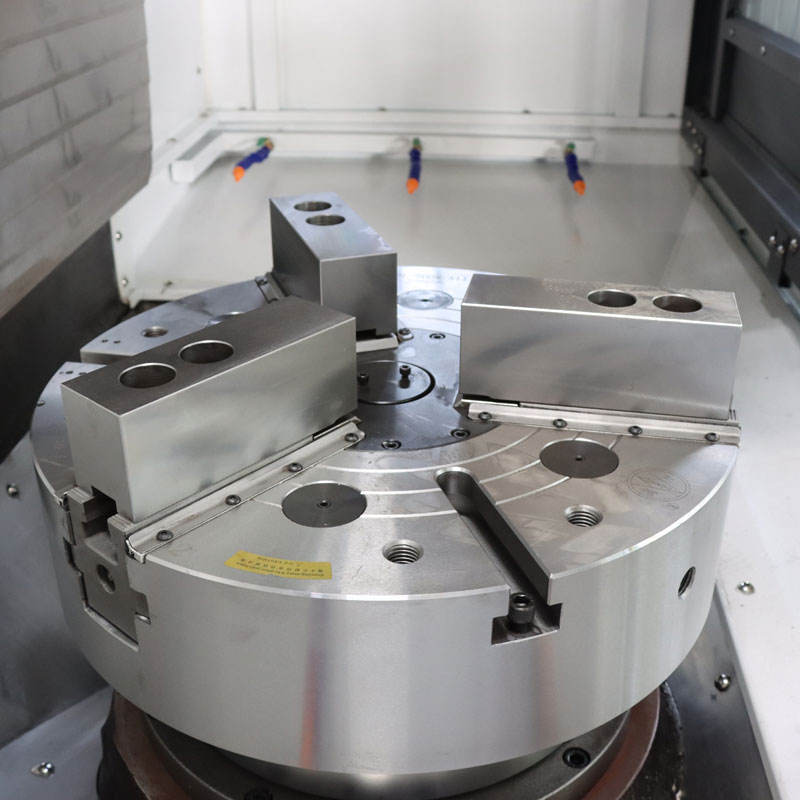

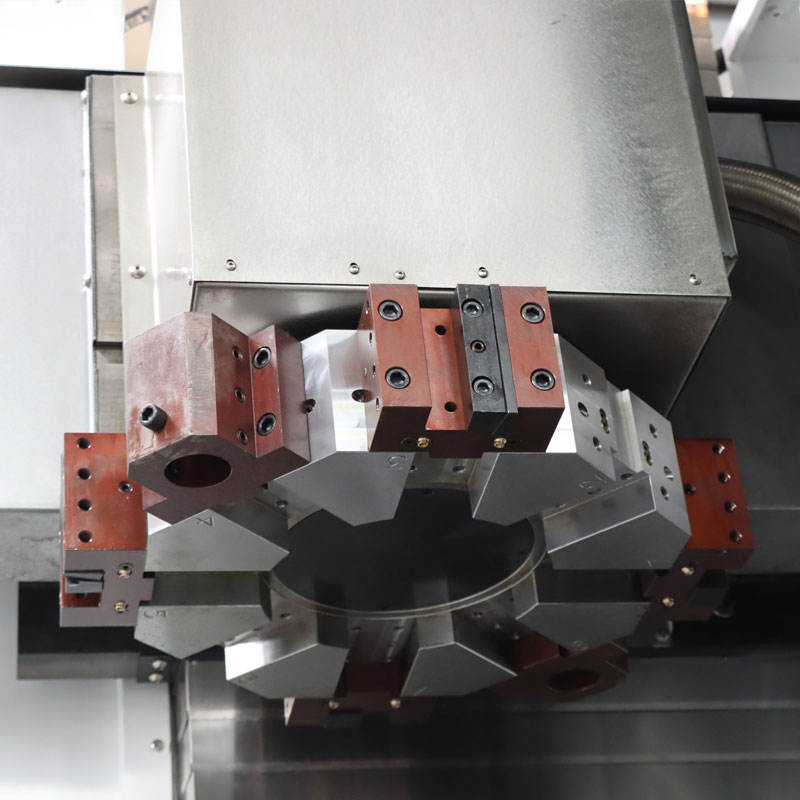

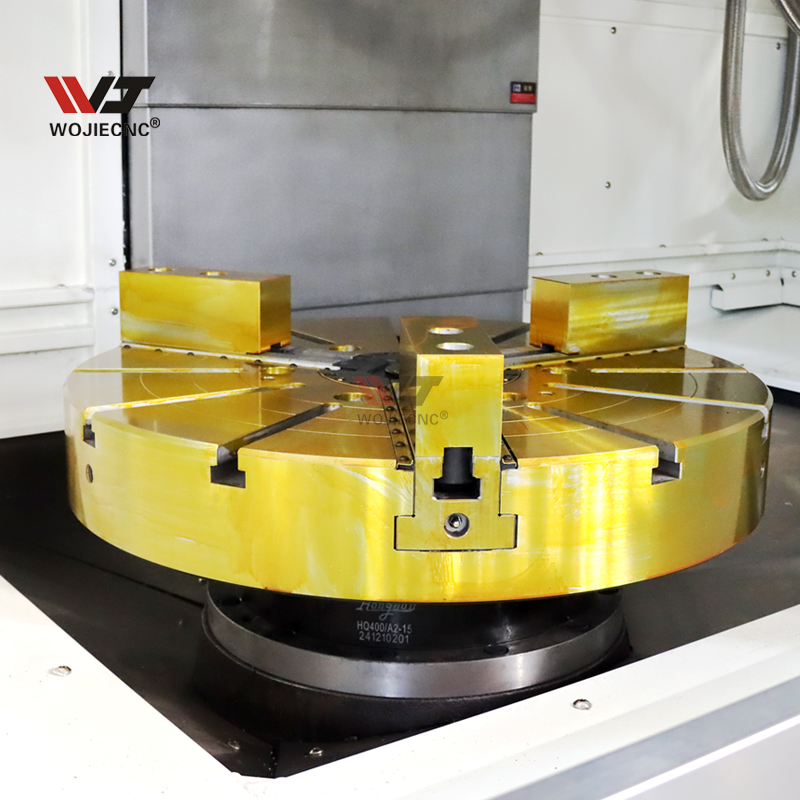

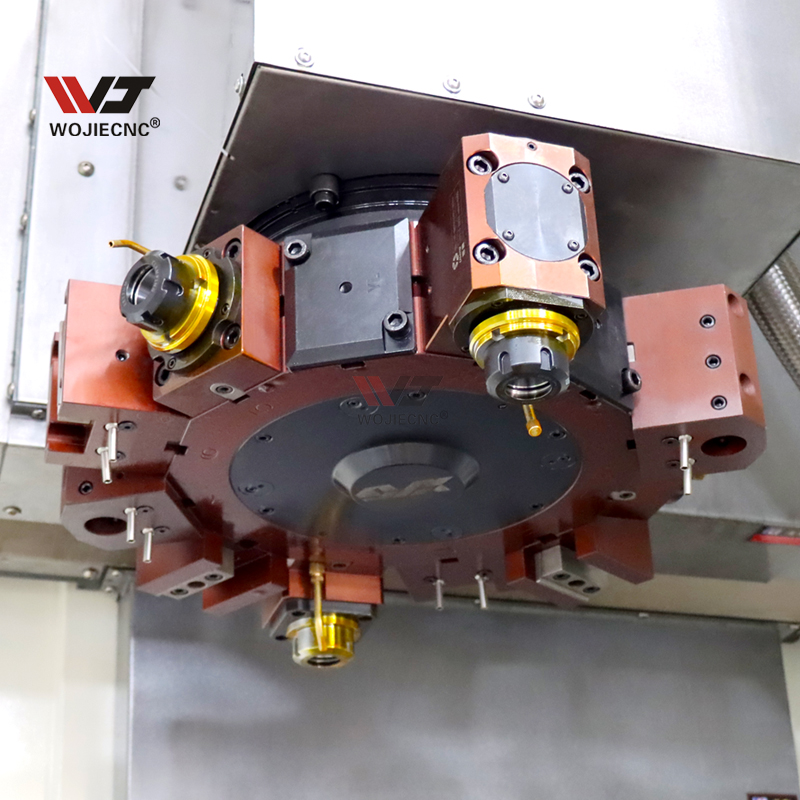

Chuck Standard: Manual chuck Optional: Hydraulic chuck	Turret Standard: 8/12 station hydraulic turret Optional: 12 station power turret

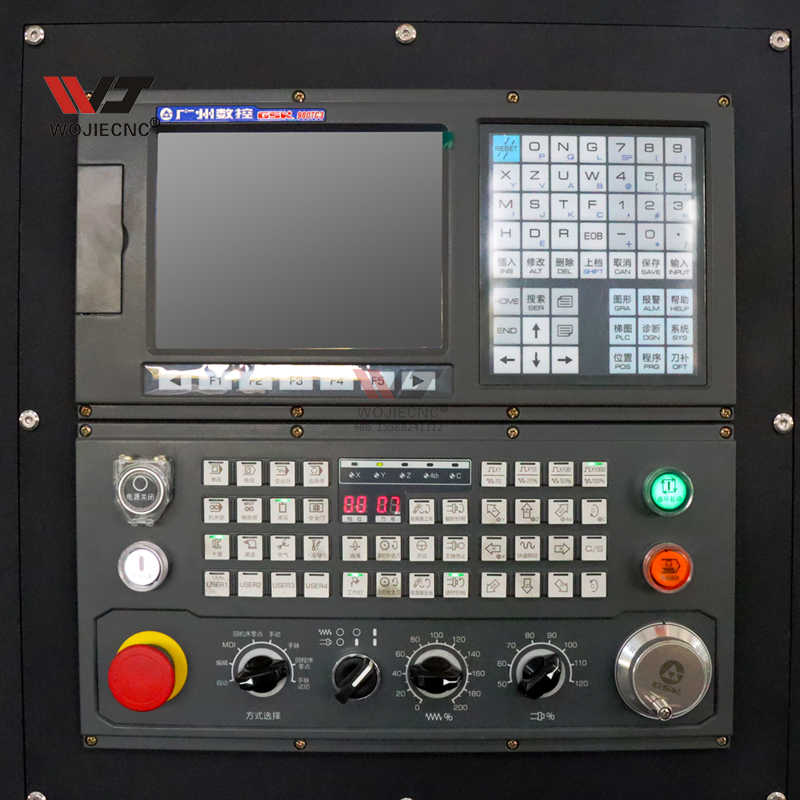

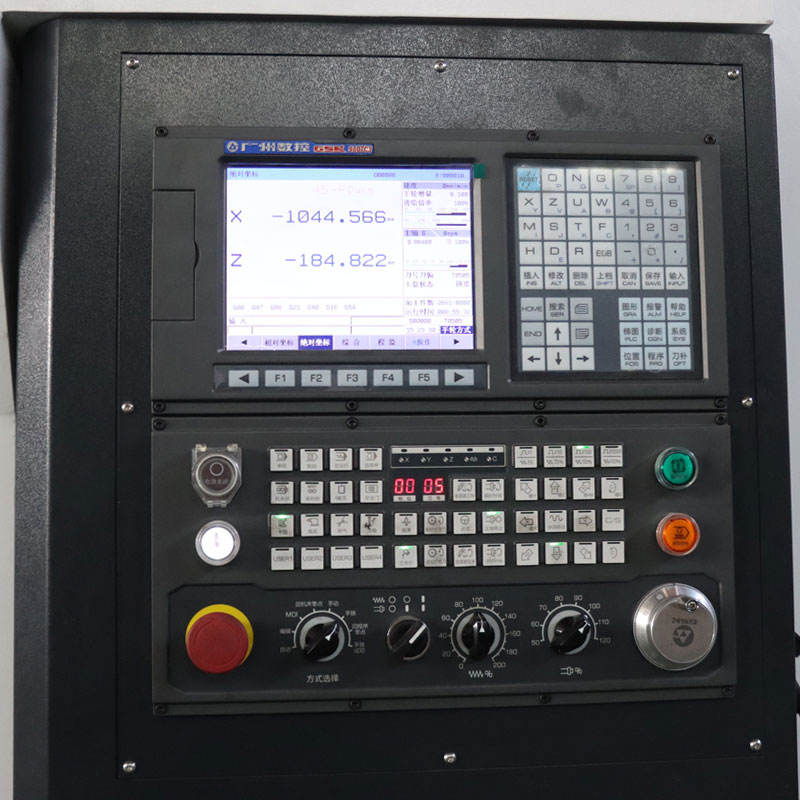

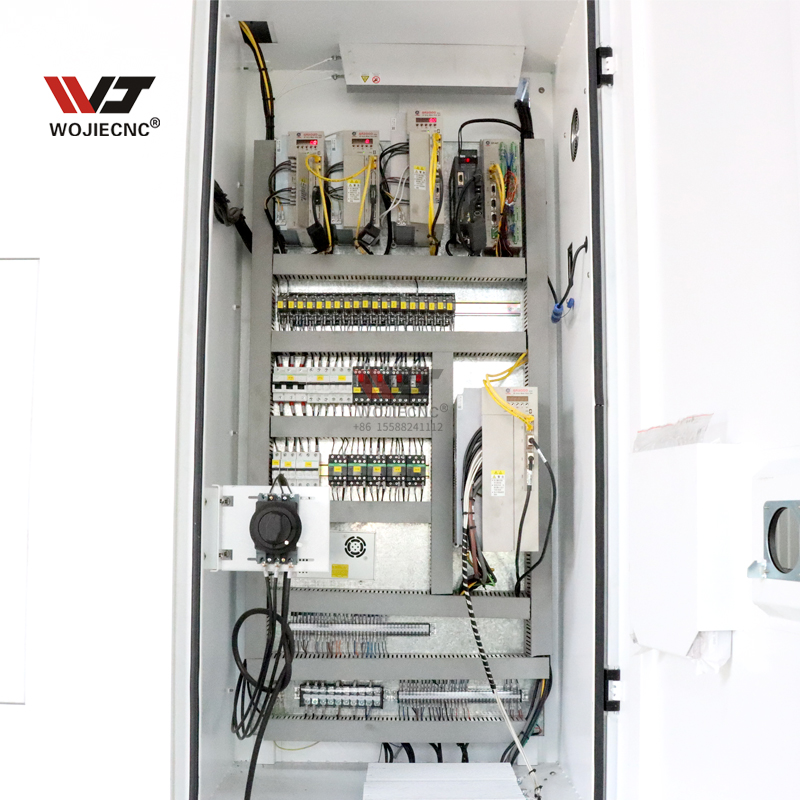

Control system Standard: GSK Optional: KND , FANUC,	Electrical part Standard configuration: DELIX
