Cost Effective C Aixs Lathes Machines WJ800 Metal Lathe Cnc Turning Machine

Description:

Product Application

This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.

Features

One-piece bed adopts high strength iron to ensure rigidity and precision. Slant bed design and linear guideways enqure process speed and accuracy. Carriage and guide-way contact surface use Turcite B to maintain accuracy.

Specifications:

Item	Units	WJ800
Swing over bed	mm	800
Swing over cross slide	mm	650
Distance between centers	mm	1000/1500/2000/3000
Guide form		Integral type 45°
Guide form		Integral type 45°
Spindle bore	mm	105
Spindle speed steps	-	Stepless
Spindle speed range	rpm	5-1600
Chuck	in	15in Hydraulic chuck
Turret/tool post	-	Hydraulic turret 12position
Tool shank size	mm	32 x 32
Boring tool holder size	mm	φ50
X axis travel	mm	400
Z axis travel	mm	1000/1500/2000/3000
X axis rapid traverse	mm/min	18000 Linear guideway
Z axis rapid traverse	mm/min	18000 Linear guideway
Tailstock quill diameter	mm	φ100
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	180
Main spindle motor	kw	22
Coolant pump motor	kw	0.45
Weight for 500	kg	7000
Weight for 1000	kg	7500
Weight for 1500	kg	8000
Weight for 2000	kg	9000
Weight for 3000	kg	9500
Dimension for 500	mm	-
Dimension for 1000	mm	4850x2570x2400
Dimension for 1500	mm	5350x2570x2400
Dimension for 2000	mm	5850x2570x2400
Dimension for 3000	mm	6850x2570x2400

Detailed Images:

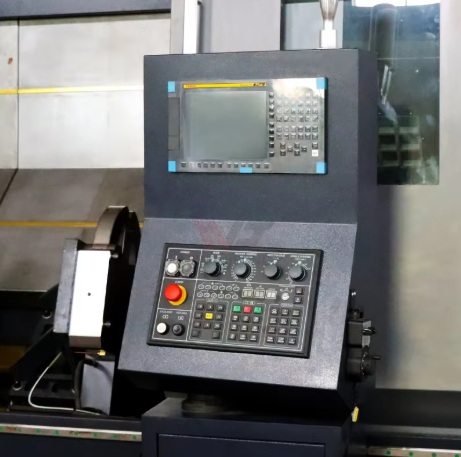

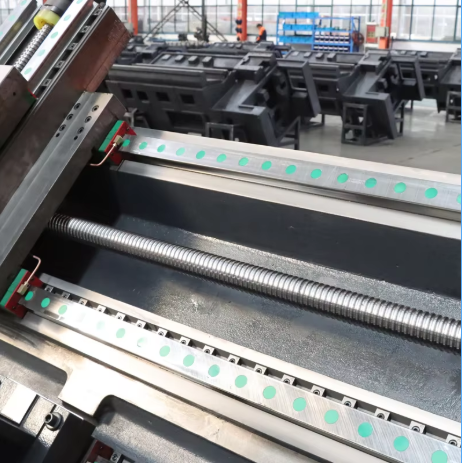

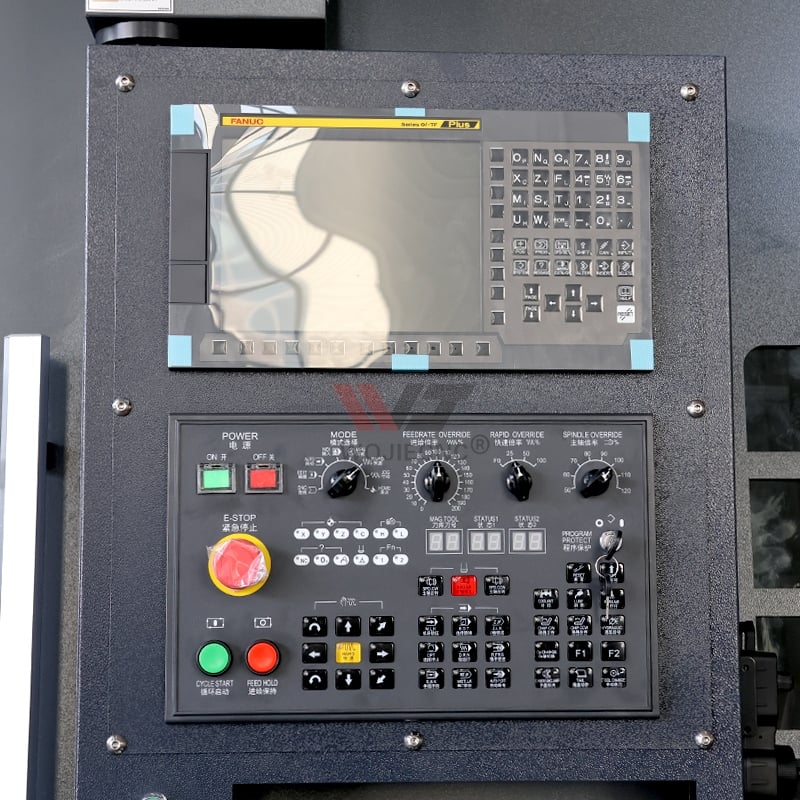

Control System Standard: GSK Optional: Fanuc, Siemens,Mitsubishi, etc...	Taiwan Hiwin Screw and Guide Rail X and Z axes adopt high-precision, high-load capacity, high-reliability linear rolling guides, combined with automatic forced lubrication, to reduce the friction resistance of feed motion and improve machine tool accuracy and life; the machine tool feed speed and positioning accuracy are higher

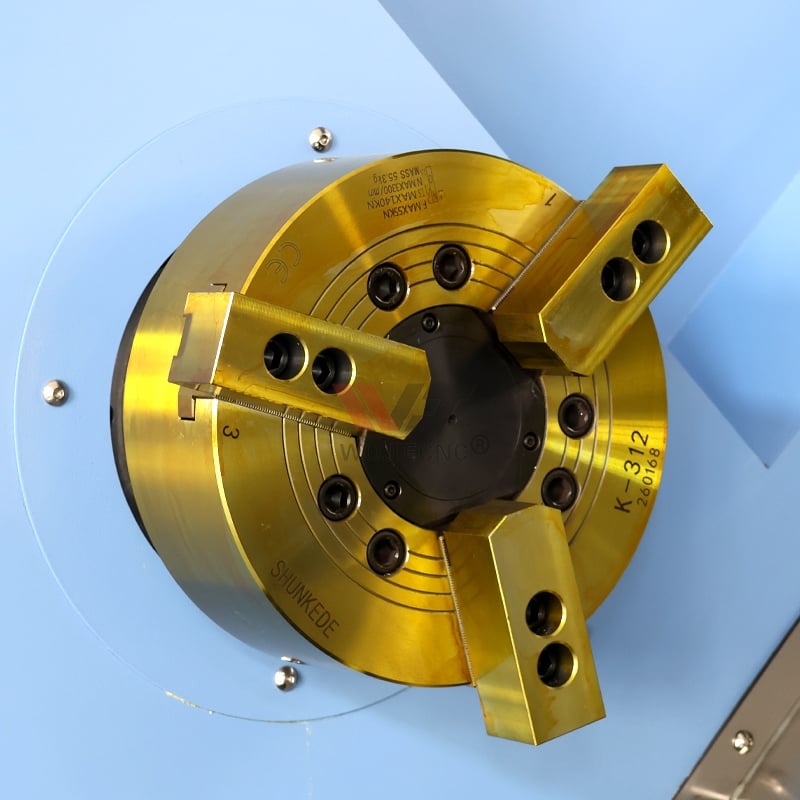

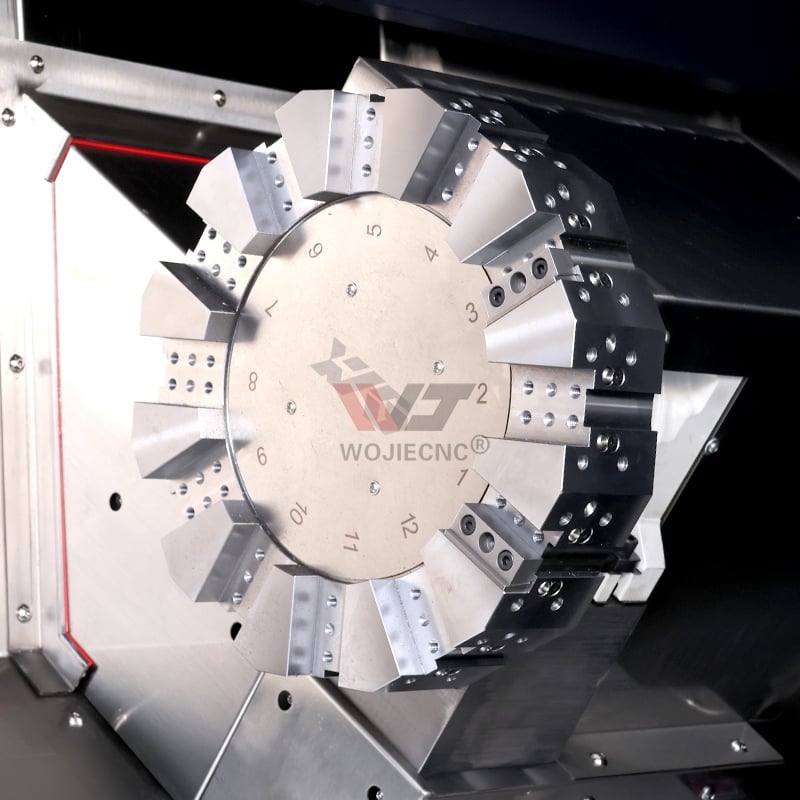

Chuck Standard 12" hydraulic chuck Optional 15" hydraulic chuck	Tool Turret Standard :12 station Power turret BMT55 Optional :BMT65 Power Turret

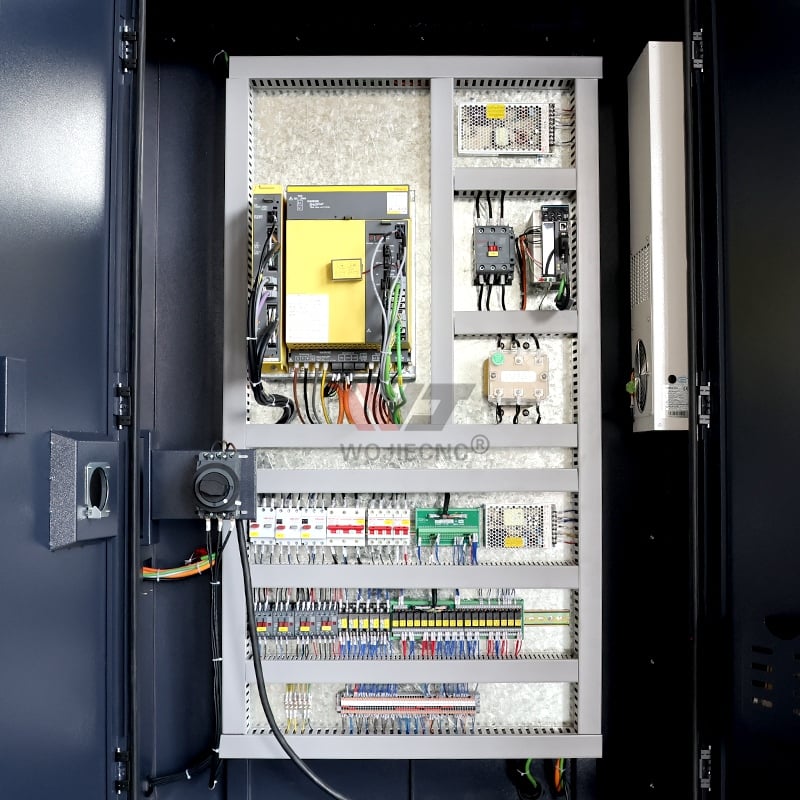

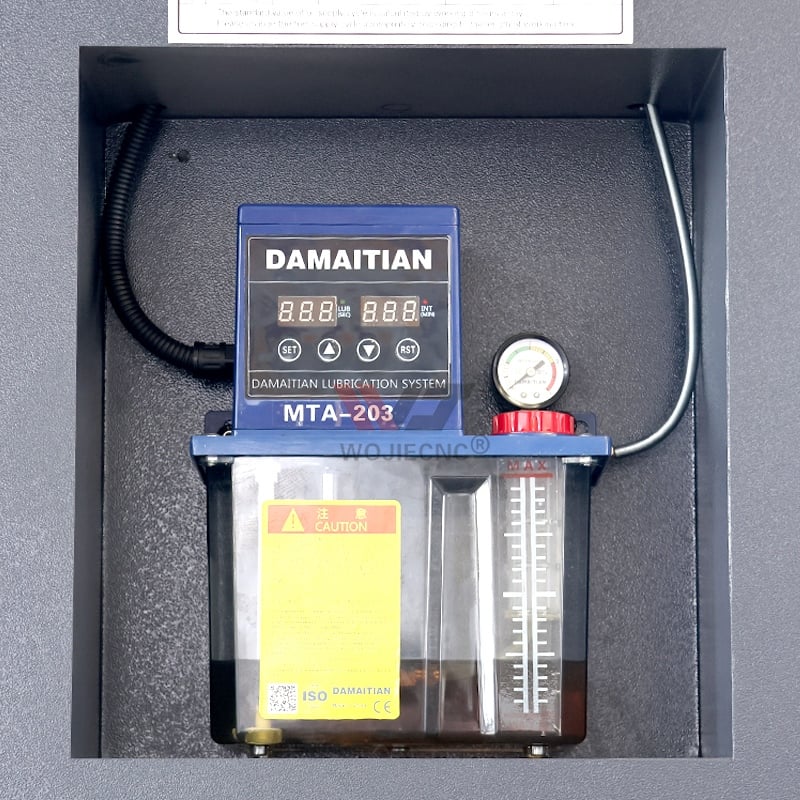

Automatic Lubrication System The TCK800 is equipped with a DAMAITIAN MTA-203 automatic lubrication system, which delivers precise, timed oil supply to guide rails and ball screws. It features a digital display for setting lubrication intervals, a pressure gauge for real-time monitoring, and a transparent oil tank with level indicators to ensure continuous, reliable lubrication, reducing friction and extending component life.	Electrical Control Cabinet The machine’s electrical cabinet integrates a Fanuc CNC control system (or optional Siemens/GSK), with neatly organized wiring, circuit breakers, and terminal blocks. It includes a power supply unit, contactors, and a dedicated cooling fan to maintain stable operation. The ergonomic design ensures easy access for maintenance and troubleshooting, supporting high-precision machining control.
