CNC Lathe Milling Machine Y Axis Mill Lathe WJ56DY CNC Turning Lathe with CE

Description:

Product Application

This series of machine tools adopts an integral bed with a 30° bevel angle, and the bed material is HT300. It is cast using resin sand technology and has a reasonable internal rib layout. The guide rail adopts imported linear roller guide rail, which has improved feeding accuracy, small friction resistance, good rigidity, high resistance to vibration and deformation, allowing users to obtain

higher processing accuracy, increase the speed of rapid movement, and obtain higher production efficiency.

Specifications:

Item	WJ56DY-500
Maximum rotation diameter on the bed	Φ650
Maximum machining diameter	Φ400
Maximum machining diameter on the tool holder	Φ360
Maximum machining length	470
Spindle head type (optional chuck)	A2-6（8 ″）/A2-8(10)
Recommended spindle motor power	11 KW
Maximum spindle speed	3500rpm
Spindle hole diameter	Φ66/Φ82
Bar diameter	Φ50/Φ70
X/Z axis limit travel	270/610
Turret	BMT55
Sleeve diameter	80
Sleeve travel	80
Maximum tailstock travel	Hydraulic tailstock: 500 servo programmable 380
Tailstock sleeve taper hole	MT5
Bed type and slope	30°
Overall dimensions (length × width × height)	330021302320mm
Overall dimensions (length × width × height) with chip conveyor	404521702490mm
Approximate weight	4500kg
Approximate weight (with chip conveyor)	4800kg

Standard Accessories:

(1) Control system: GSK988TA

(2)12-station turret

(3)A2-6 spindle

(4)10-inch hydraulic chuck

(5)C-axis (brake)

(6)Hydraulic tailstock

(7)Working light

(8)Warning light

(9)Electrical cabinet heat exchanger

Optional Accessories:

(1)Renishaw tool arm

(2)Chain chip conveyor

(3)Fanuc/Siemens control system

(4)Oil-water separation

(5)Parts catcher

(6)Automatic feeder

(7) 12T power turret

Detailed Images:

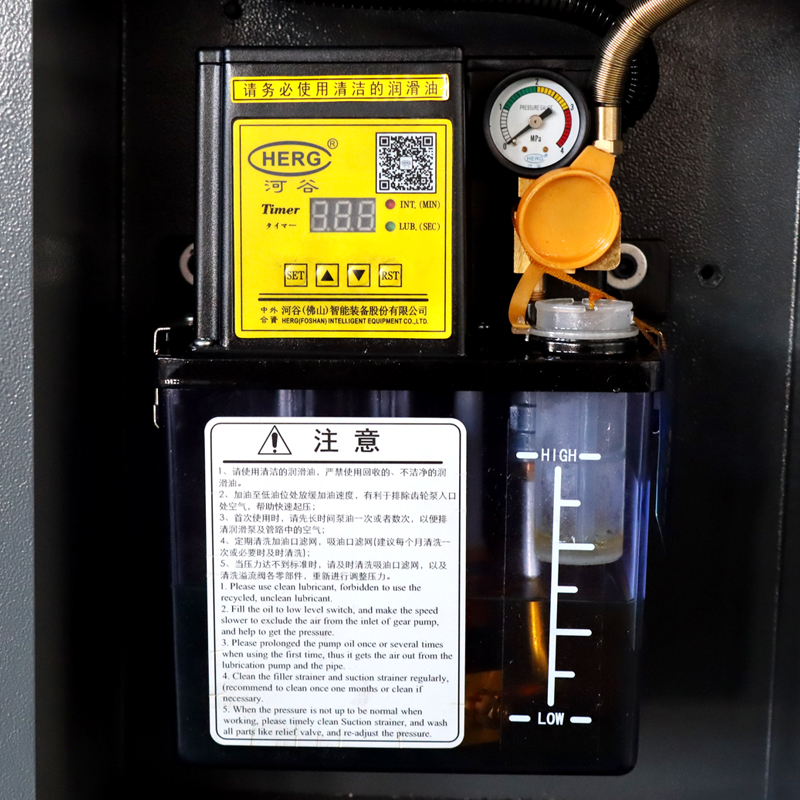

Automatic Lubrication System

Component Name

Centralized Automatic Lubrication System (WJ56DY Moving Parts Protection)

Detailed Description

This is a timed automatic lubrication system dedicated to lubricating the WJ56DY’s high-wear components: linear guides, ball screws, and spindle bearings.

· Precision Lubrication: Automatically delivers quantitative lubricant at preset intervals, ensuring uniform oil film coverage for moving parts.

· Monitoring & Alerts: Equipped with a clear oil level gauge and pressure meter to alert operators of low oil levels or system blockages, preventing dry friction and premature component wear.

· Efficiency: Eliminates manual lubrication work, reduces maintenance labor costs, and extends the service life of core components—critical for maintaining the long-term machining precision.

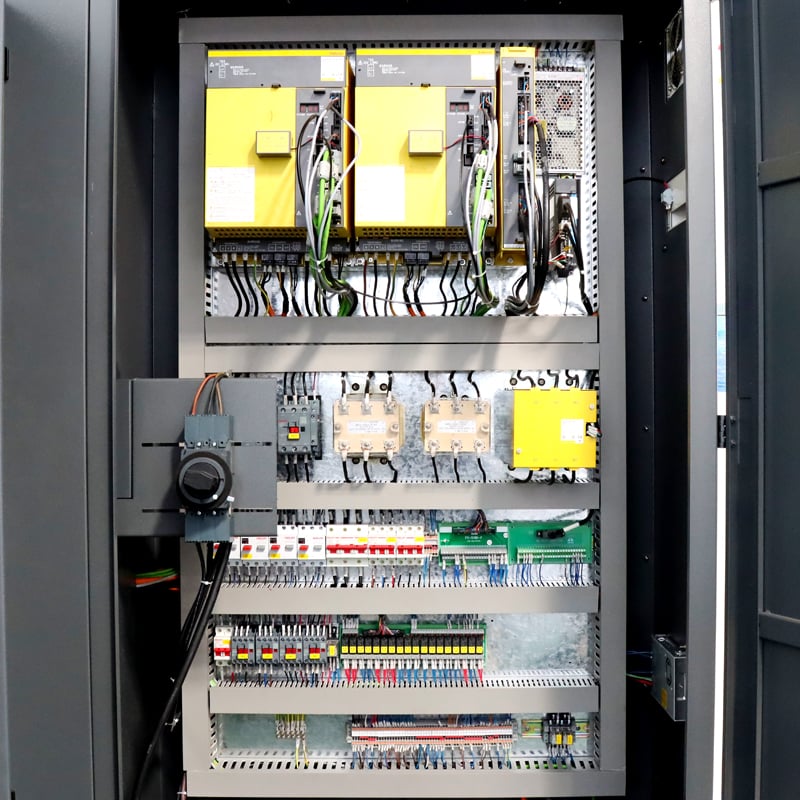

Electrical Control Cabinet

Component Name

Integrated Electrical Control Cabinet (WJ56DY Power & Control Core)

Detailed Description

This enclosed electrical cabinet houses the core electrical components, including FANUC servo drives, relay modules, circuit breakers, and I/O terminals.

· Reliability: Adopts industrial-grade electrical components with strict wiring standards (neat, labeled circuits) to ensure stable signal transmission and prevent electrical interference.

· Safety Protection: Equipped with overload protection, short-circuit protection, and emergency power-off circuits to safeguard the machine from electrical failures and protect operators.

· Maintenance-Friendly: Modular component design simplifies troubleshooting and part replacement, reducing long-term maintenance costs.

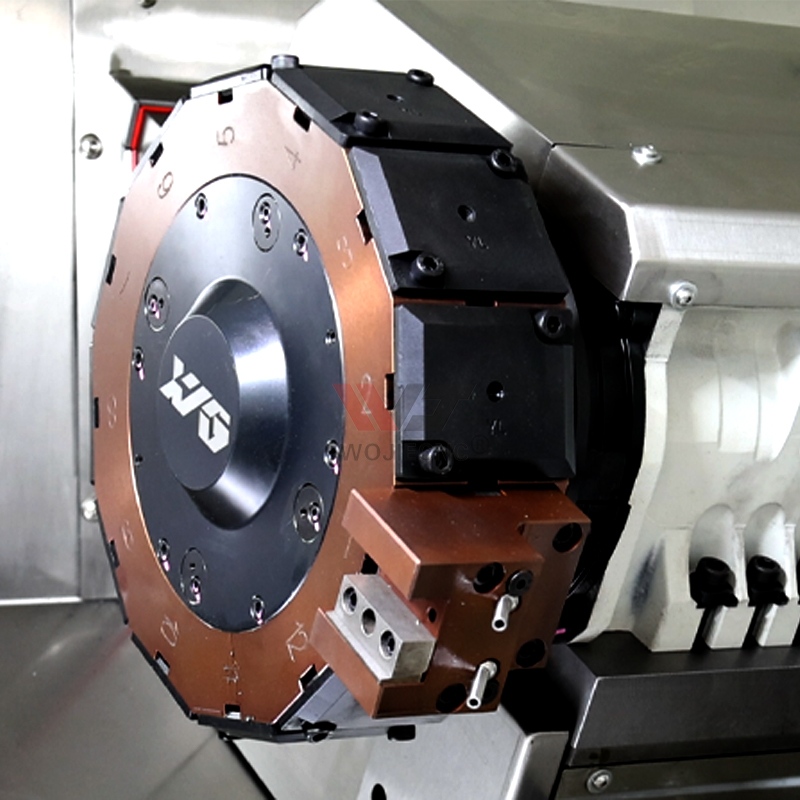

Product Type: Power Tool Turret (Live Tool Turret)
Key Features:
1. High-Precision Indexing: Equipped with a precision curvic coupling (Hirth coupling) for reliable positioning, ensuring a repeat positioning accuracy of ±0.001mm for stable, high-quality machining.
2. Multi-Station Tool Capacity: Features 12/16 tool stations (configurable), supporting both static turning tools and rotating power tools (milling, drilling, tapping, etc.) to enable one-setup complex machining.
3. Fast Tool Change: Servo-driven turret rotation with a rapid indexing time of <0.3s per station, minimizing non-cutting time and boosting productivity.
4. Robust Interface Options: Compatible with standard VDI/BMT tool holders, offering flexible tooling solutions for diverse machining requirements.
5. Durable & Reliable: Heavy-duty construction with sealed components to prevent coolant and chip ingress, extending service life and reducing maintenance needs.

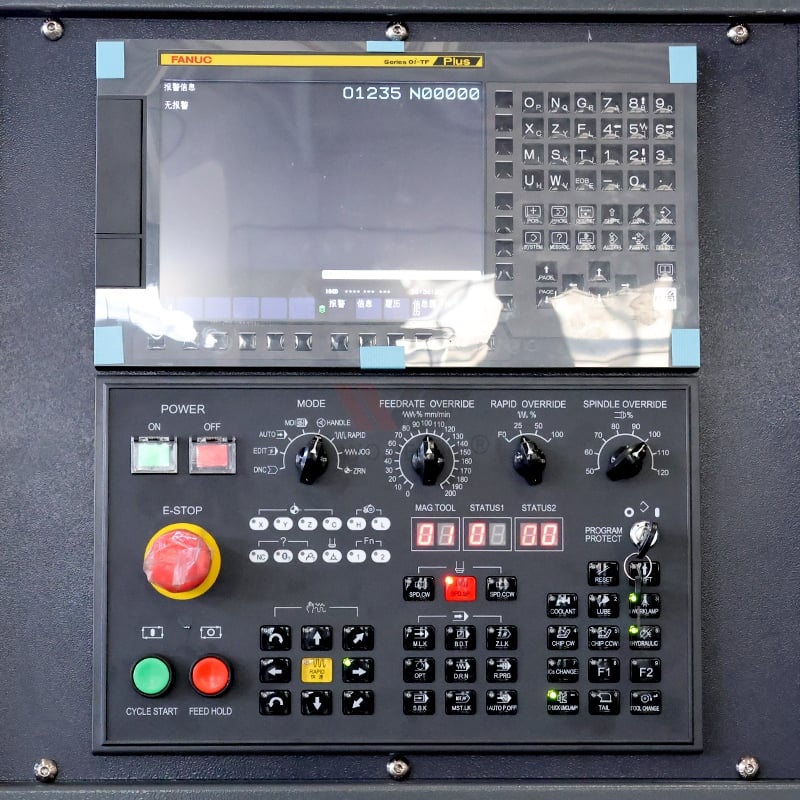

FANUC CNC Control System & Operation Panel

Component Name

FANUC CNC Control Panel (WJ56DY Core Control Unit)

Detailed Description

This is the central control hub of the WJ56DY lathe, equipped with a high-precision FANUC CNC system—renowned for its stability and user-friendly operation. The panel integrates a color LCD display, multi-function operation keys, and dedicated control knobs.

· Core Functions: Enables program input/edit, real-time monitoring of machining coordinates/spindle speed/feed rate, and one-click switching between manual (JOG), automatic, MDI (Manual Data Input), and dry run modes.

· Safety & Efficiency: Features a prominent red emergency stop button for immediate power cut-off in hazardous situations; optimized key layout reduces operator fatigue and minimizes production downtime.

· Compatibility: Supports complex turning processes (OD/ID turning, threading, taper cutting, grooving) and delivers high repeatability, making the WJ56DY ideal for high-volume precision machining.

Optional Configurations:

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
