Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | ZX50C |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $1700 |
| 5 sets $1500 | |
| Table Size | 800*240 mm |
| Spindle Motor Power(kw) | 1.5 kw |
| Packaging Details: | 1200*1000*1700 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
ZX50C drilling and milling machine has good abrasion resistance, the milling head can not only rotate backward on the vertical plane, but also rotate on the bed, which has good processing versatility. It can process planes, grooves, spiral surfaces,inclined surfaces, forming Noodles, etc.
Standard Accessories:
Work lamp
Cooling system
Milling Chuck
Drilling Chuck
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
Optional Accessories:

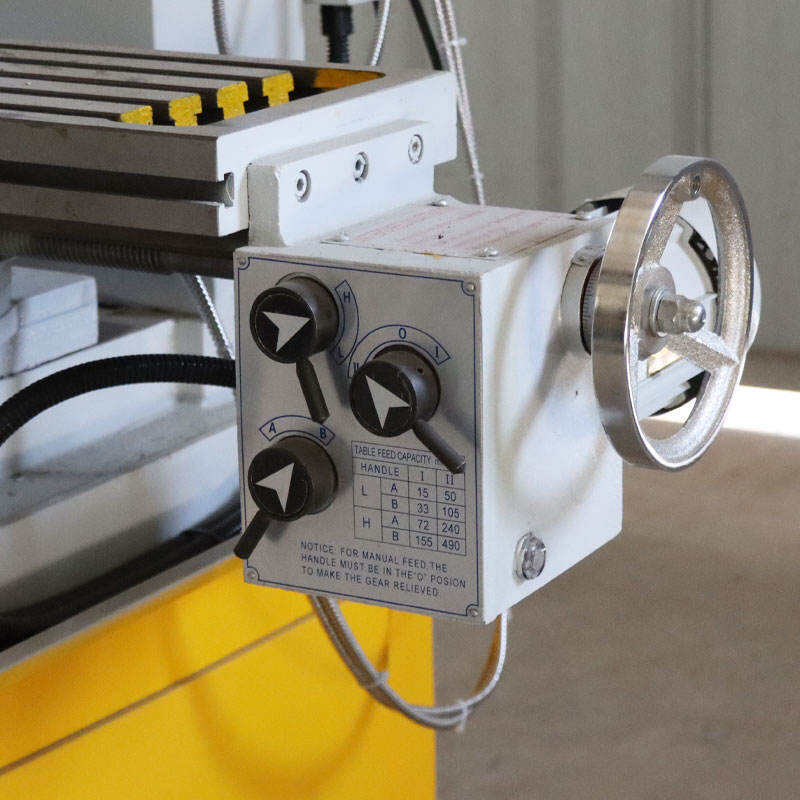

Power feed

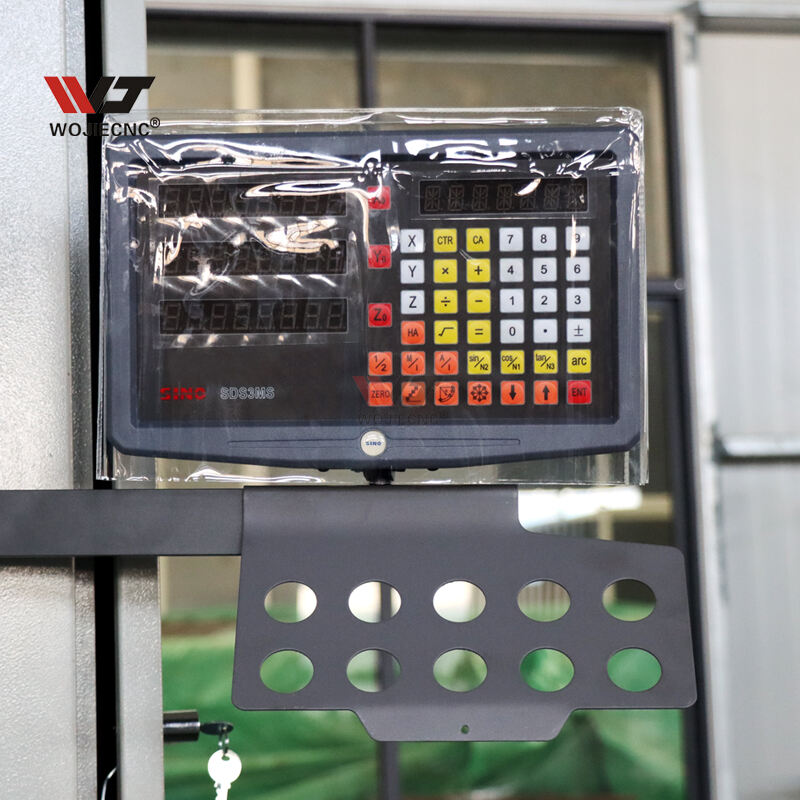

3-axis Digital Reading
Machine Vise
Dividing Head
Rotary Table
Clamping Kits
Specifications:
|
Specification |
Unite |
ZX50C milling machine |
|
Max. drilling diameter |
mm |
50 |
|
Max.Horizontal Milling Dia. |
mm |
100 |
|
Max.Vertical Milling Dia. |
mm |
32 |
|
Max.Boring Dia. |
mm |
100 |
|
Spindle Taper |
|
MT4,R8 |
|
Spindle Speeds Range |
|
(5 step)115-1750 |
|
Spindle Travel |
|
120 |
|
Table Size |
mm |
800*240 |
|
Table Travel |
mm |
400*230*380 |
|
Main Motor Power |
kw |
0.85/1.5 |
|
N.W/G.W |
kg |
470/550 |
|
Dimension |
mm |
1100*970*1650 |

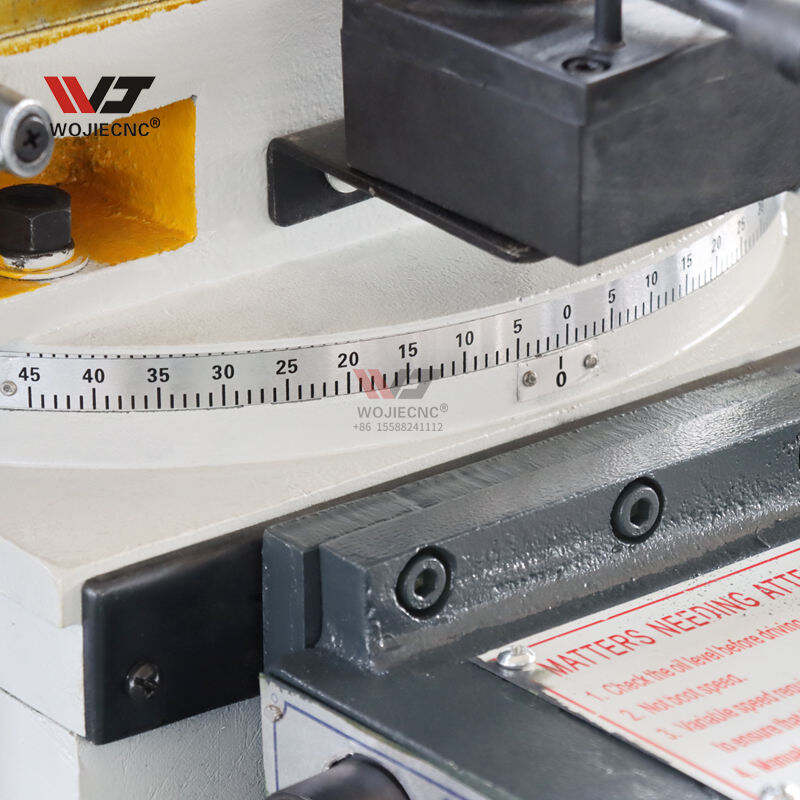

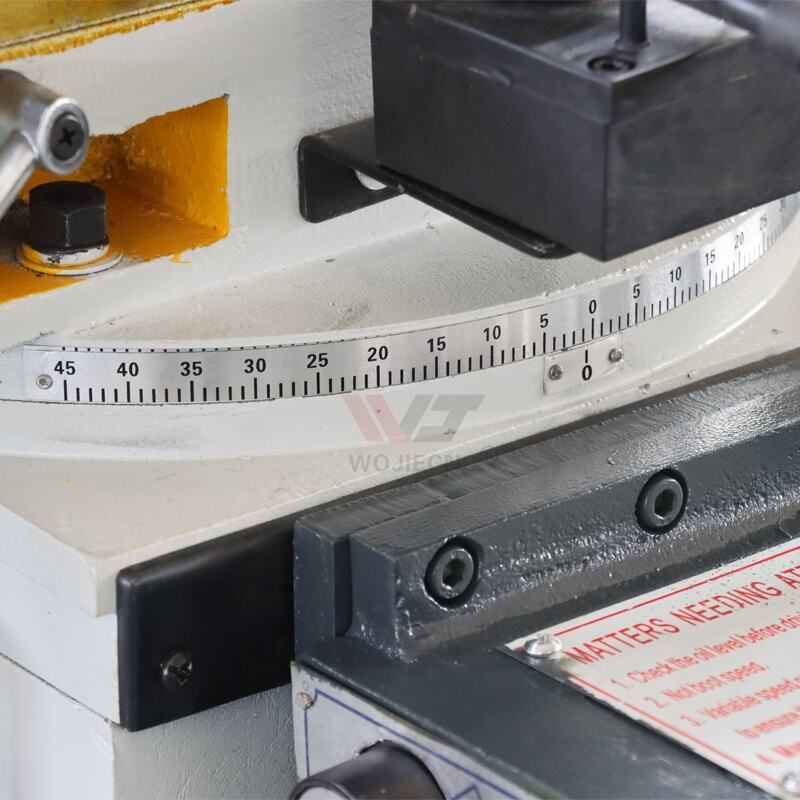

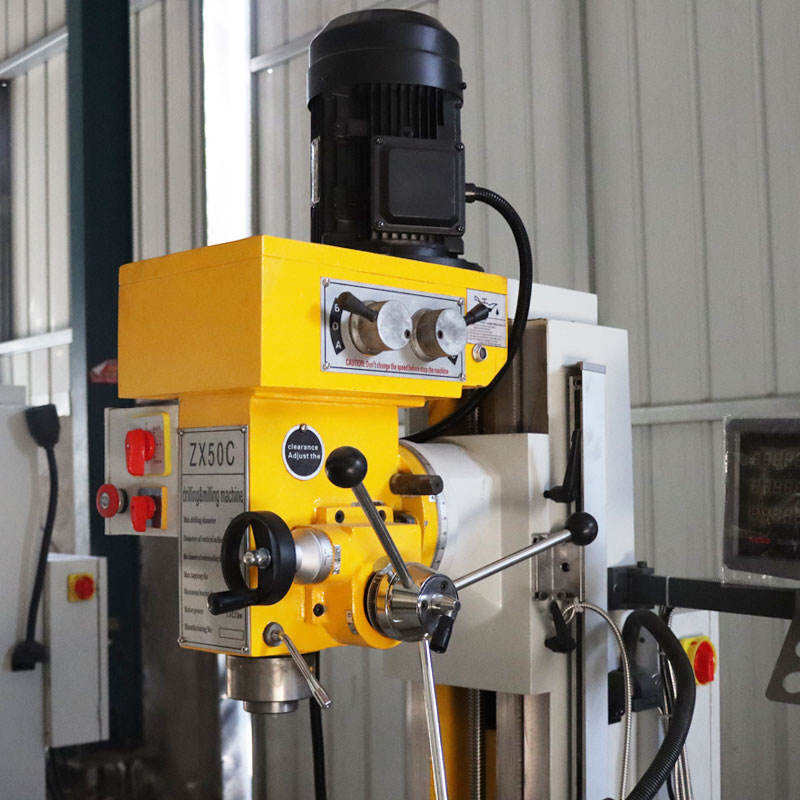

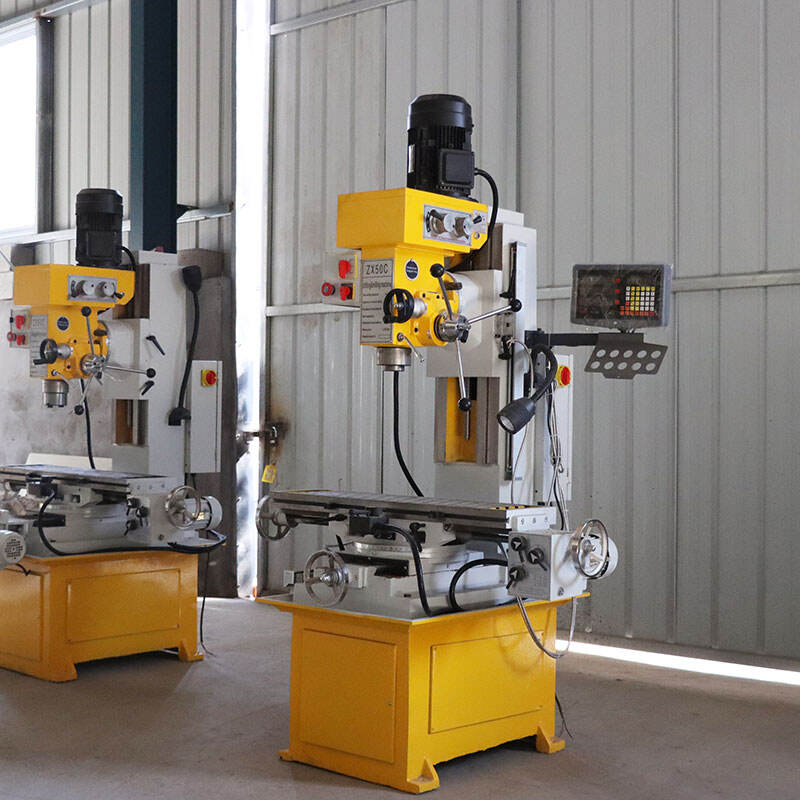

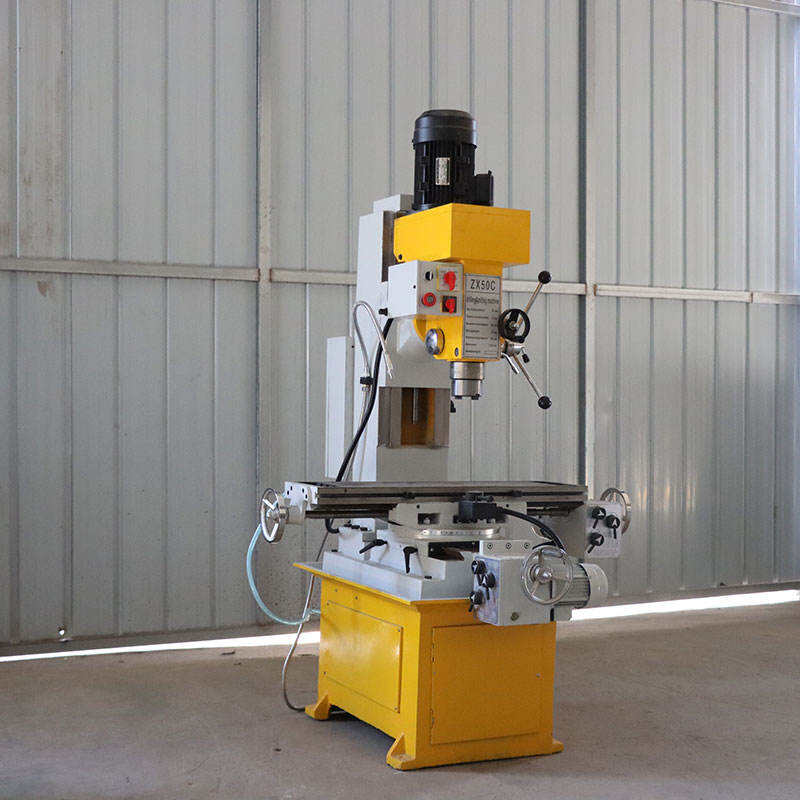

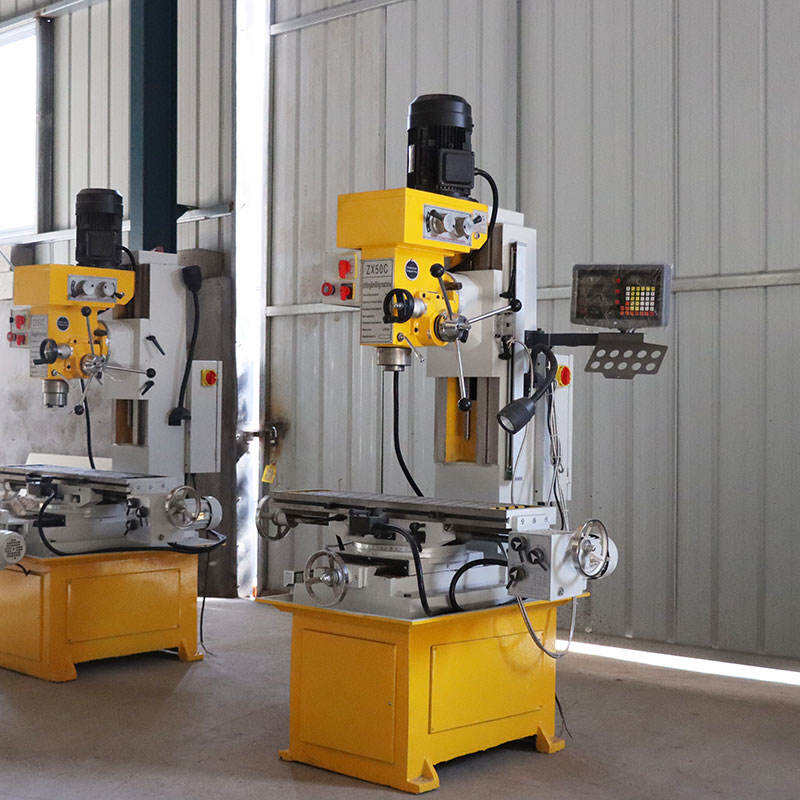

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready ,
we will take pictures to you.after we got your balance payment.
we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days. if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia,
it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
