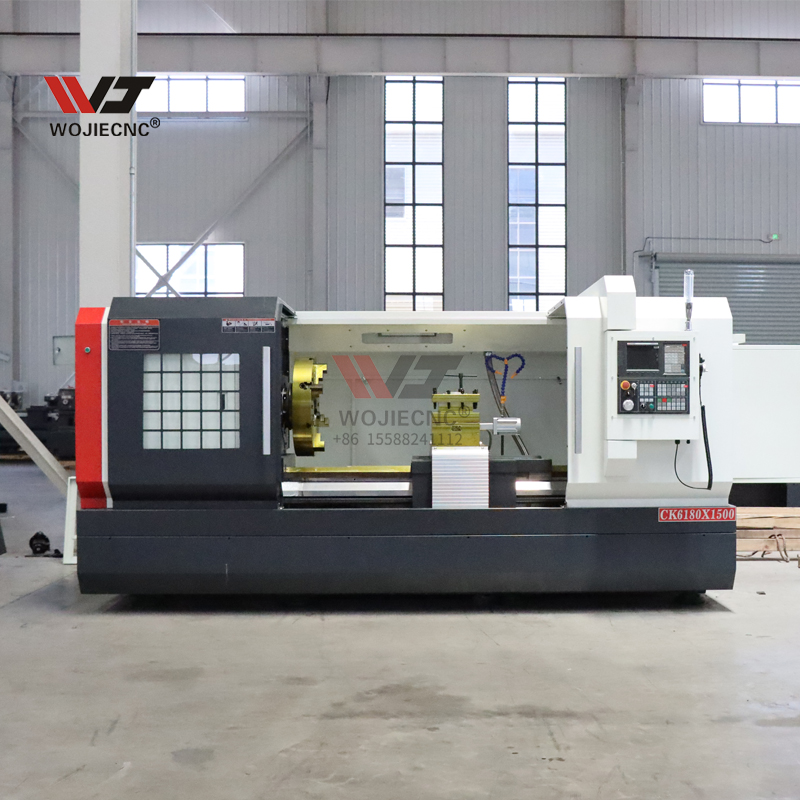

High-Speed Horizontal CNC Lathe & Milling Machine CK6180 with Fanuc and Siemens Control New with GSK Bearing Core Components

Description:

Product Application

1) It is included with flat bed, wide and hard guide and secure protection completely closed. The good-looking machine is fully equipped, very reliable and ensures high rigidity and precision, easy operation and good safety.

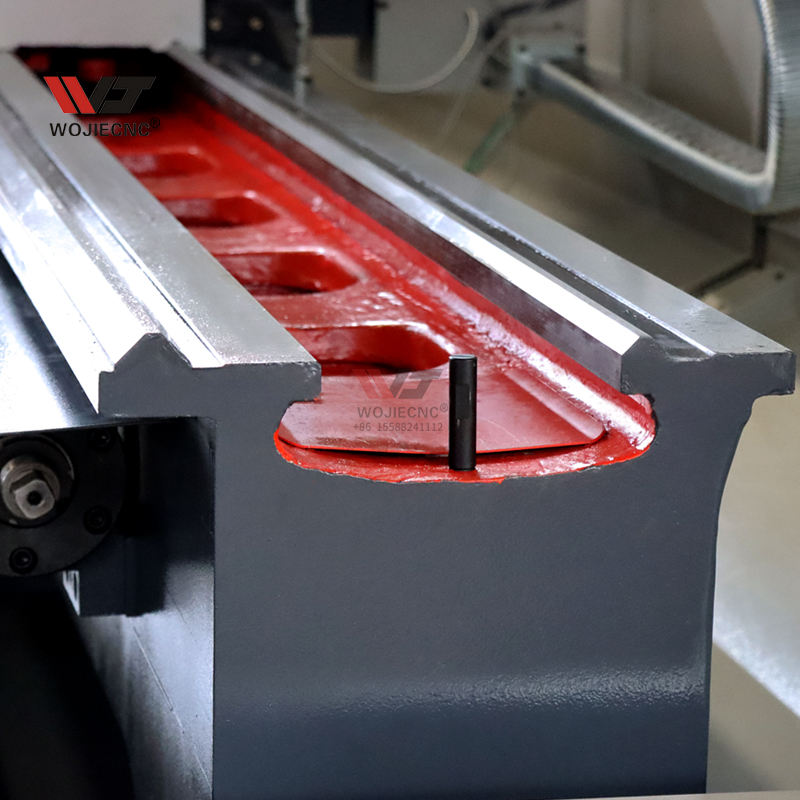

2) As adopted with integral bedfeet, hardened super sonic guide, this machine has high rigidity and perfect precision. Bed, bed feet, spindle box and trolley, etc. All made with precious casting. Through finite element analysis, the rigid tapes were arranged reasonably, thus improving the processing capacity of the machine.

3)There are 2 kinds of screw box equipment to choose from, such as: 2-step gear change speeds and single spindle step speeds which can satisfy the customer who requires the machine with great torque, high-speed processing, etc. The spindle bearing is purchased on Japanese NSK precision bearings, and there are FANUC servohusillo to choose from.

4) There are row adjustment tools to choose from that can easily adjust the height of tool centers and are also convenient for the various tools used in processing.

5) As the machine adopts the modular design, except that the spindle main box and CNC system can be chosen by customers, also mandrels as handle and 10 or 12 inch hydraulic chuck handle, tool posts as 4 positions, 6.8-position horizontal power tool posts or row tool posts; Glue stocks such as handle or hydraulic glue to choose from according to customers' requirements. More so, we can supply the simple bar stock conveyor for your requirements.

6) A fully enclosed secure protector was used on these machines. Due to the operation panel set with the traction gate, the operation panel can move with the door at the same time, which will make the operation more practical.

Specifications:

Articles	Specification	Unit	CK6180
The ability	Swing on the bed	Mm	φ800
	Swing on transverse of	Mm	φ550
	Distance between centres	Mm	1500/2000/3000
	Width of the bed shape	Mm	550
	Maximum load capacity	T	3
Spindle	Boring spindle	Mm	φ104
	Conical diameter shaft	-	MetricΦ120 /MT5
	Spindle nose type	-	A2-11
	Spindle speed, measurements	-	Manual equipment 3-step change
	Spindle speed	Rpm	10-1000
	Chuck size	Mm	φ315
	Chuck type	-	3-The manual jaw
Turret	Turret type	-	NC 4-position turret
	Tool handle size	Mm	12:32
Transport	Travel X-axis	Mm	420
	Travel Z-axis	Mm	1350/1850/2850
	Fast X-axis Walking speed	Mm/min	4000
	Z-axis Fast walking speed	Mm/min	6000
Tailstock	Counterpoint quill diameter	Mm	φ100
	Quill taper counterpoint	-	MT5
	Counterpoint quill travel	Mm	250
Engines	Main spindle motor	KW	11
	Engine coolant pump	KW	0.125
Dimensions	Width x height	Mm	1850:1900
	Longitude	Mm	3900/4400/5400
Weight	Net weight	T	4.3/4.7/5.4

Standard Accessories:

1.Complete coolant system for ready use

2.Complete lubrication system for ready use

3.LED work light

4.10" three jaw manual chuck

5.4 tool electric tool carrier

6.Manual tailstock

7.Tool box and tools

8.GSK control

Optional Accessories:

1.Automatic feeding device for long bar work piece

2.Chip conveyor

3.Hydraulic chuck, hydraulic station, rotaty cylinder ( solid type or hollowed type)

4.Steady rest

5. Follow rest

6. 6 tool electrical tool carrier

7.siemens/fanuc control

Detailed Images:

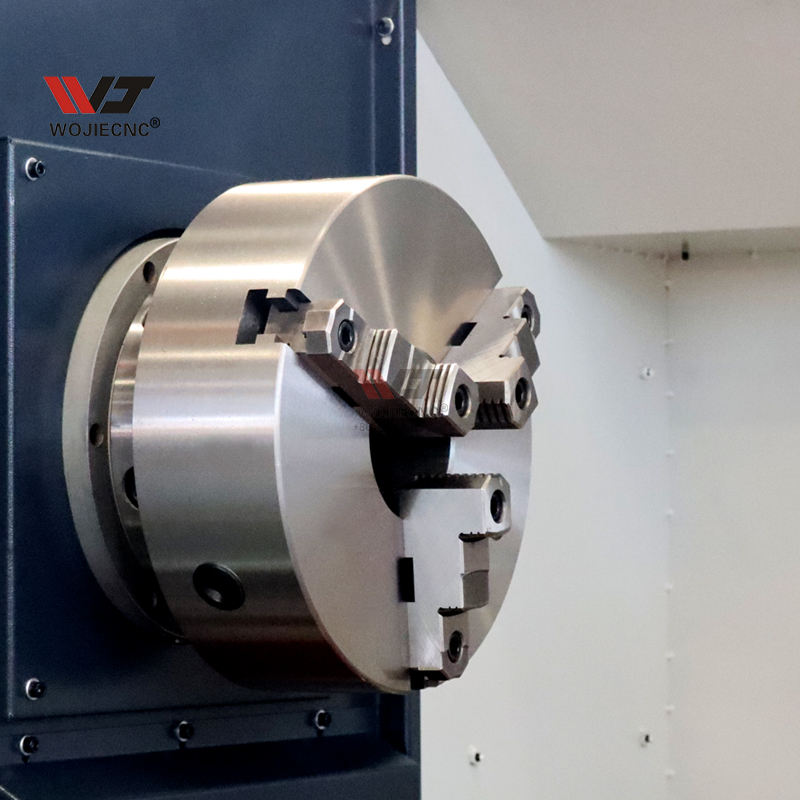

Spindle & Chuck Assembly This image shows the spindle and 3-jaw manual chuck of the CK6180 CNC lathe. The spindle features a bore diameter of φ104mm and a taper of MT5, while the φ315mm chuck provides secure clamping for heavy workpieces up to 3 tons.	Turret & Tool Post This is the NC 4-position turret with a tool handle size of 12:32. It enables quick tool changes and efficient machining operations, supporting high productivity for turning processes.

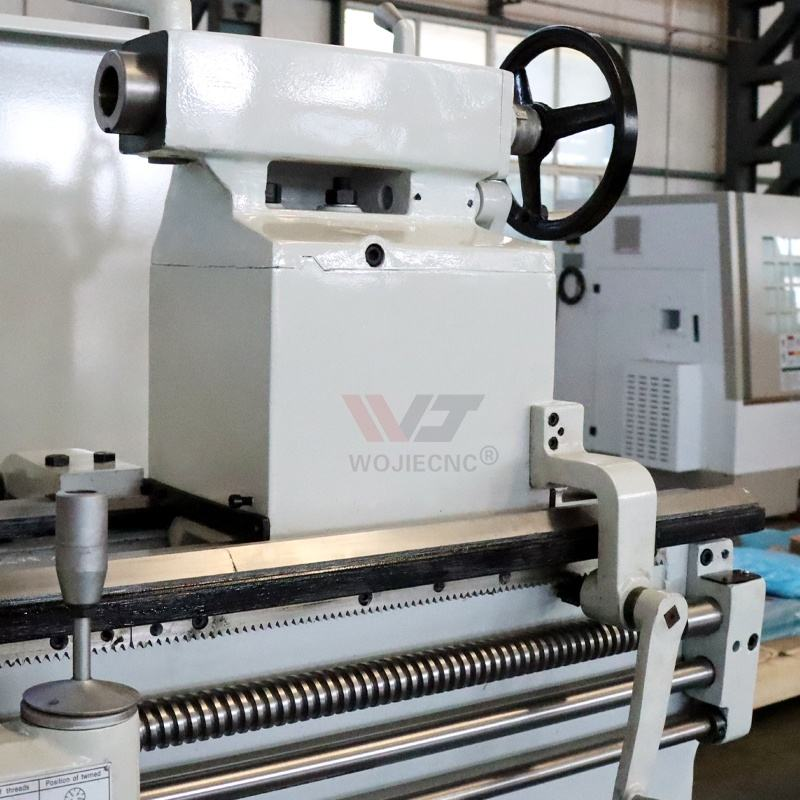

Tailstock Assembly The tailstock assembly includes a quill with a diameter of φ100mm, MT5 taper, and 250mm travel. It provides stable support for long workpieces during machining, ensuring precision and rigidity.	Electrical Control Cabinet This is the machine’s electrical control cabinet, housing the main spindle motor drive, coolant pump relay, and PLC components. It ensures reliable power distribution and stable operation of the lathe’s automation system.
