X5036 High Precision Manual Heavy Duty Large Vertical Knee Type Milling Machine Price
|
Item |
Specification |
|
Type |
VERTICAL |
|
Machining Capacity |
Heavy Duty |
|
Table Travel (X) |
1020 mm |
|
Table Travel (Y) |
300 mm |
|
Table Travel (Z) |
410 mm |
|
Spindle Taper |
7:24 50# |
|
Range of Spindle Speed |
30 - 1500 r.p.m |
|
Weight |
3370 kg |
|
Warranty |
2 Year |
|
Max. Table Load |
750 kg |
|
Place of Origin |
Shandong, China |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:

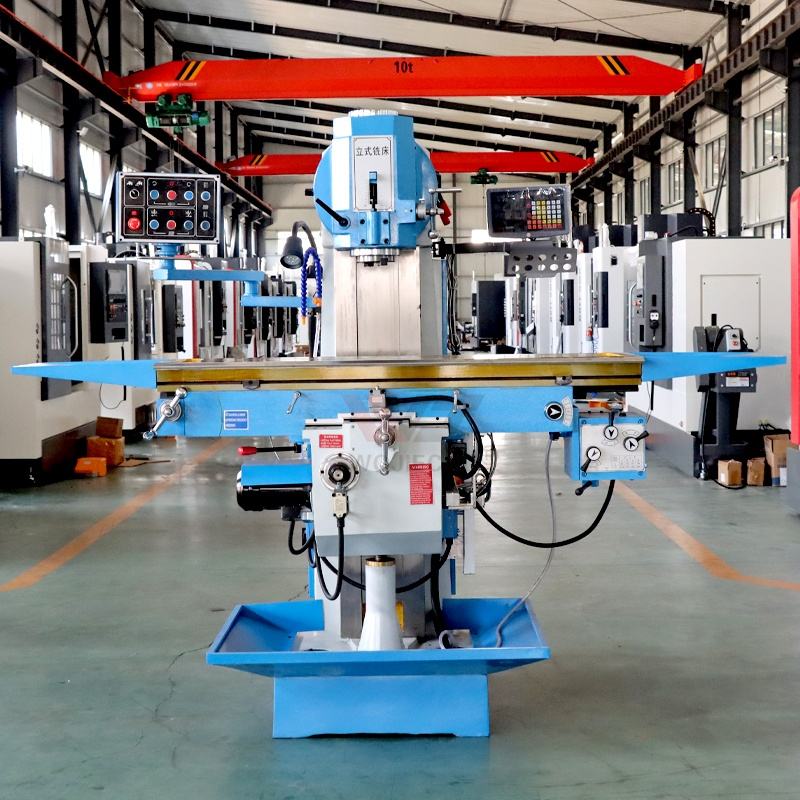

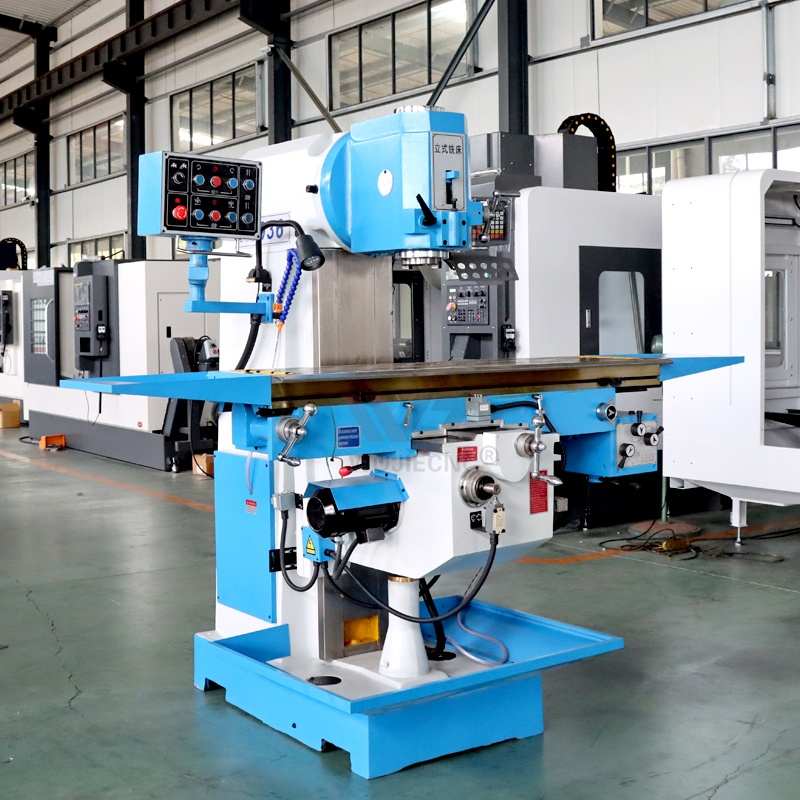

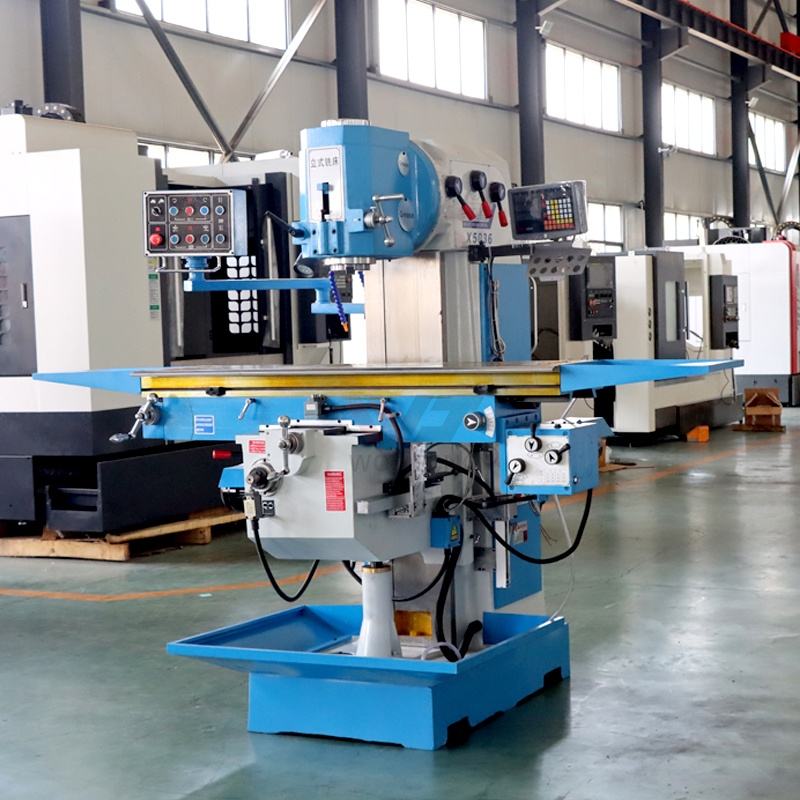

X5036 Vertical Knee-type Milling Machine:
Model X5036 Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able toperform milling operations in gears, Cutter, helix groove, cam and tub wheel.

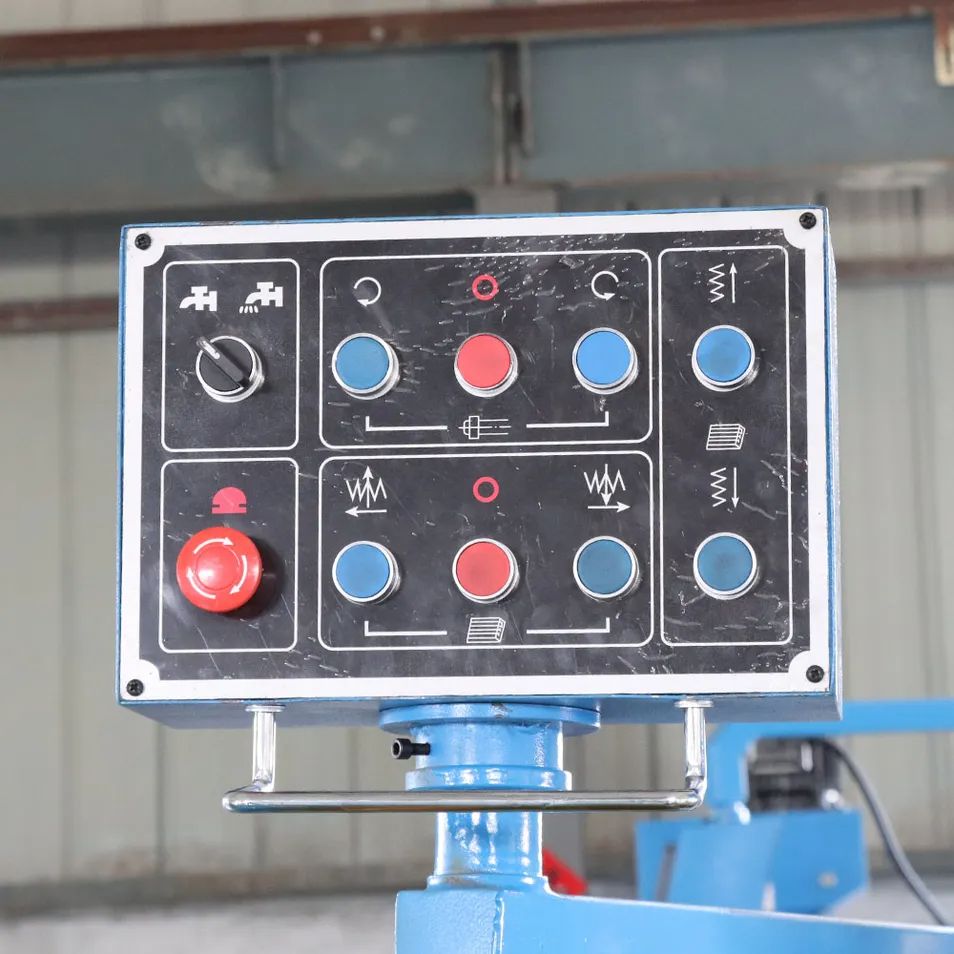

Vertical milling head can be swiveled by ±45°, Spindle quill can be moved in vertical.The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set ofcantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Workingtable and slide ways adopted quality cast hardened ensure high accuracy.
The main performance characteristics:
1. The use of the moment type of rail steel is good, strong stability
2. High frequency quenching of working table and guide surface
3.Working table Y, X are both gear drive automatic feed, Z for electric lift
4.X5036B - type slider (1200mm) to make the work of the working table longer, better stability
5.B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Product main technical Specifications:
| Specifications | Units | X5036 |
| Table size | mm | 360×1600 |
| T slots (Number-Width-Depth) | mm | 3×18×80 |
| Table Load-bearing | kg | 550 |
| Longitudinal travel (Manual/Power) X | mm | 1020/1000 |
| Cross travel (Manual/Power) Y | mm | 300/280 |
| Vertical travel (Manual/Power) Z | mm | 410/400 |
| Feed speed steps | - | 18 Steps |
| Feed speed ranges - Longitudinal X | mm/min | 15-750 |
| Feed speed ranges - Cross Y | mm/min | 15-750 |
| Feed speed ranges - Vertical Z | mm/min | 5.7-280 |
| Rapid feed ranges - Longitudinal X | mm/min | 2250 |
| Rapid feed ranges - Cross Y | mm/min | 2250 |
| Rapid feed ranges - Vertical Z | mm/min | 844 |
| Distance between table center to vertical guide way | mm | 235-535 |
| Arbor diameter | mm | φ32-φ40 |
| Min. distance from spindle nose to table | mm | 50-460 |
| Spindle quill travel | mm | 75 |
| Distance between vertical guide to spindle center | mm | 380 |
| Max. rotary angle of the vertical milling head | ° | ±45° |
| Spindle hole taper | - | 7:24 50# |
| Diameter of spindle hole | mm | φ29 |
| Spindle speed steps | - | 18 Steps |
| Spindle speed ranges | r/min | 30-1500 |
| Main motor power | kW | 7.5 |
| Feed motor power | kW | 1.5 |
| Cooling pump power | kW | 0.12 |
| Overall size | mm | 2307×2067×2096 |
| Packing box size | mm | 2240×2070×2250 |
| Net weight | kg | 3370 |
Detailed Images:
 |
 |
|
RECTANGULAR GUIDEWAYS
Quenching rectangular, guideways with high stbility and rigitity.
|

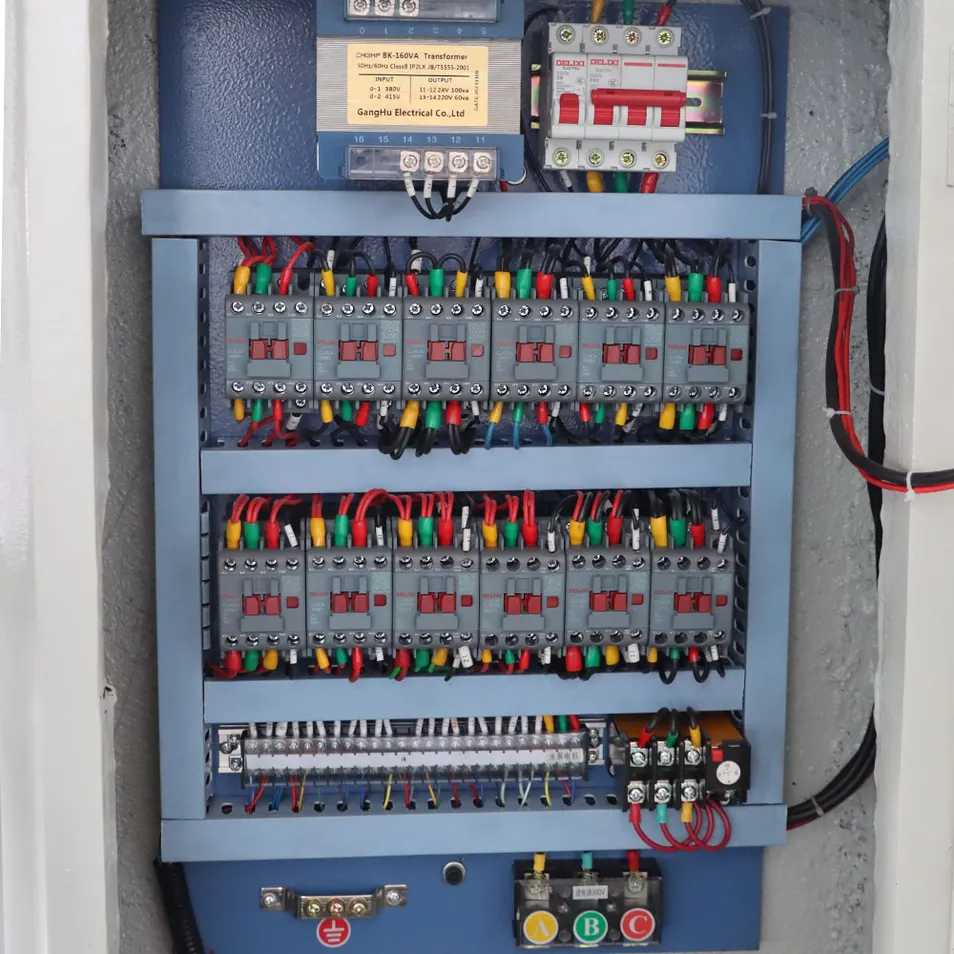

ELECTRICAL BOX
Delixi and Schneider, CE as standard equipment
|
 |
 |
|

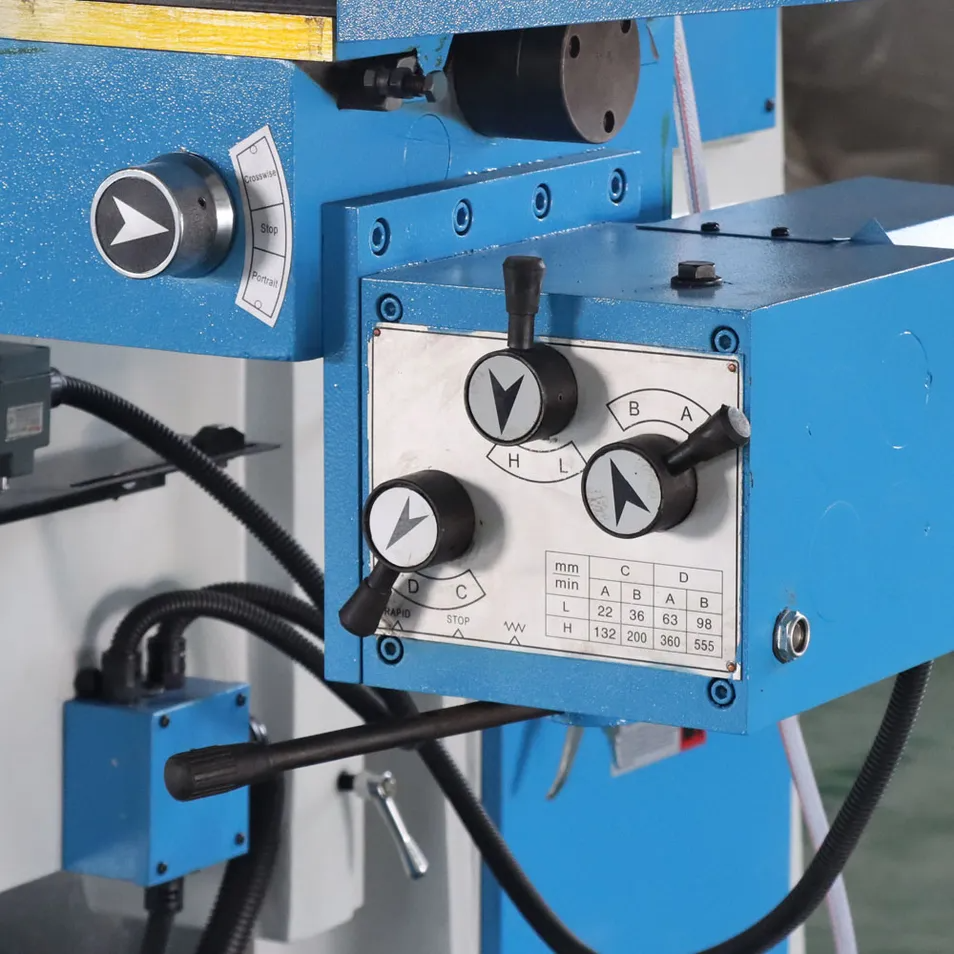

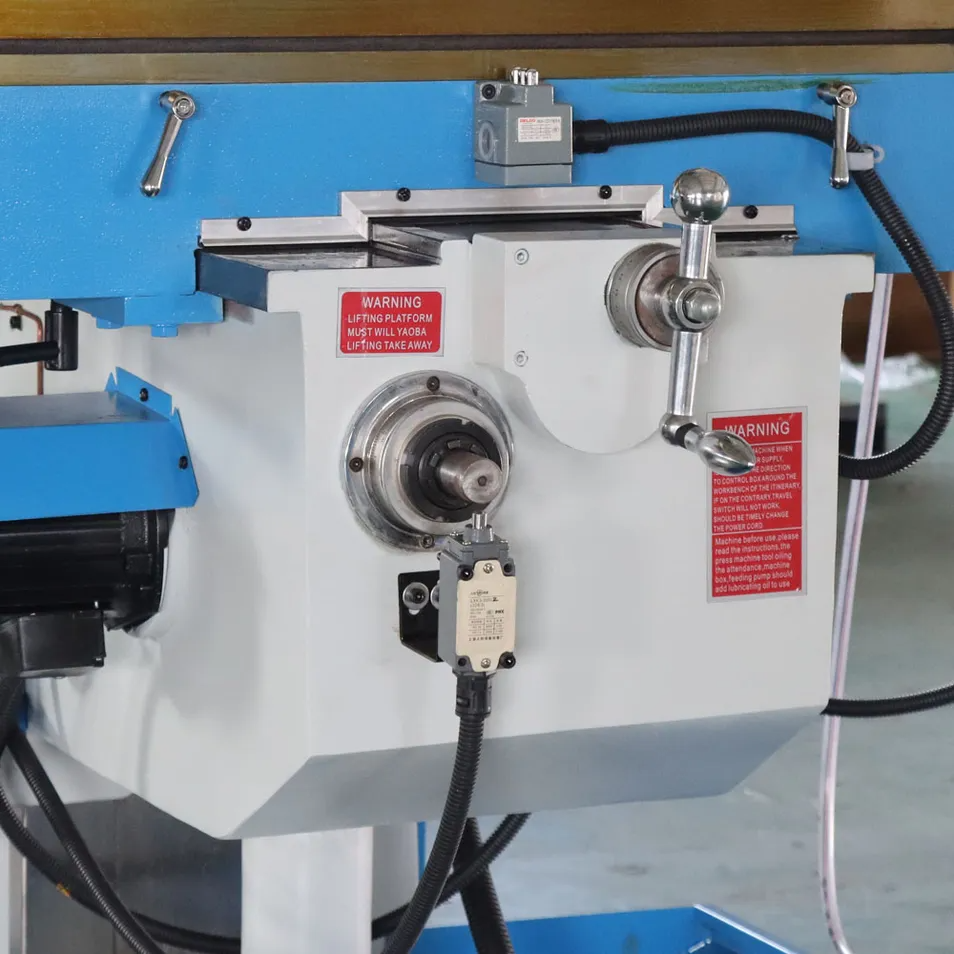

X/Y/Z AUTO FEED
X/Y axis auto feed,Z axis electric ifting,improve processing time
|
3 AXIS DRO
3 axis digital readout is optional,need extra cost.
|
 |
 |
|

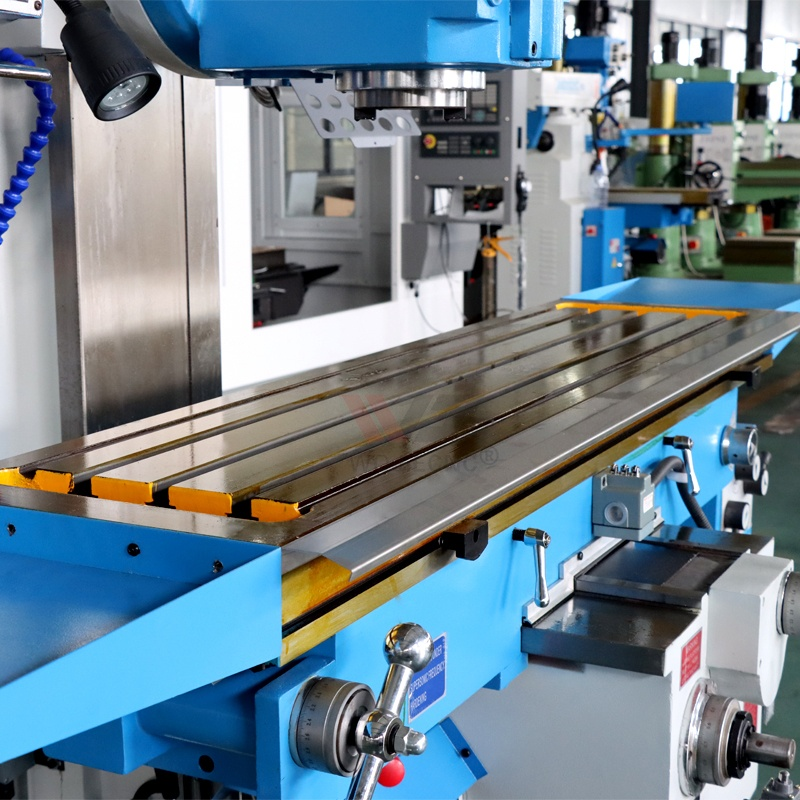

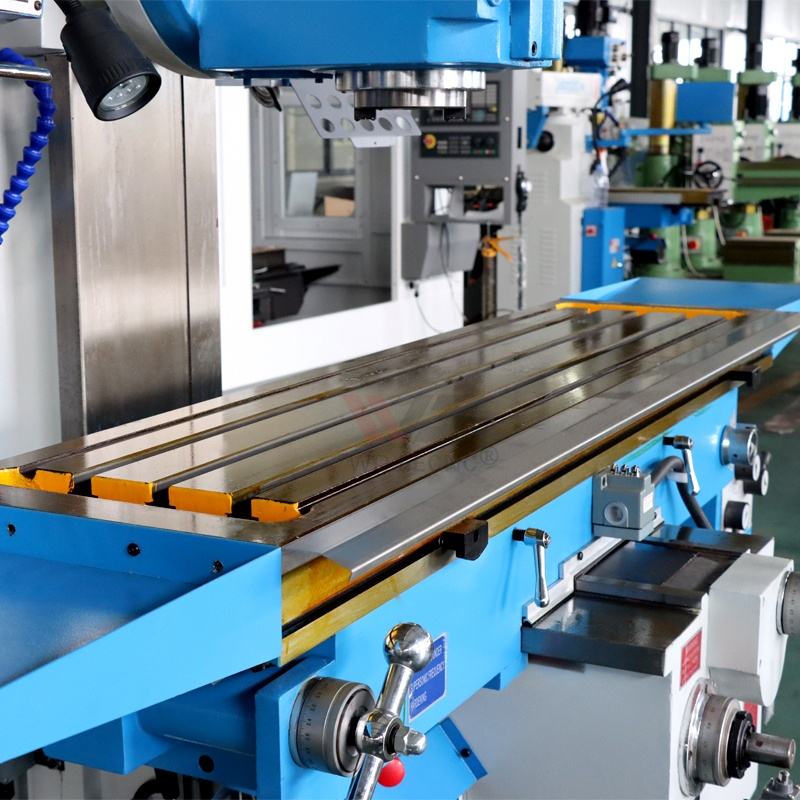

WORKTABLE
Ultra-audio quenching, precision grinding and scraping guide.
|

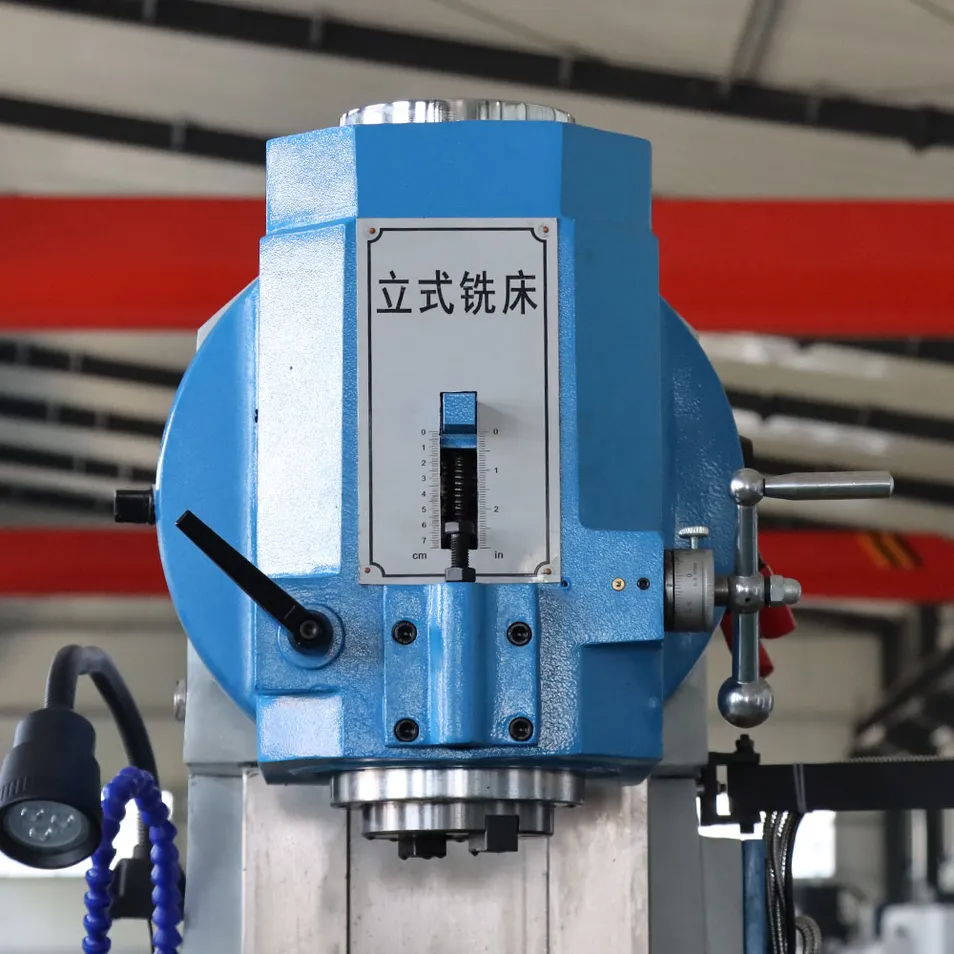

VERTICAL MILLING

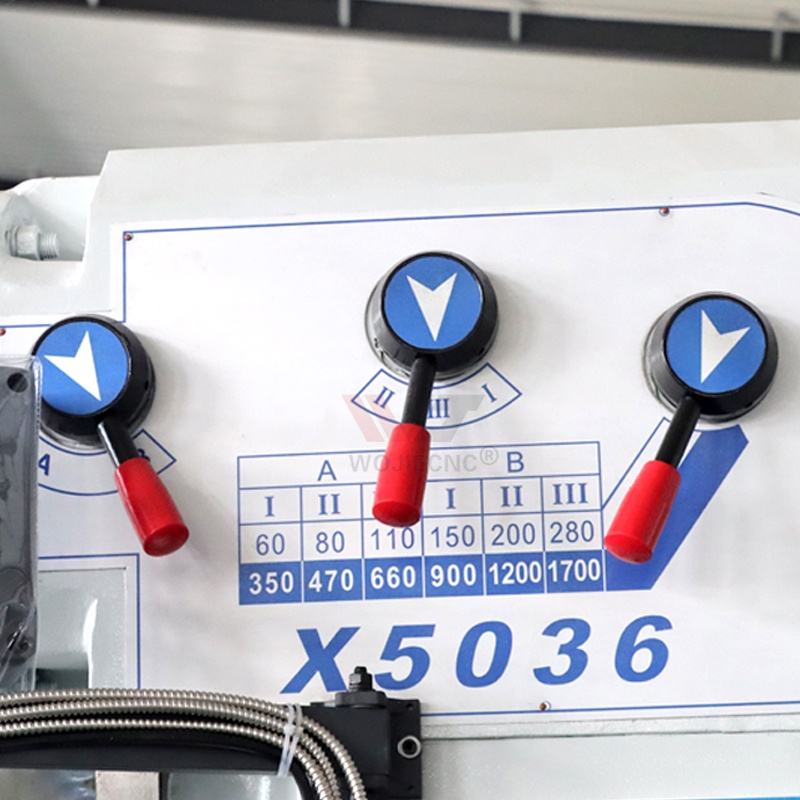

Spindle taper 7:24 IS050. Spindle speed:60-1700rpm
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
