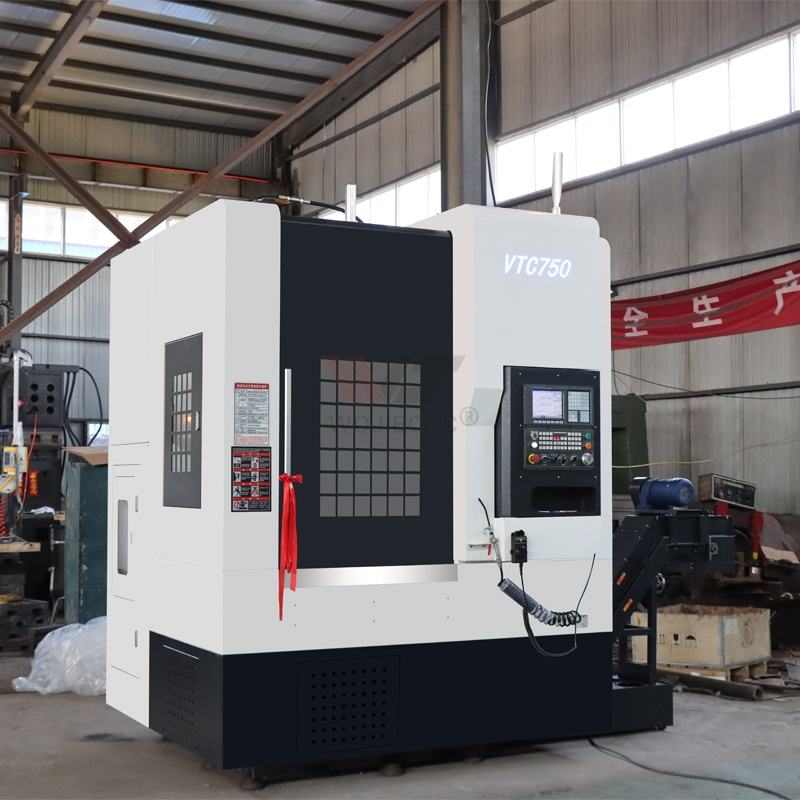

VTC750 High Precision Cnc Vertical Lathe Machine Price for Large Diameter Parts

VTC750 High Precision Cnc Vertical Lathe Machine Price for Large Diameter Parts

Item	Specification
Max. Swing Diameter	750 mm
Max. Turning Diameter	650 mm
Max. Workpiece Height	600 mm
Spindle Speed Range	20–630 rpm
Spindle Motor Power	22 kW
Turret Stations	8 stations
Positioning Accuracy	±0.015 mm
Repeat Positioning Accuracy	±0.008 mm
Machine Weight	6800 kg

Description
Specifications
Detailed Images
Company Introduction

Description:

Product Application

CNC Vertical Lathe is suitable for internal and extemal turning,internal and extermal tapering,circulaarc,facing,slotting,thread,drilling,reaming,boring,chamfering of big diameter axle parts and disc type parts. The machine hasawidely use,high efficiency,good stability,easy to operate.It can achieve the high-precision processing of single or batchprocessing.

Product main technical Specifications:

Item	Unit	VCK600	VCK1000	VCK1300
Max. turning diameter	mm	600	1000	1300
Max. cutting diameter	mm	500	910	1210
Number of spindle speeds	r/min	50-1000 Stepless	80-350 Stepless	80-350 Stepless
Cutting feedrate	mm/min	0.1-1000	0.1-1000	0.1-1000
Turret vertical moving distance	mm	400	650	750
Turret horizontal moving distance	mm	300	520	720
Longitudinal fast shift speed	mm/min	8000	8000	8000
Vertical fast shift speed	mm/min	5000	6000	6000
Turret in the form		Four station electrical turret	Four station electrical turret	Four station electrical turret
Chuck size	mm	400	630	800
Tool bar section	mm	32x32	32x32	40x40
Positioning repeatability	mm	0.012	0.012	0.012
X/Z positioning accuracy	mm	0.012/0.02	0.012/0.02	0.018/0.02
Power of main motor	kw	11	18.5	22
Overall dimensions of machine	mm	2250x1960x2300	2450x2150x2850	2700x2300x3200
Machine weight	kg	3200	6800	8600

Detailed Images:

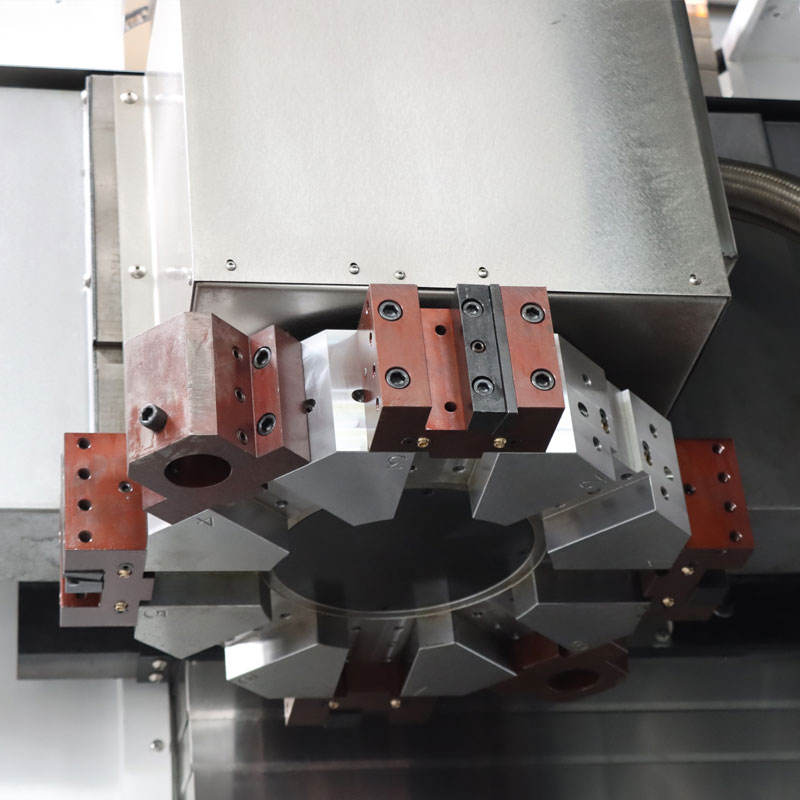

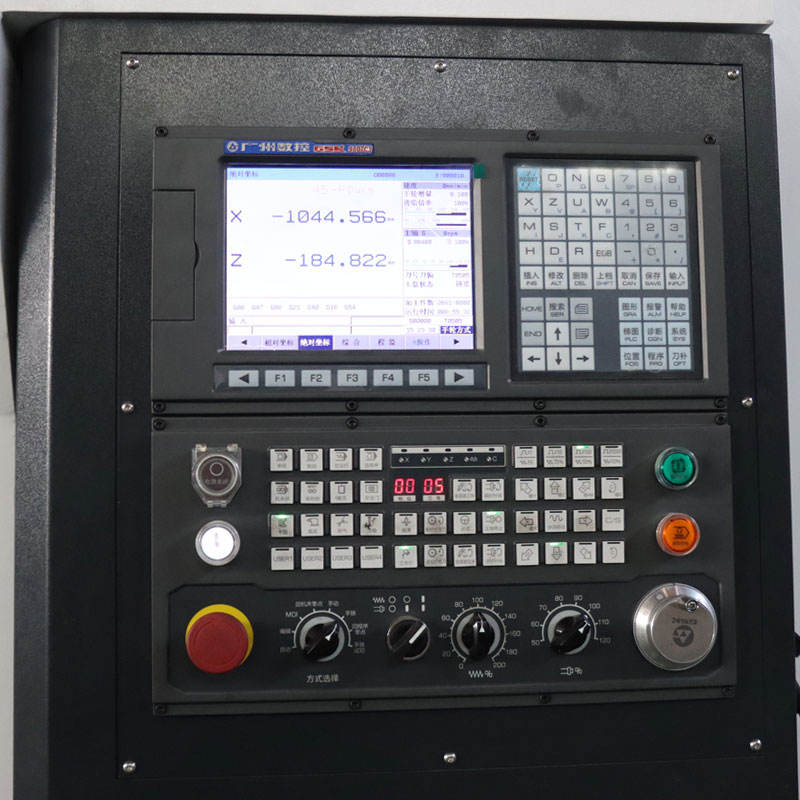

Tool Turret A robust multi-station turret with heavy-duty tool holders, designed for fast tool changes and stable cutting performance, ideal for complex workpiece machining.	CNC Control Panel An advanced numerical control system with a color display, full-featured keypad, and intuitive operation buttons (including emergency stop, feed override knobs, and mode switches), enabling precise programming and real-time monitoring.

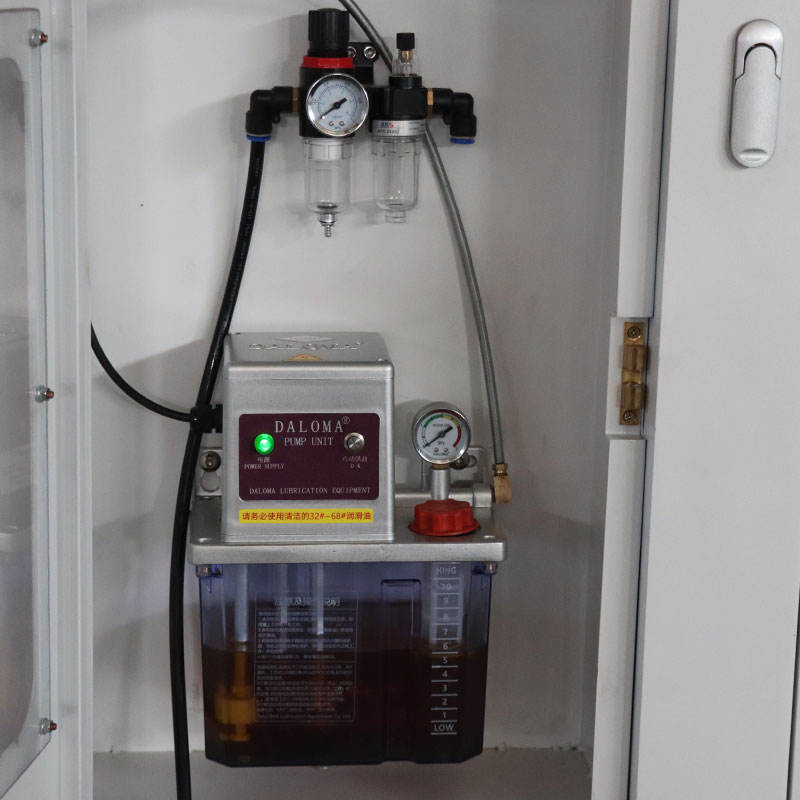

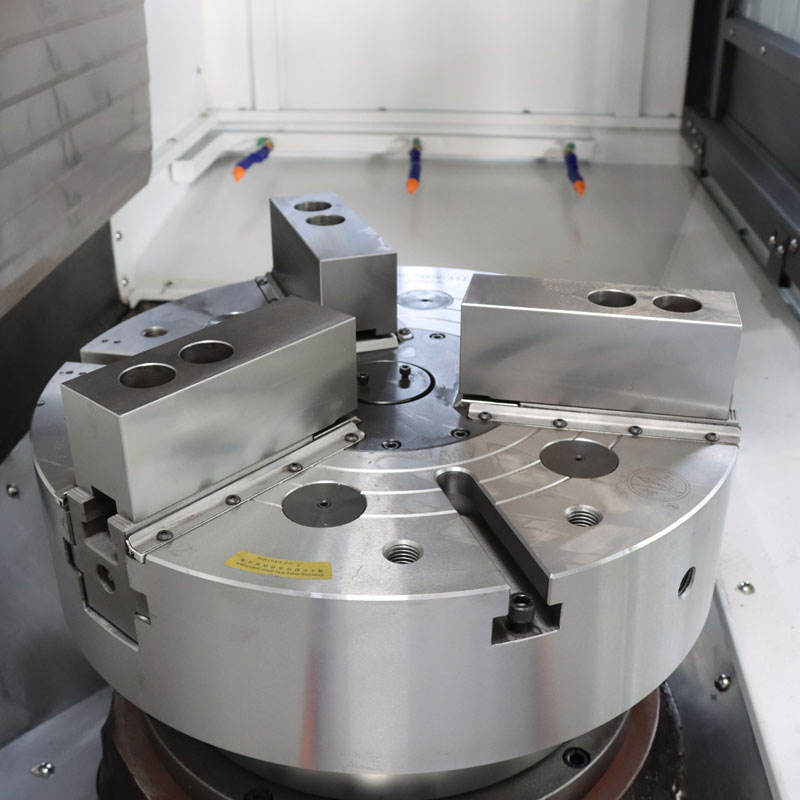

Automatic Lubrication System A centralized lubrication unit with pressure gauge and oil reservoir, delivering consistent lubrication to guideways and bearings, which effectively reduces wear and extends the machine’s service life.	Rotary Worktable A large precision rotary table with clamping fixtures, providing strong holding force and high rotational accuracy, suitable for processing heavy and large-diameter workpieces.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .When we receive the advance payment,

we will start to make production.when the machine is ready , we will take pictures to you.

after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine,

we can ready the machine within 15days.

if some special machines will be some longer.

The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.

You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
