Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |

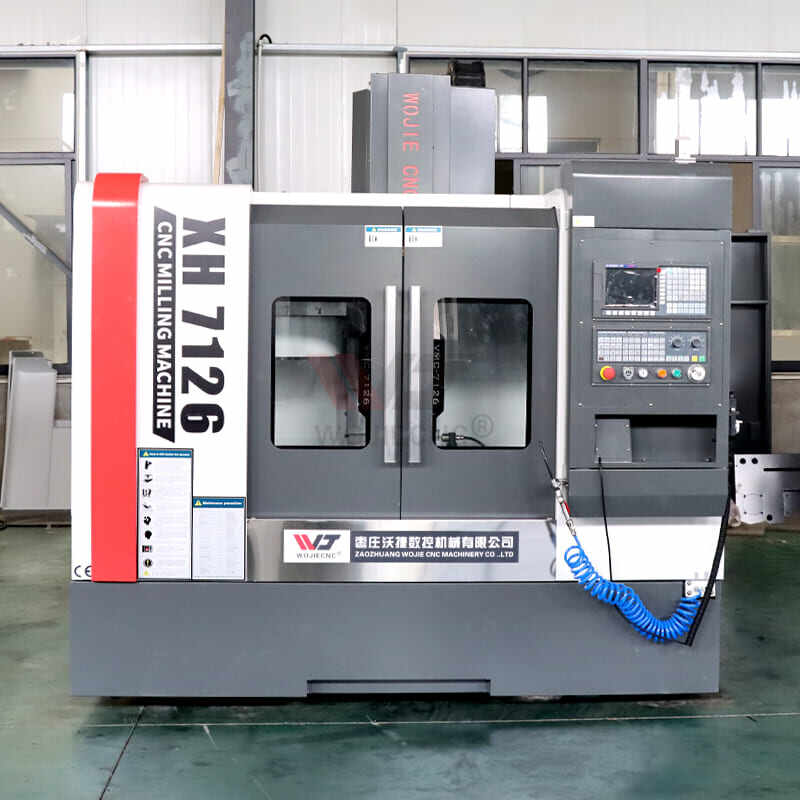

| Model Number: | XH7126 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets |
| 5 sets | |
| Table Size | 800*260 mm |
| Spindle Motor Power | 3.7 kw |
| 5.5 kw | |
| Packaging Details: | 2800*2300*2400 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Standard Configuration:

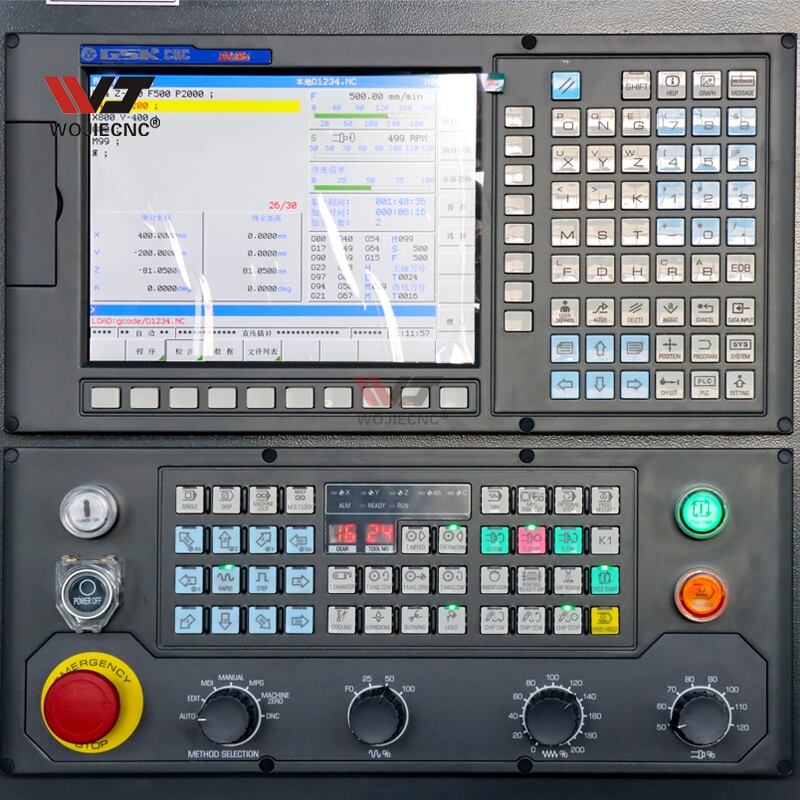

GSK control system

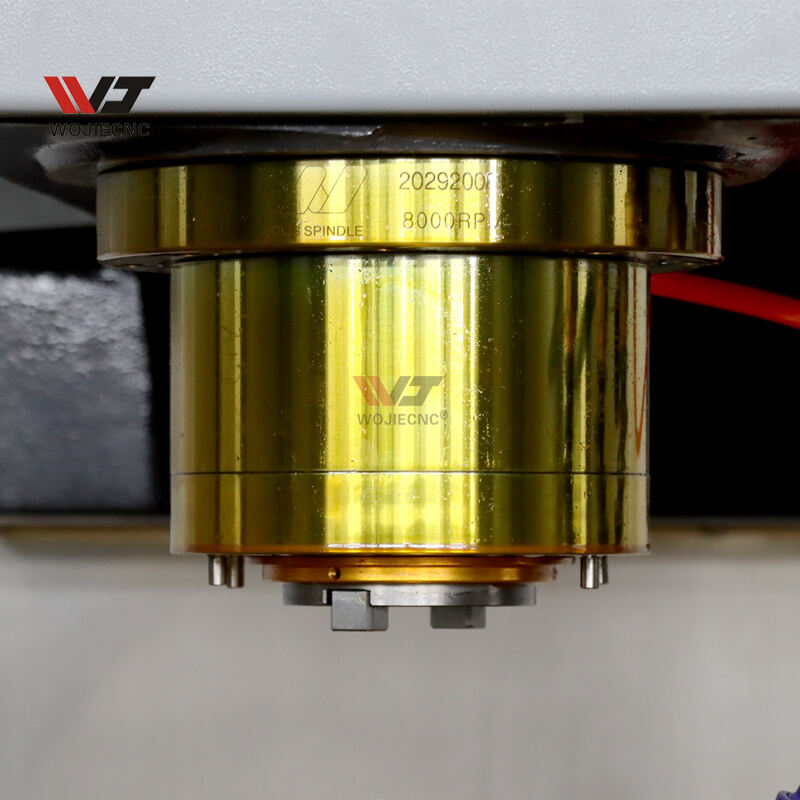

BT40 taiwan 8000 RPM spindle

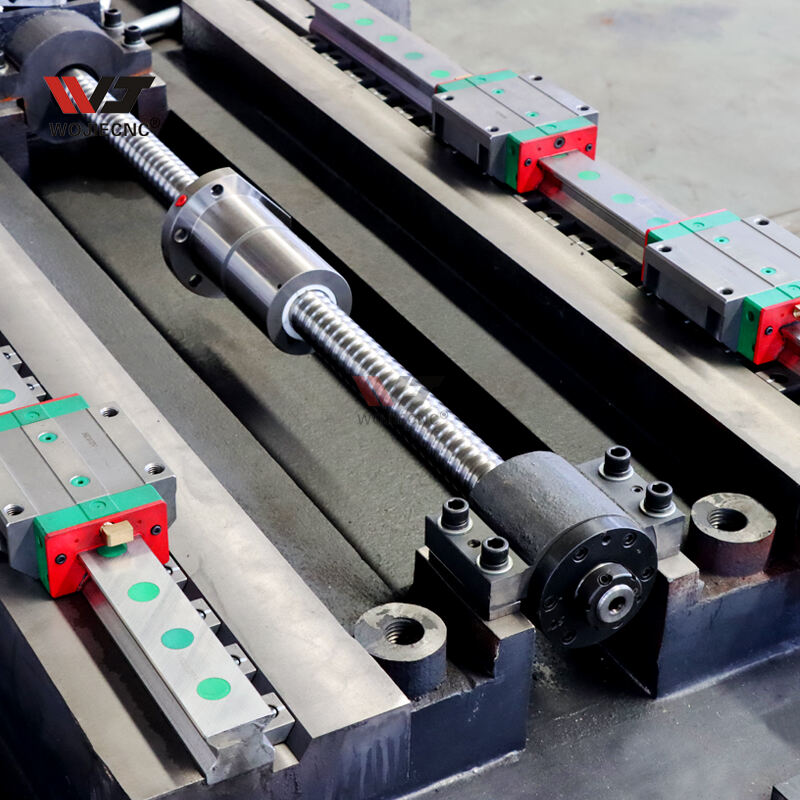

Taiwan screw

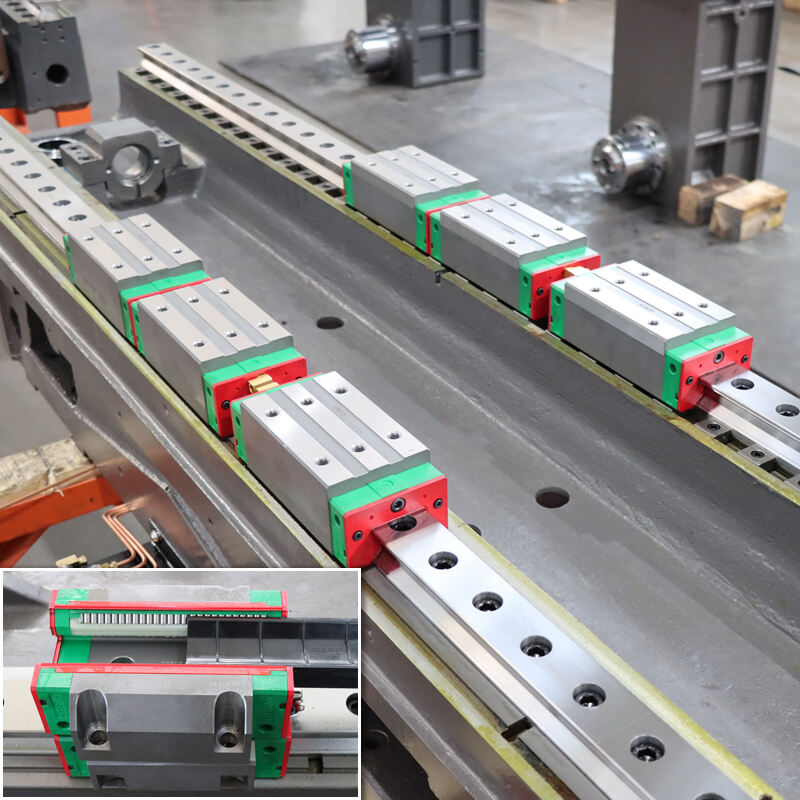

Taiwan roller linear rails

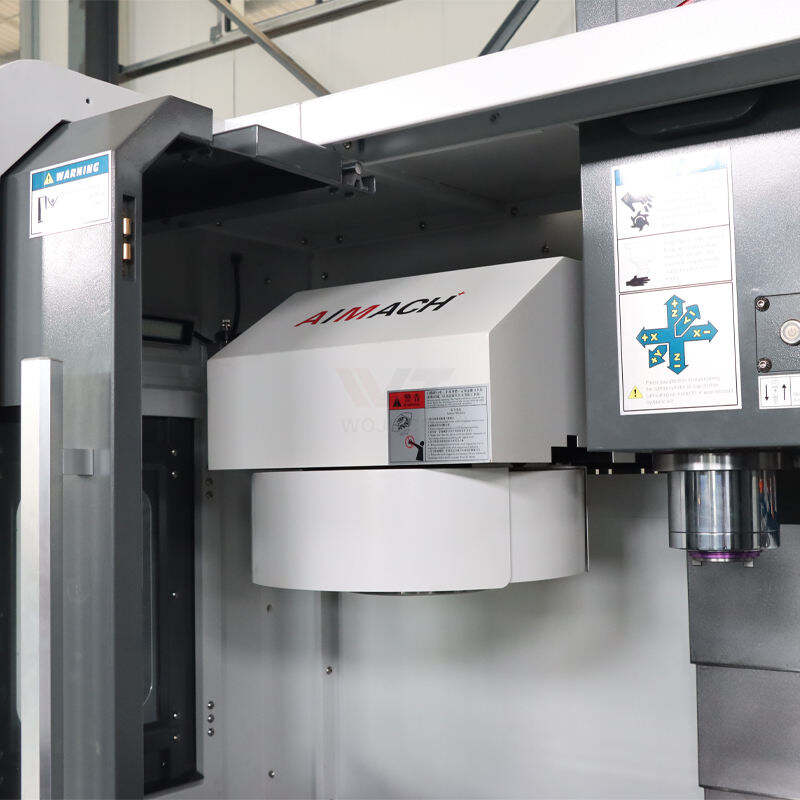

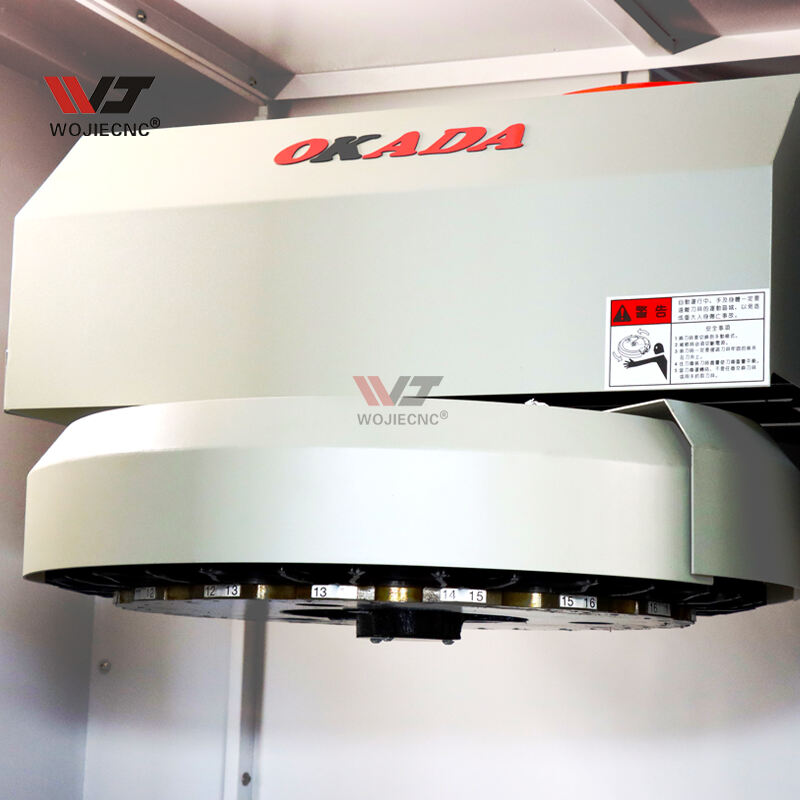

Taiwan 16 hat type tool magazine

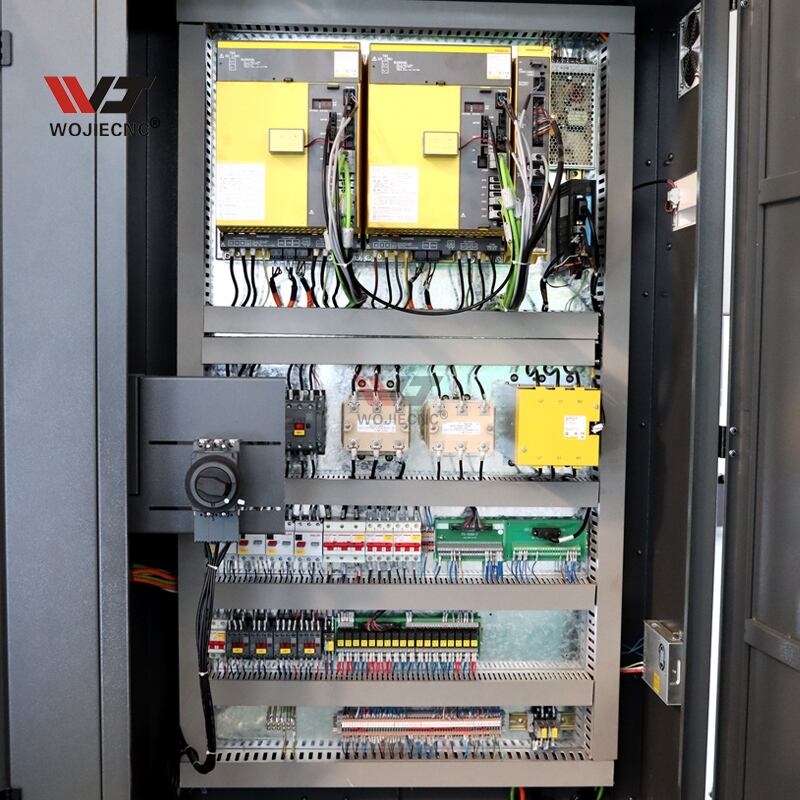

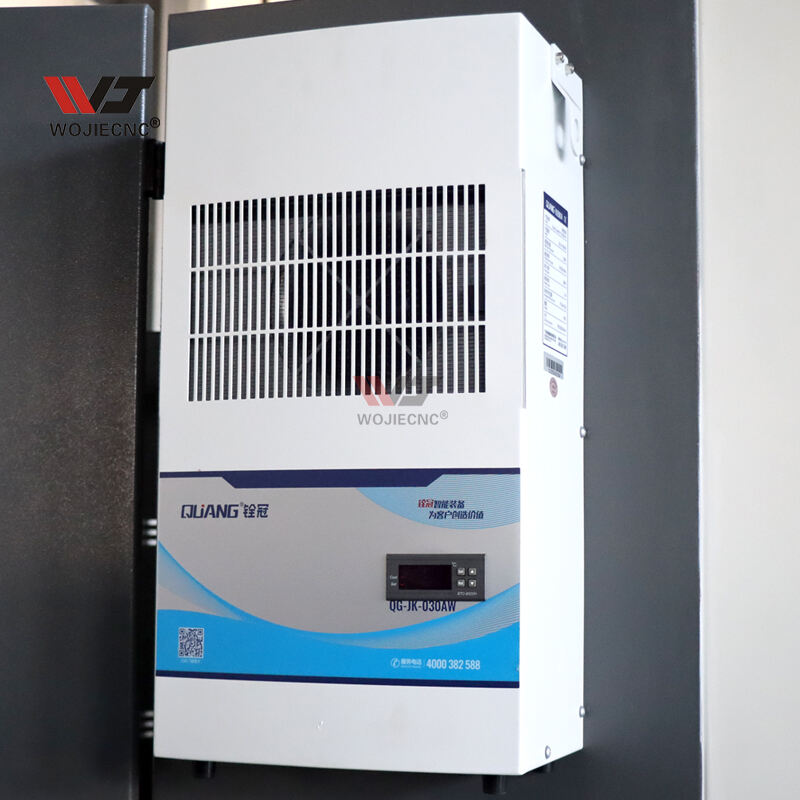

Electrical Cabinet air conditioner
Optional Configuration:
Siemens, FANUC, Mitsubishi, Syntec
Direct drive spindle 12000rpm
Spindle oil cooler
Coolant through spindle
Chain type chip conveyor
Screw type chip conveyor
Fourth axis
Tool setting probe
Workpiece measuring probe
Specifications:
| Specificiton | XH7126 |
| Worktable size (LXW) | 800X260mm |
| T-slot (NXWXD) | 3/14/80mm |
| X axis travel | 450mm |
| Y axis travel | 320mm |
| Z axis travel | 450mm |
| Distance from spindle nose to worktable surface | 90-470mm |
| Distance from spindle center to column | 360mm |
| Rapid feed speed (X/Y/Z) | 15/15/15 m/min |
| Spindle taper | BT40 |
| Spindle speed | 8000rpm |
| Main motor power | 3.7Kw |
| Servo motor torque (X/Y/Z) | 6/6/7.7 N.m |
| Overall size (LXWXH) | 2100X1800X1960mm |
| Net weight | 2400kg |

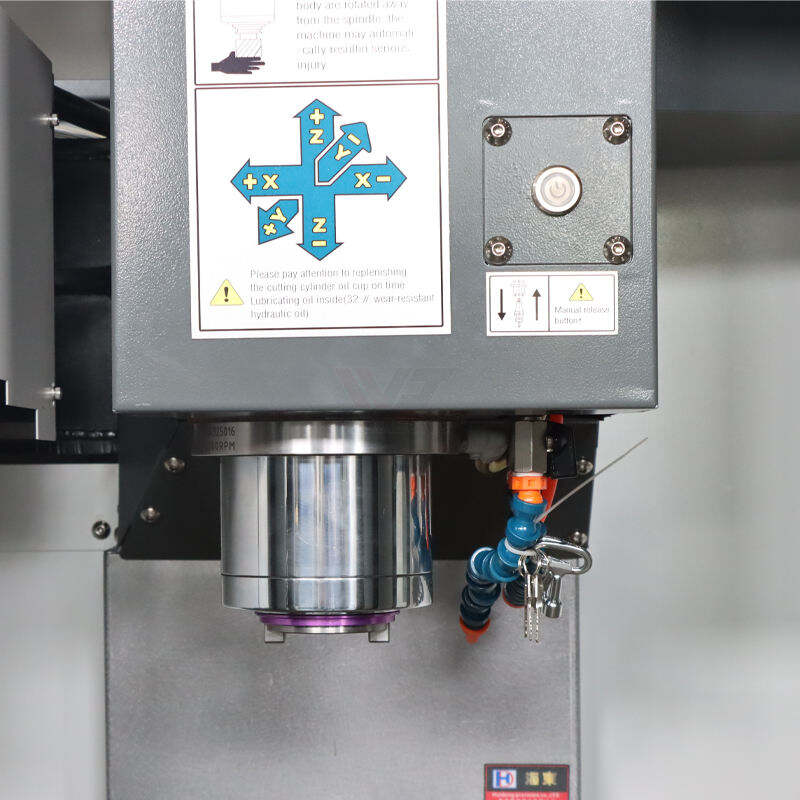

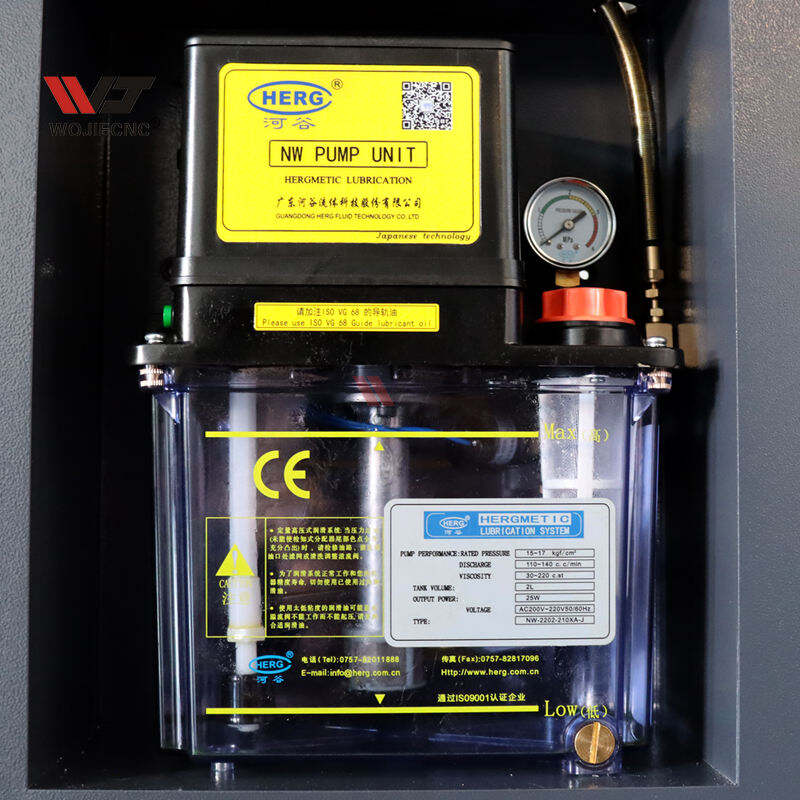

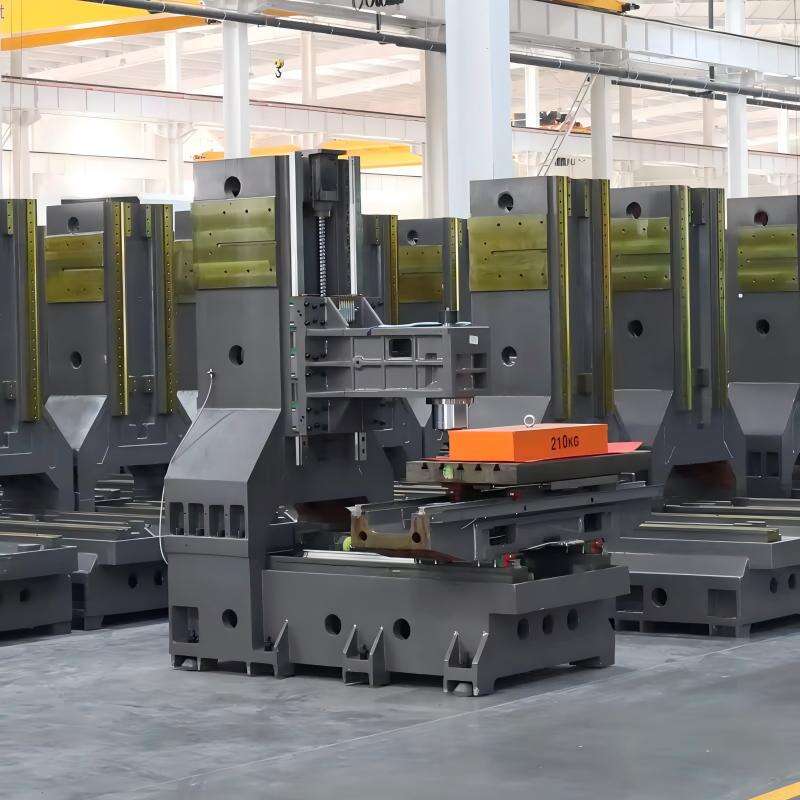

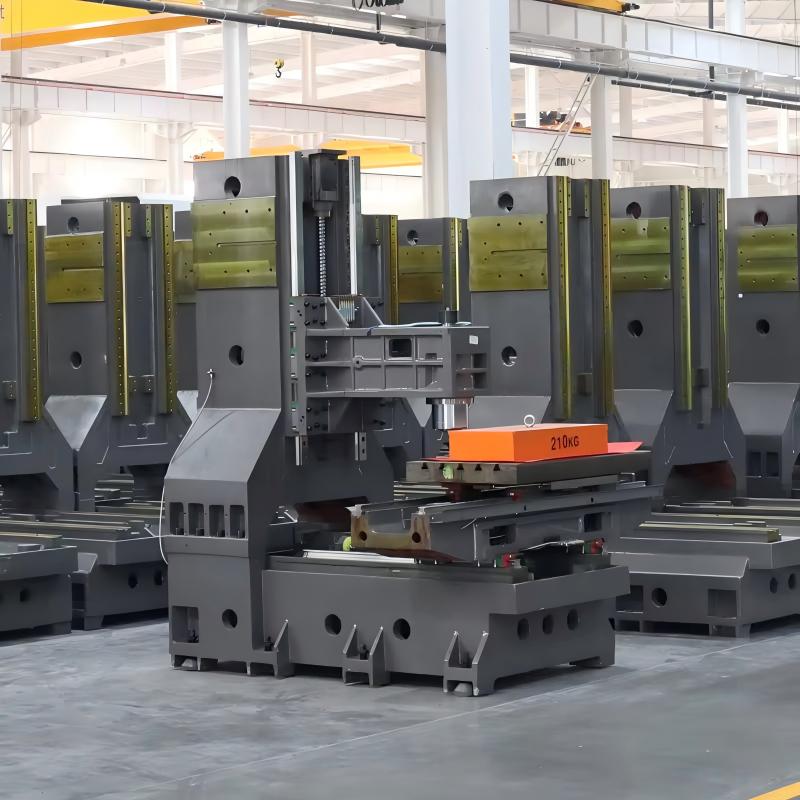

Detailed Images:
Optional Configurations:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment, we will start to make production.
when the machine is ready , we will take pictures to you.after we got your balance payment.
we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America.
If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
