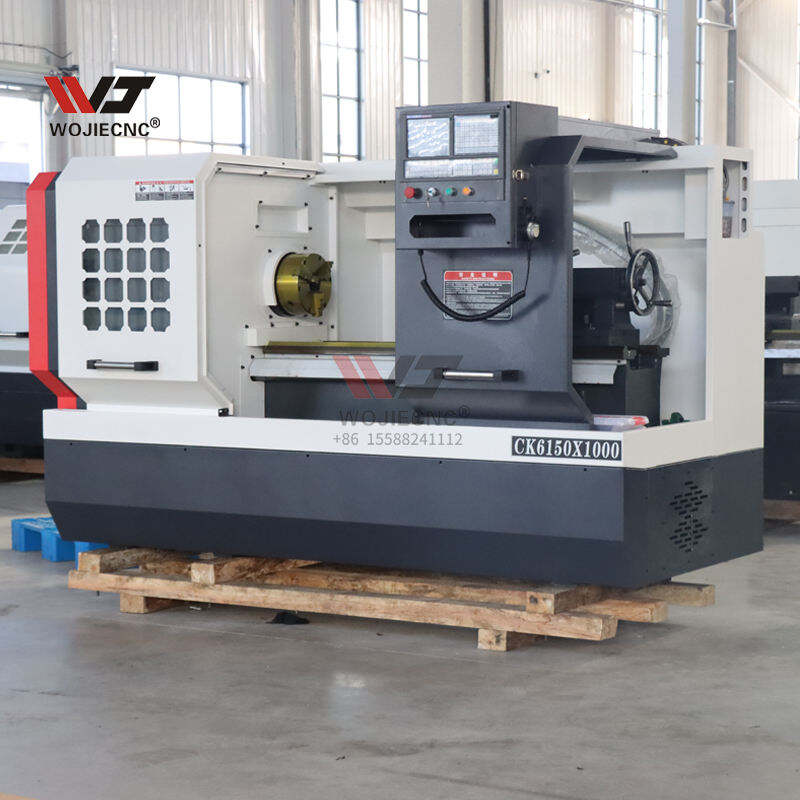

High Speed Automatic Flat Bed CNC Lathe Machine CK6150 Horizontal CNC Lathe CK 6150*1000 for Metal
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | CK6150 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $12900 |
| 5 sets $11500 | |
| Max. Swing Diameter (mm) | 500 mm |
| Spindle Motor Power(kw) | 7.5 kw |
| Packaging Details: | 2600*1600*1800 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.
Specifications:
| SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 |
| Swing over bed | mm | 360 | 400 | 500 |
| Swing over cross slide | mm | 190 | 210 | 260 |
| Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
| Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) |
| Spindle bore taper | - | MT6 | MT6 | MT6 |
| Spindle nose type | - | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) |
| Spindle speed steps | rpm | Stepless | Stepless | Stepless |
| Spindle speed range | 1800 | 1800 | 1800 | |

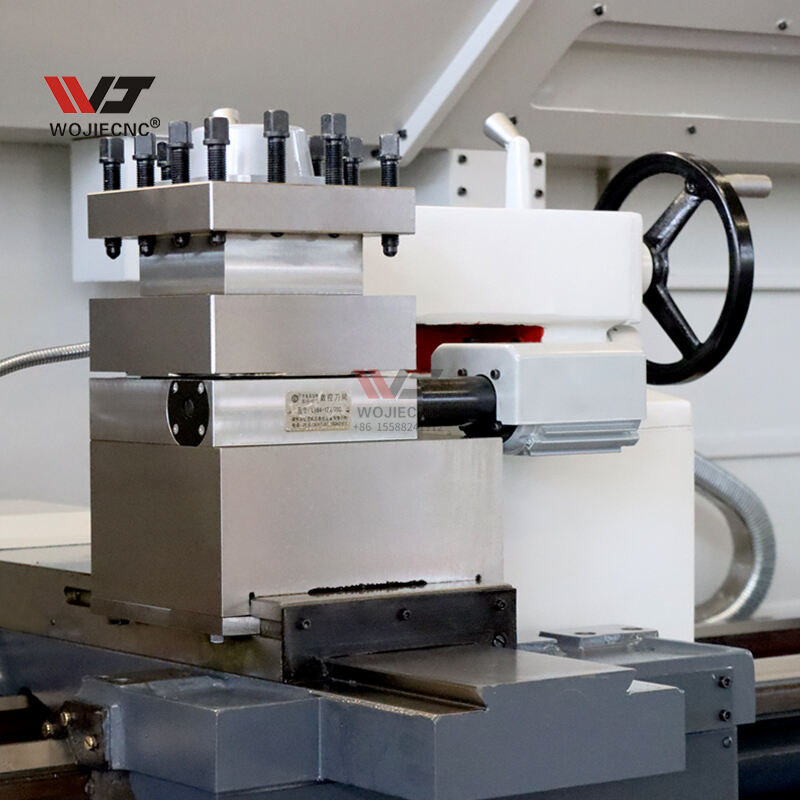

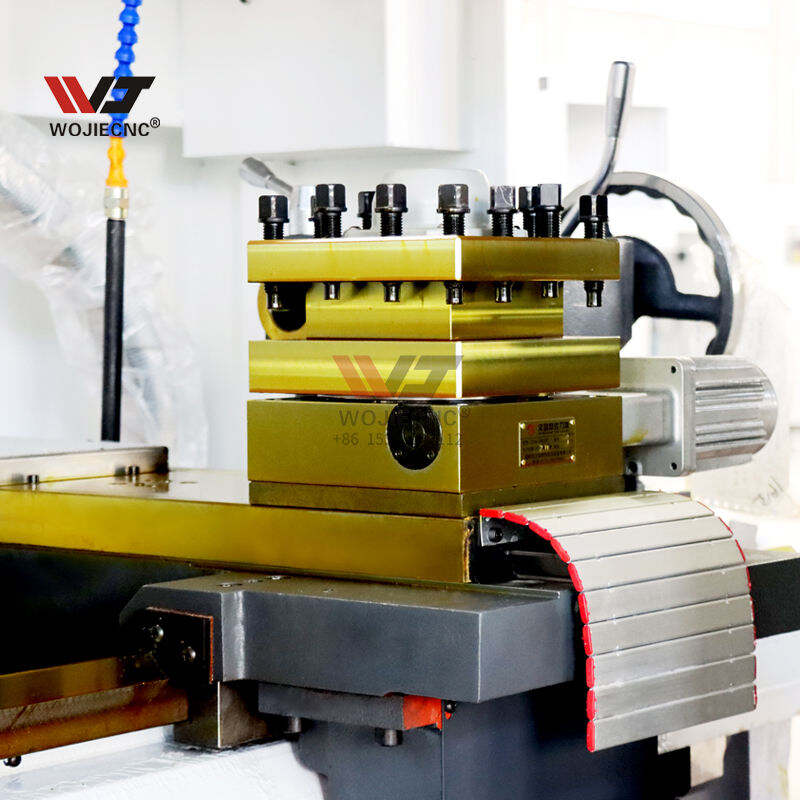

| Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
| Tool size | mm | 20*20 | 20*20 | 25*25 |
| X axis travel | mm | 180 | 200 | 250 |
| Z axis travel | mm | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
| Tailstock quill diameter | mm | 65 | 65 | 65 |
| Tailstock quill taper | - | MT4 | MT4 | MT5 |
| Tailstock quill travel | mm | 140 | 140 | 140 |
| Main spindle motor | kw | 5.5 | 5.5 | 5.5 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 |
| Weight for 750 | kg | 1500 | 1550 | 1600 |
| Weight for 1000 | kg | 1600 | 1650 | 1700 |
| Weight for 1500 | kg | 1800 | 1850 | 1900 |
| Weight for 2000 | kg | 2000 | 2050 | 2100 |
| Dimension for 750 | mm | 2200*1600*1650 | 2200*1650*1700 | 2200*1700*1750 |
| Dimension for 1000 | mm | 2500*1600*1650 | 2500*1650*1700 | 2500*1700*1750 |
| Dimension for 1500 | mm | 3000*1600*1650 | 3000*1650*1700 | 3000*1700*1750 |
| Dimension for 2000 | mm | 3500*1600*1650 | 3500*1650*1700 | 3500*1700*1750 |

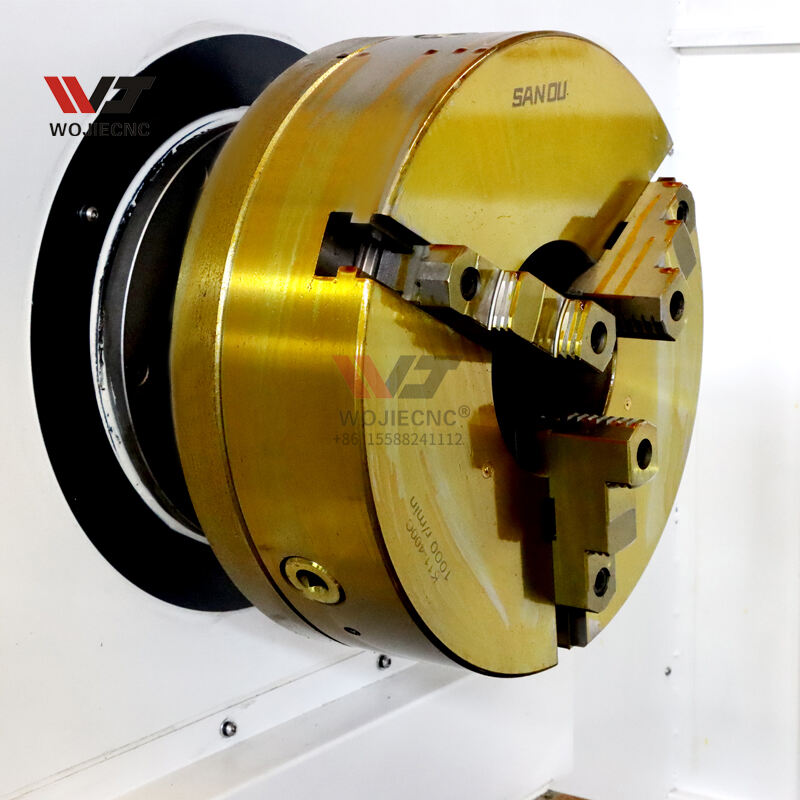

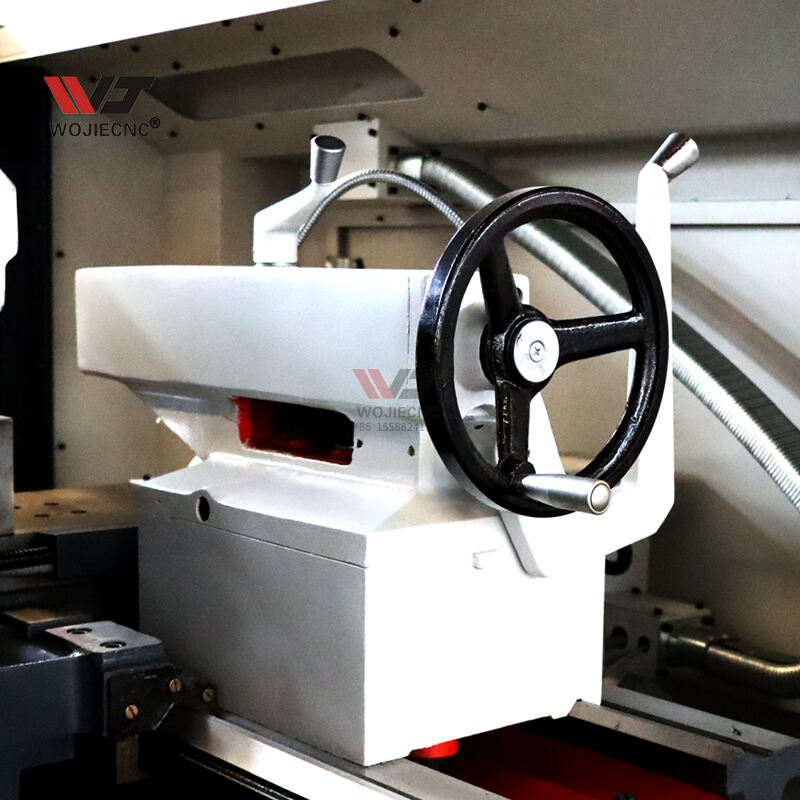

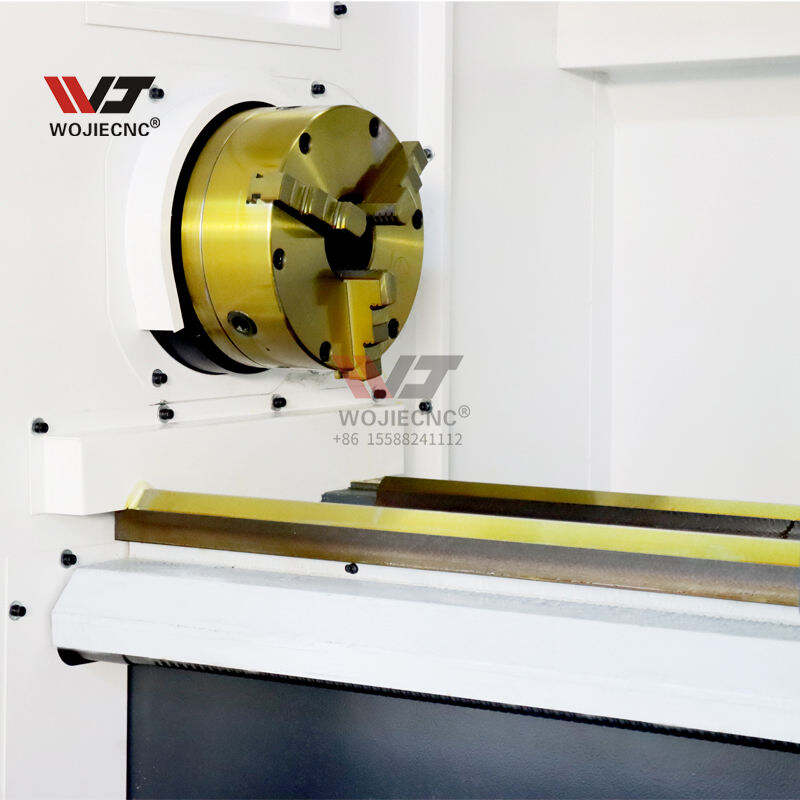

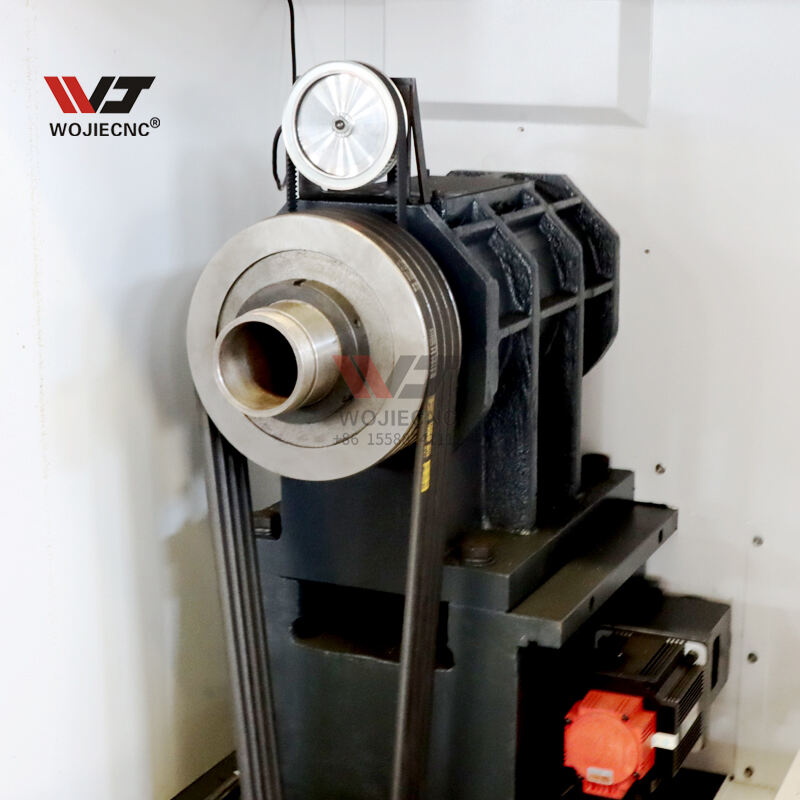

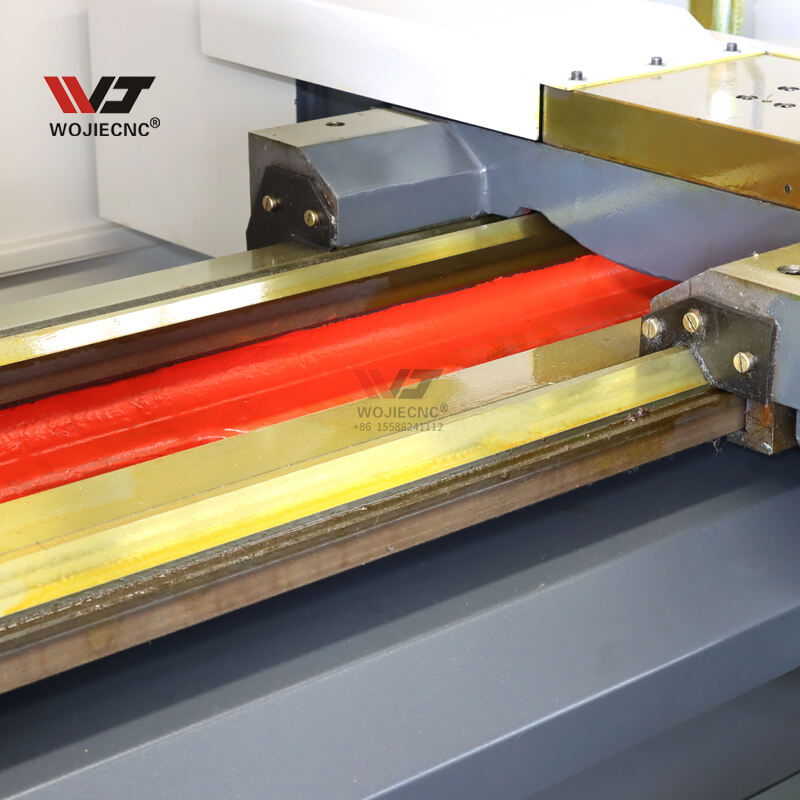

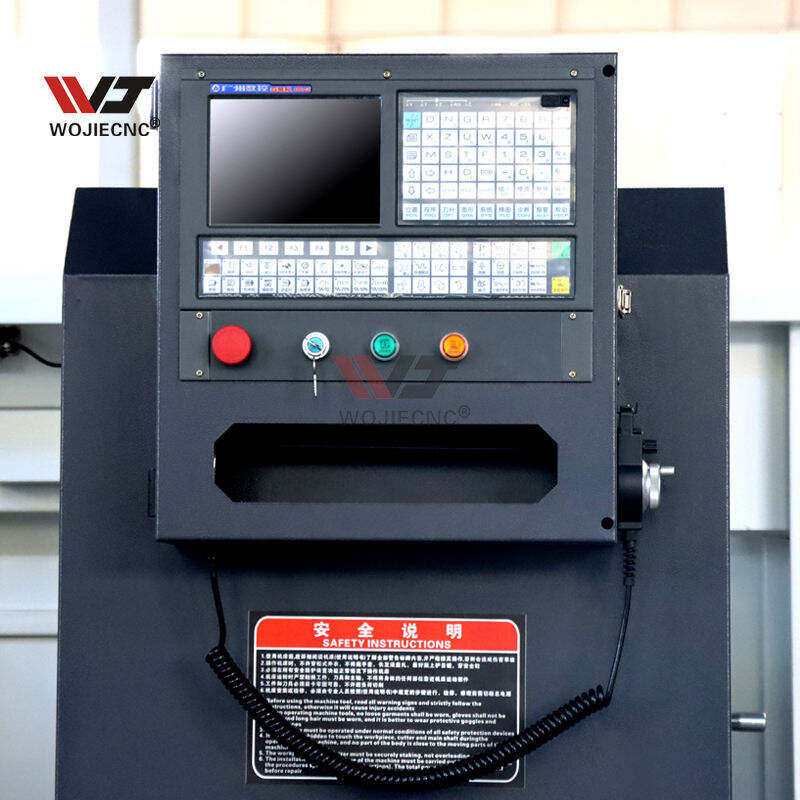

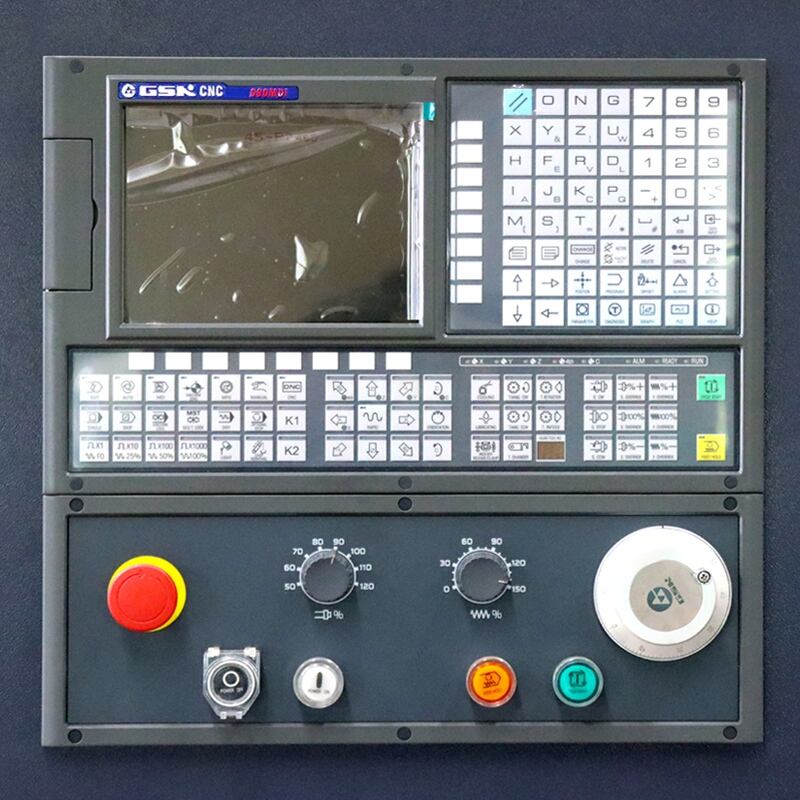

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
