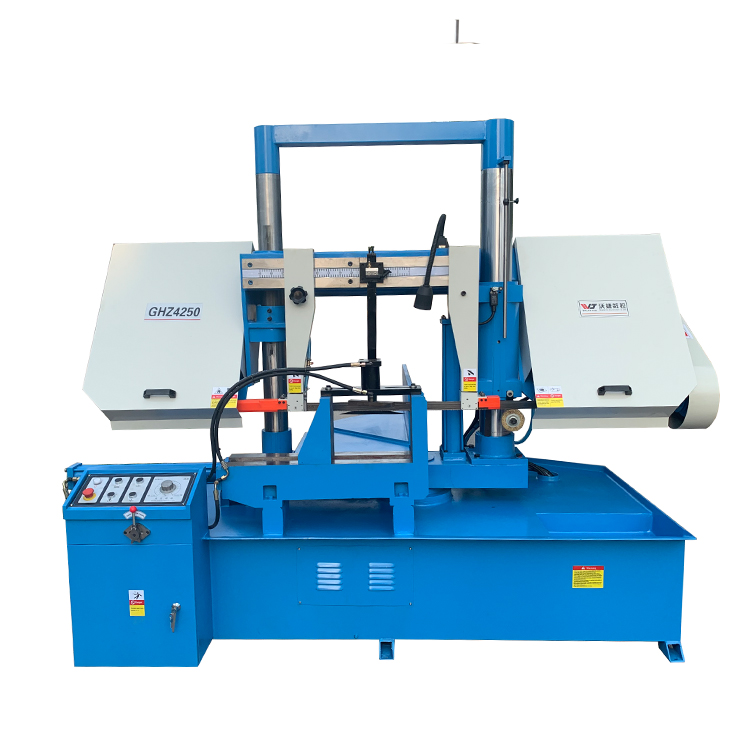

New WOJIE GH4250 Metal Cutting Horizontal Band Saw Machine Engine-Powered Automatic Motor 5.5kw Hydraulic Tension Mechanical
|
Attribute |
Value |
|
machine type |
Band Saw Machine |
|
motor power (kw) |
5 |
|
saw blade tension method |
Hydraulic |
|
machinery test report |
Provided |
|
warranty |
2 Years |
|
video outgoing-inspection |
Provided |
|
blade speed (m/min) |
45 |
|
place of origin |
Shandong, China |
|
core components |
Gearbox |
|
weight (kg) |
1800 |
|
brand name |
WOJIE |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical Specifications:
|
Specifications |
GH4250 |
GH4270 |
GH4280 |
GH42100 |
|
Cutting capacity (mm) |
500-500X500 |
700-700X700 |
800-800X800 |
1000-1000X1000 |
|
Blade size(mm) |
5800X41X1.3 |
7205X54X1.6 |
8820X67X1.6 |
9820X67X1.6 |
|
Blade speed(m/min) |
27,45,69 |
18-60 |
27,45,69 |
18-60 |
|
Clamping type |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
Main motor power(kW) |
5.5 |
5.5 |
7.5 |
11 |
|
Motor hydraulic(kW) |
0.75 |
1.1 |
2.25 |
3.75 |
|
Coolant pump(kW) |
0.125 |
0.125 |
0.125 |
0.09 |
|
Overall dimension(mm) |
2800X1350X2000 |
3500X1800X2500 |
4130X2150X2500 |
4560X2170X3040 |
|
Packing size(mm) |
2850X1350X2150 |
3550X1850X2550 |
4180X2200X2650 |
4610X2220X3190 |
|
N.W(kg) |
1900 |
4500 |
5500 |
8000 |
Detailed Images:
 |
 |
|
Main Image 06 (Coolant System)
This shows the coolant tank and chip removal system:
· The coolant system cools the blade and flushes away cutting chips, improving cutting quality and tool durability.
· The design allows easy maintenance and cleaning of the cutting area.
|

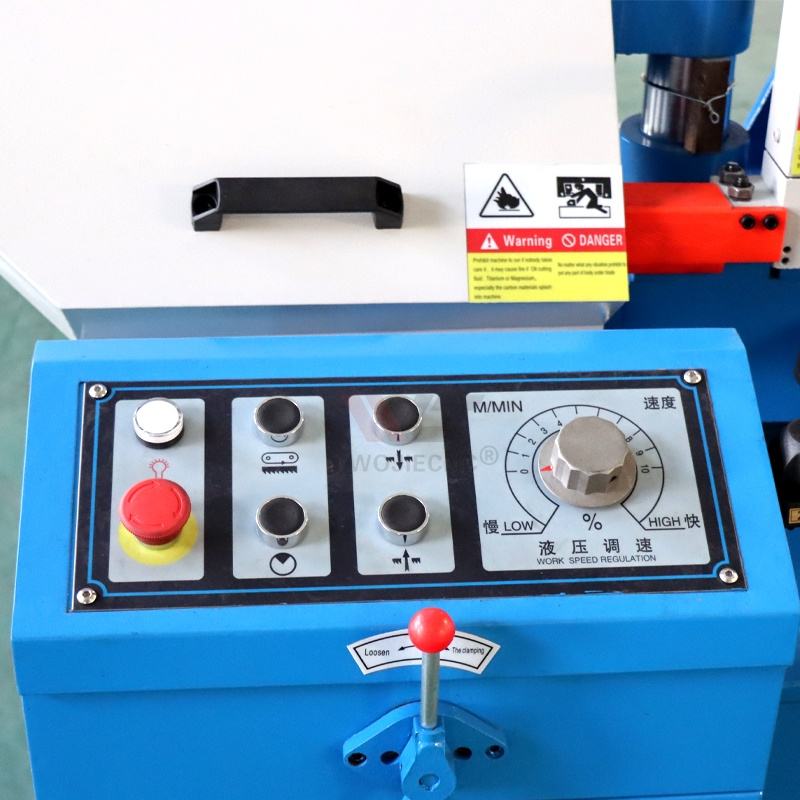

Main Image 05 (Control Panel)
This is the user-friendly control panel:
· It includes an emergency stop button, speed adjustment knobs, and a manual feed lever.
· Operators can easily adjust blade speed and feed rate to match different material requirements.
|
 |
 |
|

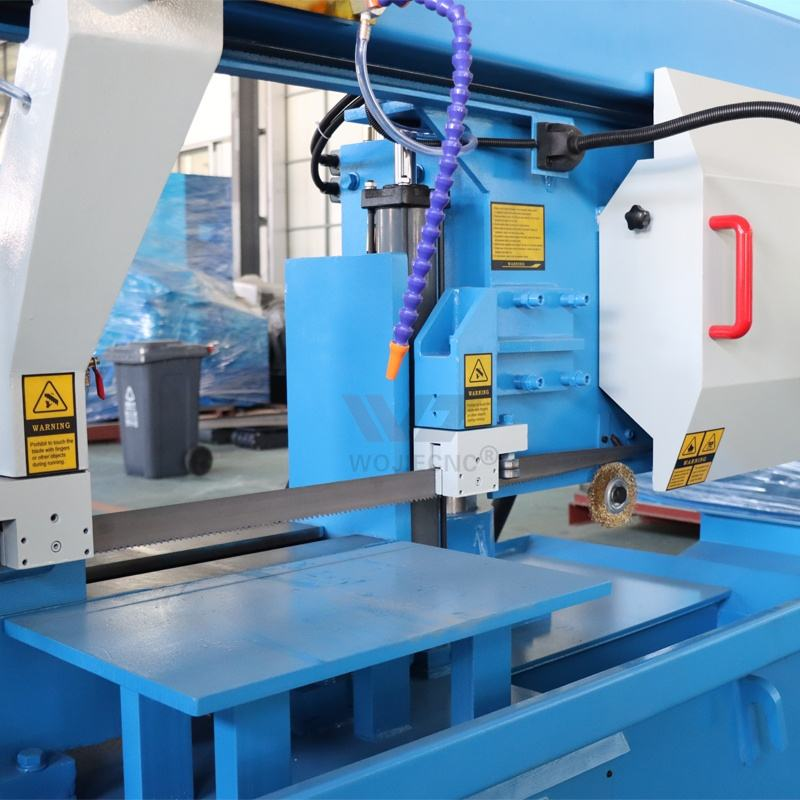

Main Image 04 (Worktable & Clamping System)
This highlights the hydraulic worktable and clamping mechanism:
The robust worktable supports heavy workpieces up to 500x500mm.
Hydraulic clamping ensures secure and stable fixation, preventing workpiece movement during cutting.
|

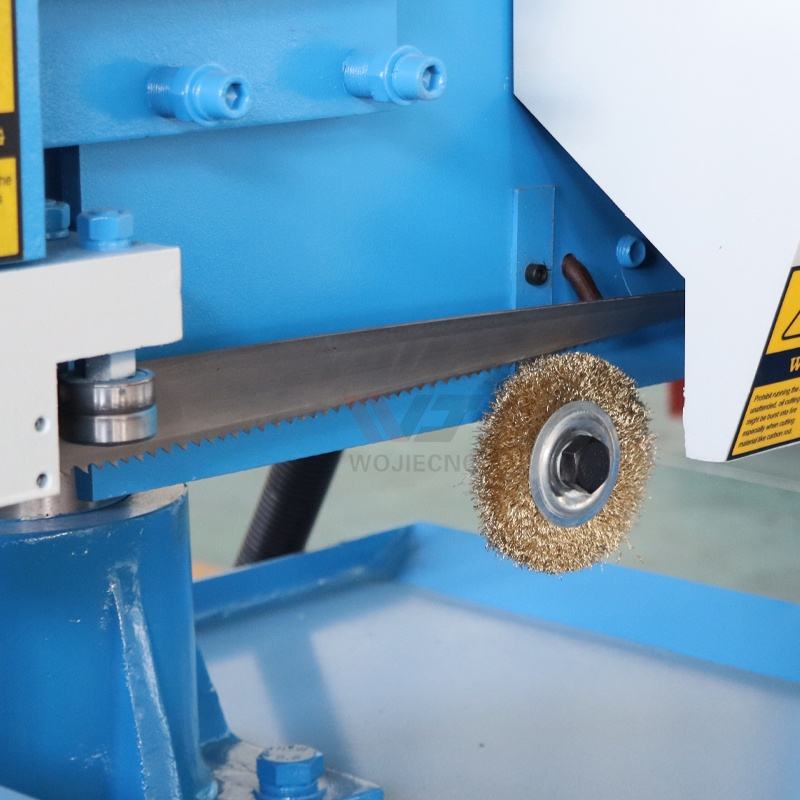

Main Image 03 (Blade & Guide Wheel)
This shows the band saw blade and guide wheel assembly:
The high-speed steel blade ensures precise and efficient cutting of solid metal bars and profiles.
The guide wheel stabilizes the blade during operation, reducing vibration and extending blade life.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
