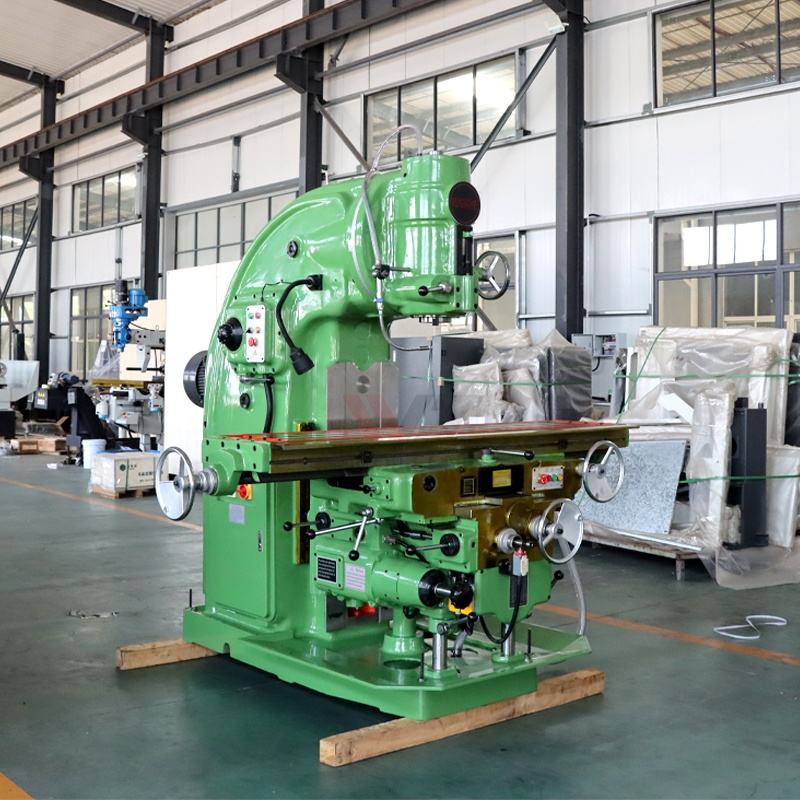

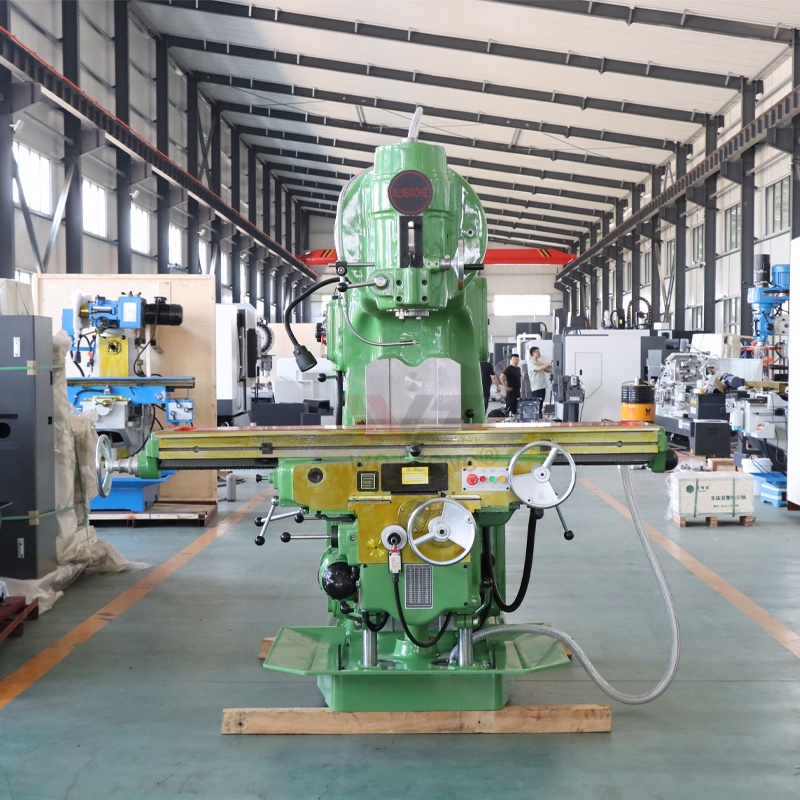

High Quality X5040 Manual Vertical Milling Machine 3 Axis Milling Equipment for Metal for Manufacturing Plants

High Quality X5040 Manual Vertical Milling Machine 3 Axis Milling Equipment for Metal for Manufacturing Plants

Item	Specification
Type	Universal
Machining Capacity	Heavy Duty
Table Travel (X) (mm)	900, 880
Table Travel (Y) (mm)	300, 315
Table Travel (Z) (mm)	385, 365
Spindle Taper	ISO50
Range of Spindle Speed (r.p.m)	30 - 1500 r.p.m
Weight (kg)	4500
Warranty	1 Year
Max. Table Load (kg)	500
Place of Origin	Shandong, China

Description
Specifications
Detailed Images
Company Introduction

Description:


Product Application

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Product main technical Specifications:

Specifications	Units	X5040
Table size	mm	1700×400
Table load	kg	800
T slot (number-width-pitch)	mm	3-18-90
Table travel	mm	900/880 (X)315/300 (Y)385/365 (Z)
Range of table feed	mm/min	XY: 23.5-1180Z: 8-394
Rapid speed of table	mm/min	XY: 2300Z: 770
Spindle taper	-	ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)
Swivel angle of vertical milling head	°	±45
Distance between spindle nose and table surface	mm	130-515
Spindle motor power	kW	11
Feed motor power	kW	1.5
Weight	kg	4250/4500
Overall dimension	mm	2560×2160×2300

Detailed Images:

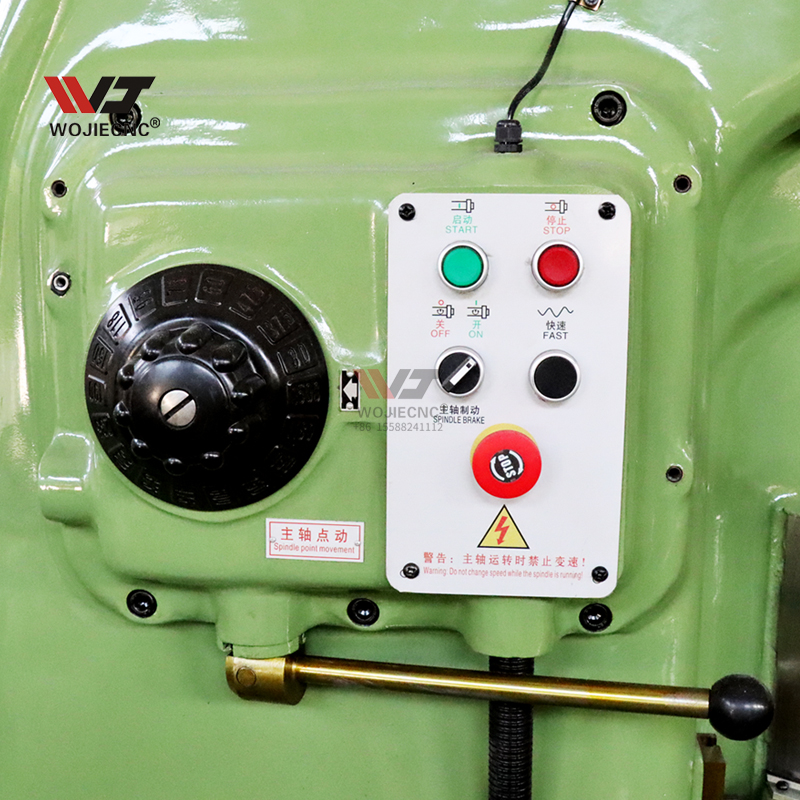

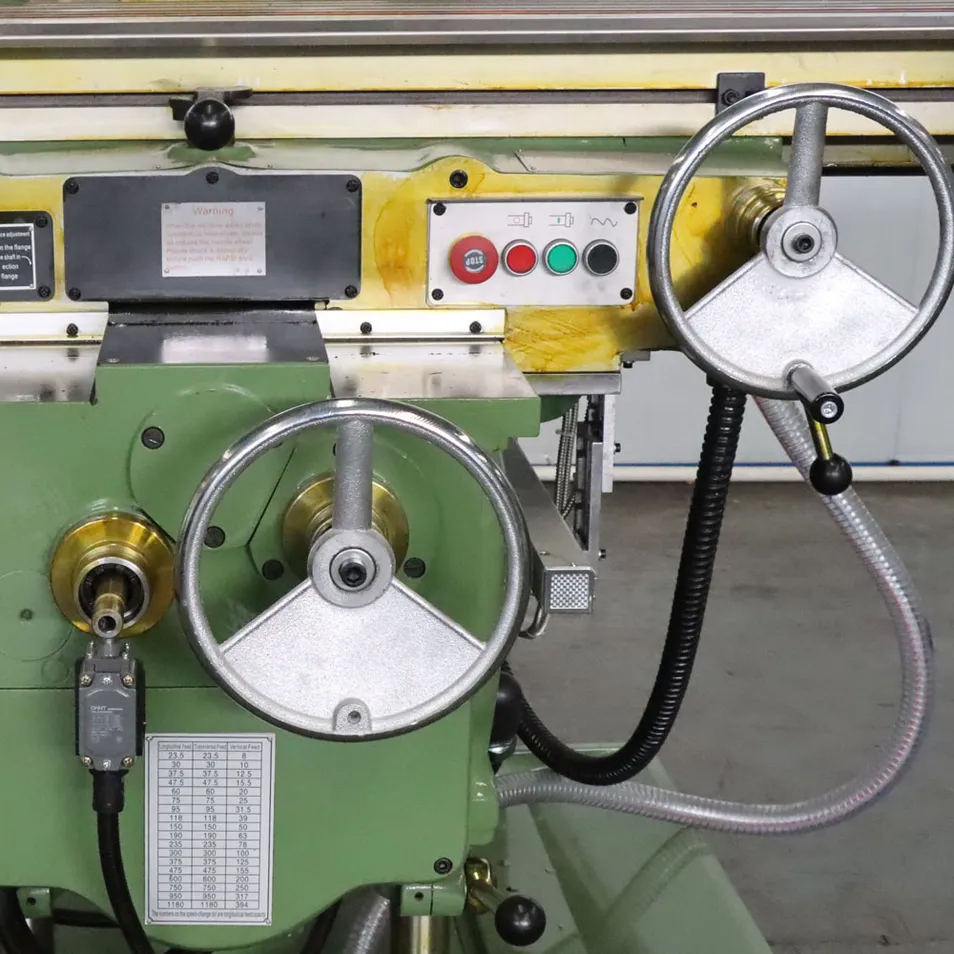

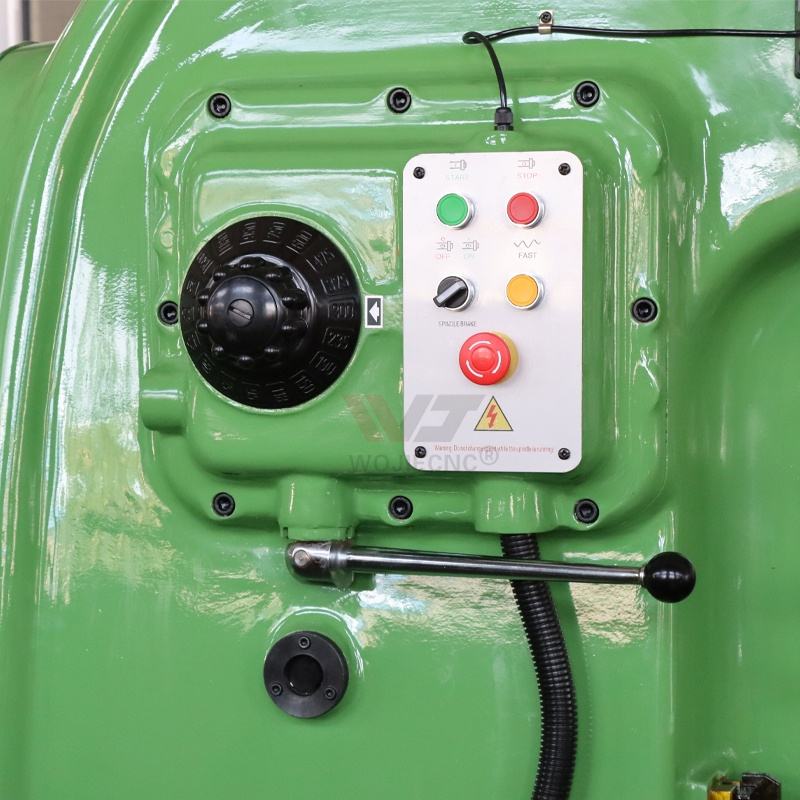

SPEED SHIFT HANDLE Spindle speed 18steps 30-1500rpm.	X/Y/Z AUTO FEED X/Y axis auto feed,Z axis electric lifting,improve processing time.

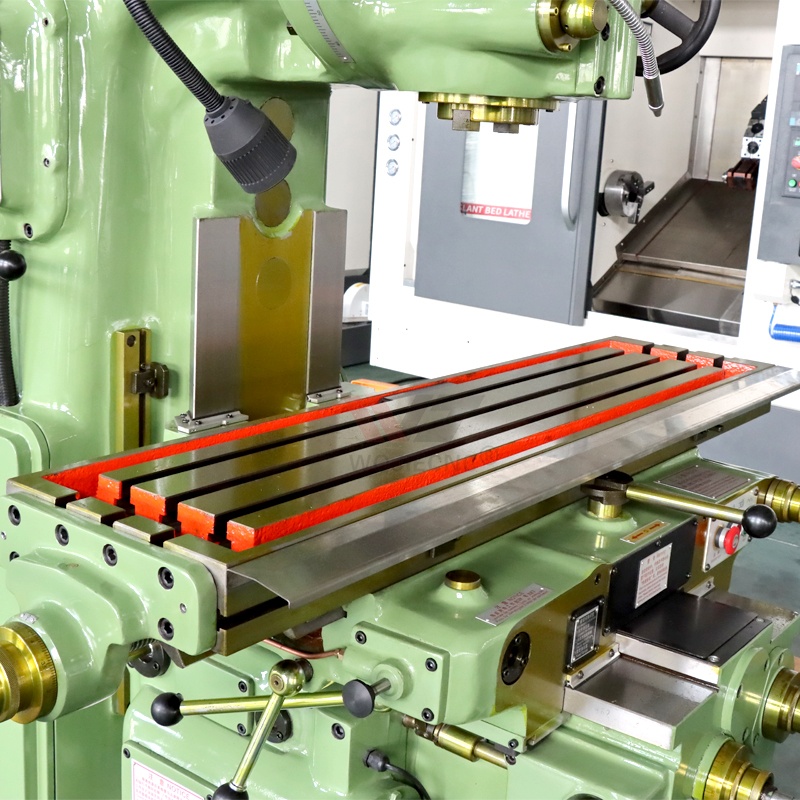

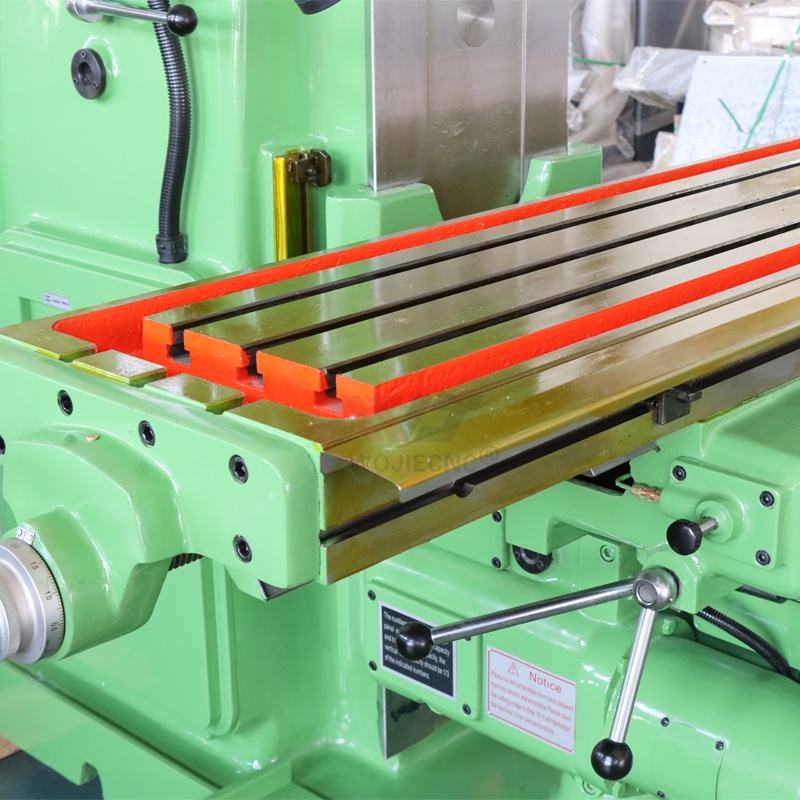

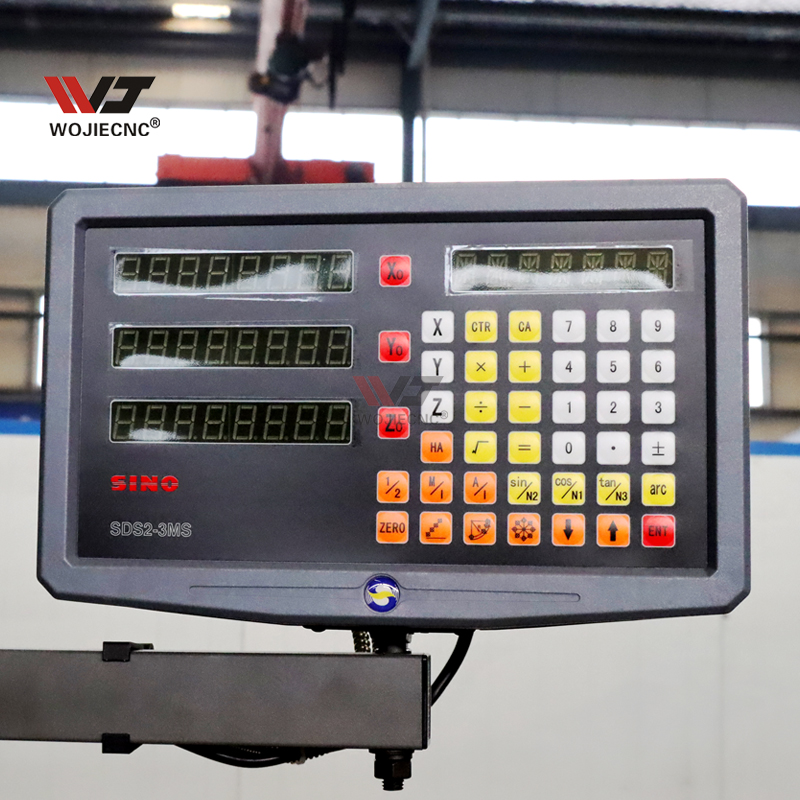

3 AXIS DRO 3 axis digital readout is optional, need extra cost.	WORKTABLE Ultra-audio quenching, precision grinding and scraping guide.

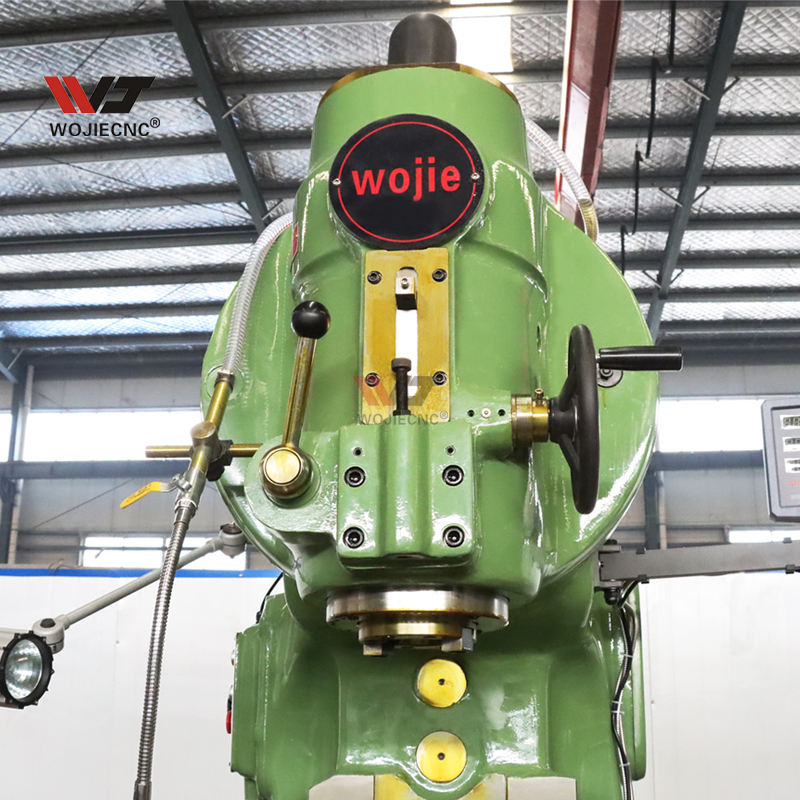

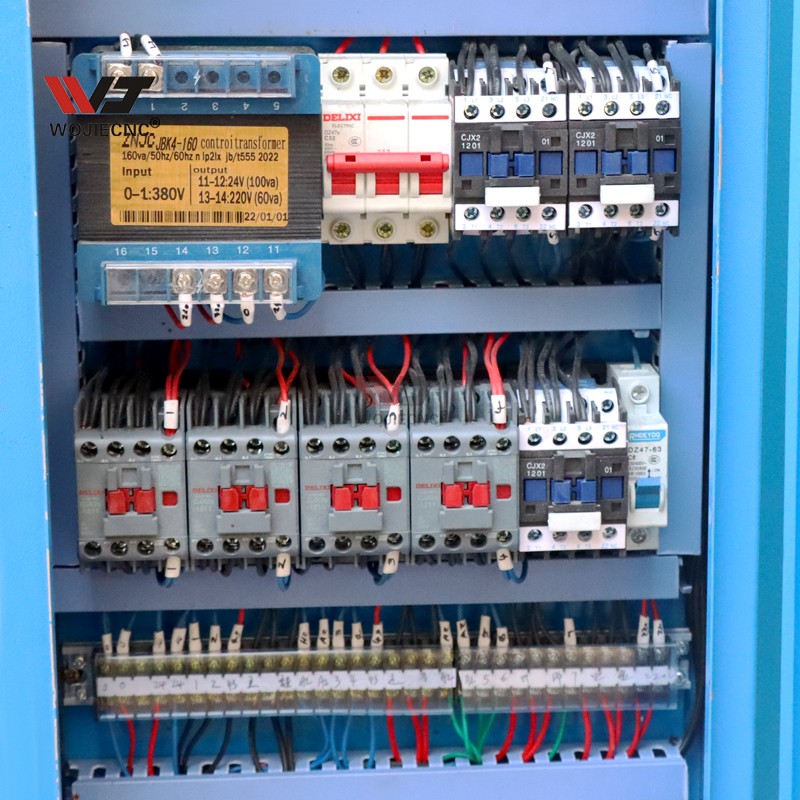

VERTICAL MILLING Spindle taper 7:24 ISO50. Spindle speed: 30-1500rpm (18 steps)	ELECTRICAL BOX DELIXI and SCHNEIDER, CE as standard equipment.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
