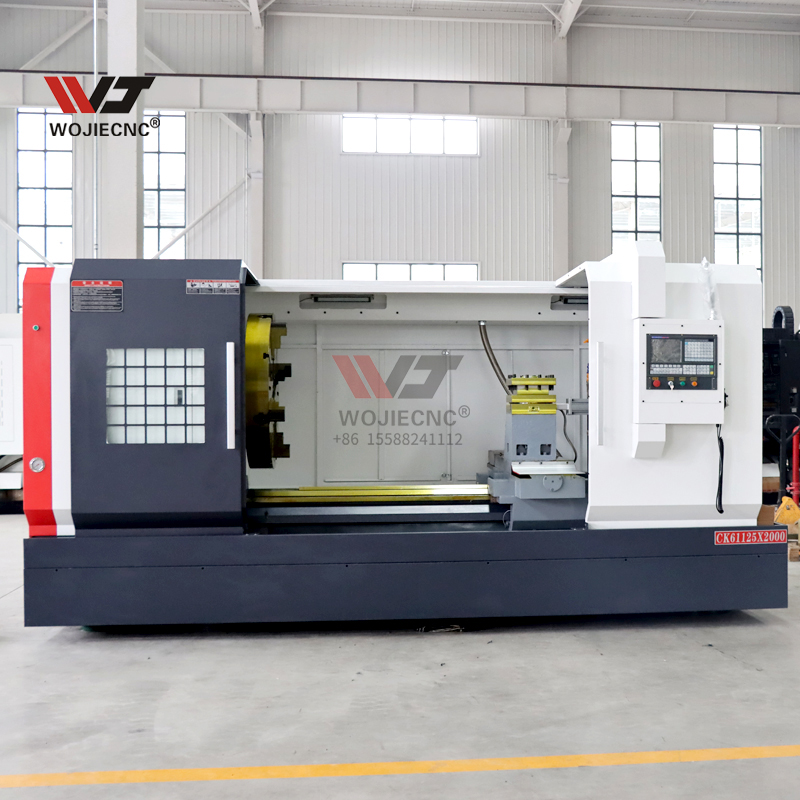

Flat Bed Cnc Turning Lathe CK61100 CNC Lathe with 4 Station Tool Holder

Description:

Product Application

The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.

Specifications:

Project	Unit	CK61100-3000/5000
Maximum turning diameter of bed	mm	1000
Max swing cutting diameter over slide	mm	650
workpiece length	mm	3000/5000
cutting length	mm	2850/4850
Bed rail width	mm	755
Spindle end code	mm	C11
Spindle through hole diameter	mm	104
Spindle speed range	r/min	30-90/70-200/130-380/350-1000
Chuck	mm	3 jaw 315
X/Z direction minimum feed amount	mm	0.001/0.001
X/Z to move quickly	m/min	4/8
X direction maximum stroke	mm	530
Number of tool holders	-	V4
Tool post indexing time	s	2.6
Repeatability	mm	0.01
Arbor Section	mm	32*32
Tailstock sleeve diameter	mm	150
Tailstock sleeve travel	mm	250
Tailstock sleeve taper	-	Morse6
Workpiece accuracy	-	IT6~7
Workpiece Surface Roughness	μm	Ra1.6
main motor power	kw	22
Machine weight-3000mm	kg	6600
Machine size-3000mm	mm	560019001900
Machine weight-5000mm	kg	8600
Machine size-5000mm	mm	760019001900

Standard Accessories:

1.System: GSK

2.3-jaw manual chuck

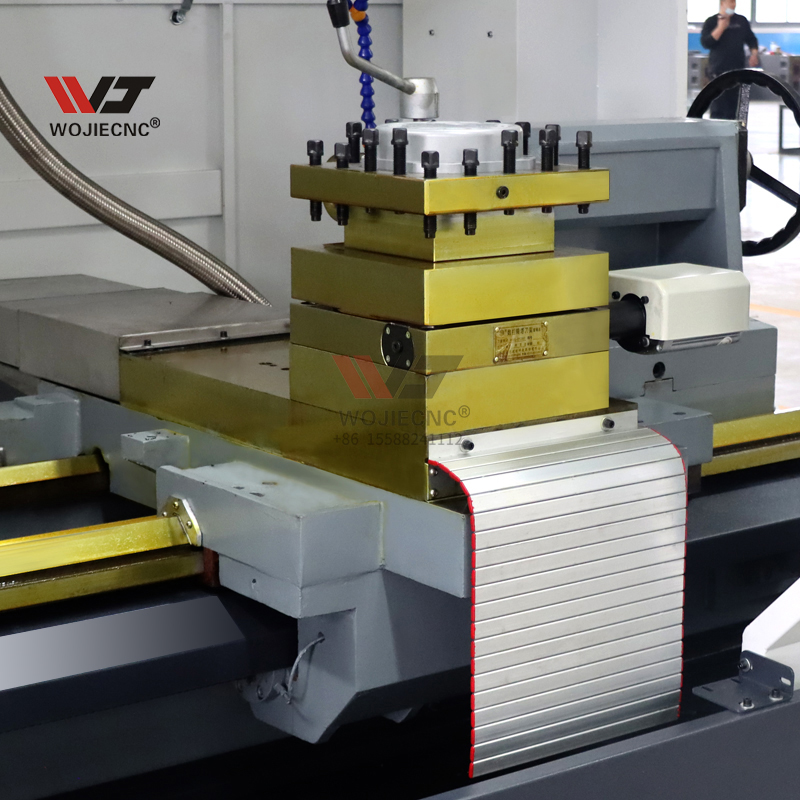

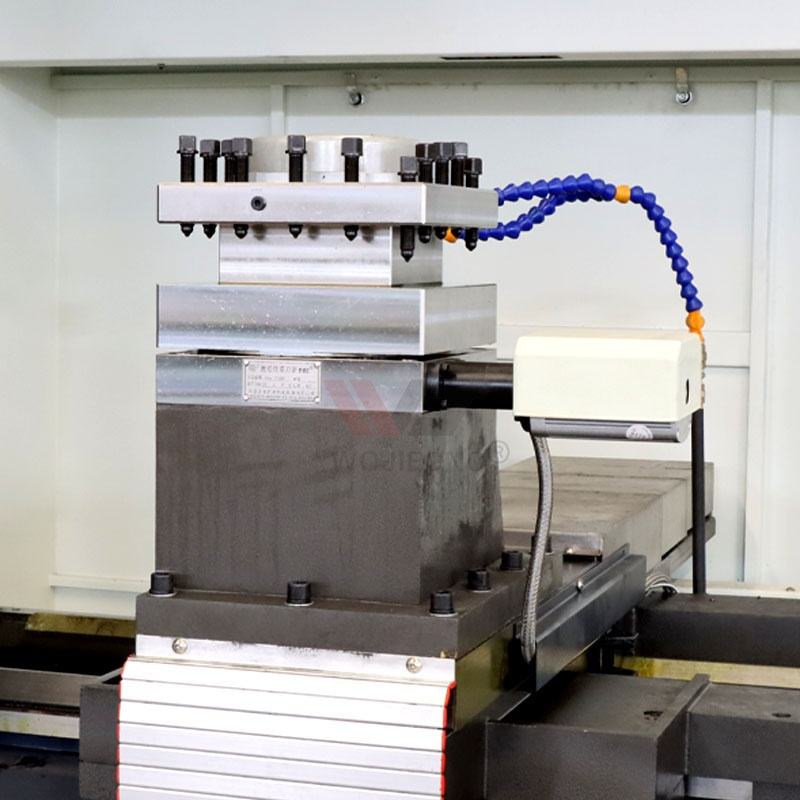

3.4-station electric turret

4.Frequency spindle motor

5.Stepless speed changer

6.Manual tailstock

7.Lighting system

8.Cooling system

Detailed Images:

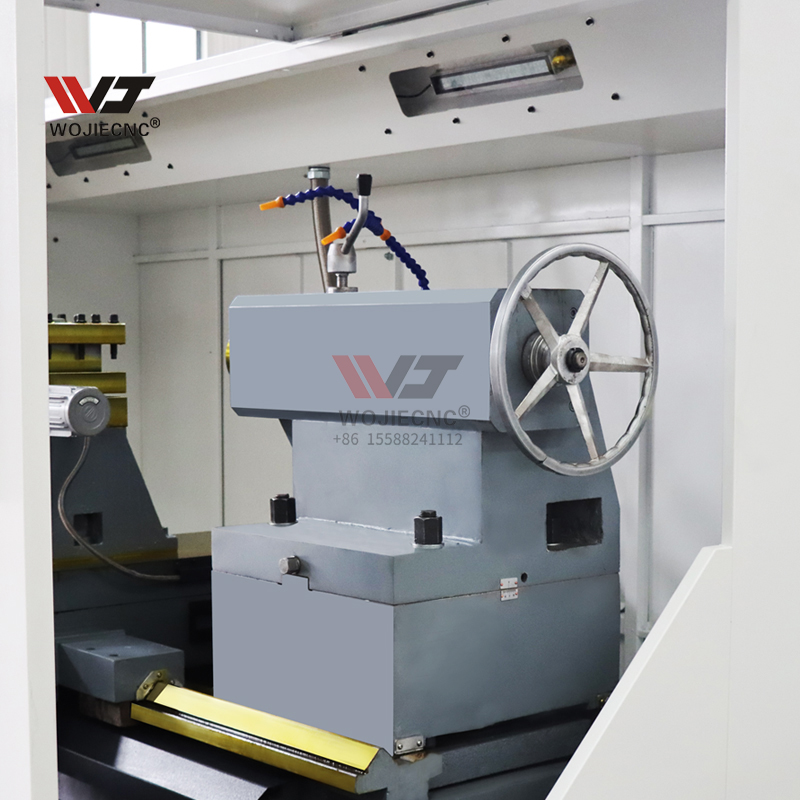

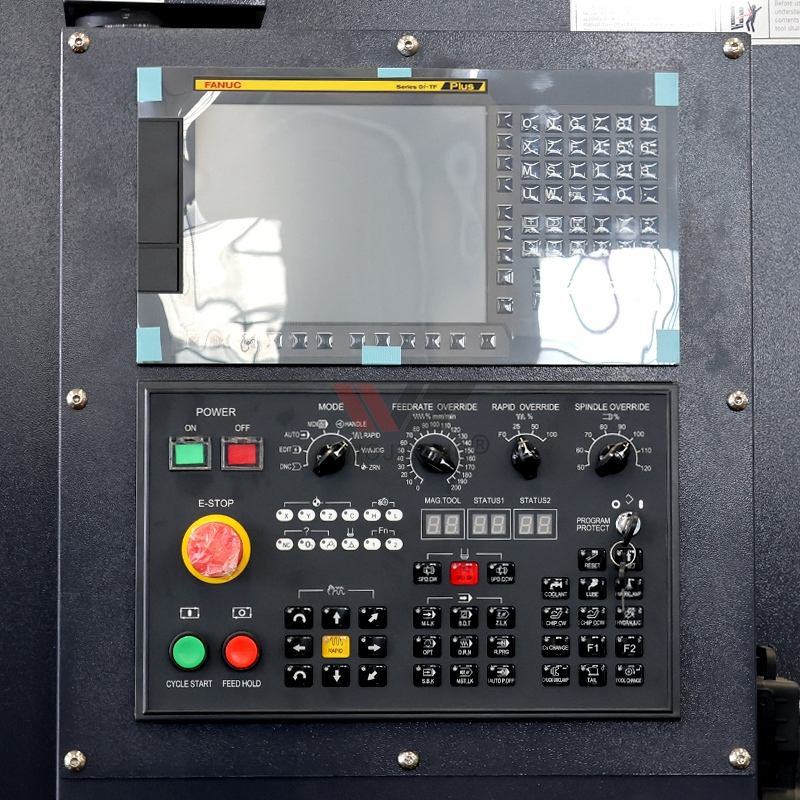

SYSTEM Standsrd is GSK System Optional : Fanuc/Siemens/KND...	TAIL STOCK Standard with Manual tailstock

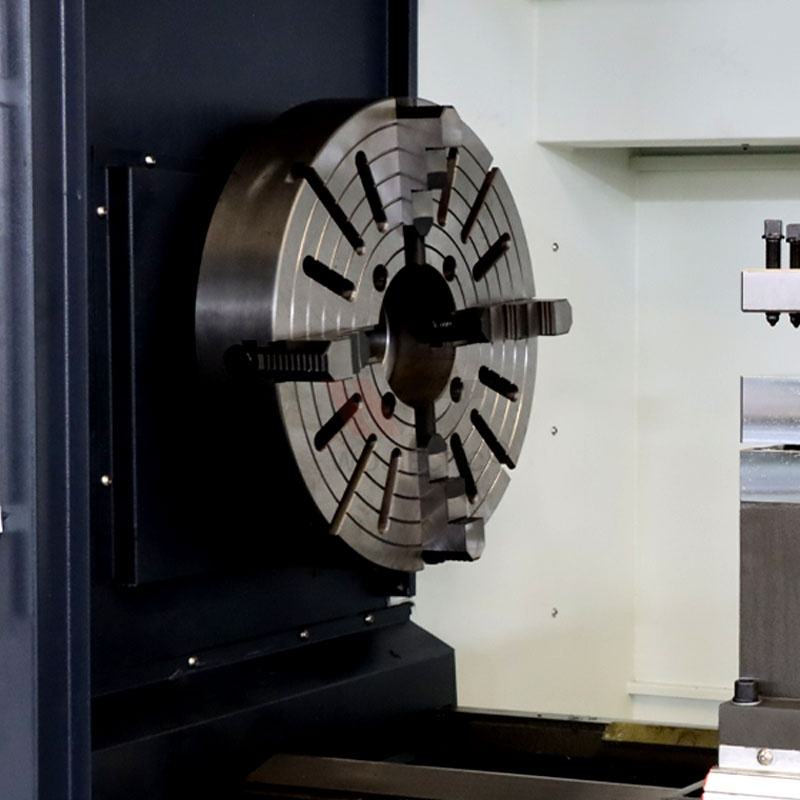

SYSTEM Standsrd is GSK System Optional : Fanuc/Siemens/KND...	MANUAL CHUCK Standard: 3-jaw manual chuck
