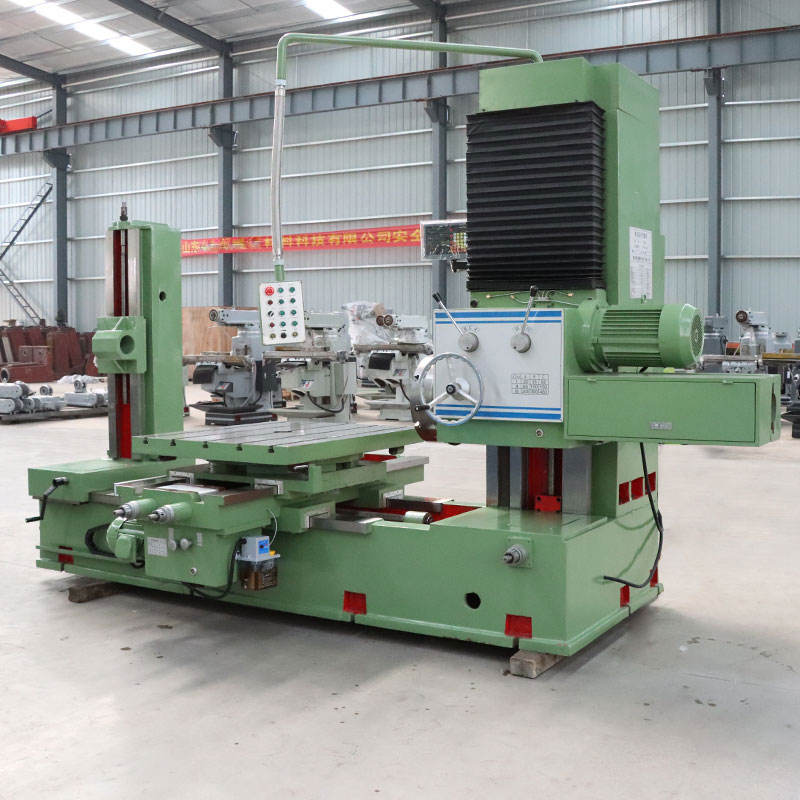

Horizontal Boring Machine T611 Boring Machine

Horizontal Boring Machine T611 Boring Machine

Attribute	Value
type	Horizontal
cnc or not	Normal
table size (mm)	1130*930
spindle motor power (kw)	7.5
number of axes	3
voltage	380V/220V/480V
no. of spindles	1
machinery test report	Provided
video outgoing-inspection	Provided
warranty	2 Years
core components	Motor

Description
Specifications
Detailed Images
Company Introduction

Description:

Product main features and uses：

1. Appearance beautiful generous overall layout of the overall layout.

2. The machine body, the upright post and the sliding block are all made of rectangular guide rail, and the stability is good.

3. Guide rail to take automatic quenching, high wear resistance.

4. Digital synchronous display, intuitive and accurate, can improve the work efficiency.

5. After the tailstock is optional

Product application:

1.This machine is suitable for machining the parts of single piece or small batch production in the machine shop.

2.Drilling, boring and hinge hole can be carried out on the machine tool.

Specifications:

Specifications	Units	T611
Max. load of worktable	kg	3000
Spindle speed step		9 step
Spindle speed range	rpm	20-450
Longitudinal feed step		6 steps
Longitudinal and transverse feed range	mm/min	6-250
Worktable rapid feed speed	mm/min	2500
Headstock lifting and lowering feed speed	mm/min	50-720
Spindle diameter	mm	110
Quill travel	mm	400
Table size	Mm²	1130×930
Longitudinal travel of worktable	mm	1400(without tailstock)
transverse travel of worktable	mm	1000
Vertical travel of headstock	mm	900
Spindle taper		MT6#
Spindle motor power	KW	5.5/7.5
Longitudinal and transverse motor power	KW	2.2
Headstock lifting and lowering motor power	KW	1.5
Overall dimension	mm	4800×2000×2500

Detailed Images:

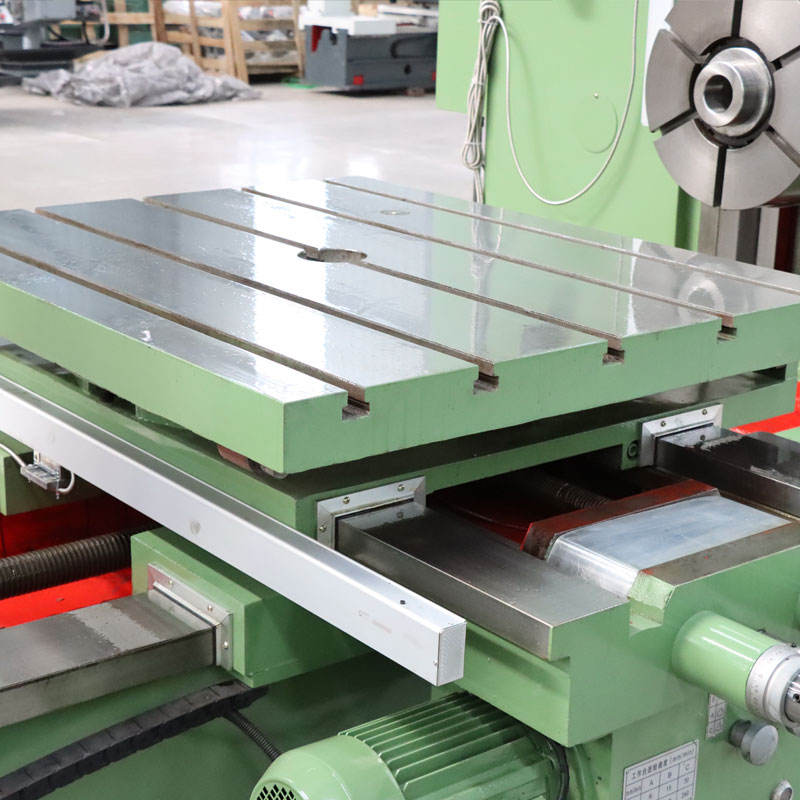

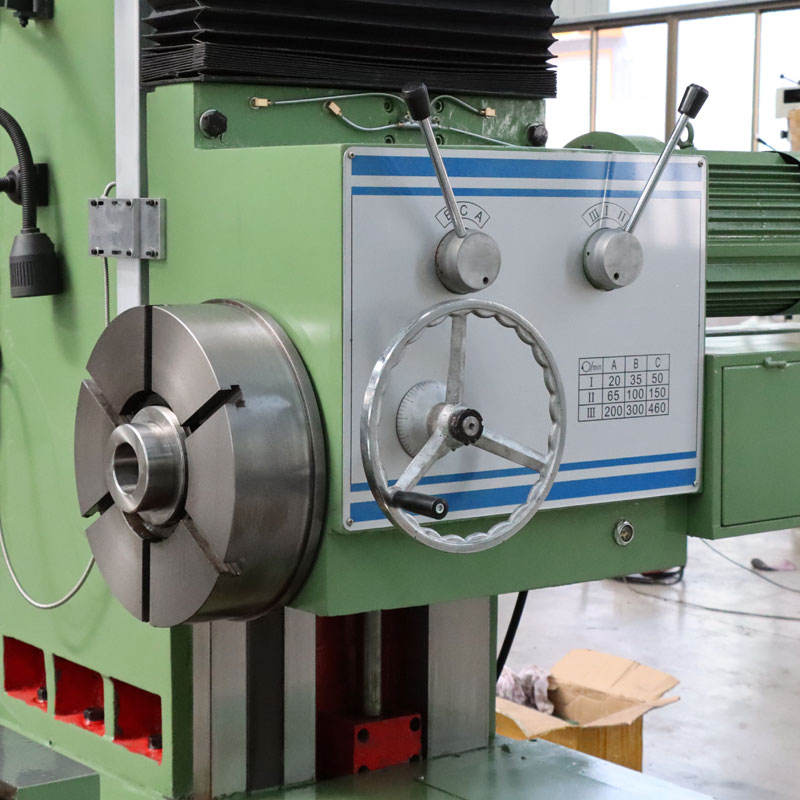

Spindle Head Assembly Shows the robust spindle head, including the large spindle nose, manual feed handwheel, and control levers. It ensures high rigidity and precise control for boring operations.	Worktable & Cross Slide Displays the large, precision-ground worktable with T-slots, mounted on hardened guideways. This supports heavy workpieces and enables smooth longitudinal/transverse movement.

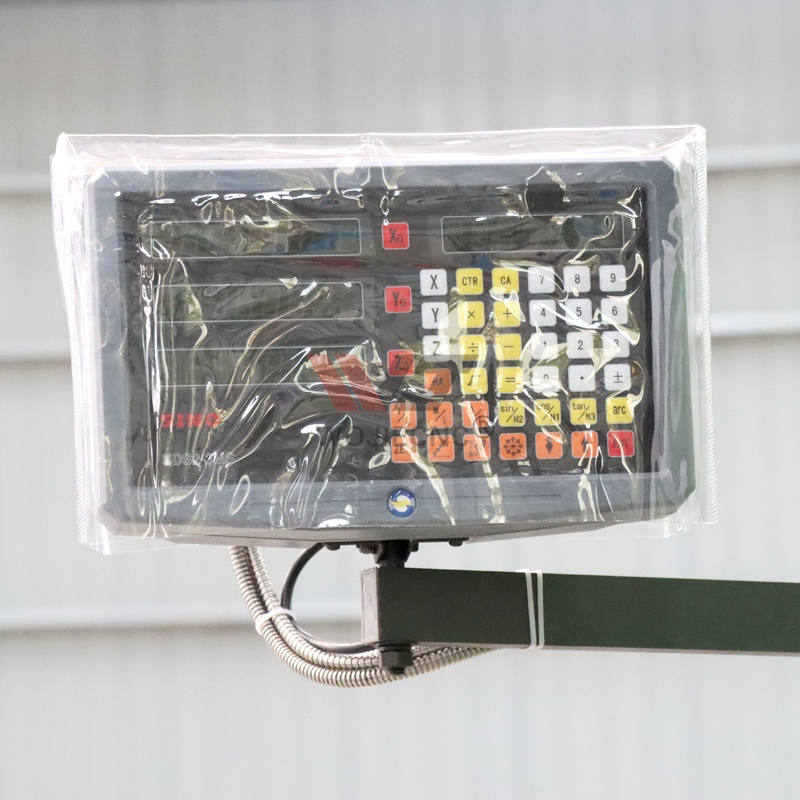

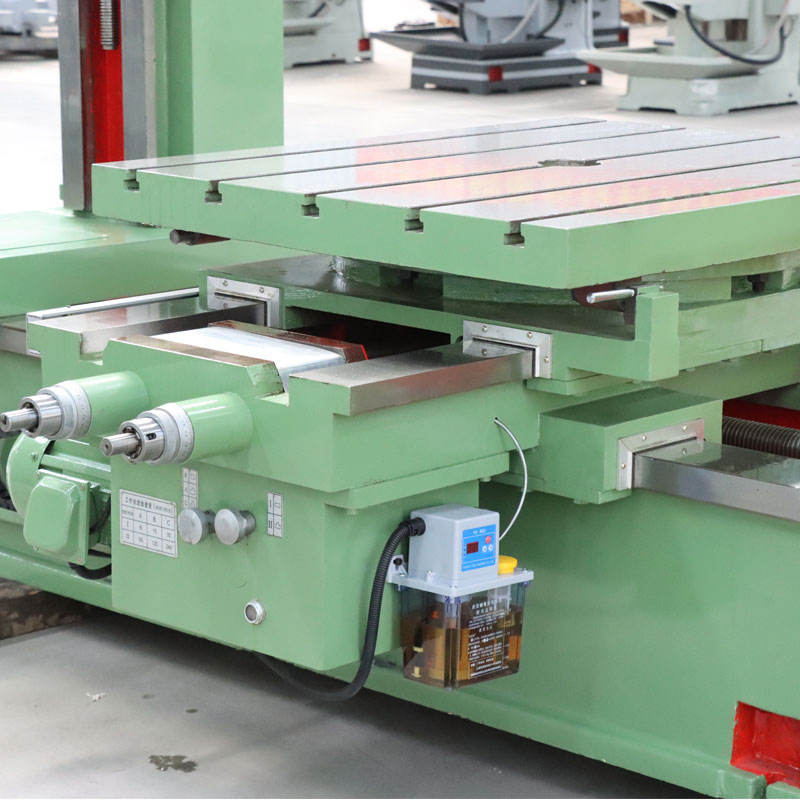

Base & Lubrication System Features the machine base, feed mechanisms, and automatic lubrication unit. The lubrication system keeps guideways well-oiled for long service life and smooth operation.	Digital Readout (DRO) Unit Shows the multi-axis digital readout display, which provides real-time position feedback. It helps operators achieve accurate positioning without manual calculations.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
