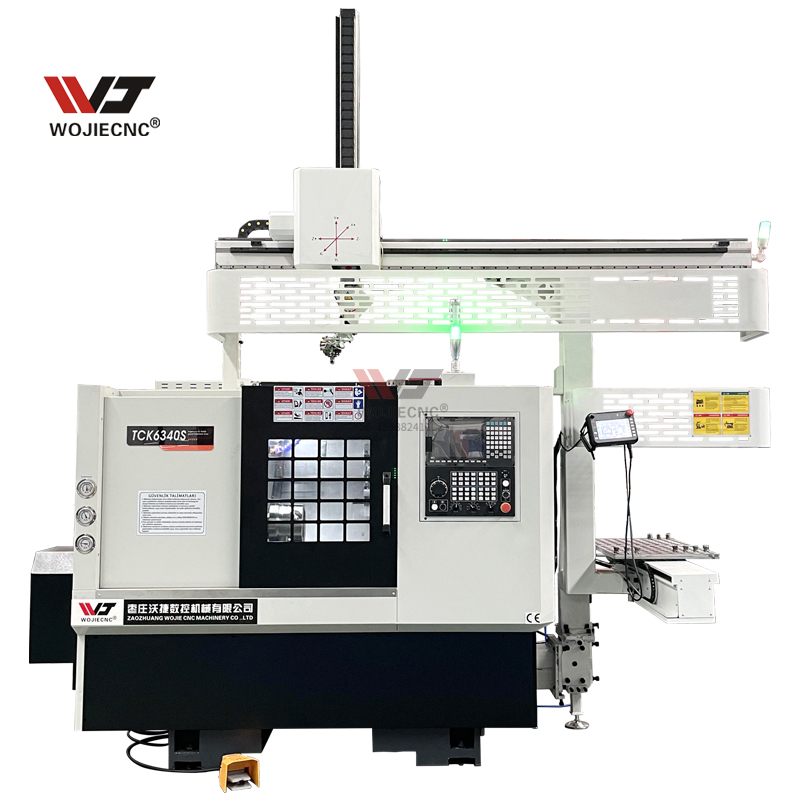

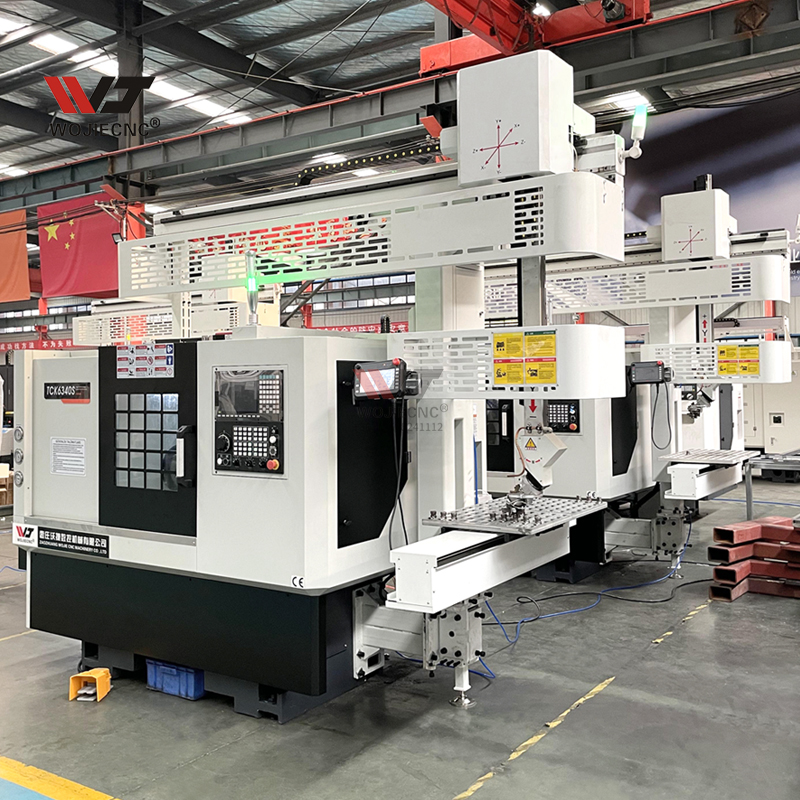

WOJIE Cnc Automatic Lathe WJ6340S Cnc Metal Lathe Machine with Gantry Loader

Description:

Product description:

Overall truss part: Made of customized high-precision and high-strength steel beams through a large gantry processing center, it does not deform and can effectively ensure the stability of the product and the service life of the equipment.

Feeding system part: With mature technology and standard assembly process, it can effectively ensure rapid connection with the manipulator, stable operation, and efficient use. The silo accessories are all well-known domestic and foreign brand accessories, which are more stable in operation.

The machine is equipped with self-feeding equipment to realize automatic production line processing

Specifications:

PECIFICATIONS	Units	WJ6340	WJ6340S	WJ6350
Swing over bed	mm	400	400	520
Swing over cross slide	mm	140	140	220
Distance between centers	mm	200	400(turret 300)	410(turret 300)
Spindle bore	mm	48(Opt.56)	48(Opt.56)	66
Spindle nose type	-	A2-5	A2-5	A2-6
Spindle speed steps	-	Stepless	Stepless	Stepless
Spindle speed range	rpm	3500	4000(3500)	3000
Turret/tool post	-	Gang type	Gang type	Gang type
Tool size	mm	20 x 20	20x 20	25 x 25
X axis travel	mm	400	400	500
Z axis travel	mm	300	500	500
X axis rapid traverse	mm/min	18000	18000	18000
Z axis rapid traverse	mm/min	18000	18000	18000
Main spindle motor	kw	5.5	5.5	7.5
Guide rail type	-	Linear rail	Linear rail	Linear rail
Machine weight	kg	2300	2500	2900
Overall dimension	mm	239015301780	2400x1600x1780	2500x1600x1890

Detailed Images:

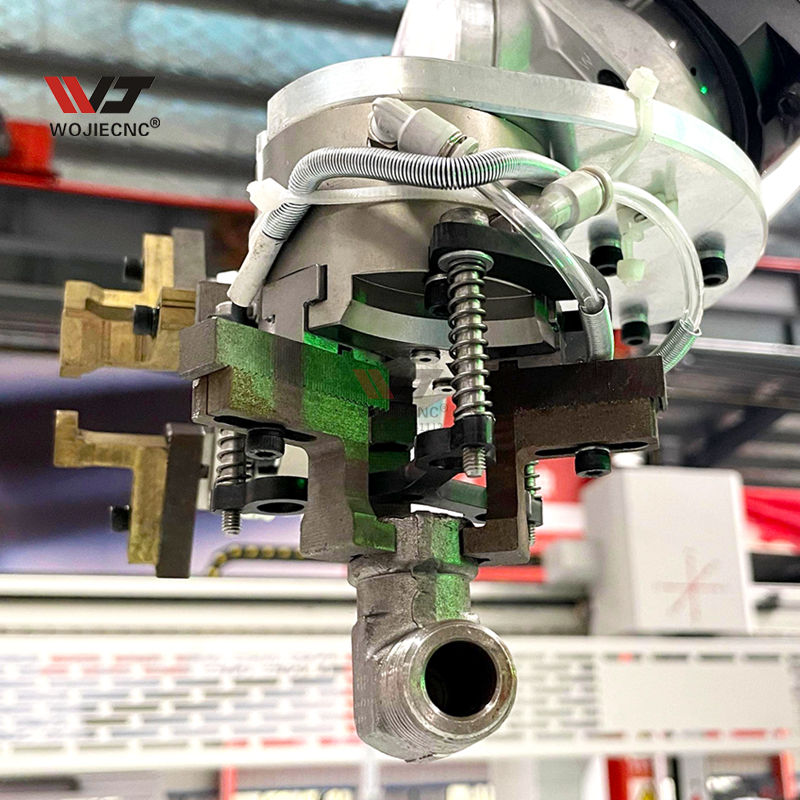

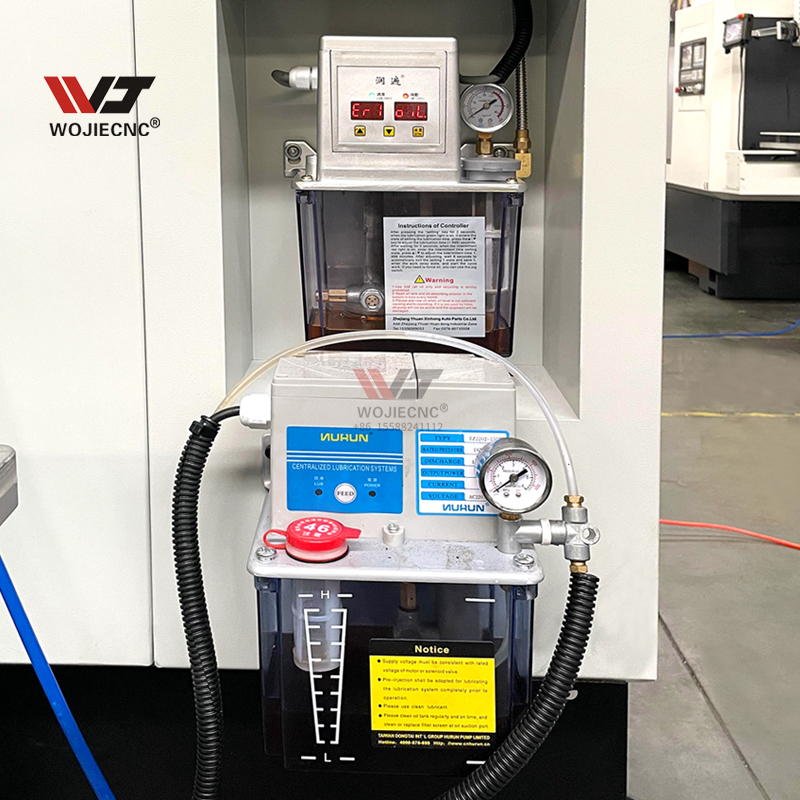

Automatic lubrication system Timed automatic intermittent lubrication, stable and reliable operation.	Loading and unloading robot Customized according to the size and weight of the customer's workpiece, it can automatically grab parts, save labor costs, and realize automated production lines

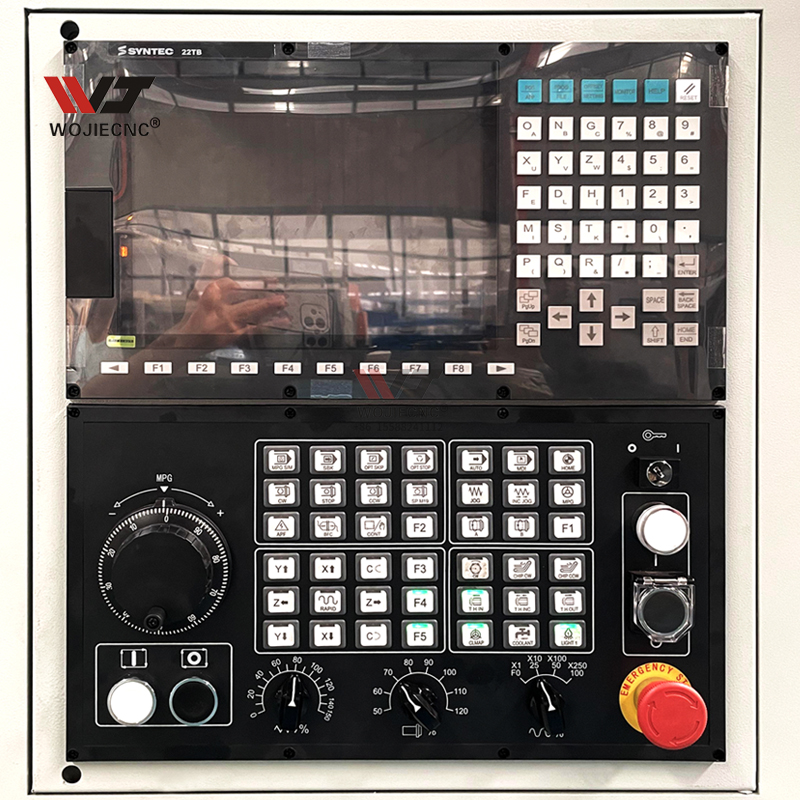

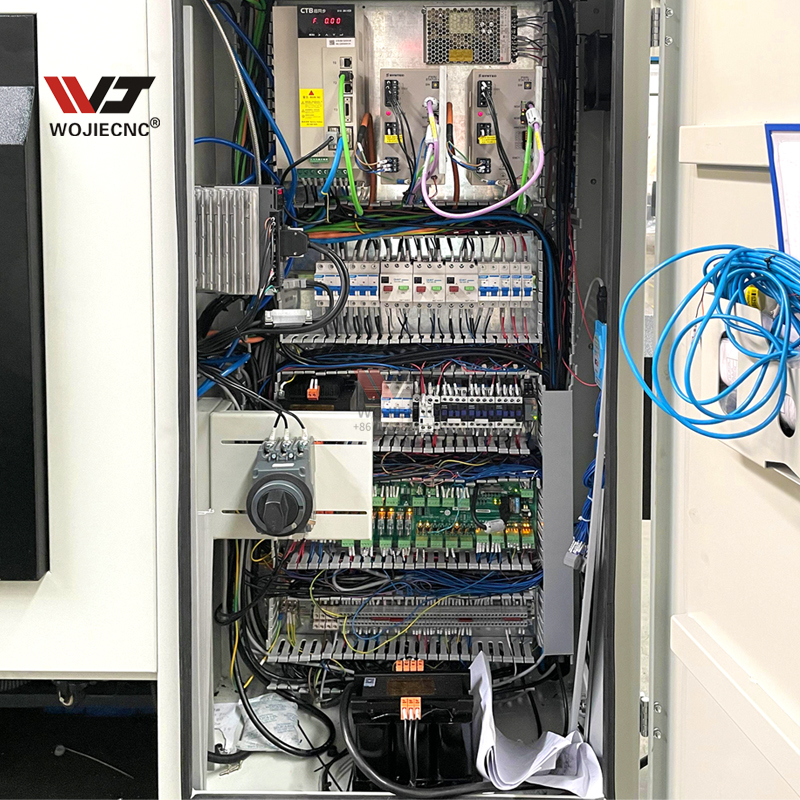

Control system The system can be configured according to the customer's usage habits Common system brands: GSK, FANUC, Siemens, Syntec	Delixi Electric Safe and reliable, stable quality

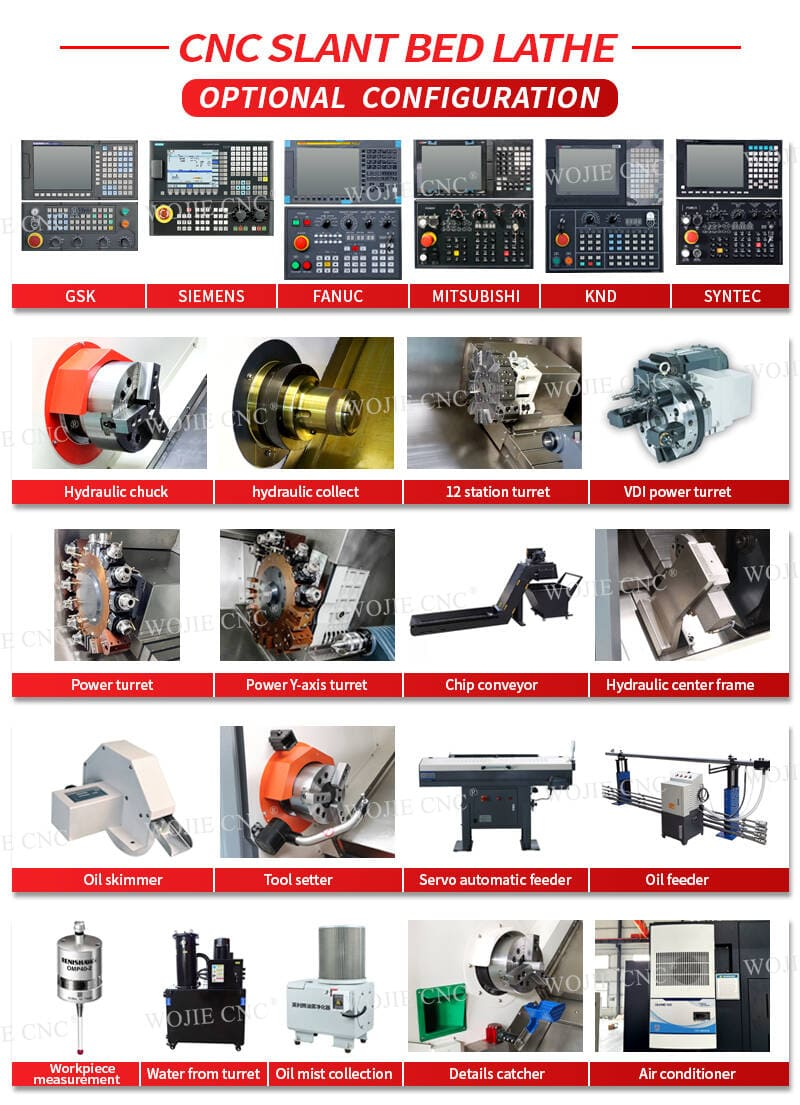

Optional Configurations:

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
