Description:

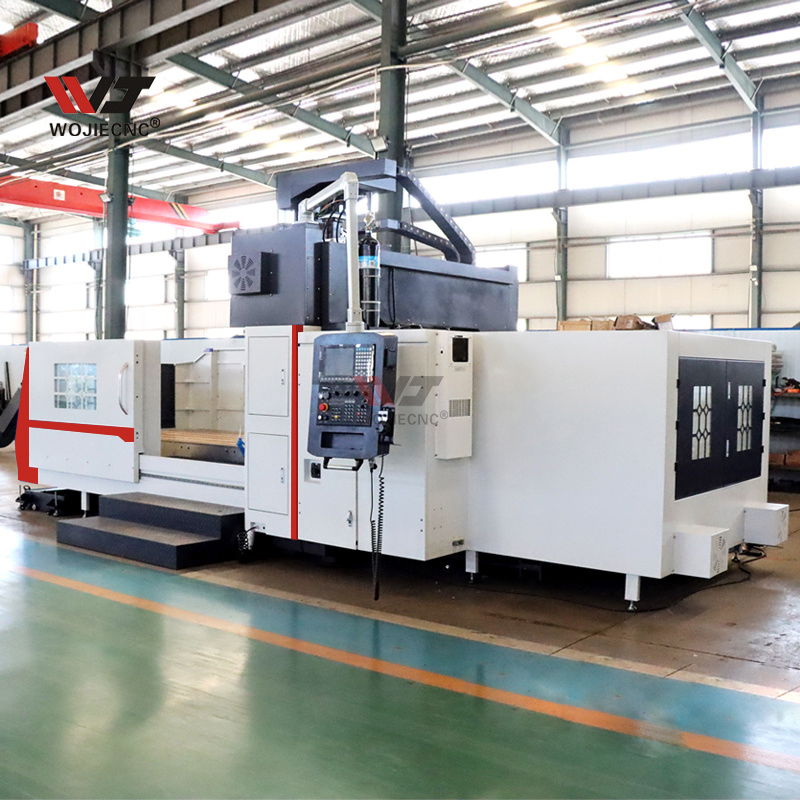

Product Application

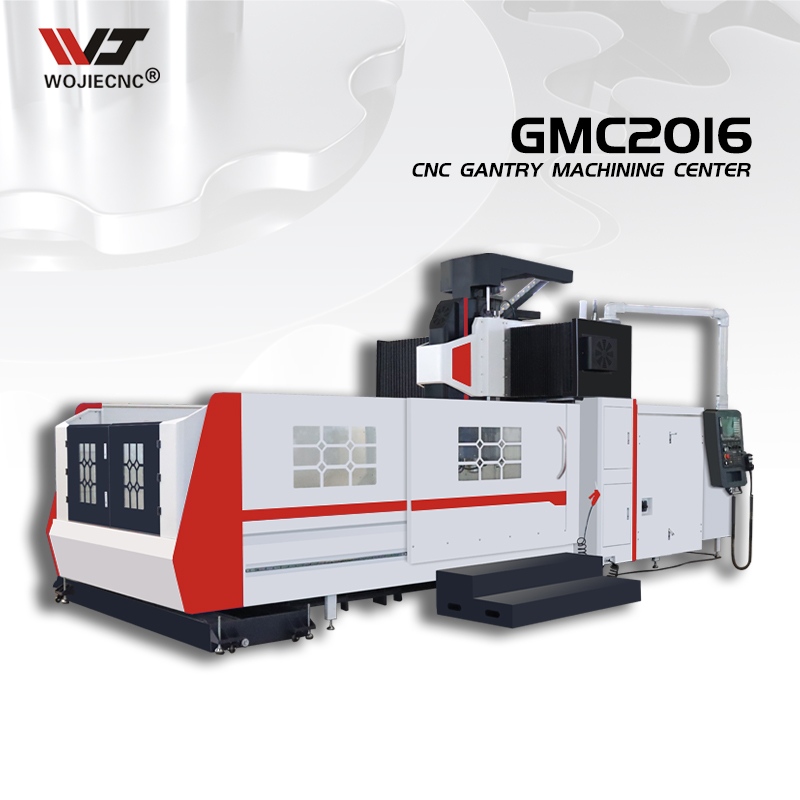

This machine is suitable for processing machinery and mold manufacturing field of gantry machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Specifications:
| Parameters | GMC2016 |
| X axis (transverse movement of worktable) | 2000mm |
| Y axis (saddle longitudinal movement) | 1600mm |
| Z axis (ram vertical lifting) | 1000mm |
| Distance from spindle end face to worktable | 100-800mm |
| (when BT40) | |
| Gantry width | 1650mm |
| X-axis rapid movement | 20m/min |
| Y axis rapid movement | 20m/min |
| Z-axis rapid movement | 20m/min |
| cutting feed | 1-10m/min |
| Three-axis screw (C3 level grinding) | 5012/5012/5012 |
| Workbench area | 2200×1300mm |
| Spindle motor | 22kw |
| weight capacity | 3000Kg |
| T-slot | 7×22×165mm |
| Standard configuration | Belt type BT40-150 |
| Rotating speed | 8000 rpm |
| Spindle taper hole | BT40 |
| Positioning accuracy (JIS standard) | ±0.005/300mm |
| Repeat positioning accuracy (JIS standard) | ±0.005mm |
| weight | 约22000Kg |
| Dimensions | 约5600×3300×2900mm |
Standard Accessories:
GSK System
24 Arm type tool magazine
Taiwan spindle BT40
Chain chip conveyor
Sprial chip conveyor
Automatic lubrication system
Cooling system
Heat Exchange
Pneumatic system
Full Cover machine enclosure
Optional Accessories:
System:FANUC,Siemens,GSK etc
4 axis or 5 axis
Spindle center coolant
Higher speed of Spindle
Air conditioner
Gear Box
Detailed Images:
 |
|
|

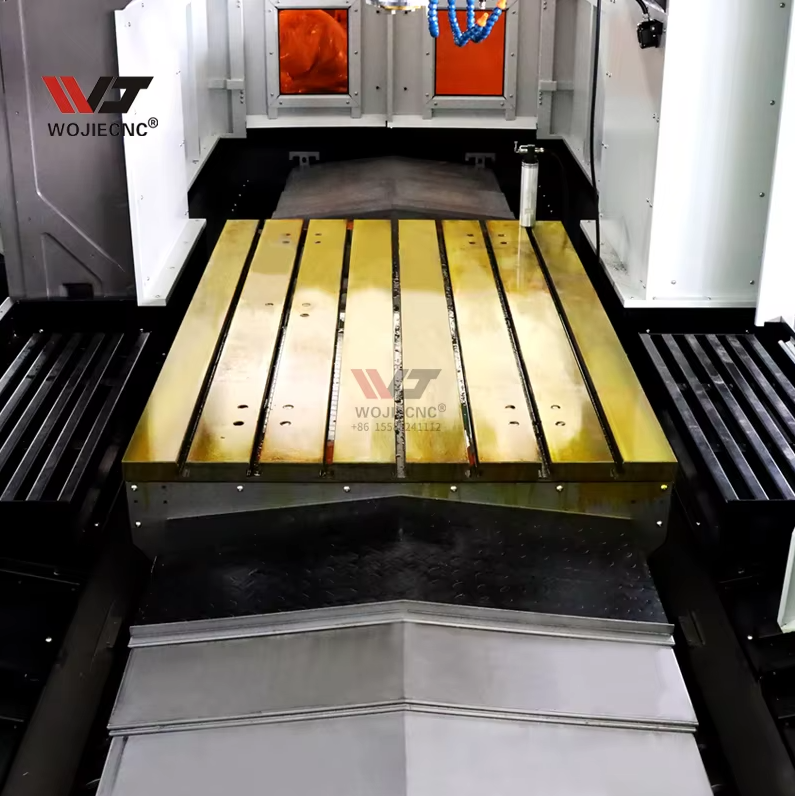

WORKBENCH
High-frequency quenching for better rigidity
|

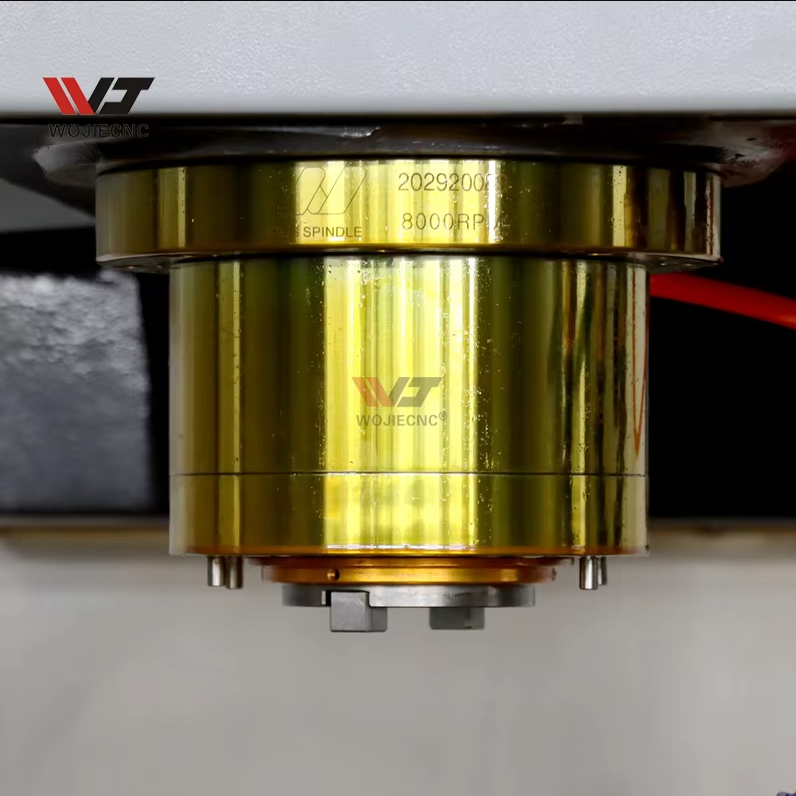

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40.
2. Spindle speed 8000rpm , can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.
|
|
|
 |
|

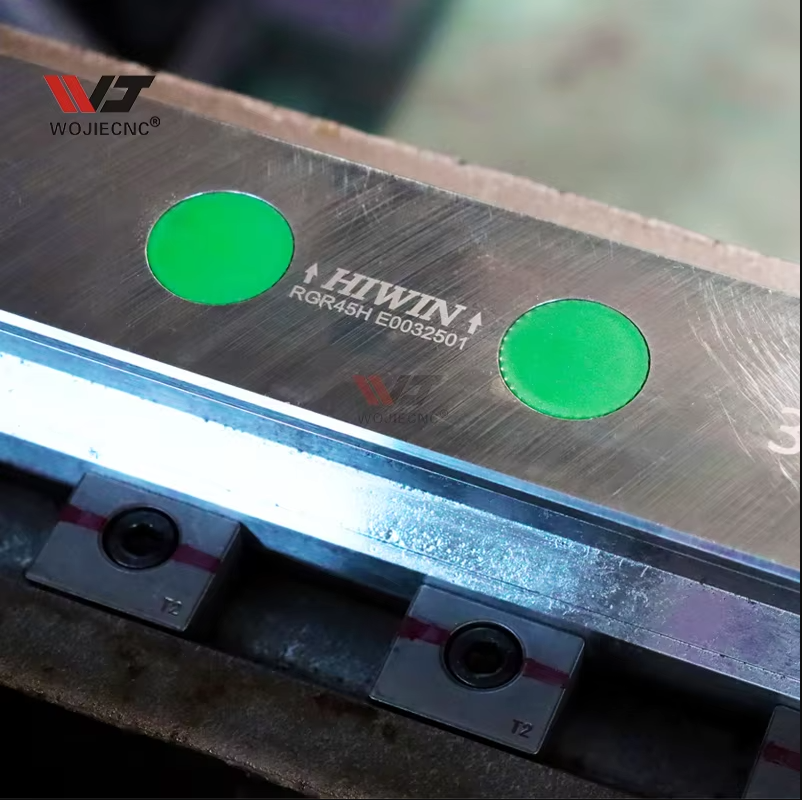

TAIWAN BRAND LINEAR GUIDE WAY
3-axis linear guide using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
|

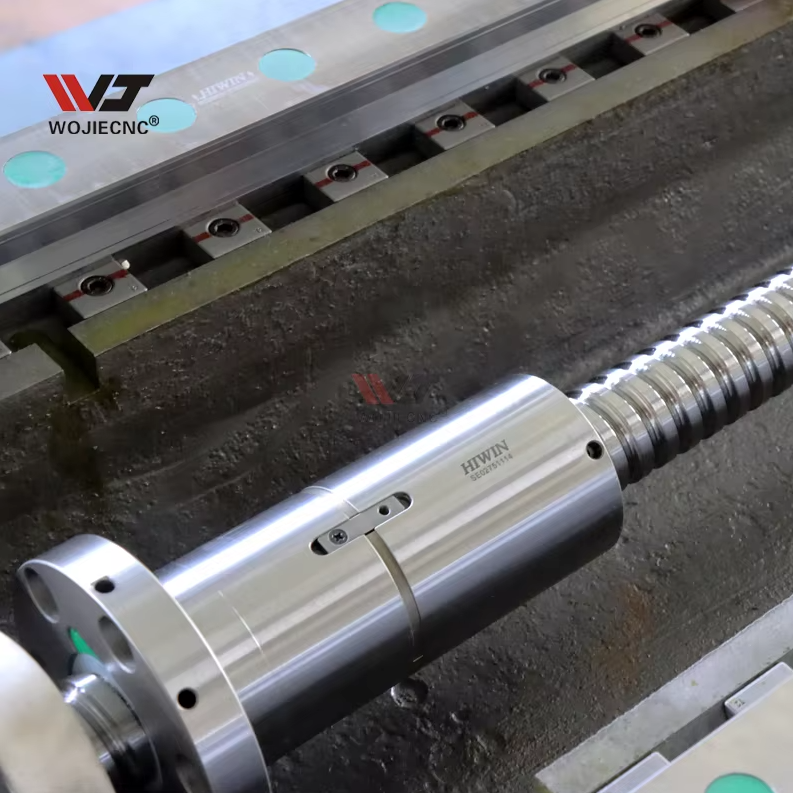

TAIWAN BRAND SCREW
3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
|
 |
|
|

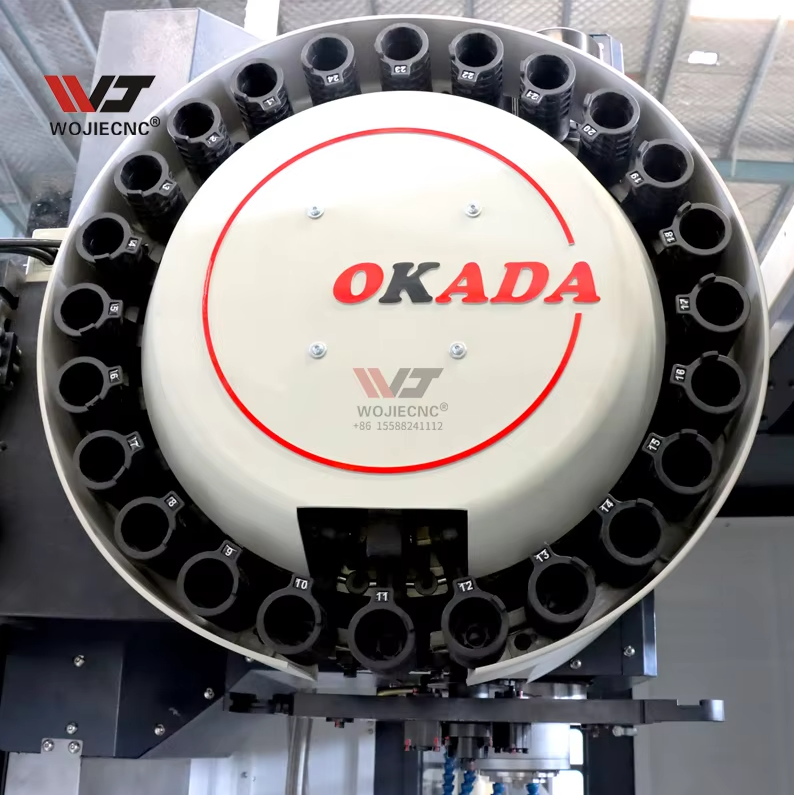

TAIWAN TOOL MAGAZINE
1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 2-3 seconds.
|

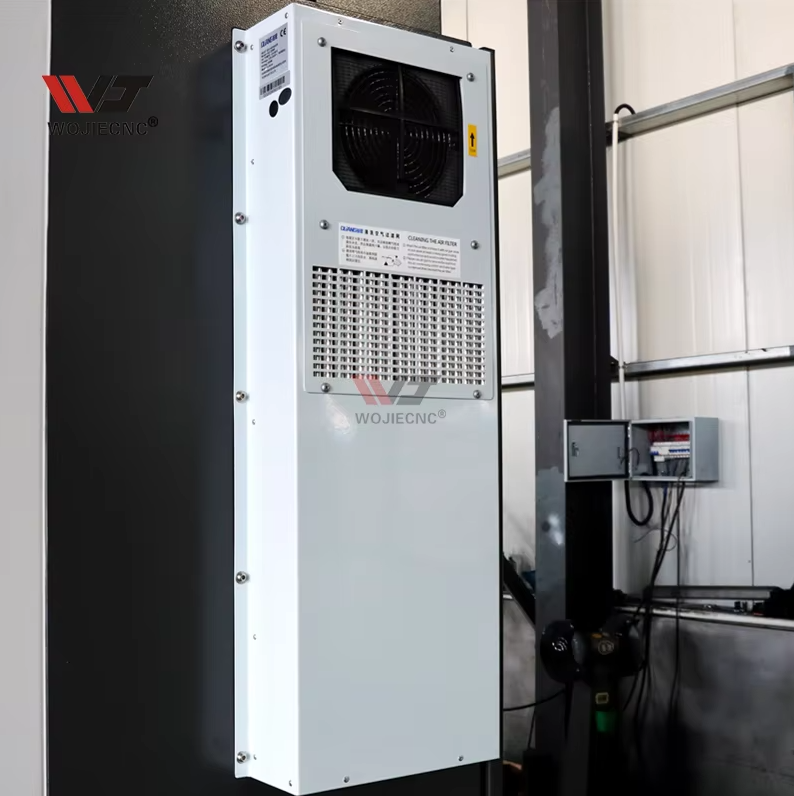

HEAT DISSIPATION DEVICE
Standard configuration: Electrical cabinet heat exchanger
Optional configuration: Electrical cabinet air conditioner
|
|
|
 |
|

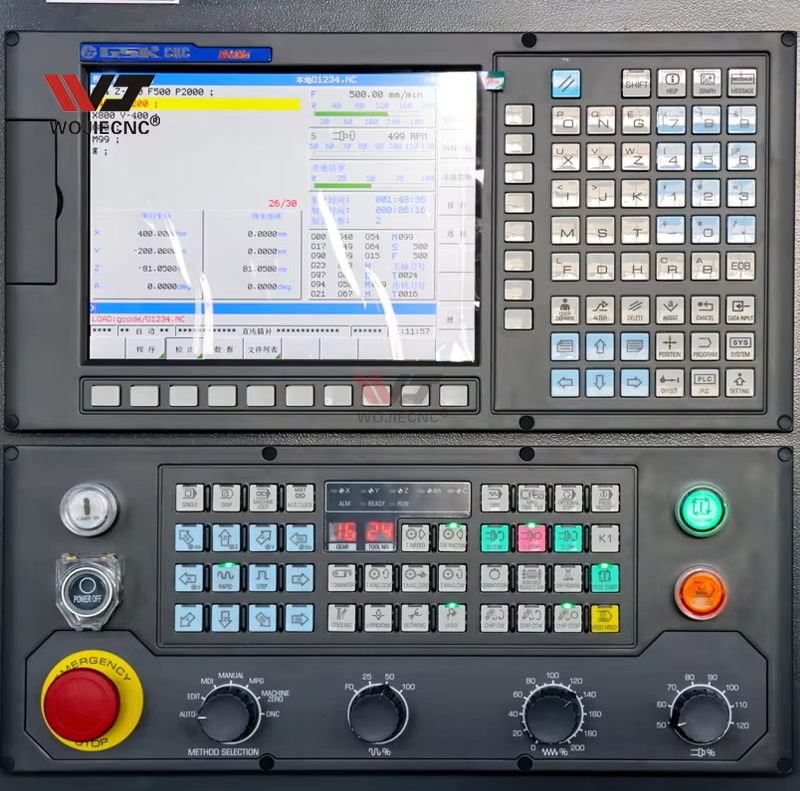

CONTROL SYSTEM
Standard configuration: GSK
Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubishi
|

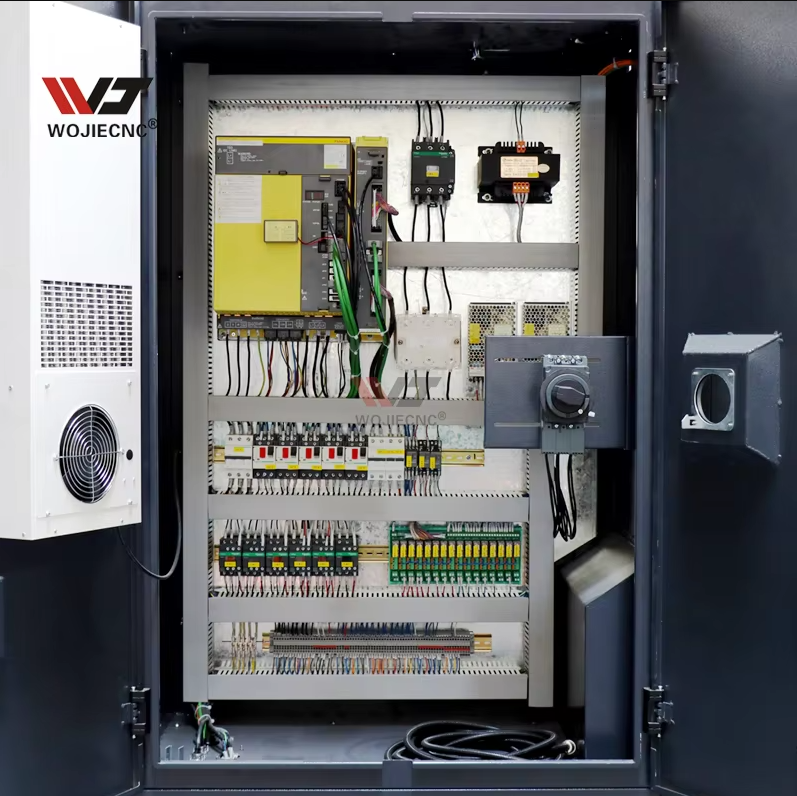

ELECTRIC BOX
Standard configuration: DELIX
|
|
|
|
|

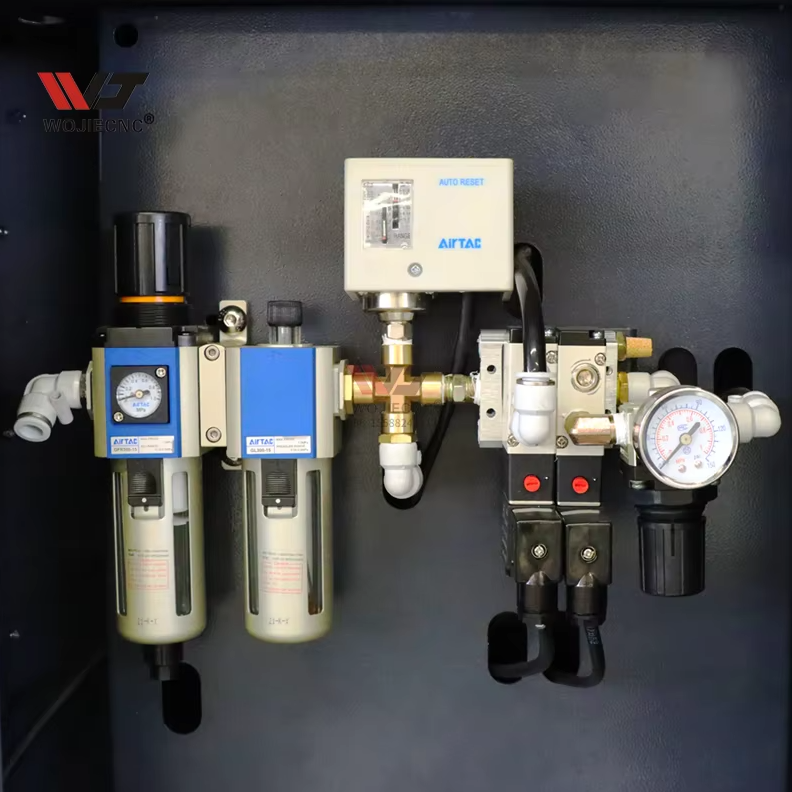

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
|

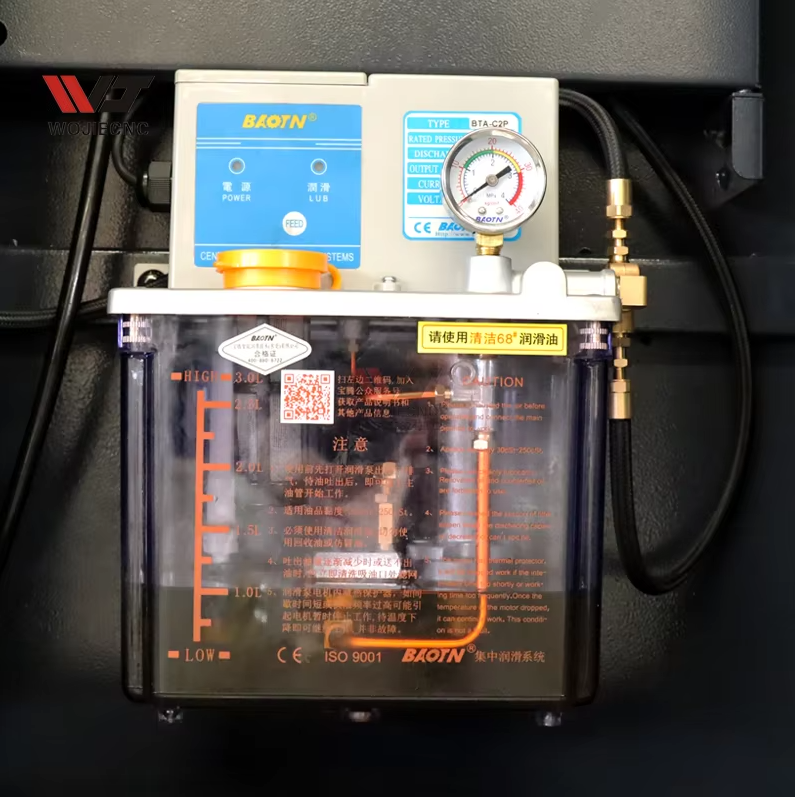

LUBRICATION SYSTEM
Automatic lubrication device.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
