Vertical Horizontal Turret Precision Milling Machine X6336

Vertical Horizontal Turret Precision Milling Machine X6336

Attribute	Value
type	VERTICAL
machining capacity	Medium Duty
table travel (x) (mm)	1000
table travel (y) (mm)	320
table travel (z) (mm)	450
spindle taper	ISO40
voltage	220V/380V
machinery test report	Provided
warranty	1 Year
video outgoing-inspection	Provided
key selling points	Multifunctional

Description
Specifications
Detailed Images
Company Introduction

Description:

Product Application

The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter,

milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.

Product main technical Specifications:

Specifications	Units	Value
Table size	mm	1500×360
Table travel	mm	1000/320/450
T slot (number-width-pitch)	mm	3-18-80
Spindle taper		ISO40 7:24 (V)ISO50 7:24 (H)
Spindle speed range	rpm	(V) 50HZ:65-4500, 60HZ:80-5440, 16 steps;(H) 60-1800, 12 stepsOptional: variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04, 0.08, 0.15 (3 steps)
Distance between spindle nose and table surface	mm	140-590
Distance between spindle axis and table surface	mm	0-450
Main motor power	kw	3.7(V) 4(H)
Head rotation (left - right)	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	2400
Overall dimension	mm	2600×2200×2550

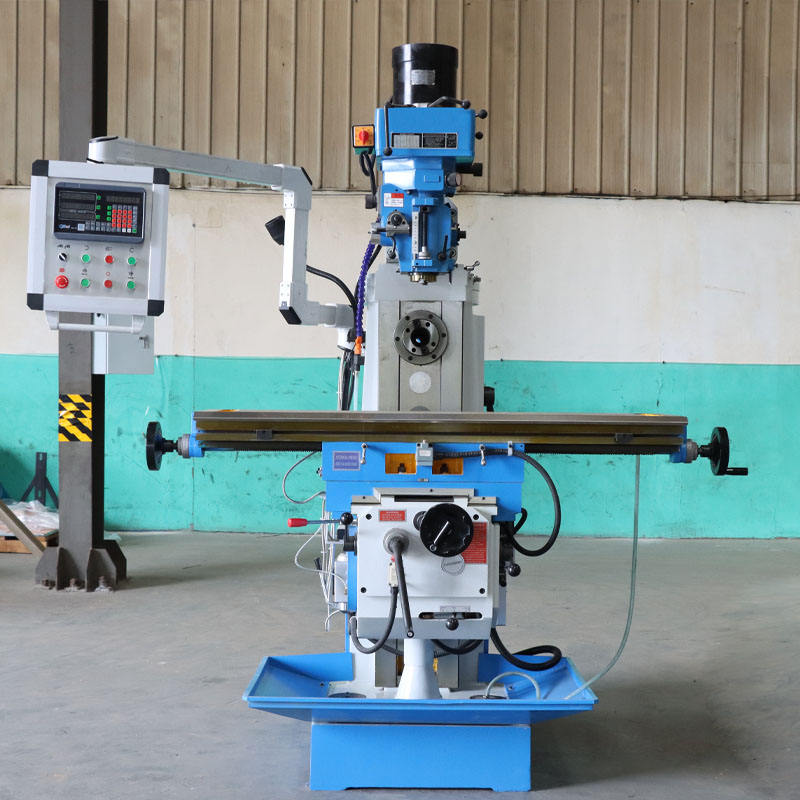

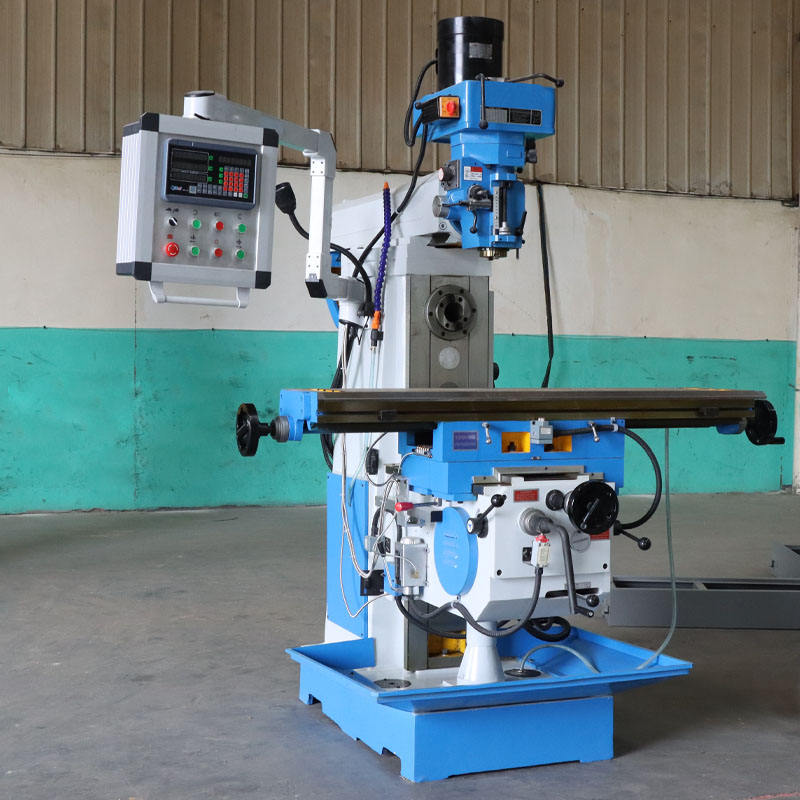

This is the overall machine view, showing the complete vertical milling machine structure. It includes the main body, worktable, and primary manual control components (handwheels, adjustment levers, and mechanical operation parts). This view highlights the machine’s robust build and basic operational layout for workpiece clamping and table movement.

Detailed Images:

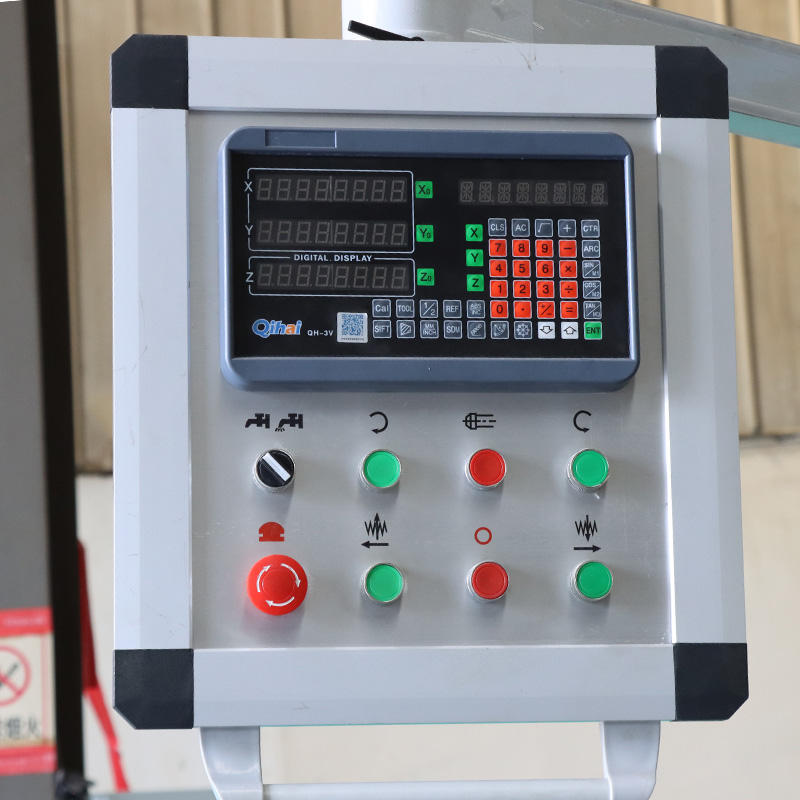

This is the digital control panel, the central interface for machining parameter management. It features a digital display for real-time data (e.g., spindle speed, feed rate), plus functional buttons: emergency stop, spindle/feed control, and mode selection. It enables precise setting and monitoring of machining processes, supporting both manual and semi-automatic operations.	This is the side manual control mechanism, focusing on fine-tuning components. It includes feed adjustment levers, spindle positioning handles, and locking knobs. These parts allow operators to make precise adjustments for spindle travel and table feed, ensuring accuracy in detailed machining tasks.
