X6330 Professional Manufactured Nantong Vertical Home Milling Machine Price

Description:

Place of Origin:	China
Brand Name:	WOJIE
Model Number:	X6330
Certification:	Provided
Minimum Order Quantity:	1 set
Price:	1 - 3 sets $3600
Price:	5 sets $3200
Table Size	1370*305 mm
Spindle Motor Power(kw)	3.75 kw
Packaging Details:	160017002300 mm
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	Unlimited stock

Application:

This machine is widely used in electrical equipment, Instrument apparatus industry, Cars, Motorcycle parts, Fastener bearing, Photographic equipment, movie mechanical, hardware various clocks and watches The glasses, Stationery,electric machinery, Valves,Gas pipe fittings and other high precision machining and manufacturing of complex parts, Is a hardware machinery processing industry the most ideal efficient equipment. Is a hardware machinery processing industry the most ideal efficient equipment.

Standard Accessories:

Plastic splashing guard

Draw bar

Oil collecting plate

Tool & toolbox

Reduction sleeve

work lamp

cooling system

Optional Accessories:

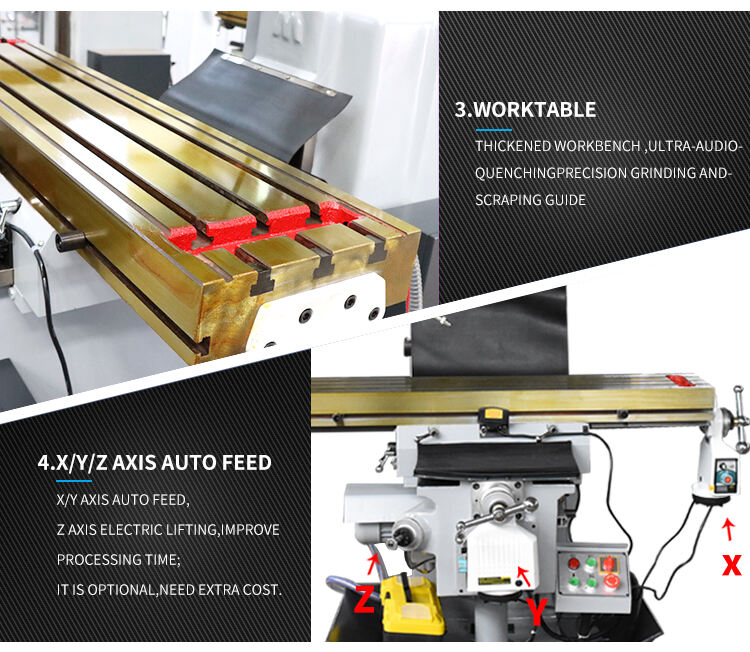

Power feed

3-axis Digital Reading

Machine Vise

Milling Chuck

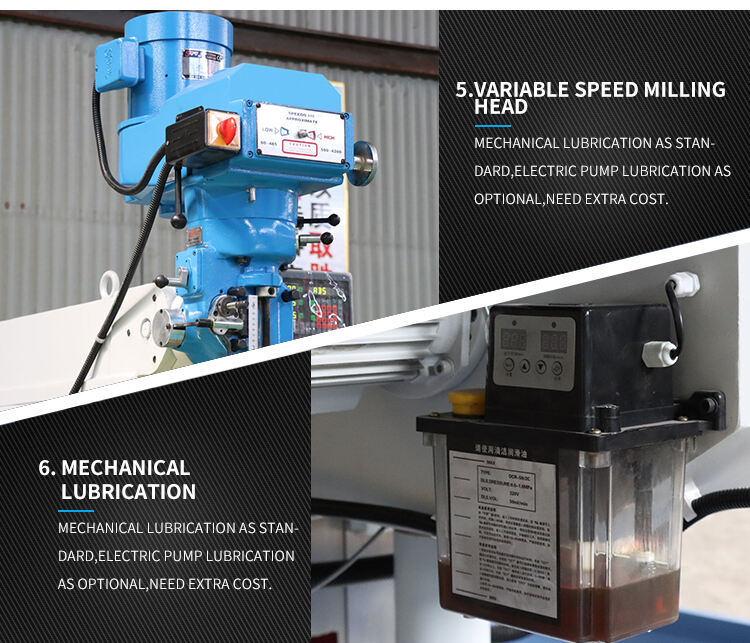

Variable milling head

Air drawbar

Dividing Head

Rotary TablKits

Turret milling machin

Specifications:

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400

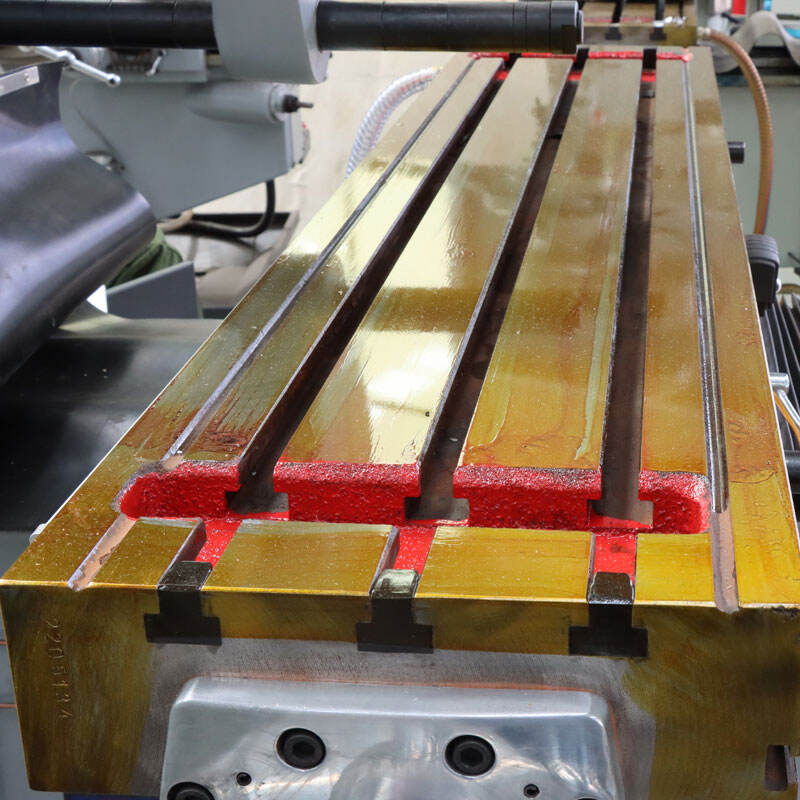

T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V) 50HZ:65-4500 60HZ:80-5440 (16 steps) (H) 45-1350(12steps)
		Optional(variable)65-4000

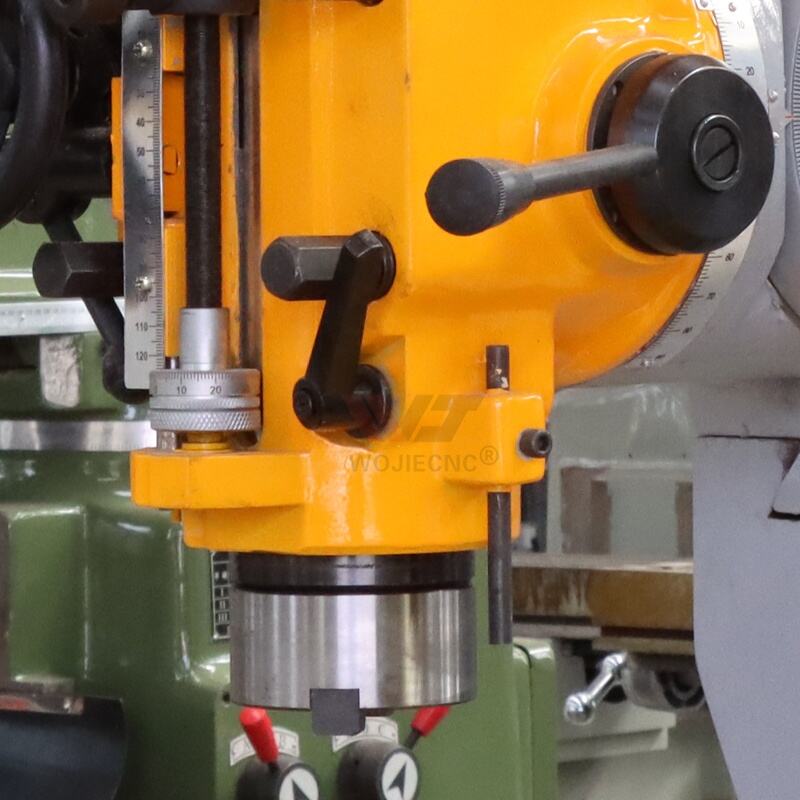

Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)

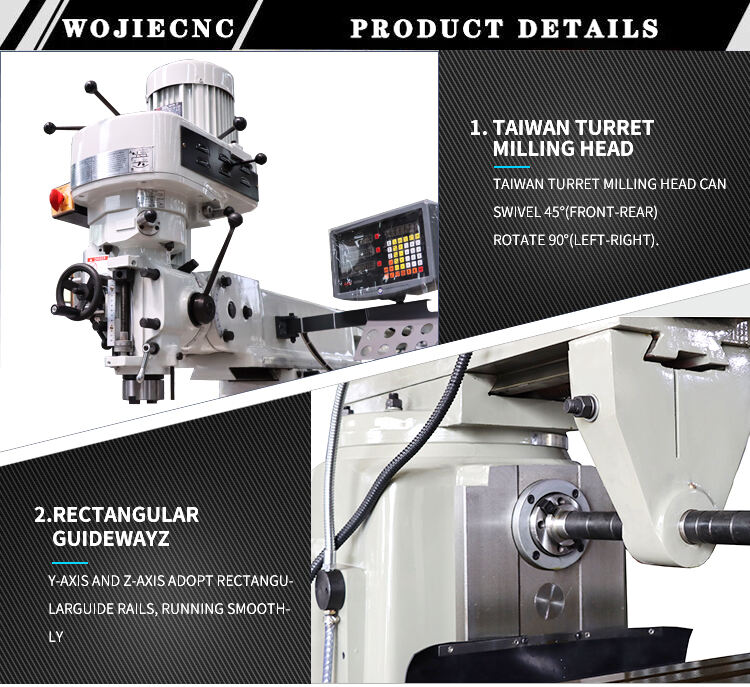

Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250
Single milers package	mm	1566x1650x2080	1566x1650x2080
Two milers package	mm	1720x1800x2175	1720x1800x2175
Weight	kg	1600	1650

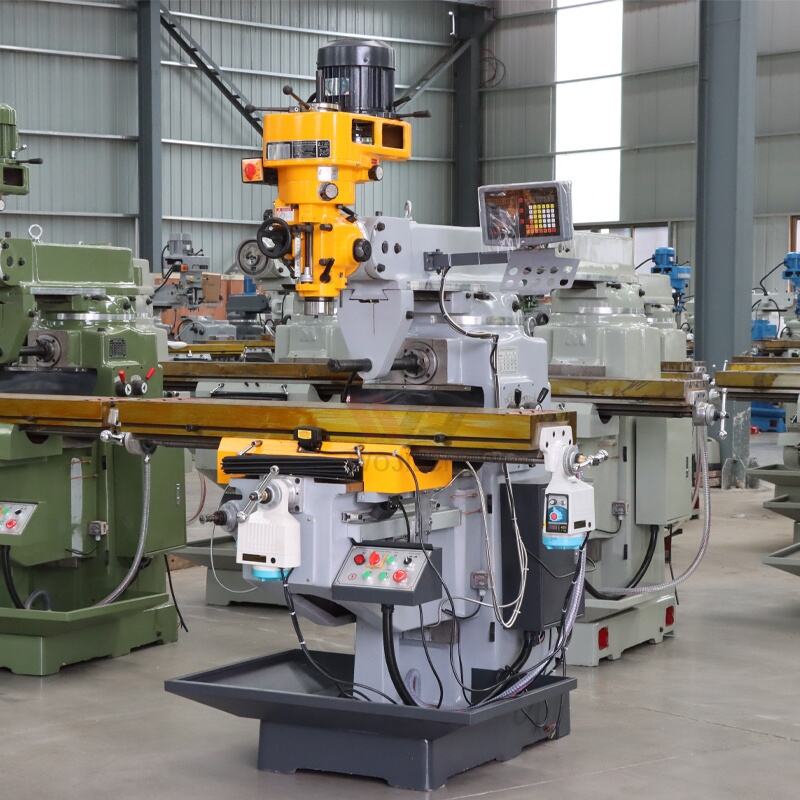

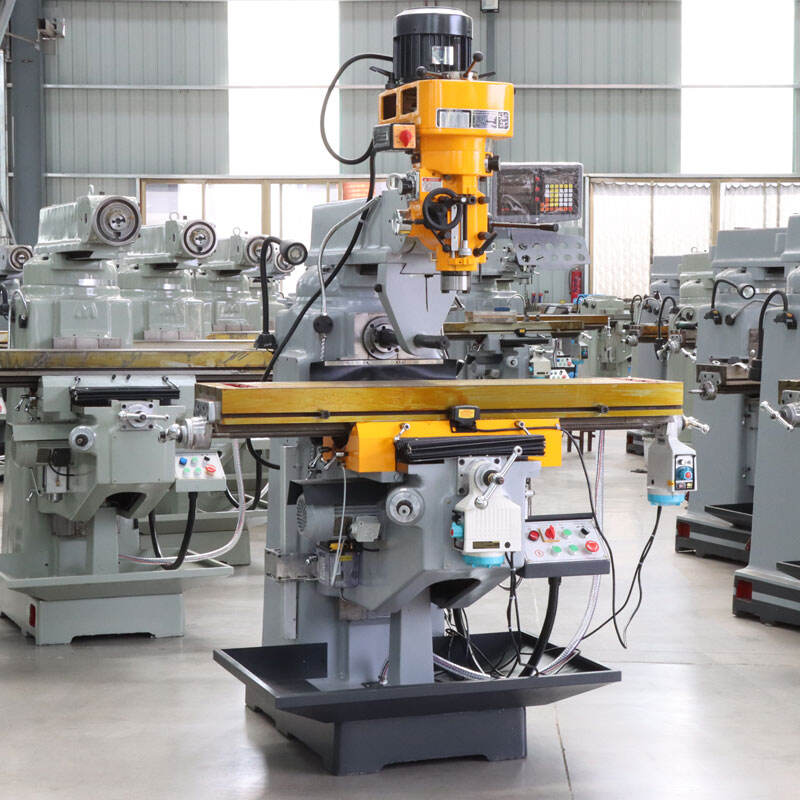

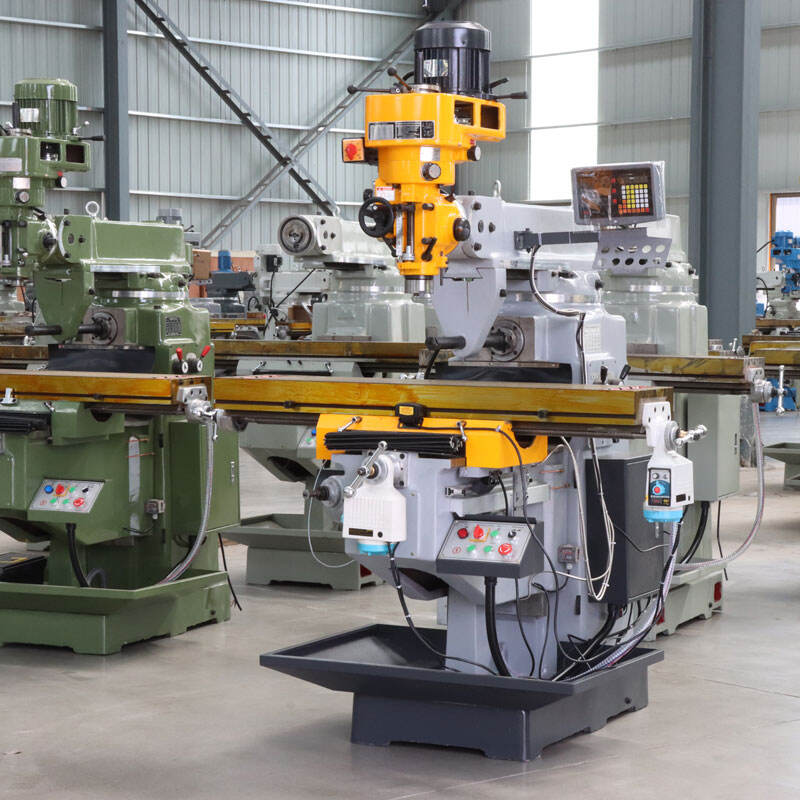

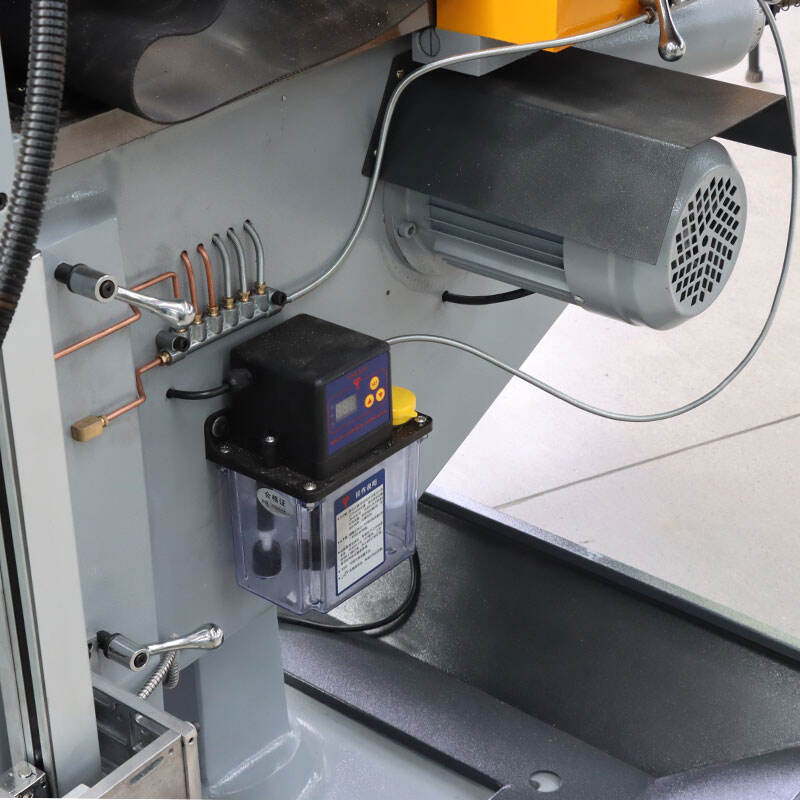

Detailed Images:

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
