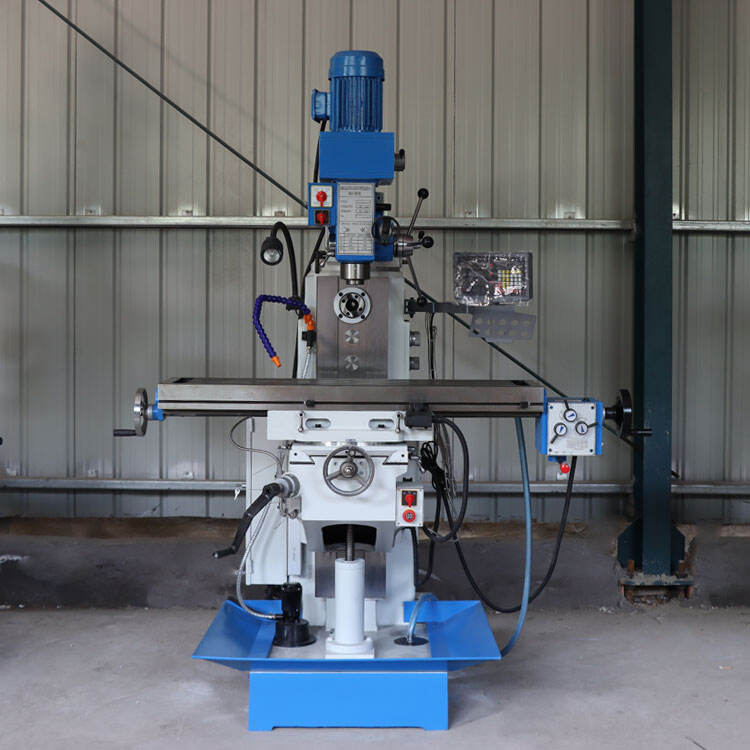

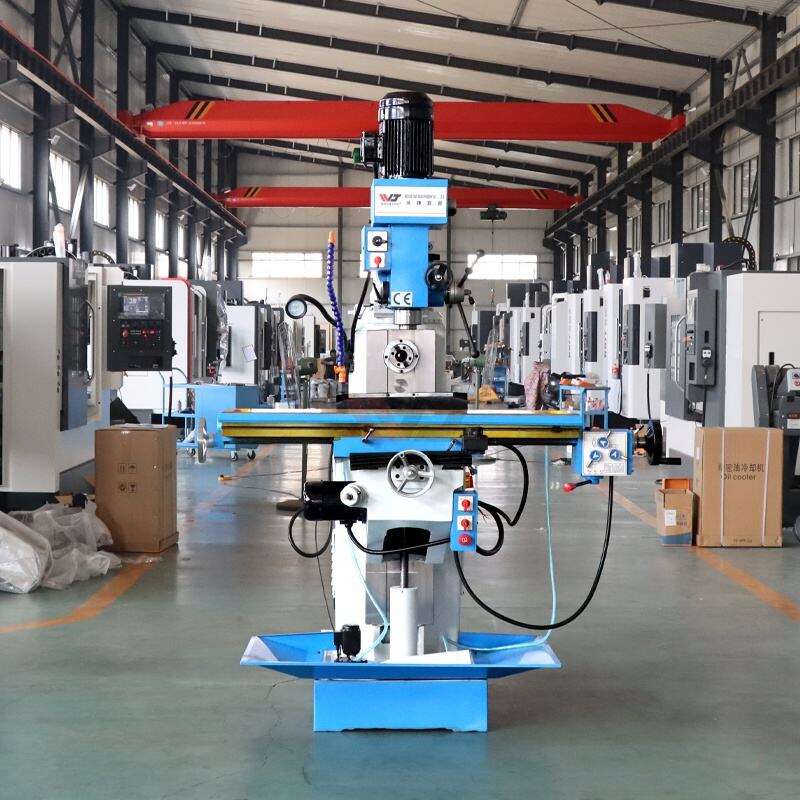

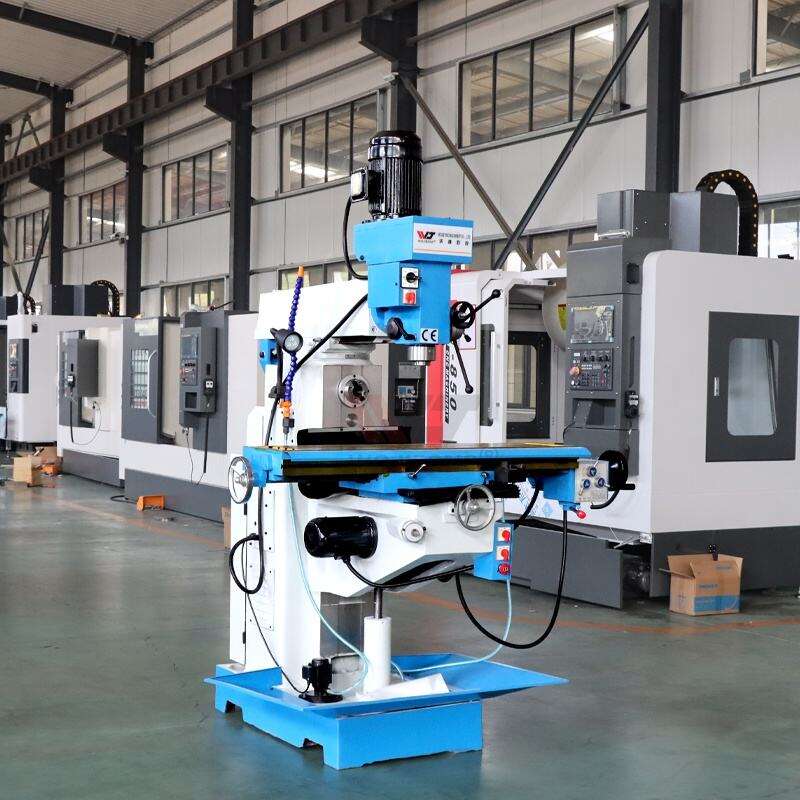

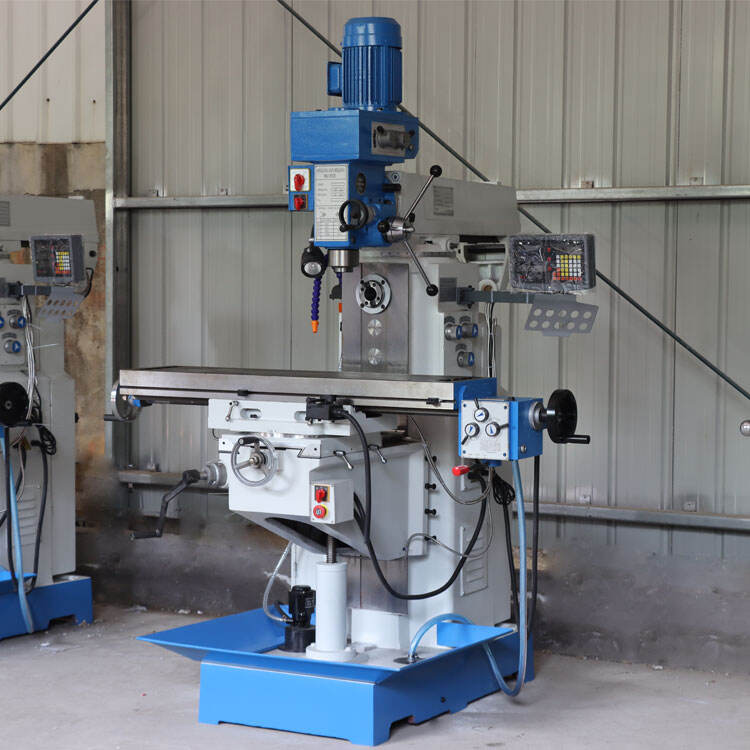

ZX6350C Universal Milling and Drilling Machine Multi-purpose Lathe Mill Drill
The main performance characteristics:

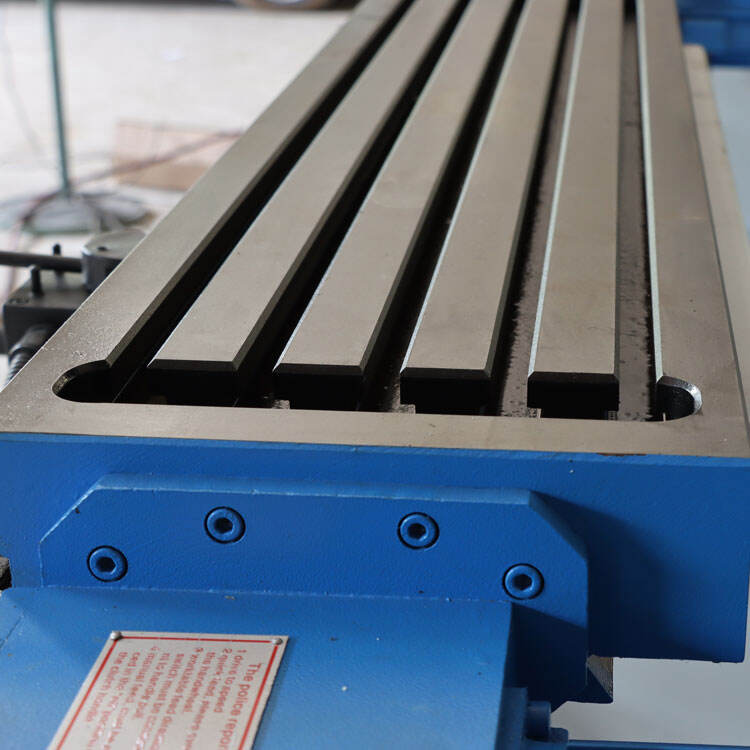

Using rectangular guide machine is Rigid good, Work table and guide rail through the ultra audio spark quenching.

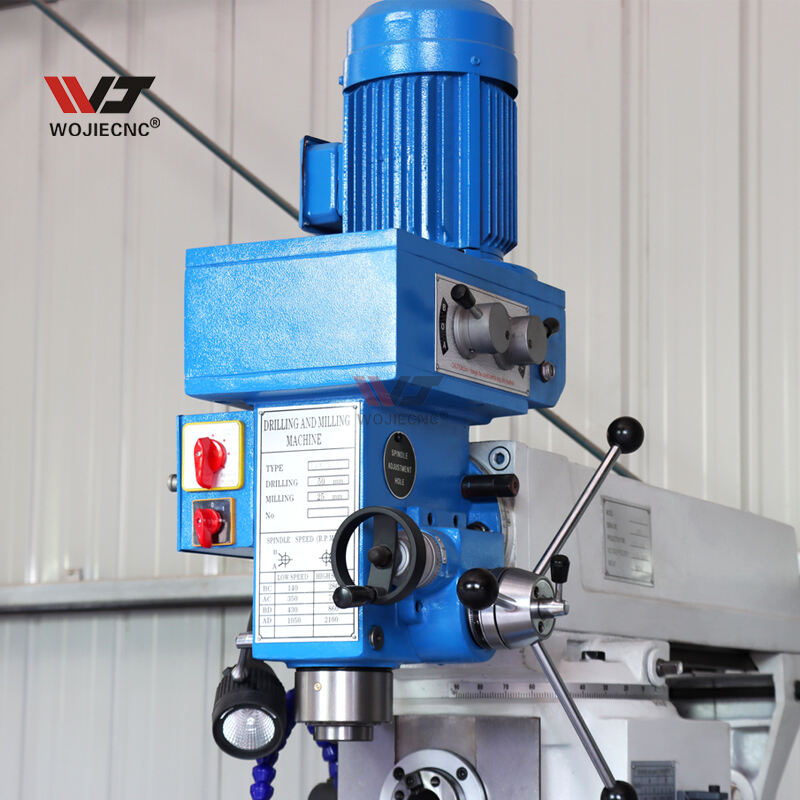

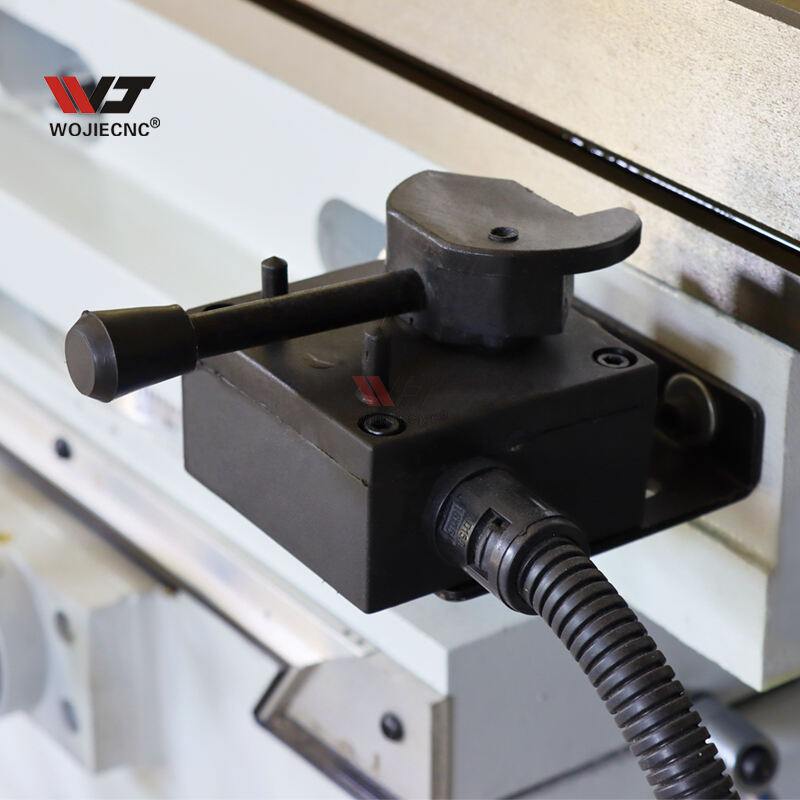

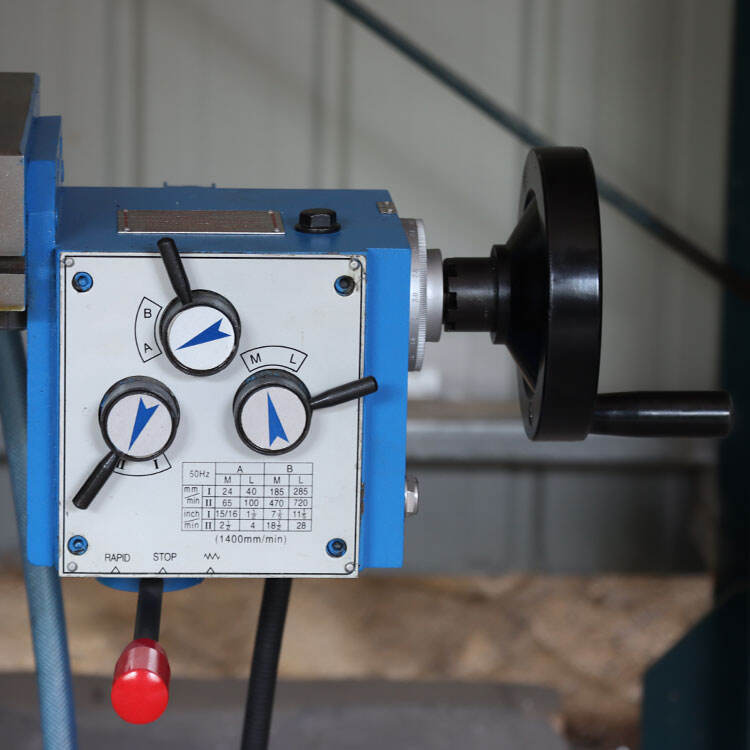

Work bench X. Y all are gear drive automatic feed, Z to the electric lift. Milling head can be rotated 45 degrees, DRO supplied at extra cost.
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | ZX6350C |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $2199 |
| 5 sets $1999 | |
| Table Size | 1200*280 mm |
| Spindle Motor Power(kw) | 2.2 kw |
| Packaging Details: | 2400*2200*2500 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
Universal milling and drilling machine is a kind of general metal cutting machine tool. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Standard Accessories:
1. Milling Chuck
2. Drilling Chuck
3. Draw bar
4. Inner hexagon spanner
5. Work light
6. Reduction sleeve
7. Spindle arbor
8. wrench
9. Machine vice
10.Horizontal milling arbor
OptionalAccessories:

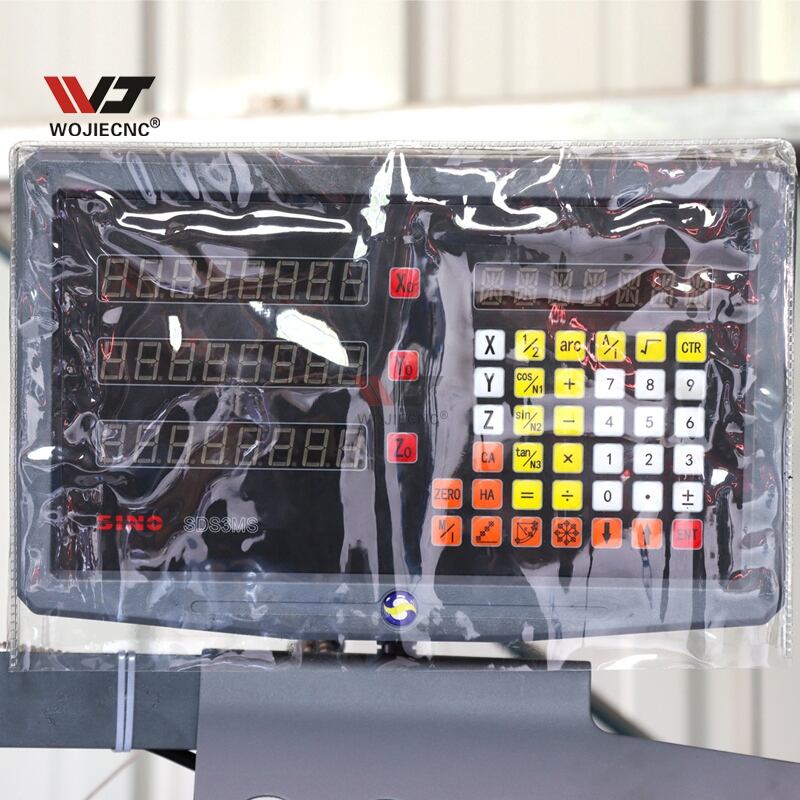

1. DRO
2. Y/Zaxis automatic feed
3. Universal dividing head
4. Rotary work table
5. Clamping kit
Specifications:
| Specifications | Units | ZX6350C |

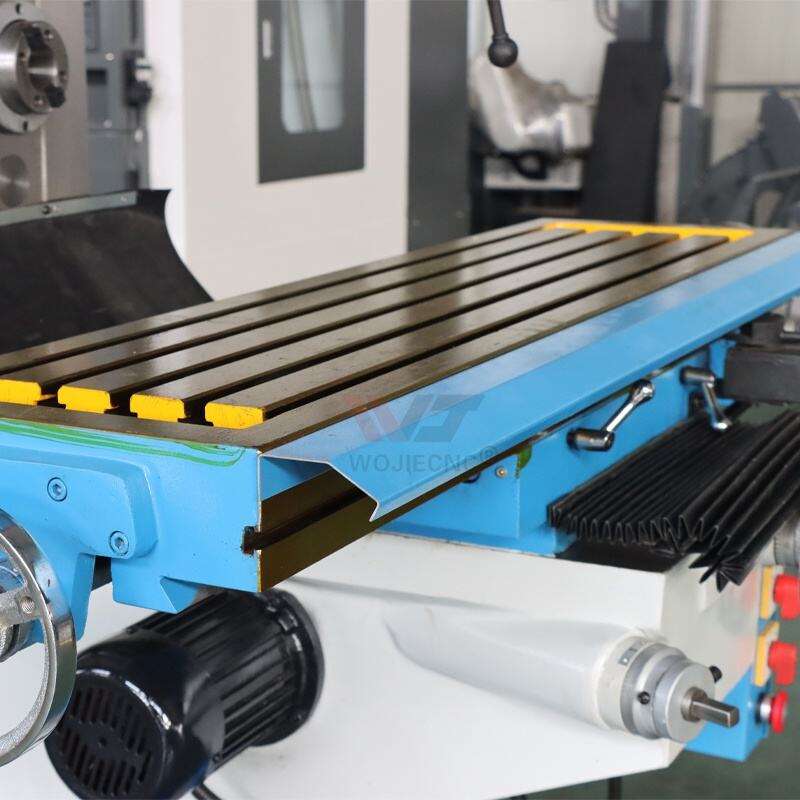

| Table size | mm | 1200x280 |
| Table stroke | mm | 600x230 |
| Distance from spindle nose to table surface | mm | 110-470 |
| Spindle travel | mm | 120 |
| Max. drilling dia. | mm | 50 |
| Max. tapping dia. | mm | M16 |
| Max. vertical milling dia. | mm | 25 |
| Max. end milling width | 100 | |
| Spindle speed range | rpm | 115-1750(V) 38-1310(H) |
| Spindle motor power | KW | 0.85/1.5(V) 2.2(H) |
| Overall dimensions | mm | 1580x1330x2250 |
| Machine weight | Kg | 1350 |

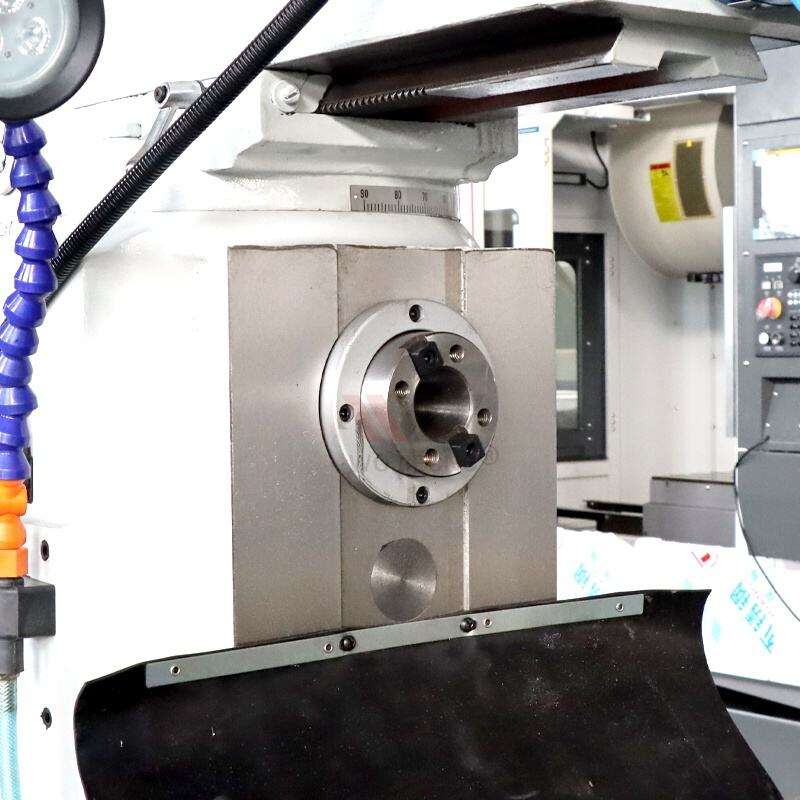

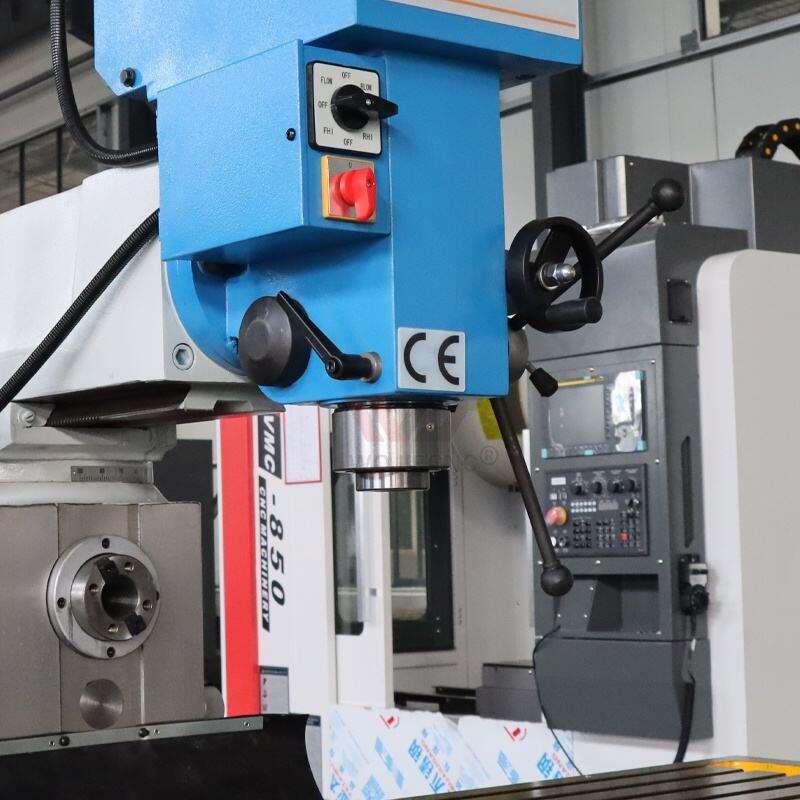

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment, we will start to make production.
when the machine is ready , we will take pictures to you.after we got your balance payment.
we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America.
If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
