Description:

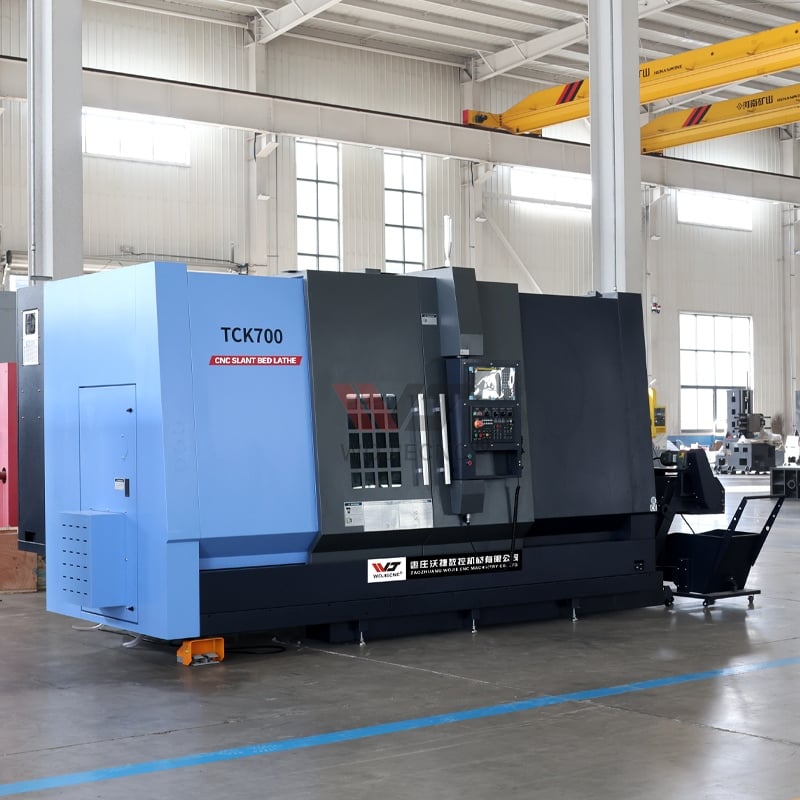

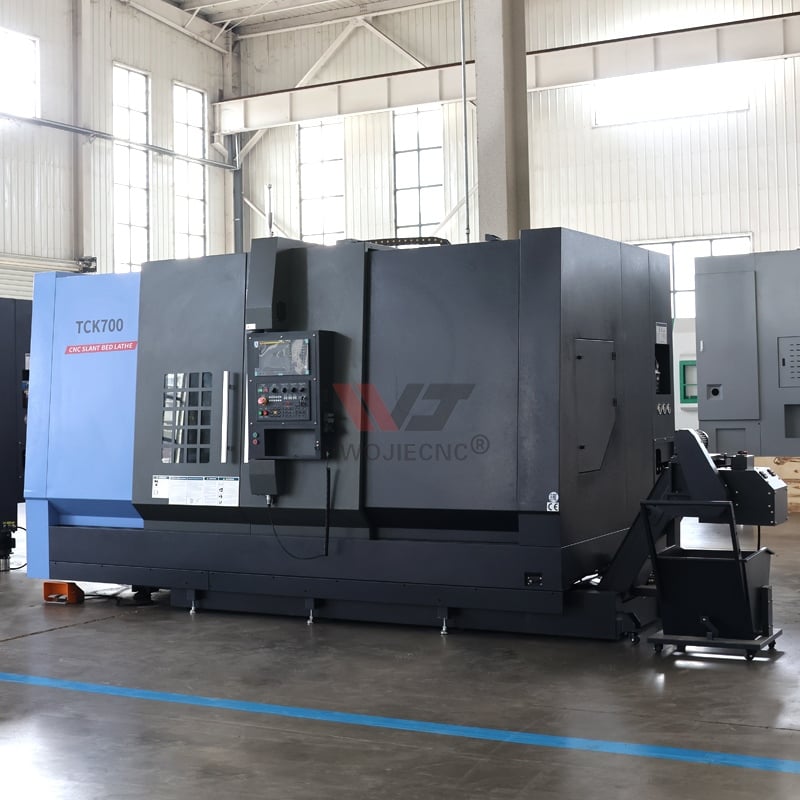

CNC LATHE INTRODUCTION
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision. Slant bed design and linear guideways enqure process speed and accuracy. Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Specifications:
| parameters | UNIT | WJ700*1000 |
| Maximum rotation diameter on the bed | mm | Φ780 |
| Maximum rotation diameter on the saddle | mm | Φ500 |
| Recommended turning diameter | mm | Φ650 |
| Center distance | mm | 1100 |
| Chuck clamping processing length | mm | 900 |
| Spindle head type | mm | A2-8 |
| Spindle through hole diameter | mm | 88 |
| Bar diameter | mm | 75 |
| Spindle speed | r/min | 3000 |
| Main motor rated output | Kw | 15/18.5KW |
| Spindle maximum output torque | NM | 708NM |
| Hydraulic chuck | 寸 | 12 |

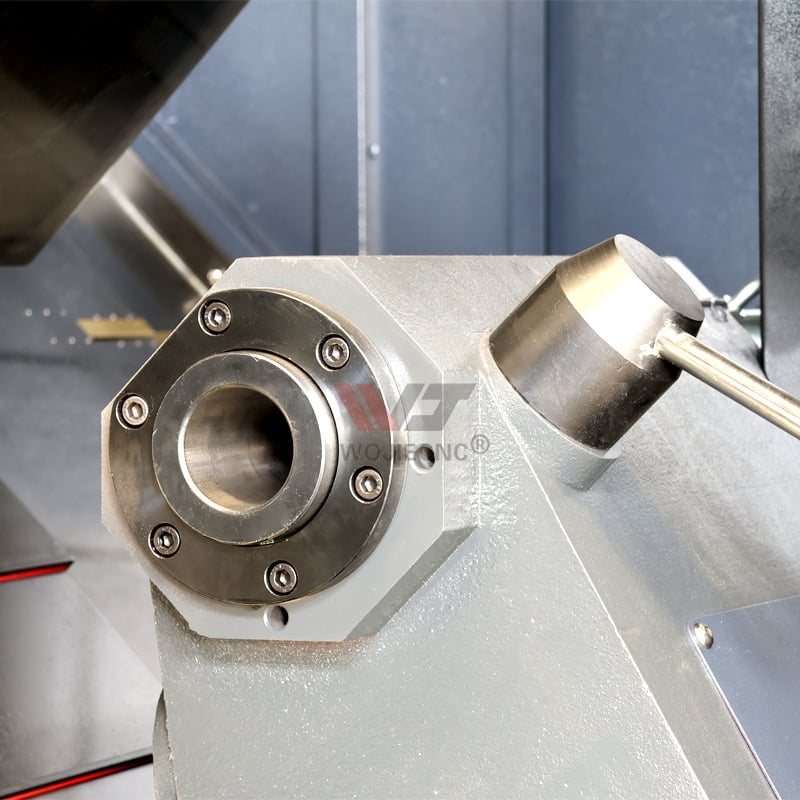

| Tailstock sleeve | mm | MT5/6 |
| Tilt angle | DEG | 45 ° |
| Movement distance X | mm | 350+20 |
| Rapid moving speed X/Z | m/min | 16/24 |
| Servo motor X/Y/Z | KW | 3/3/3(4) |
| turret | Power head | BMT65 12station |
| Adjacent tool change time | S | 0.5 |
| Number of tool positions | / | 12station |
| Tool size (turning/boring) | mm | 32×32/Φ32(40) |
| Spring chuck model | / | ER40 |
| Power turret power | KW | 7.5-11 |
| Y-axis travel | mm | ±75 |
| Dimension | mm | 45000X2300X2550mm |
| N.W/G.W | kg | 7000/7500KG |
Detailed Images:
 |
 |
|

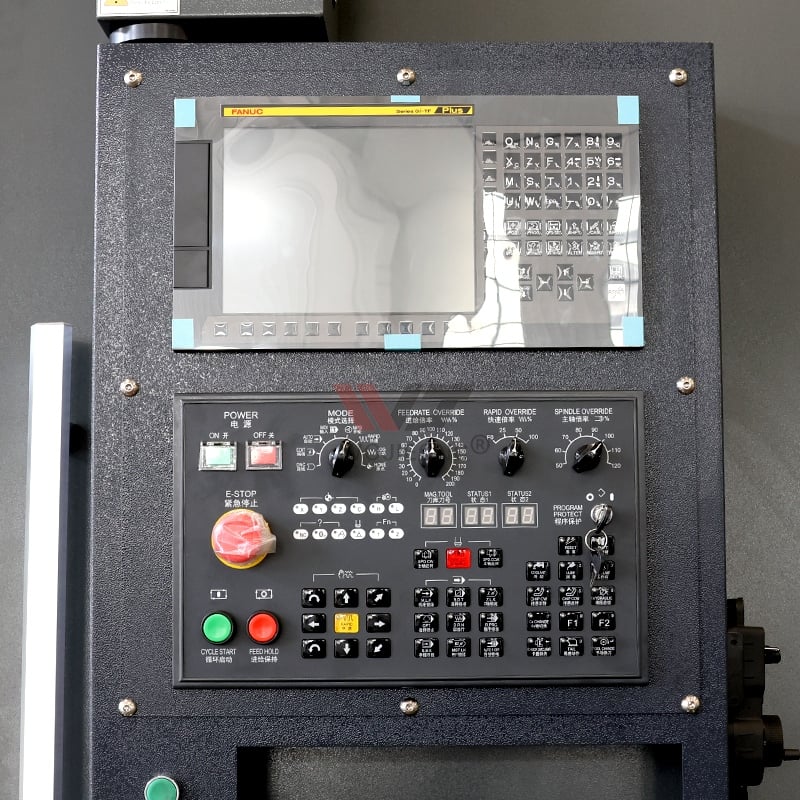

Control System
Standard: GSK
Optional: Fanuc, Siemens,Mitsubishi, etc...
|
Taiwan Hiwin Screw and Guide Rail
X and Z axes adopt high-precision, high-load capacity, high-reliability linear rolling guides, combined with automatic forced lubrication, to reduce the friction resistance of feed motion and improve machine tool accuracy and life; the machine tool feed speed and positioning accuracy are higher
|
 |
 |
|

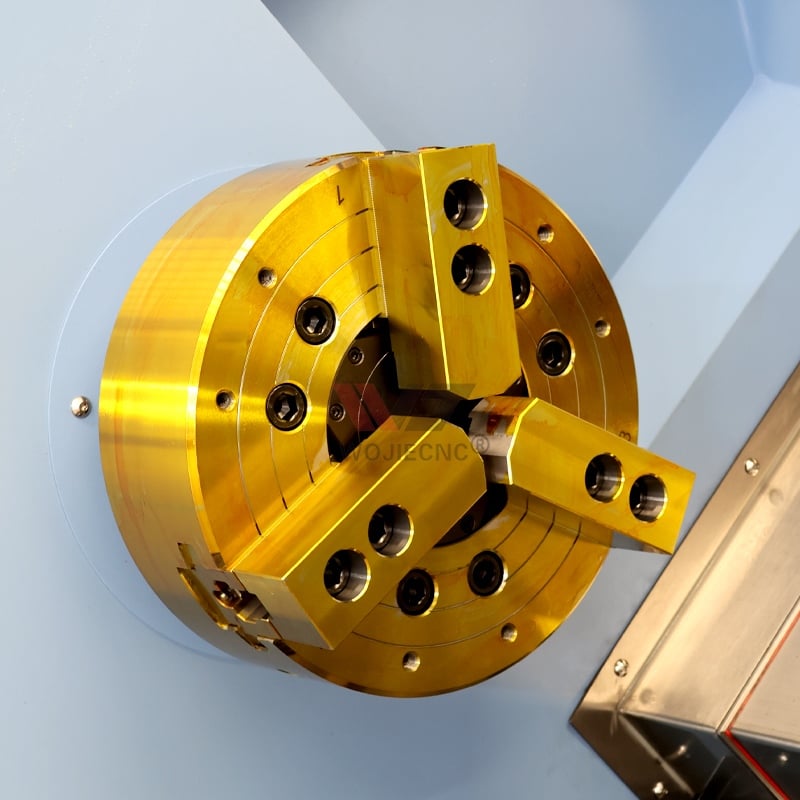

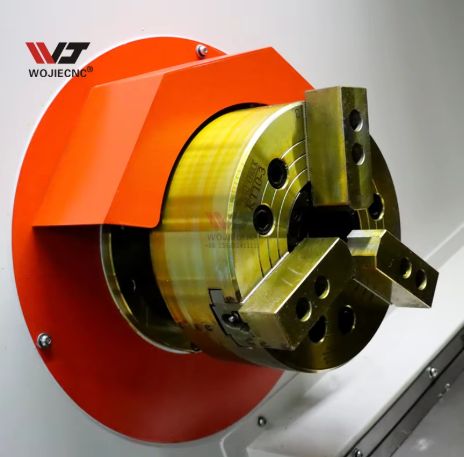

Chuck
Standard 12" hydraulic chuck
Optional 15" hydraulic chuck
|

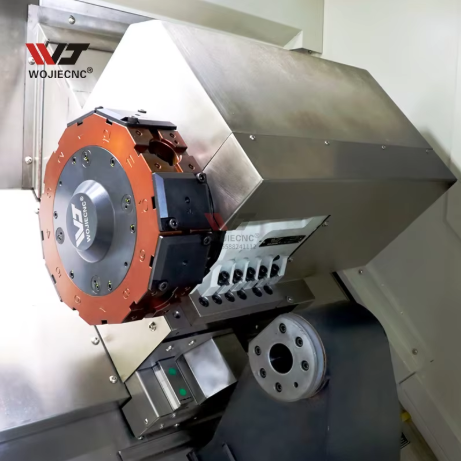

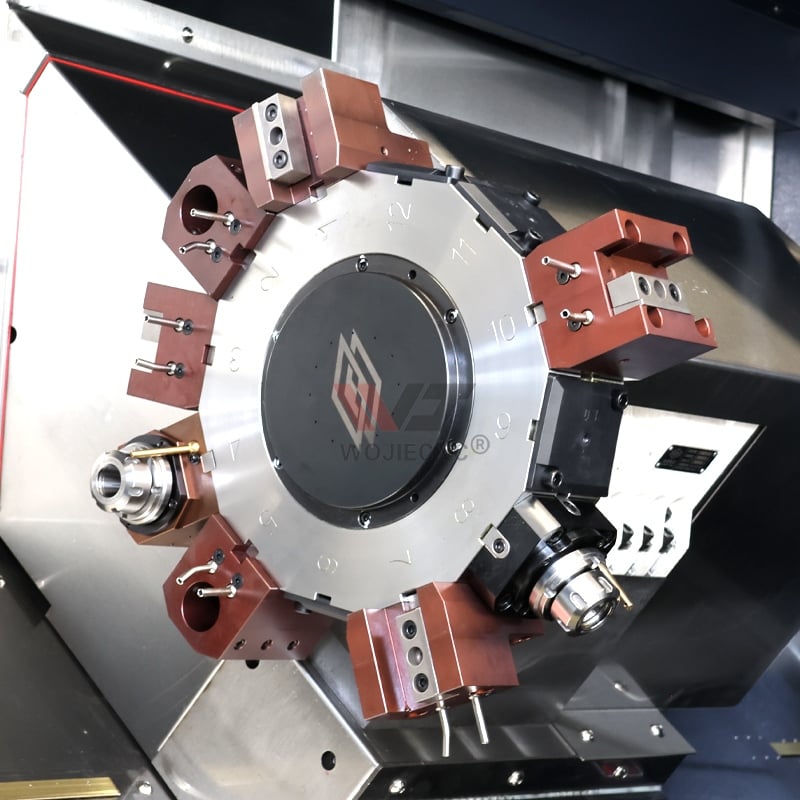

Tool Turret
Standard :12 station Power turret BMT55
Optional :BMT65 Power Turret
|
 |
 |
|

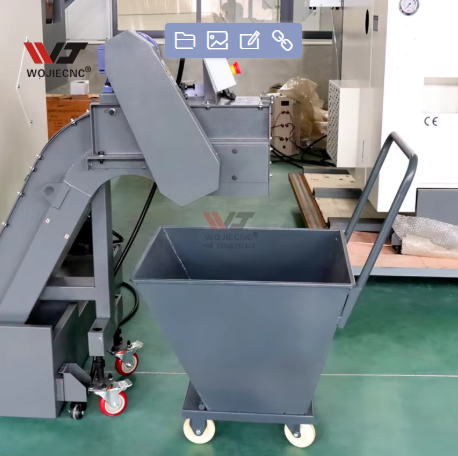

Chain Chip Conveyor (Optional )
The operation of the chip conveyor is programmable and can be pushed in from the front of the machine tool for easy adjustment.
|

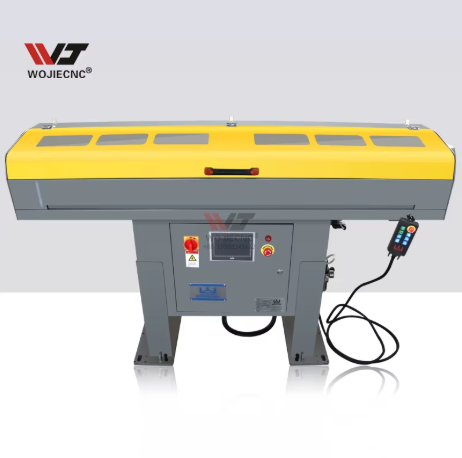

Automatic Feeder (Optional )
Streamlined process and simpleoperation;Automatic feeding, fast feeding,.labor saving, safe and reliable
|
