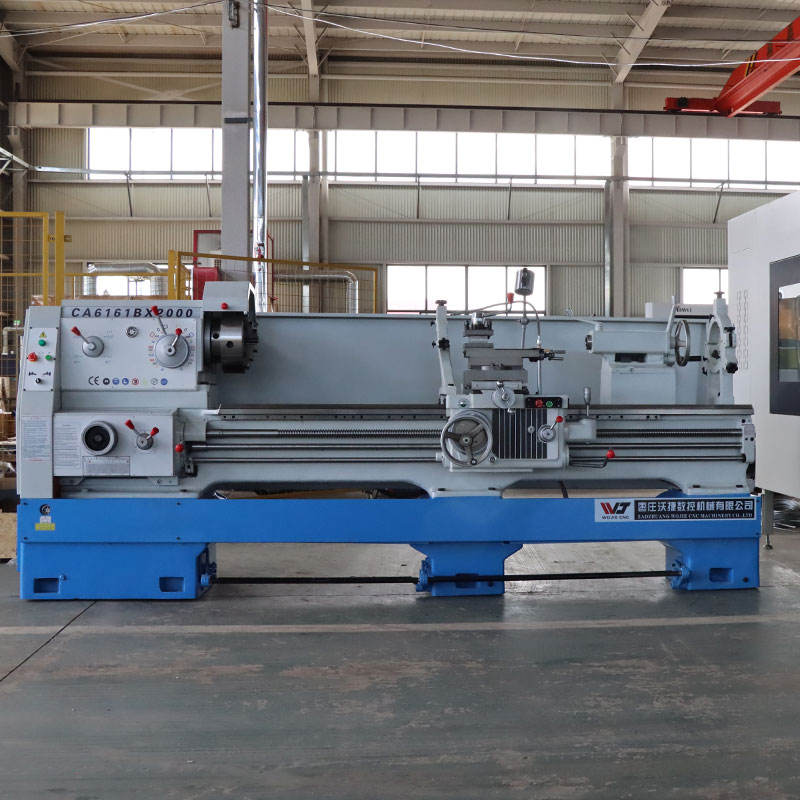

Wojie CA6161 Industrial Horizontal Face Lathe Machine 220V Heavy Duty New & Used Condition 1000mm Distance Centers Home Use

Wojie CA6161 Industrial Horizontal Face Lathe Machine 220V Heavy Duty New & Used Condition 1000mm Distance Centers Home Use

Attributes	Details
Horizontal type
Machining Capacity (Medium Duty)	1000 mm (max. length of workpiece)
Voltage	380V
Machinery Test Report	Provided
Warranty	1 Year
Spindle Speed (r.p.m)	16 - 1400 r.p.m
Spindle Motor Power (kw)	7.5 kw
Place of Origin	Shandong, China
Weight (kg)	2400 KG
Width of Bed (mm)	400 mm

Description
Specifications
Detailed Images
Company Introduction

Description:

Specifications:

Type	CA6140	CA6150	CA6161	CA6166
Max. swing over bed	400mm	500mm	610mm	660mm
Max. swing over carriage	210mm	308mm	370mm	400mm
Max. swing in gap	630mm	720mm	820mm	880mm
Max. effective length in gap	-	-	-	-
Max. length of workpiece	750/1000/1500/2000/2200/3000/4000mm	-	-	-
Width of bed	400mm	-	-	-
Section of turning tool	25×25mm	-	-	-
Main spindle motor	7.5kw(10HP)	-	-	-
Spindle
Spindle speed	16-1600r.p.m(14steps)	-	-	-
Spindle bore	52mm(80mm)105mm	-	-	-
Spindle taper	No.6(MT6)8(1:20)11×120	-	-	-
Feed
NO. of feed	64 kinds(4 for each)	-	-	-
Range of metric threads	1-192mm(44 kinds)	-	-	-
Range of inch threads	19-24(2 kinds)	-	-	-
Range of module threads	0.25-48(module 39 kinds)	-	-	-
Range of diametral pitch threads	196DP(37 kinds)	-	-	-
Max. tailstock spindle travel	150mm	-	-	-
Tailstock spindle diameter	75mm	-	-	-
Taper of tailstock spindle centre hole	196DP(37 kinds)	-	-	-
Packing dimensions (LWH)
Overall dimensions for 750mm	2400×1140×1700mm	2500×1140×1700mm	2600×1140×1700mm	2600×1140×1700mm
Overall dimensions for 1000mm	2700×1140×1700mm	2800×1140×1700mm	2900×1140×1700mm	2900×1140×1700mm
Overall dimensions for 1500mm	3200×1140×1700mm	3300×1140×1700mm	3400×1140×1700mm	3400×1140×1700mm
Overall dimensions for 2000mm	3700×1140×1700mm	3800×1140×1700mm	3900×1140×1700mm	3900×1140×1700mm
Overall dimensions for 2200mm	3900×1140×1700mm	4000×1140×1700mm	4100×1140×1700mm	4100×1140×1700mm
Overall dimensions for 3000mm	4700×1140×1700mm	4800×1140×1700mm	4900×1140×1700mm	4900×1140×1700mm
Overall dimensions for 4000mm	5600×1140×1700mm	5700×1140×1700mm	5800×1140×1700mm	5800×1140×1700mm
Weight (kg)
Overall dimensions for 750mm	2100	2170	2300	2400
Overall dimensions for 1000mm	2180	2250	2400	2500
Overall dimensions for 1500mm	2380	2450	2570	2600
Overall dimensions for 2000mm	2680	2750	2800	2900
Overall dimensions for 2200mm	2800	2850	3000	3100
Overall dimensions for 3000mm	3200	3300	3500	3600
Overall dimensions for 4000mm	3500	3800	3800	4000

Standard Accessories

Living Center 3-jaw chuck

Dead Center Toolpost protection

Steady rest Chuck protection

Follow rest Leading screw guard

Foot plate Cooling system

Face plate Lubrication system

Back guard Work lamp

Tool box

Optional Accessories

Taper attachment 4 jaw chuck

Digital Readout Quick Change Toolpost

As shown in below

Detailed Images:


Quenched guide rail 400mm wide	4-station electric turret

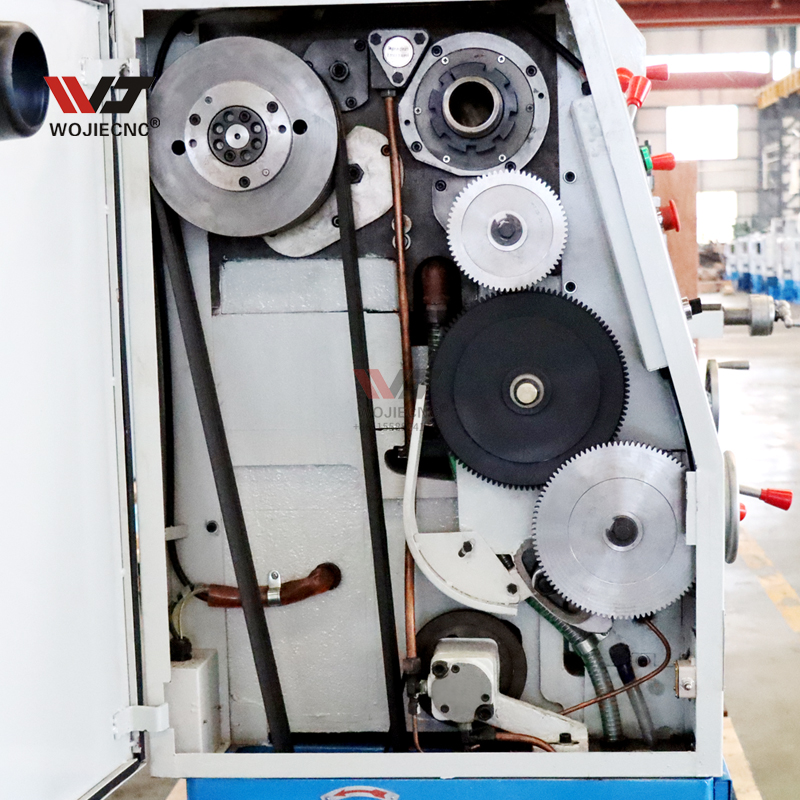

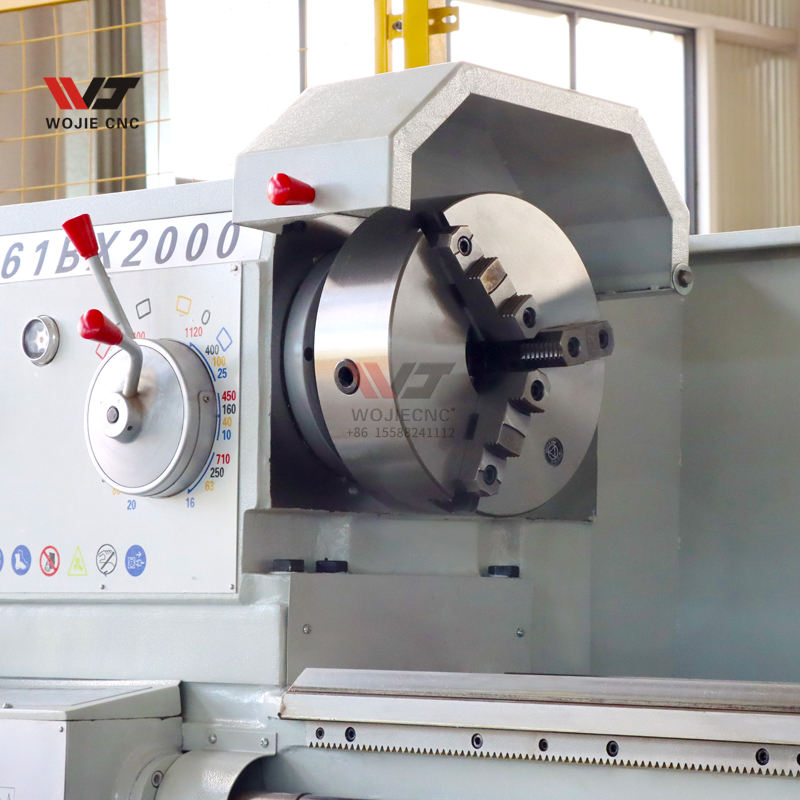

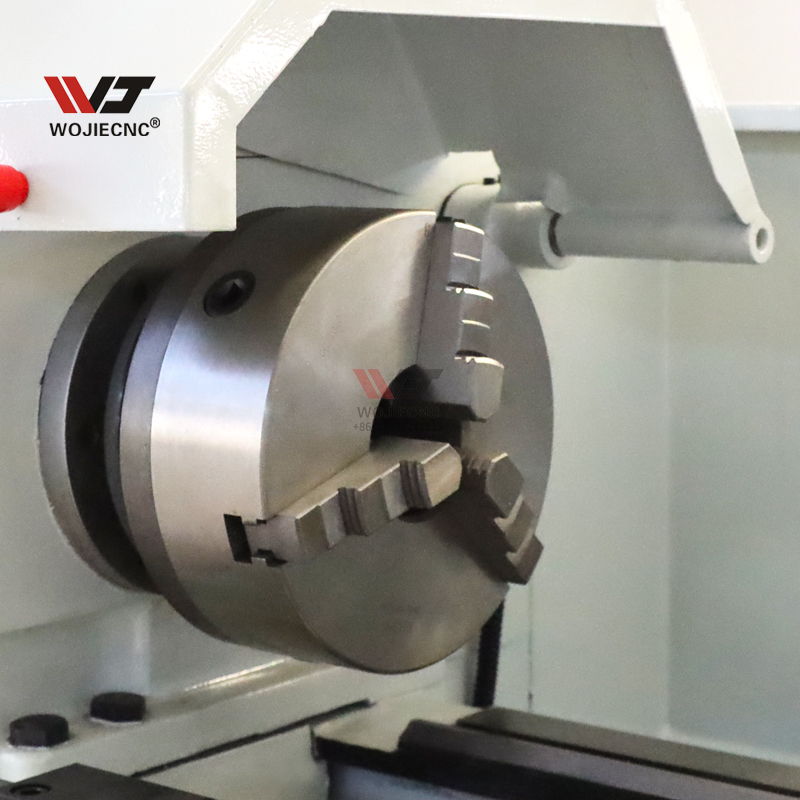

Gear Box	3-jaw manual chuck and chuck protection

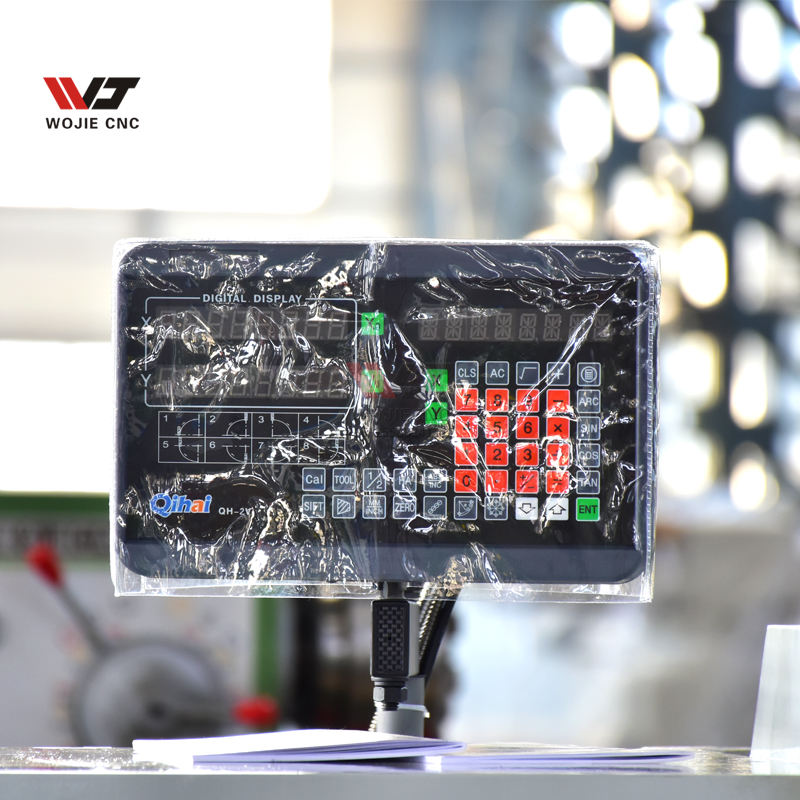

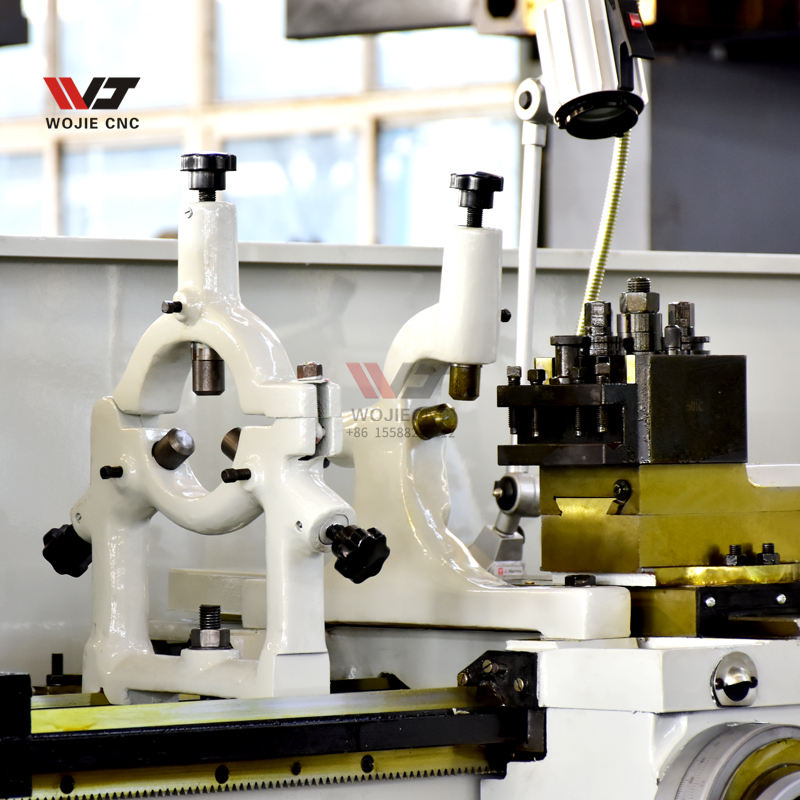

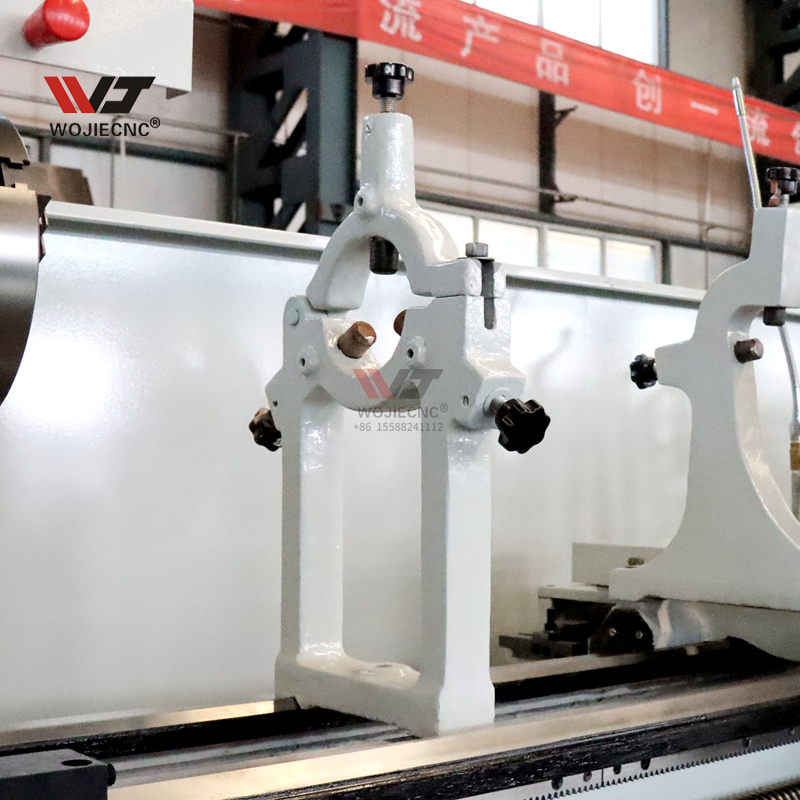

Steady Rest and Follow rest (1500mm standard)	2 axis DRO (Optional)

Sales And Service Network


Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
