Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |

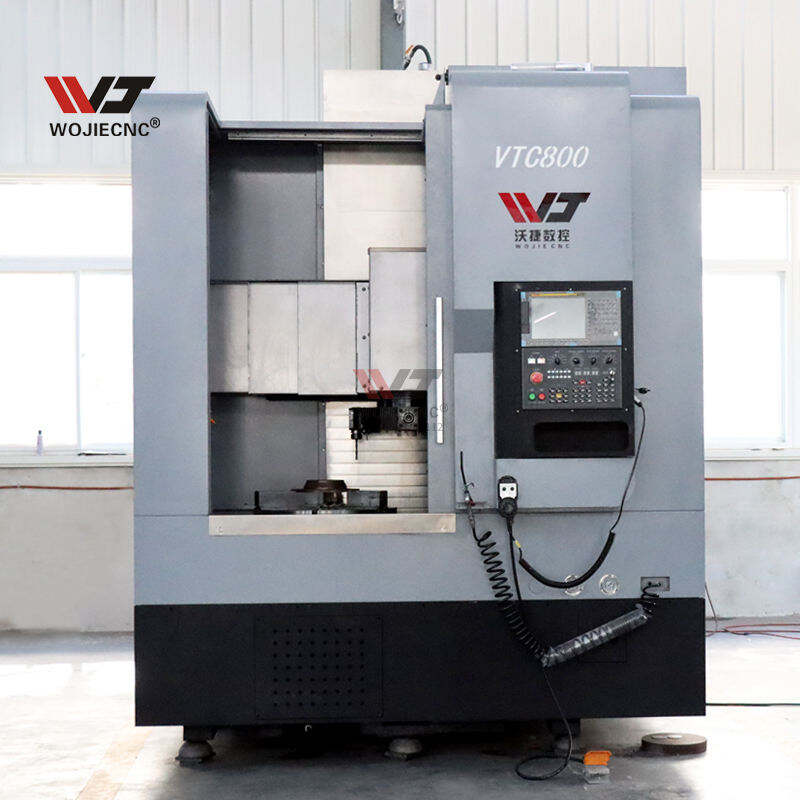

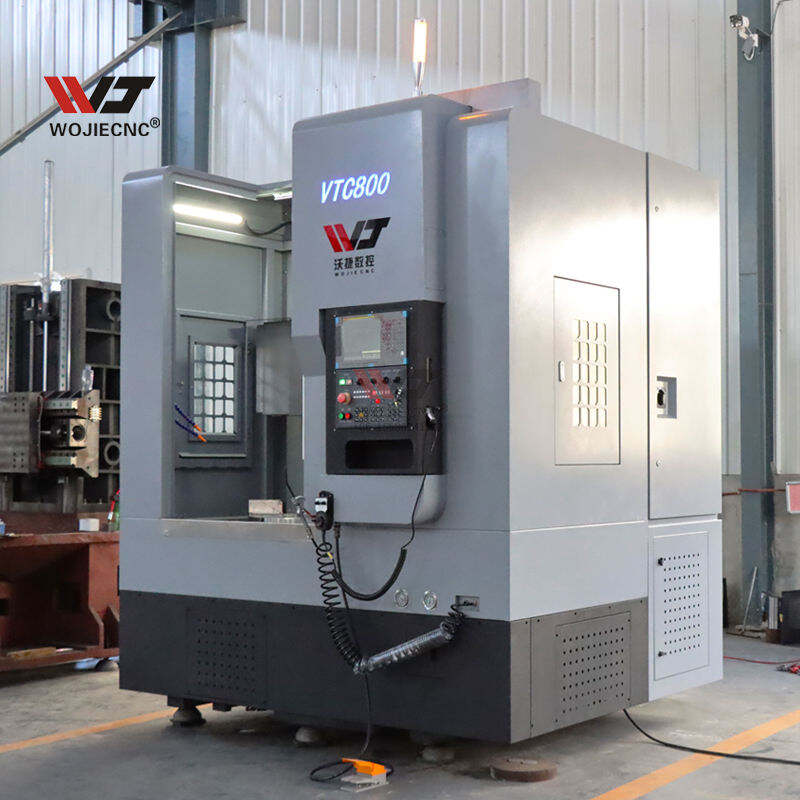

| Model Number: | VTC800 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $42749 |
| 5 sets $41749 | |
| Max. Swing Diameter (mm) | 800 mm |
| Spindle Motor Power(kw) | 15 kw |
| Packaging Details: | 3300*3100*3000 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
This machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.
Specifications:
|
Item |
Parameters |
|
Processing range |
|
|
Workpiece maximum turning diameter |
800mm |
|
turning diameter |
750mm |
|
Tool post vertical moving distance |
650mm |
|
Tool post horizontal moving distance |
550mm |
|
Spindle unit |
|
|
Spindle model |
A2-11 |
|
Spindle speed range |
50-800rpm |
|
Spindle motor power |
15kW |
|
Feed |
|
|
X-axis rapid feed speed |
18m/min |
|
Z axis rapid feed speed |
15m/min |
|
Cutting feed rate |
0.1-5000mm/min |
|
X-axis motor power, torque |
2.4 kW /15NM |
|
Z-axis motor power, torque |
2.4 kW /15NM Brake |
|
Turret and Chuck |
|
|

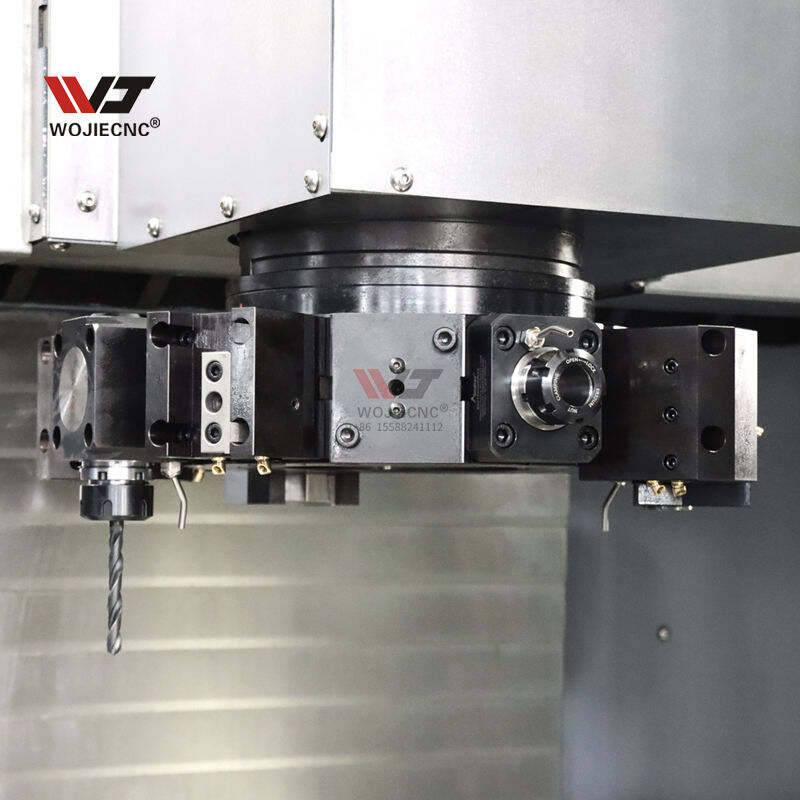

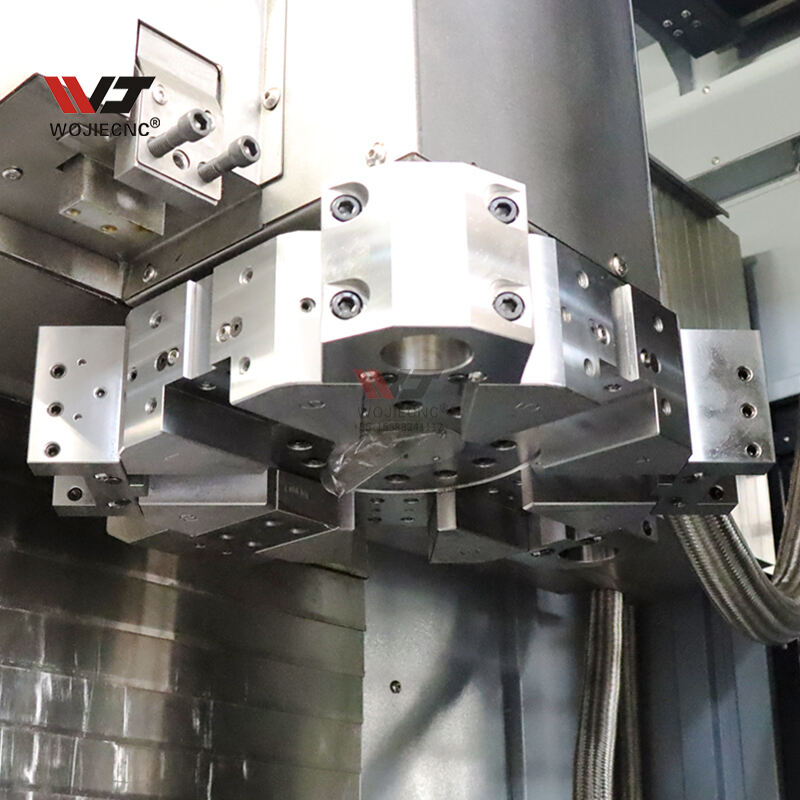

Turret form |
8 station hydraulic turret |
|
Hydraulic Chuck Diameter |
630mm |
|
Machine tool precision |
|
|
Machine Tool Positioning Accuracy |
±0.008mm |
|
Machine Tool Repeatability |
±0.005mm |
|
Machine tool dimensions and weight |
|
|
Weight(kg) |
≈7600kg |
|
Size(mm) |
3200×3000*2950mm |
Detailed Images:
 |
 |

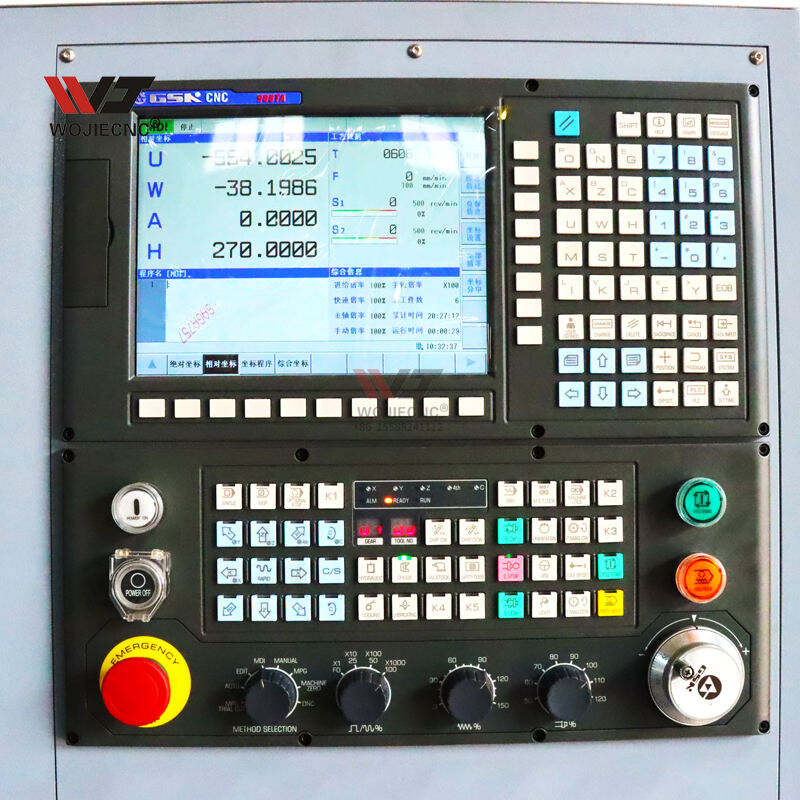

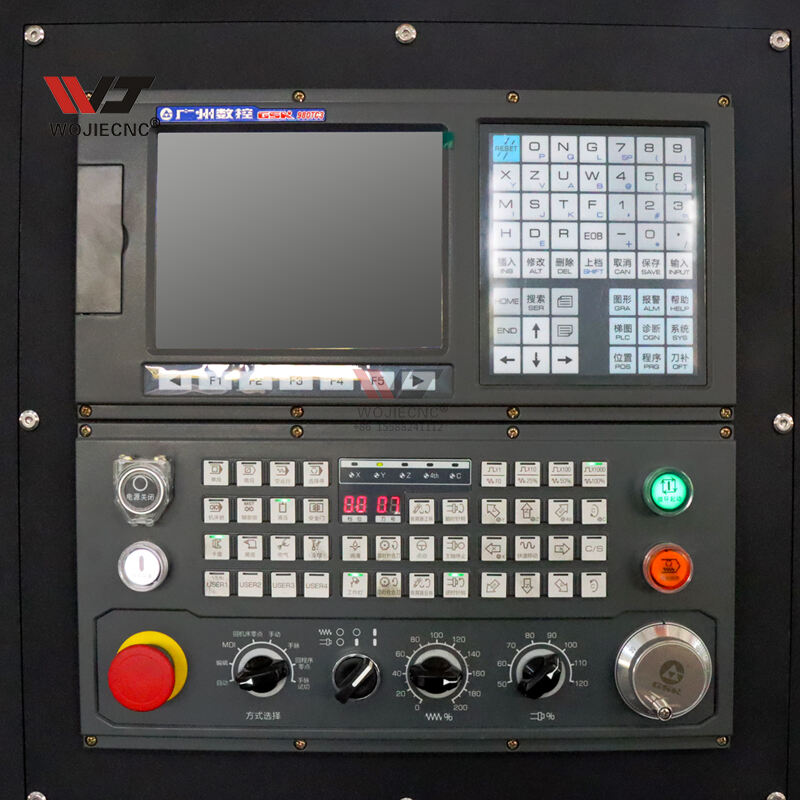

| Control System Standard: GSK controller |

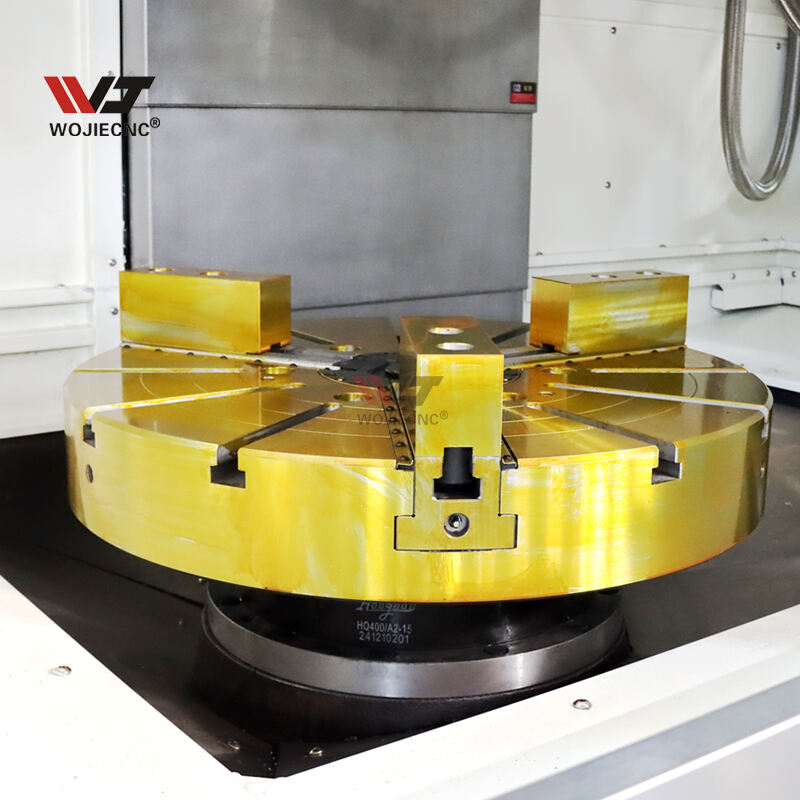

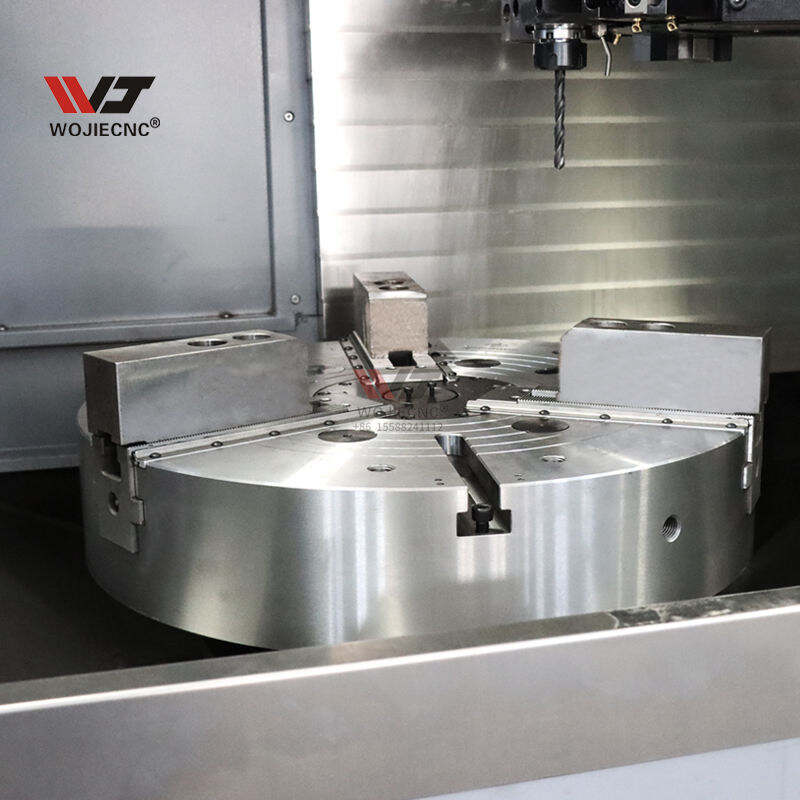

Chuck Type Taiwan hydraulic chuck |
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
