X6036 High-performance Milling Machine Automatic Lift X6036
|
Item |
Specification |
|
Type |
Horizontal |
|
Machining Capacity |
Medium Duty |
|
Table Travel (X) (mm) |
1000 |
|
Table Travel (Y) (mm) |
320 |
|
Table Travel (Z) (mm) |
450 |
|
Spindle Taper |
ISO50 |
|
Range of Spindle Speed (r.p.m) |
60 - 1800 r.p.m |
|
Weight (kg) |
2400 |
|
Warranty |
1 Year |
|
Max. Table Load (kg) |
300 |
|
Place of Origin |
Shandong, China |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
Product main technical Specifications:
|
Specifications |
Units |
X6036 |
|
Table size |
mm |
1500×360 |
|
Table travel (X/Y/Z) |
mm |
1000/320/450 |
|
T slot (number-width-pitch) |
mm |
3/18/80 |
|
Spindle taper |
- |
ISO50 7:24ISO40 7:24 |
|
Spindle speed range |
rpm |
60-1800 (12 steps) |
|
Distance between spindle axis and table surface |
mm |
0-450 |
|
Main motor power |
kW |
4 |
|
Weight |
kg |
2400 |
|
Overall dimension |
mm |
2220×1790×1860 |
Standard Accessories
1. Drill chuck
2. mill chuck
3. Inner hexagon spanner
4. Work light
5. Reduction sleeve
6. Draw bar
7. Spindle arbor
8. Wrench
Optional Accessories
1. DRO on X,Y,Z--AXIS
2. Clamping kit
3. Universal dividing head
4. Rotary work table
Detailed Images:
 |
 |
|

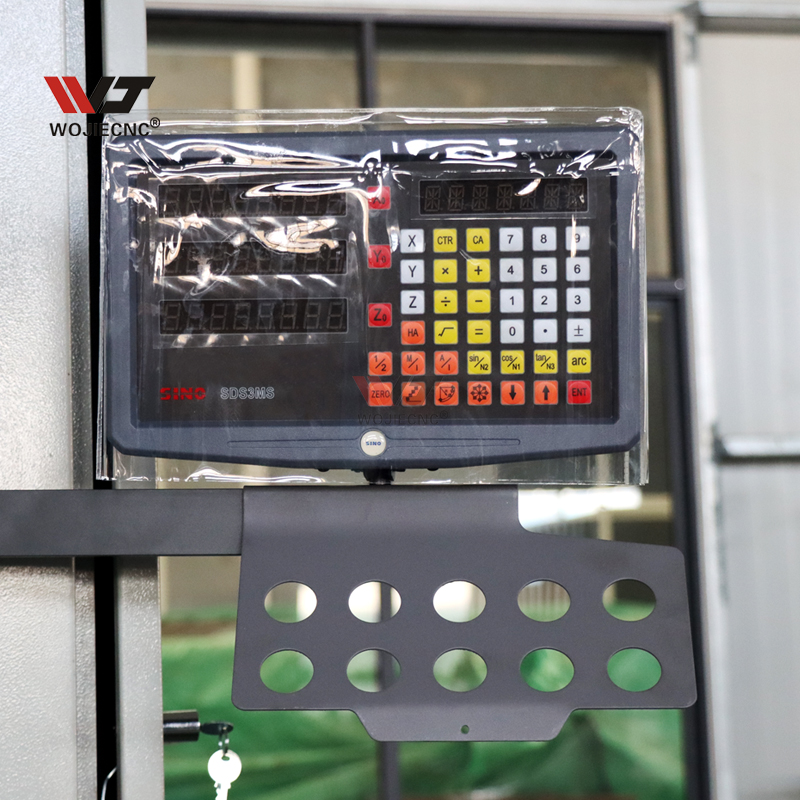

3 AXIS DRO
3 axis digital readout is optional, need extra cost.
|

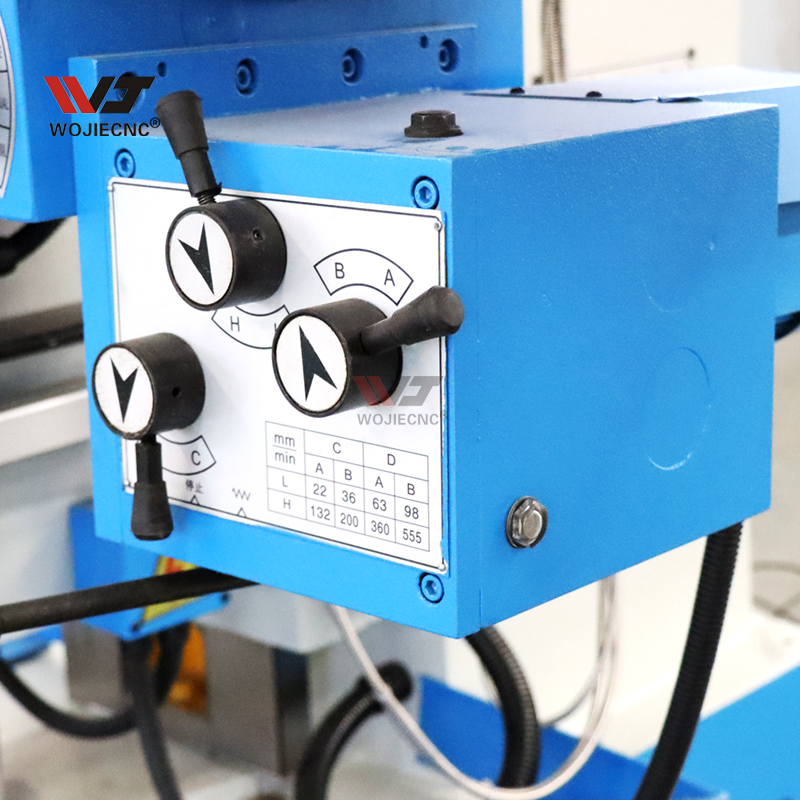

X/Y/Z AUTO FEED
X/Y axis auto feed, Z axis electric lifting, improve processing time.
|
 |
 |
|

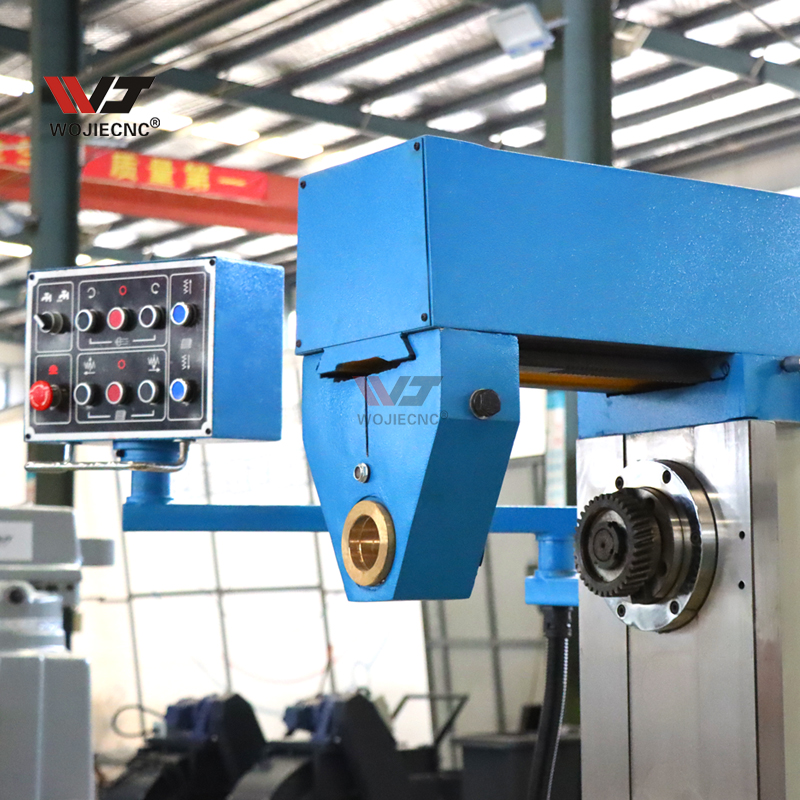

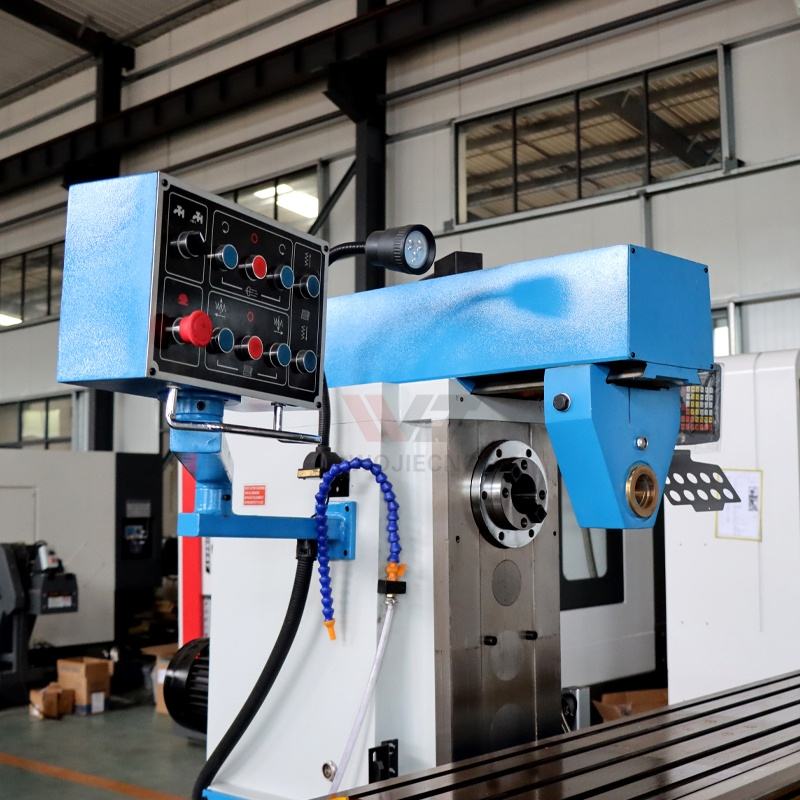

HORIZONTAL MILLING
Spindle Taper ISO50, 58-1800rpm Spindle Speed.
|

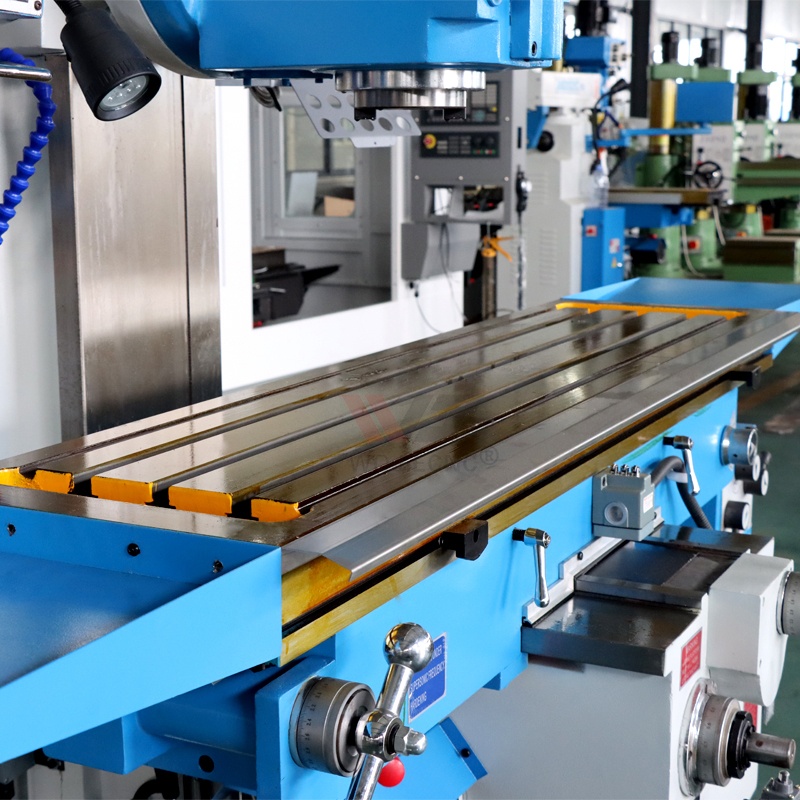

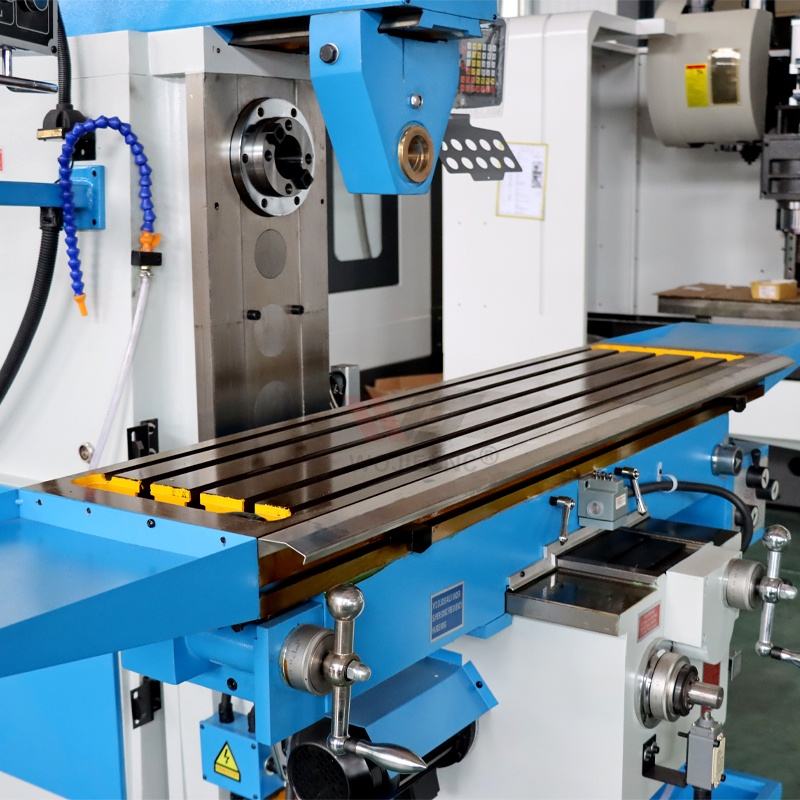

WORKTABLE
Ultra-audio quenching, precision grinding and scraping guide.
|
 |
 |
|

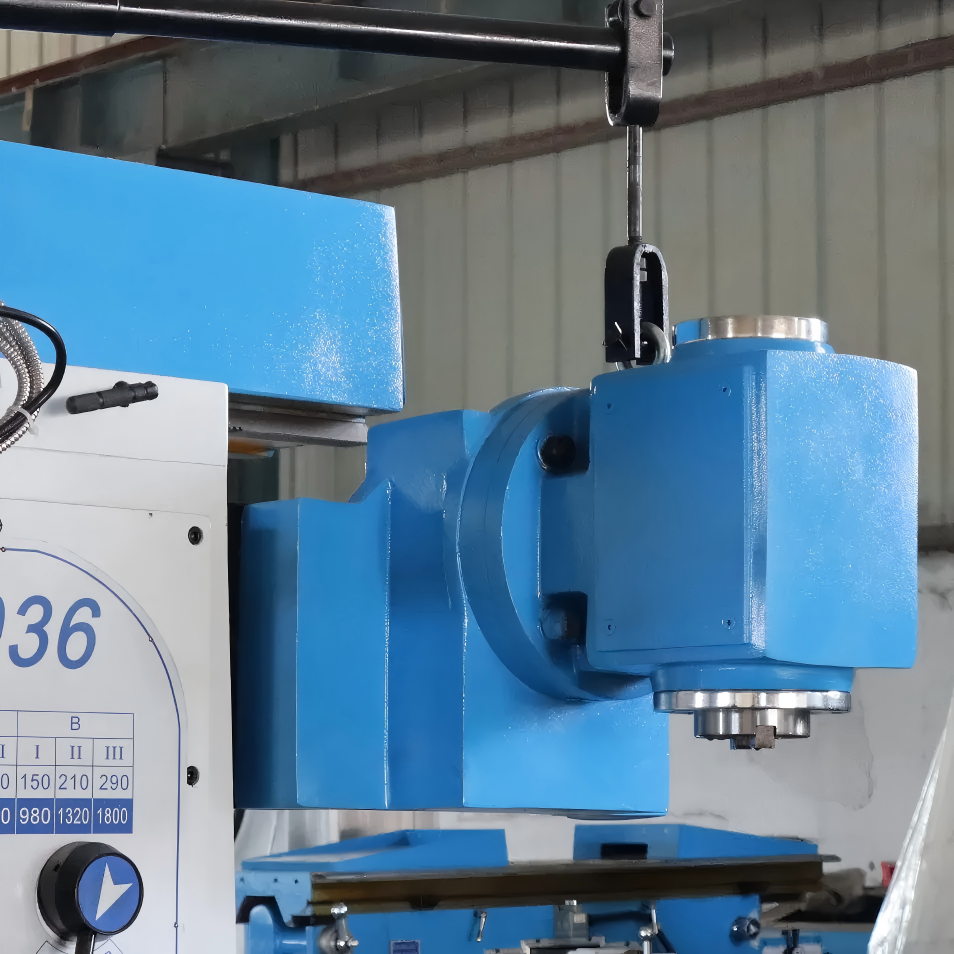

HORIZONTAL MILLING HEAD
Spindle taper 7:24 ISO50, Spindle speed60-1800,12 steps.
|
ELECTRICAL BOX
DELIXI and SCHNEIDER, CE as standard equipment.
|
