Description:
Specifications:
|
Worktable size length(mm)×width(mm) |
800×260 |
|
T-slot quantity-width(mm) |
3-14*75 |
|
The max loading weight(kg) |
200 |
|
X axis stroke(mm) |
500 |
|
Y axis stroke(mm) |
300 |
|
Z axis stroke(mm) |
400 |
|
The distance from end face to worktable surface (mm) |
100-500 |
|
Teh distance from spindle ctnter to column surface(mm) |
315 |
|
Spindle tapper |
BT40 |
|
Spindle speed (Rpm) |
8000 |
|
Main motor power (kW) |
3.7KW (servo） |
|
Quickly moving speed(m/min.) |
15/15/15 |
|
Cutting feed speed（mm/min） |
1-5000 |
|
Screw specification（diameter mm/screw pitch mm） |
32/6 |
|
Accuracy Position accuracy (mm) |
0.005 |
|
Accuracy Repeat position accuracy(mm) |
0.003 |
|
Machine size(mm)(L*W*H) |
2200*1700*2250mm |
|
Machine weight(kg) |
2000 |
Standard Accessories: System: GSK 980
12T hat type tool magazine
3 axis linear rail
Spindle servo motor 3.7kw
Spindle taper BT40
Spindle speed 8000 rpm
3 color warning light
LED work light
Hand wheel
Electrical cabinet heat exchanger Leveling horn
Full cover
Optional Accessories: Auto chip conveyor and chip bucket
Renishaw automatic tool setter TS27R
China Tool setting system CT20D
Renishaw workpiece measure system OMP40
China workpiece measure system Cp40
Spindle oil cooler
CTS-(Cooling water through the spindle)
Air condition for electrical cabinet
Oil and water separation(oil skimmer)
Angle head
Detailed Images:
 |
|
|

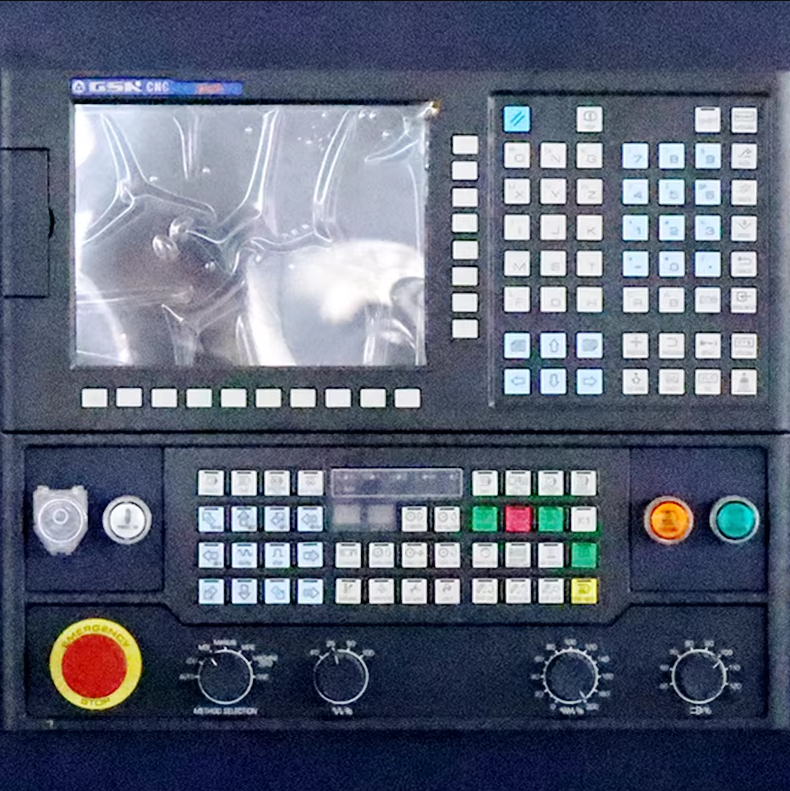

Control system
GSK / Siemens / Fanuc / Syntec / Mitsubishi System brand is configured according to customer requirements The overall servo motor brand of the machine is the same as the system
|
Spindle

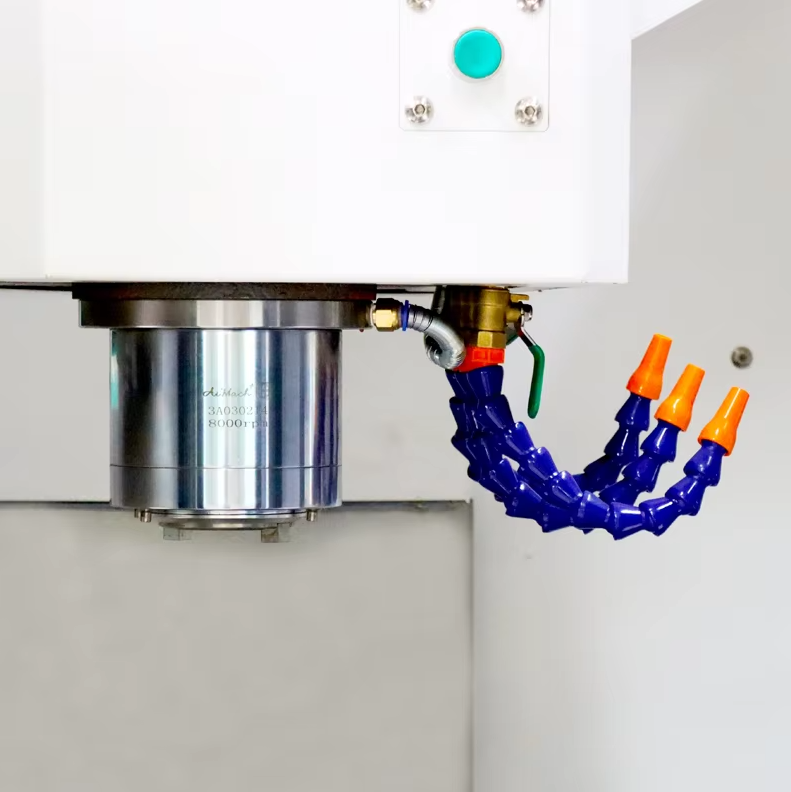

The spindles are Taiwanese brands such as ROYAL, KENTURN, OKADA, VOLIS, AIMACH, etc. Adopt high-speed, high-precision, high-rigidity spindle group, strong axial and radial load capacity
Standard speed 8000rpm
Optional: 10000/12000pm
The spindle is standardly equipped with spindle air blowing and spindle ring spray
|
|
|
 |
|

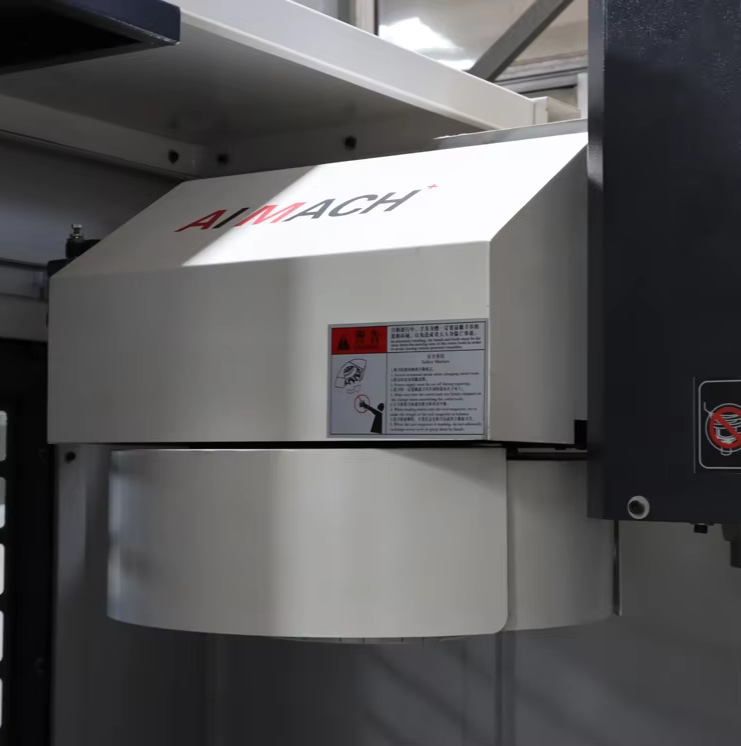

Tool Magazine
Taiwan brand-OKADA brand
Standard Configuration: 12T Hat type Optional Configuration: 16T Hat type
Product Features: Lightweight, aluminum alloy tool disc, reduced load. Adopts Geneva wheel segmentation mechanism, smooth operation, high segmentation accuracy. The tool disc slides using linear bearings, low friction, long life. Spring clamp arm, clamps the tool, easy to clamp, simple maintenance. The entire series of electronic switches use imported originals, quality assurance.
|
Linear guide rails and ball screws
Taiwan brand-HIWIN/ PMI

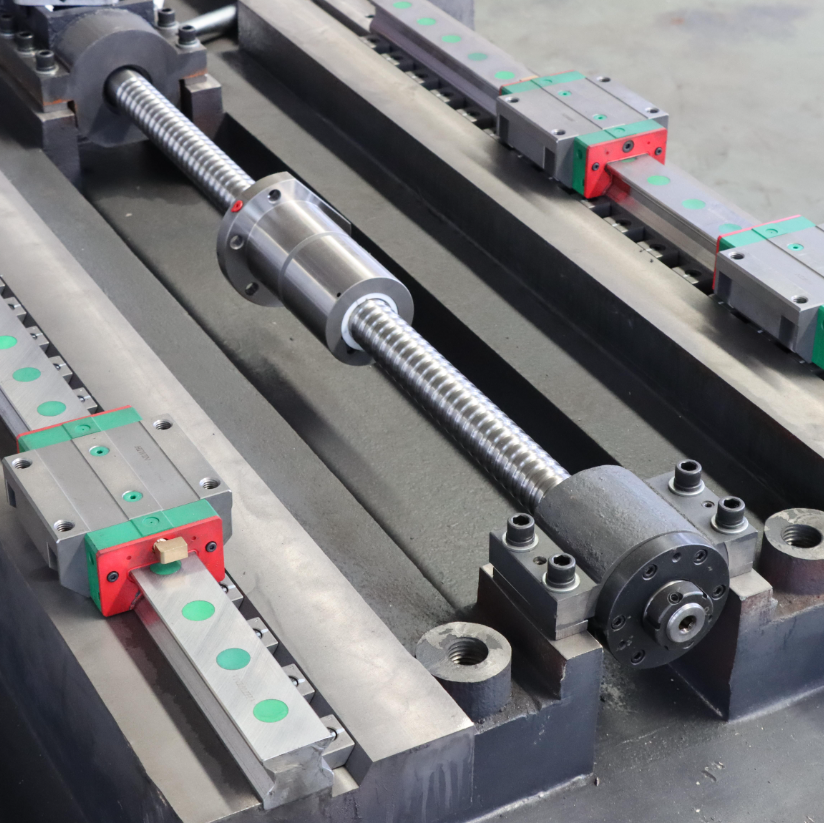

The three-axis X, Y, and Z guide rails use Taiwan linear guide rails, which have the characteristics of high speed, high rigidity, low friction, low noise, low temperature change, etc., and have automatic forced lubrication to improve the accuracy and service life of the machine; X, Y, and Z three-way feeding uses high-precision, high-strength, inner ring double nut pre-tightening long-stroke ball screws, with fast feeding speed; the drive motor is directly connected to the screw through a flexible coupling.
|
 |
|
|
Worktable
Worktable size: 800*260mm
The workbench has been high-frequency quenched for better rigidity
By adding the 4th axis rotary tables, it is possible to process a variety of parts and quickly switch between different processing tasks, increasing production flexibility.
|
Lubrication system

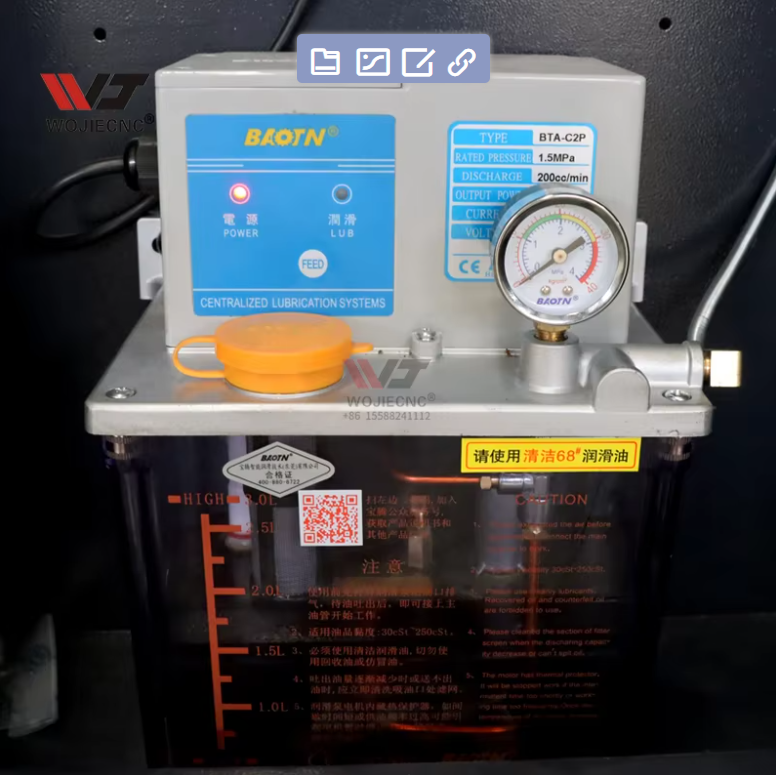

The centralized lubrication system is adopted, which can be timed, quantitative, accurate and efficient, convenient and reliable to use, and is conducive to improving the service life of the machine tool.
|
Optional Configurations:
