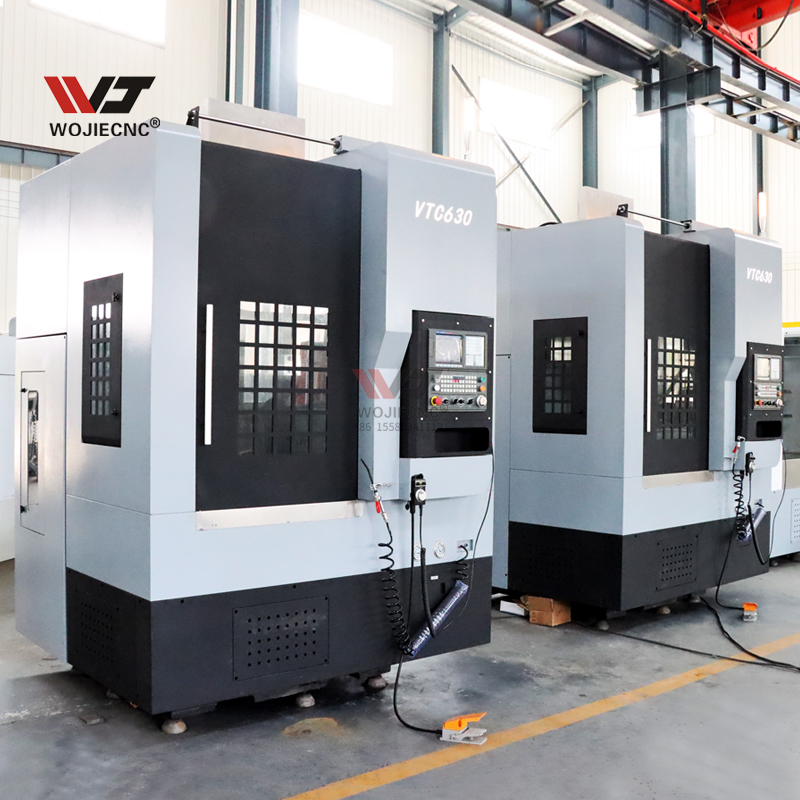

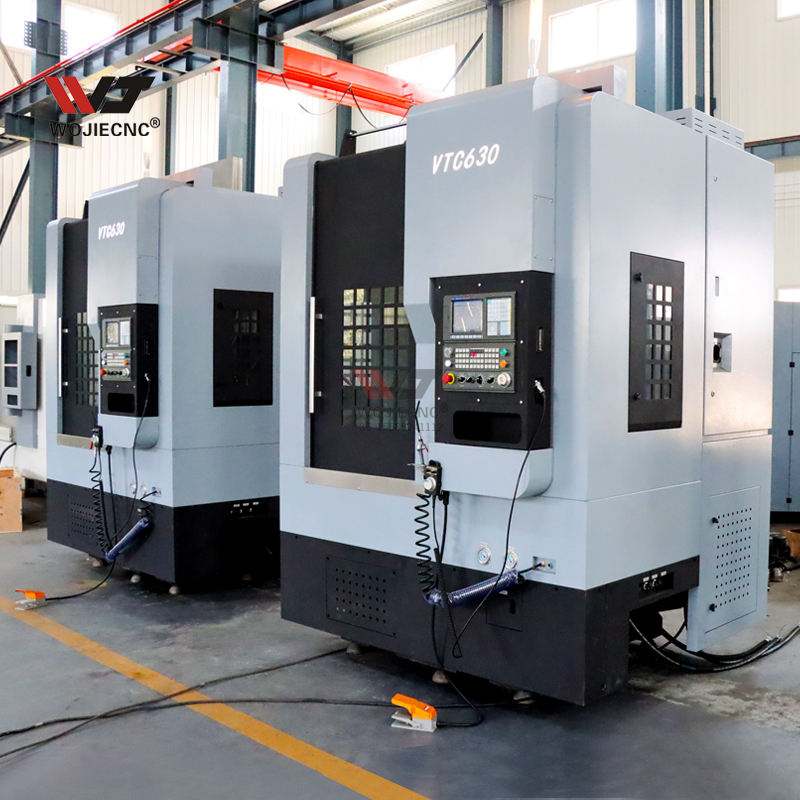

WOJIE CNC Vertical Lathe Manufacturer Brake Disc Brake Drum Vertical Lathe VTC630

WOJIE CNC Vertical Lathe Manufacturer Brake Disc Brake Drum Vertical Lathe VTC630

Item	Specification
Max. Swing Diameter	630 mm
Max. Turning Diameter	600 mm
Max. Workpiece Height	500 mm
Spindle Speed Range	20–800 rpm
Spindle Motor Power	11 kW
Turret Stations	8 stations
Positioning Accuracy	±0.015 mm
Repeat Positioning Accuracy	±0.008 mm
Machine Weight	5500 kg

Description
Specifications
Detailed Images
Company Introduction

Description:

Product main technical specifications:

This machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces,conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.

Product main technical Specifications:

Item	Parameters	VTC630
1	Maximum rotation diameter of workpiece	630mm
2	Maximum turning diameter	580 mm
3	Hydraulic chuck diameter	400mm
4	Spindle speed	50-1000rpm
5	Cutting feed rate	0.1-1000mm/min
6	Tool holder vertical movement distance	680mm
7	Tool holder horizontal movement distance	450mm
8	X-axis rapid movement speed	15000mm/min
9	Z-axis rapid movement speed	12000mm/min
10	Tool holder form	8 station hydraulic station
11	Toolbar section	32×32mm
12	Main motor power	15Kw 143NM
13	Feed motor power and torque	2.4 kW /15NM
14	Cooling pump motor power and flow	250W / 40L/min
15	Machine tool positioning accuracy	X:0.015mm Z:0.02mm
16	Repeatable positioning accuracy of machine tools	X:0.012mm Z:0.012mm
17	Machine weight	≈4800kg
18	Machine tool dimensions	2000×1860×2600mm

Detailed Images:

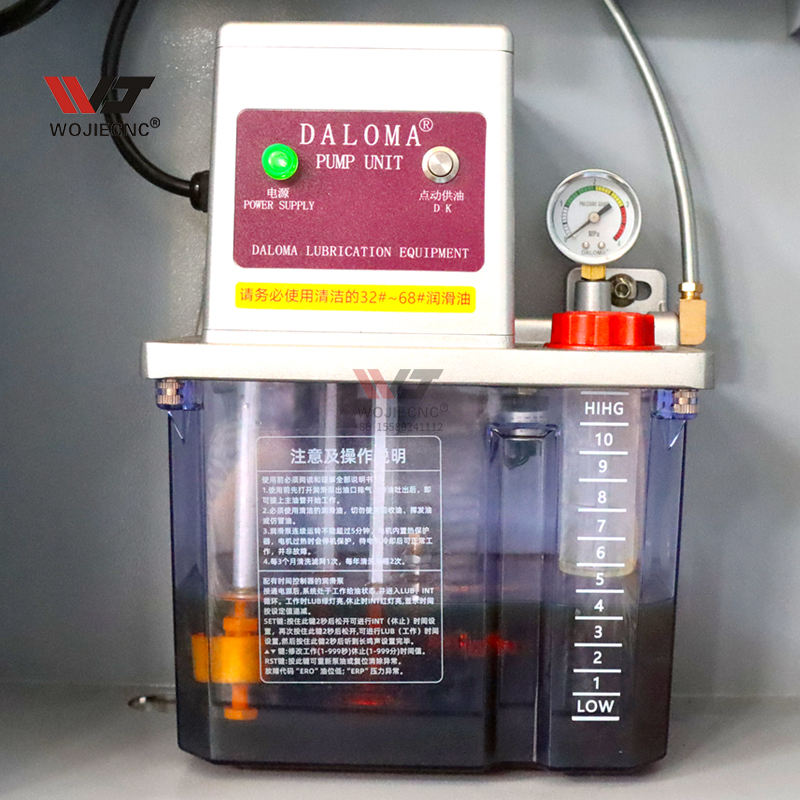

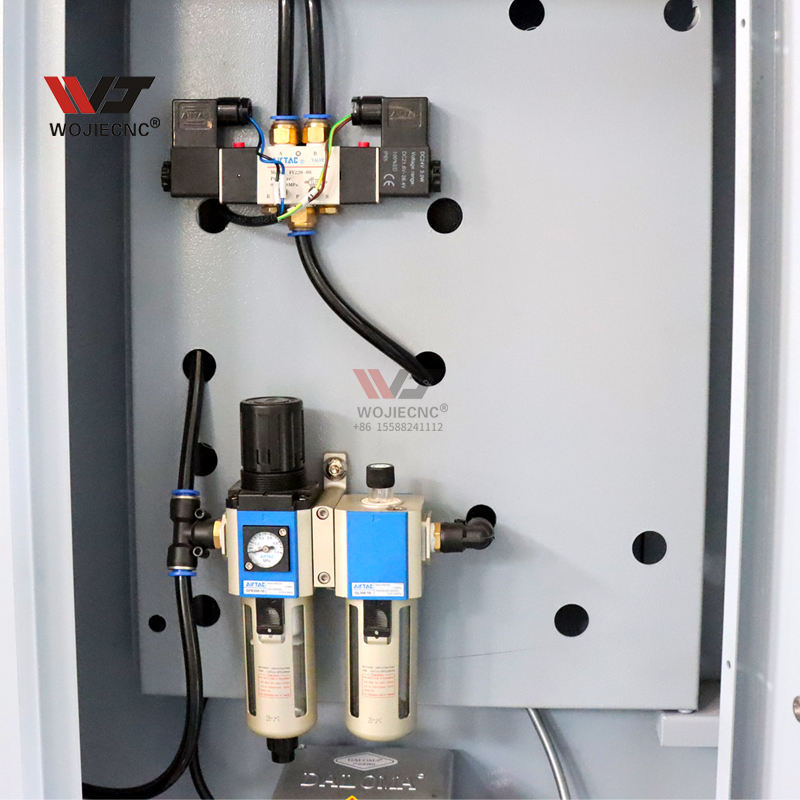

Automatic Lubrication System A centralized BALOMA lubrication unit with a pressure gauge and transparent oil reservoir ensures consistent lubrication to guideways and bearings, effectively reducing wear and extending the machine’s service life.	Pneumatic System Features an air filter regulator unit to clean and stabilize compressed air supply, supporting reliable pneumatic clamping and auxiliary functions.

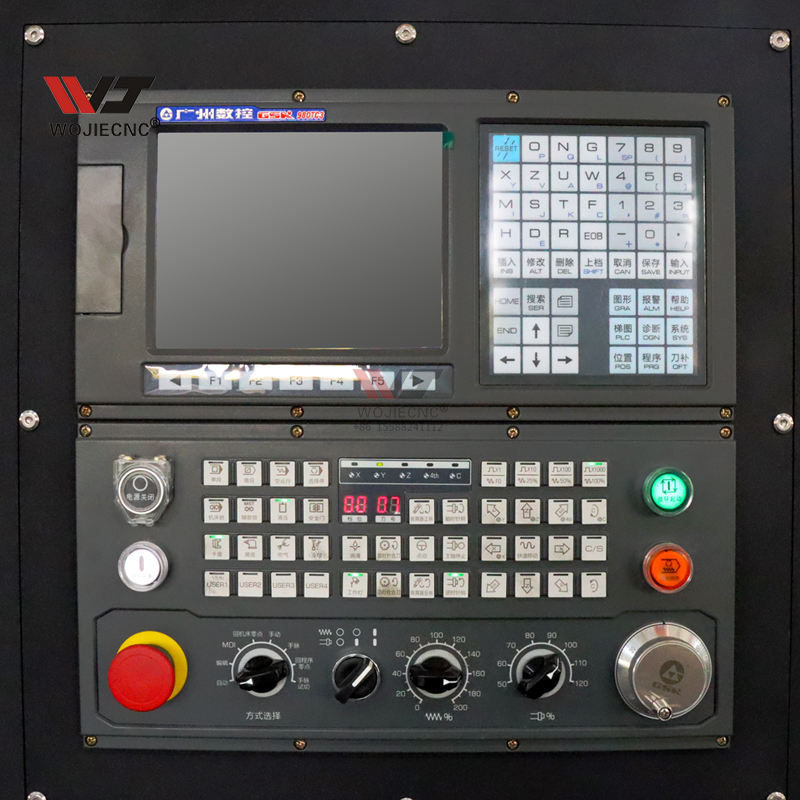

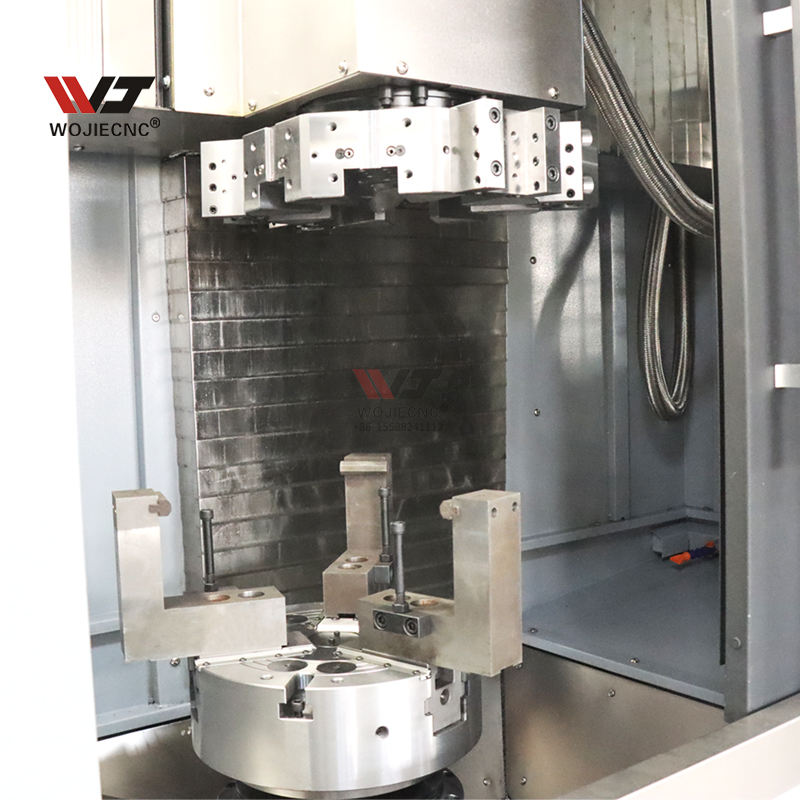

Machining Area & Tooling The enclosed work area features a precision rotary table with clamping fixtures and a multi-station tool turret, enabling stable cutting and efficient tool changes for complex workpiece processing.	CNC Control Panel An advanced numerical control system with a color display, full keypad, and intuitive operation buttons (including emergency stop, feed override knobs, and mode switches) allows for precise programming and real-time m onitoring of machining processes.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
