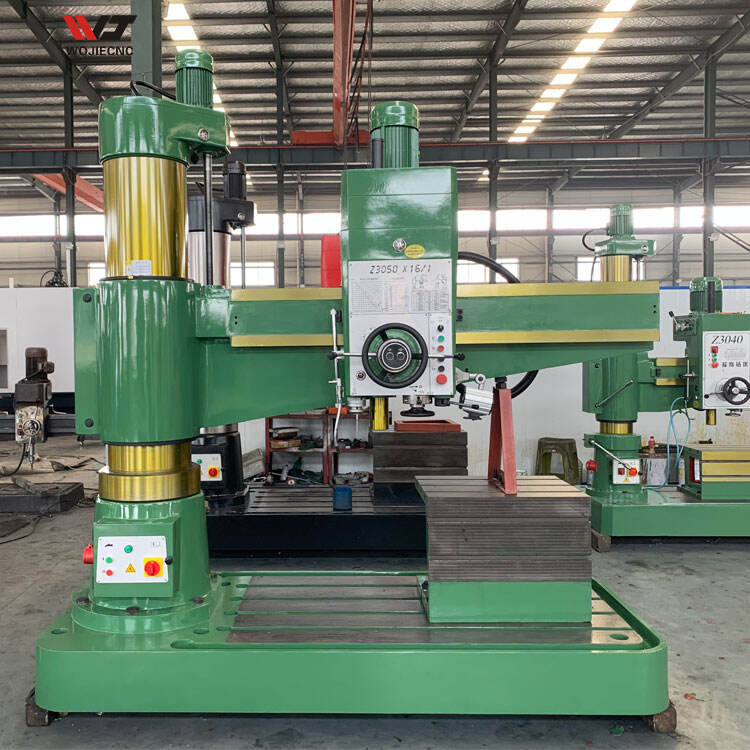

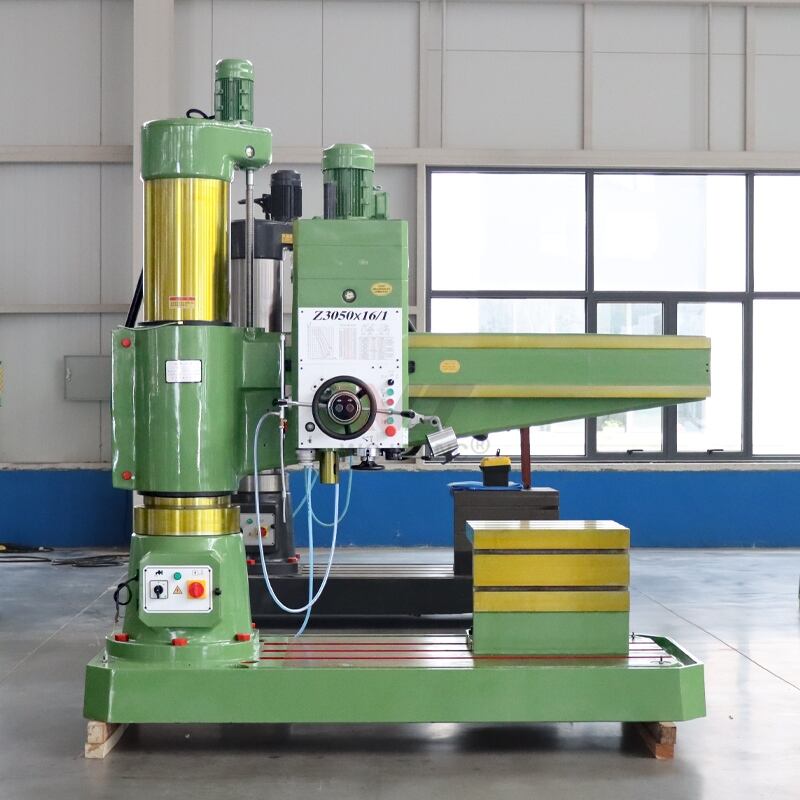

Hydraulic Radial Drill Z3050X16 Rocker Arm Drilling Machine Price
The main performance characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic retraction
Strengthening spindle
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | Z3050 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $7600 |
| 5 sets $5600 | |
| drilling capacity | 50 mm |
| Packaging Details: | 2800*1200*2600 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Specifications:
|
SPECIFICATIONS |
Z3050×16B |
|
Max.drilling dia (mm) |
50 |
|
Distance from spindle nose to table surface(mm) |
200-1110 |
|
-1110Distance between spindle axis and column surface (mm) |
350-1500 |
|
Spindle travel (mm) |
250 |
|
Spindle cone(MT) |
5 |
|
Spindle speeds range (r.p.m) |
35-1400 |
|
Spindle speed step |
12 |
|
Spindle feeding range(r.p.m) |
0.1-0.56 |
|
Spindle feeding step |
6 |
|
Rocker rotary angle (°) |
±90° |
|
Main motor power (kw) |
4 |
|
Maximum resistance to the spindle (N) |
16000 |
|
Movements motor power (kw) |
1.5 |
|
Weight (kg) |
2400 |
|

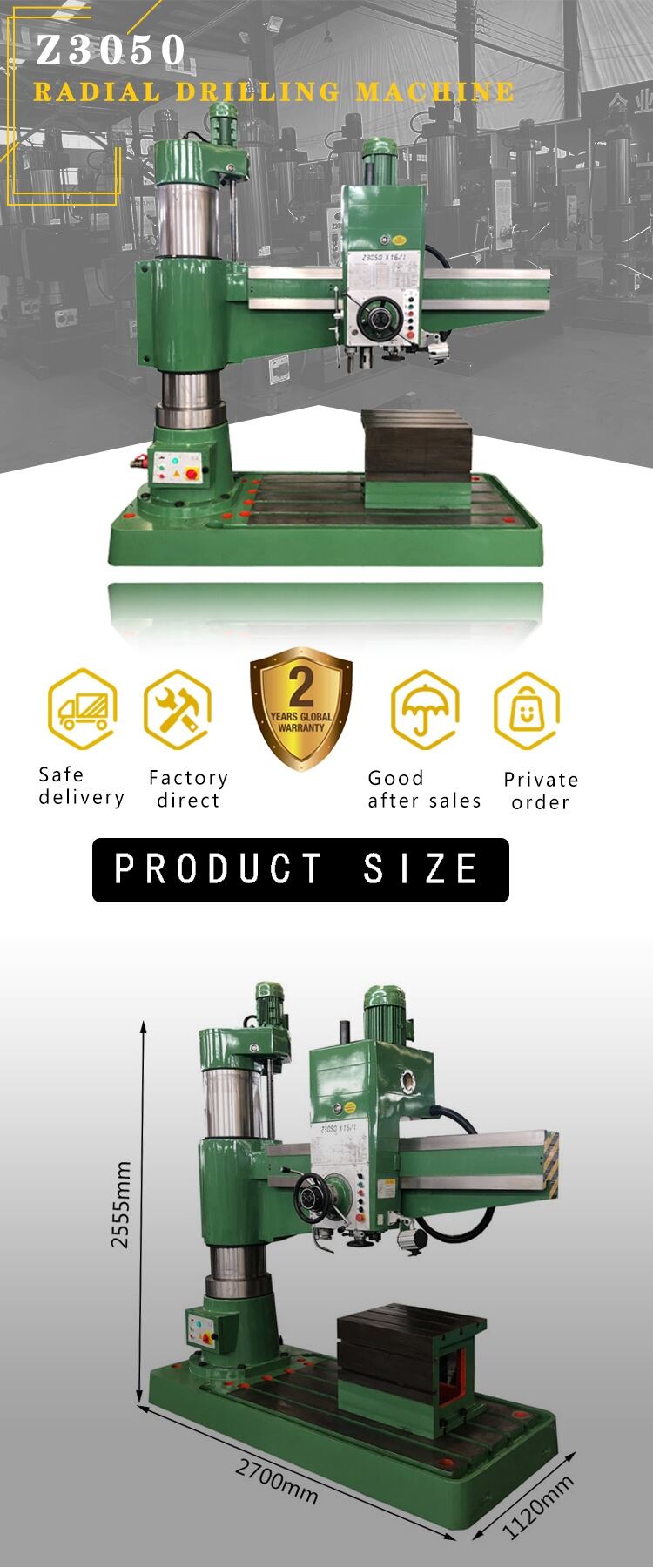

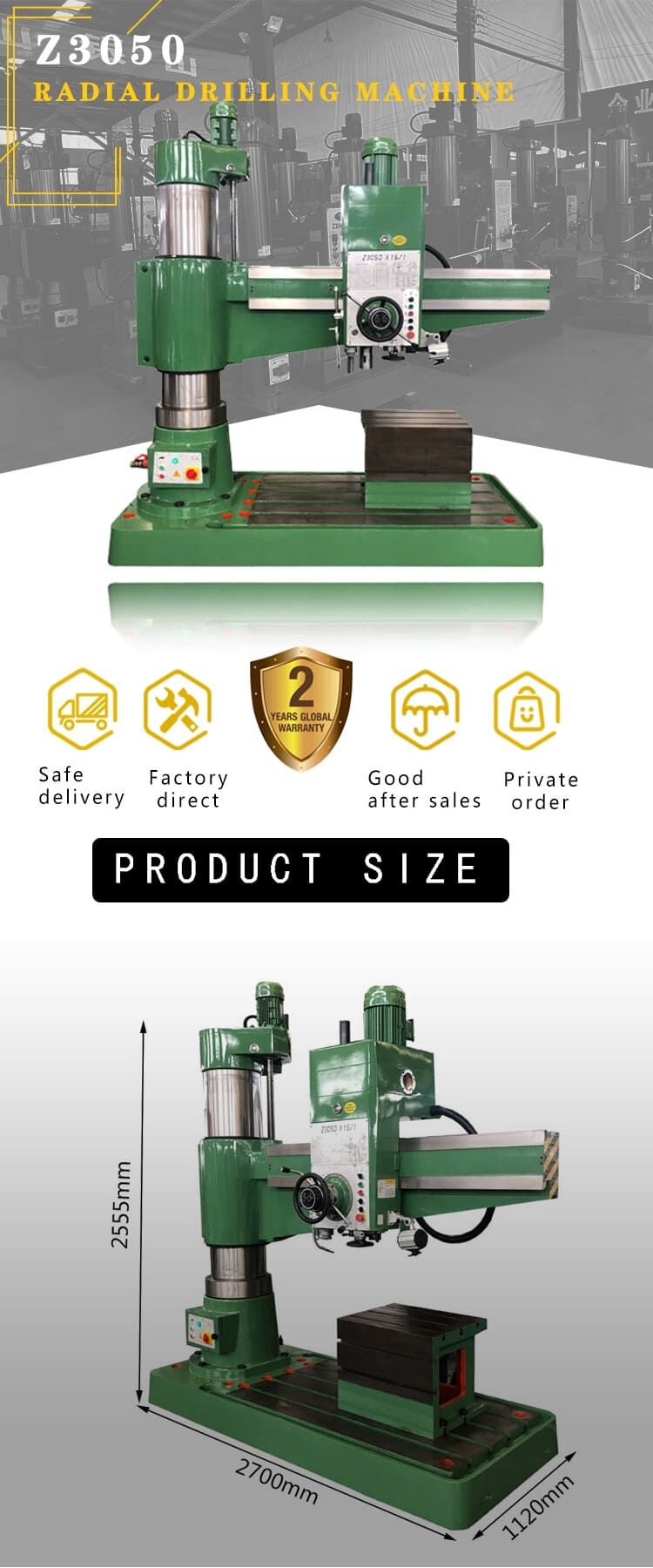

Overall dimensions (mm) |
2050x800x2450 |

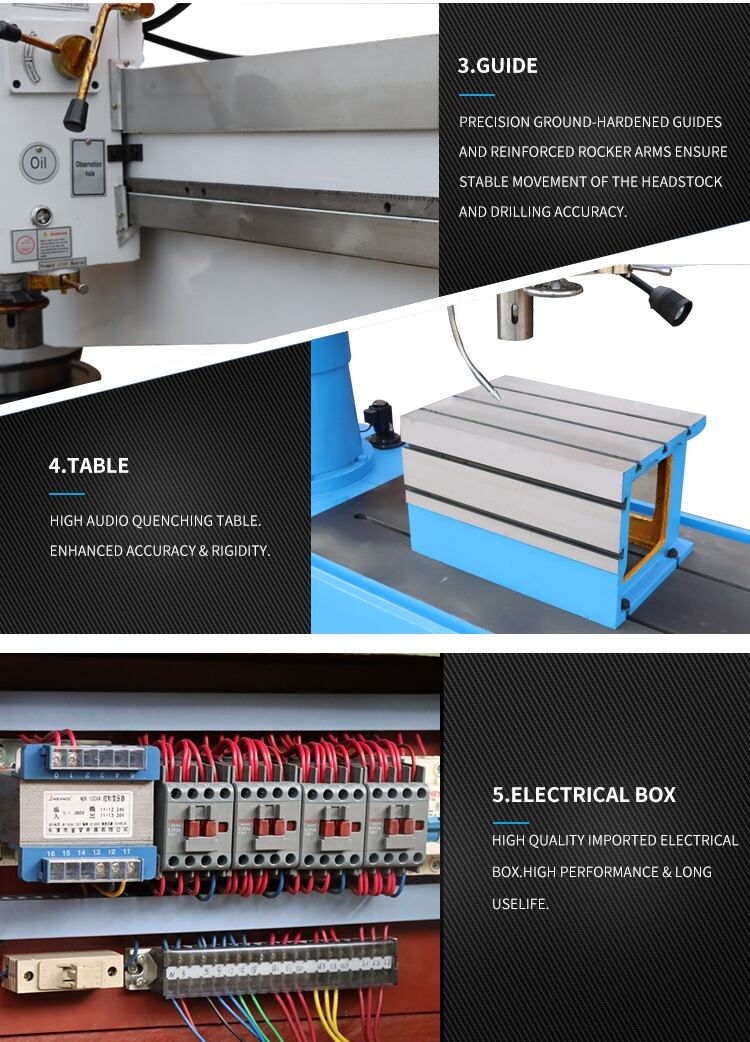

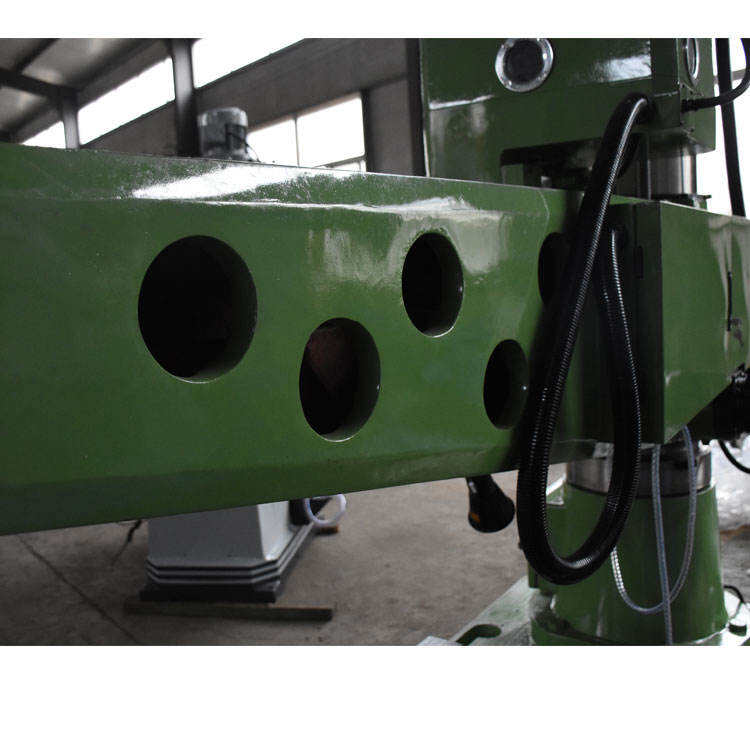

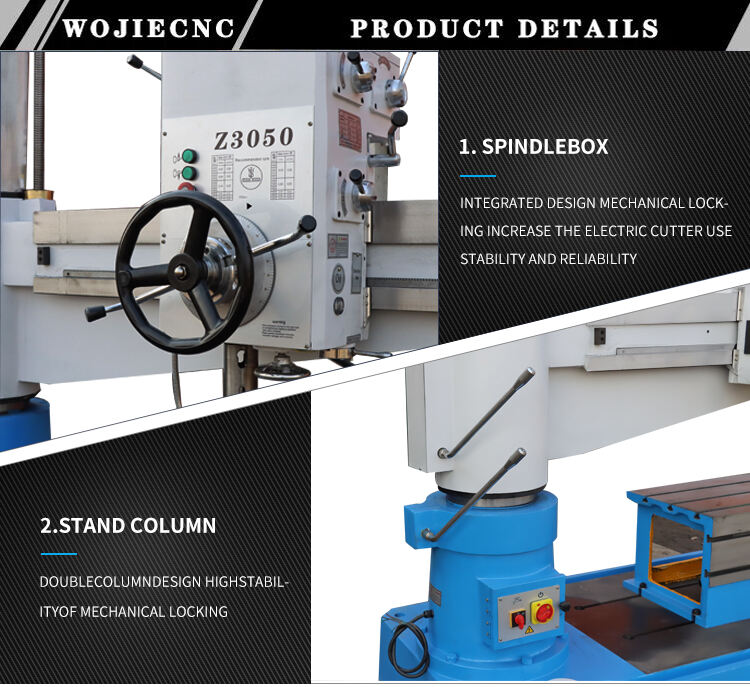

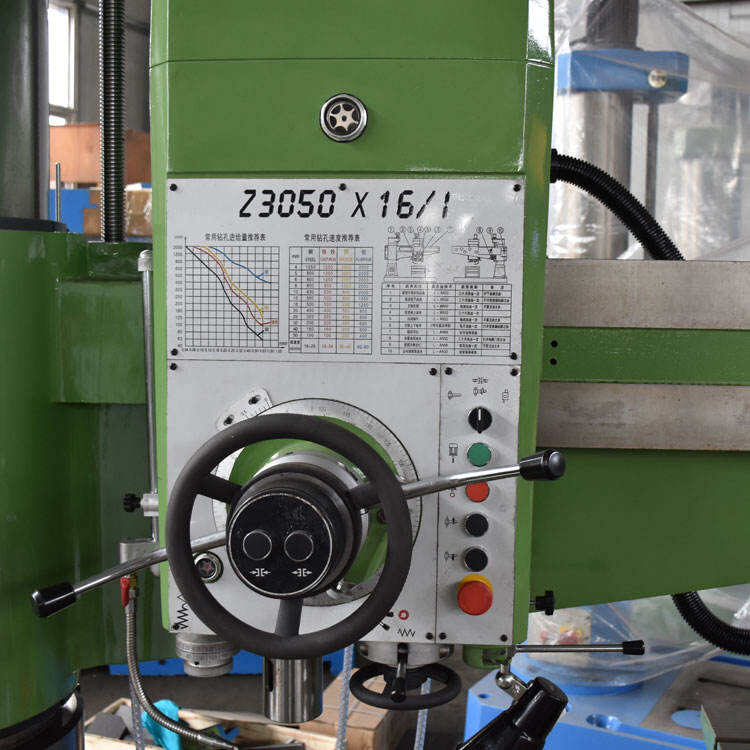

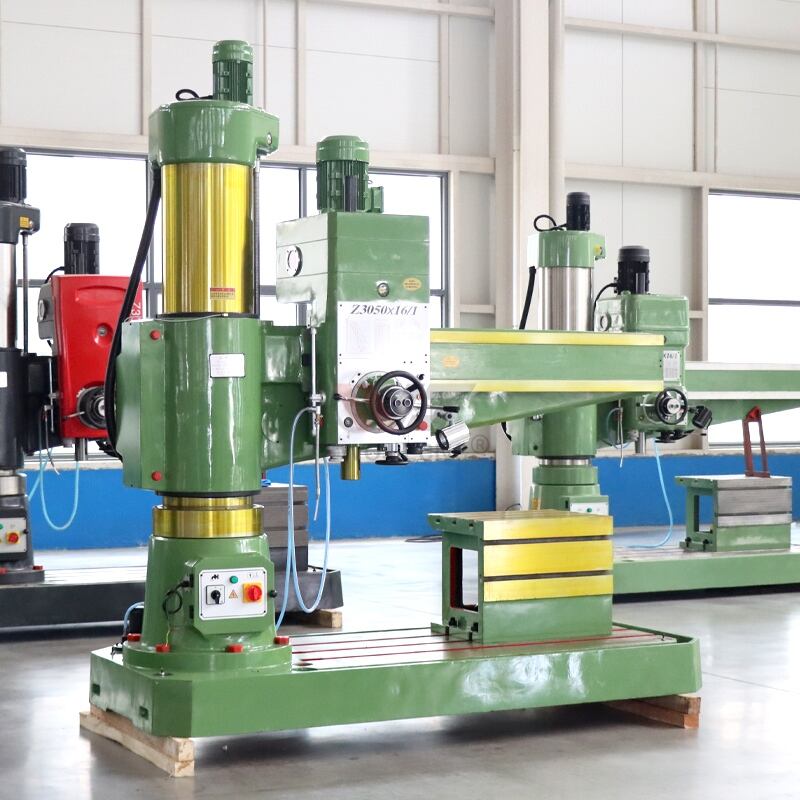

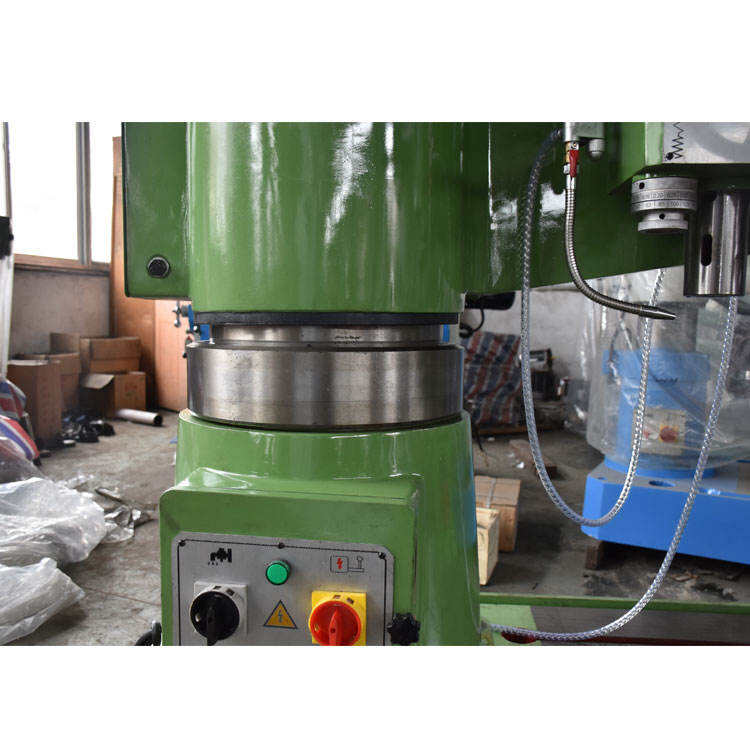

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
