High Performance Milling Machine X6325 Vertical Turret Milling Machine with Spindle NT40 ISO40
|
Item |
Specification |
|
Type |
VERTICAL |
|
Machining Capacity |
Light Duty |
|
Table Travel (X) (mm) |
800 |
|
Table Travel (Y) (mm) |
300 |
|
Table Travel (Z) (mm) |
420 |
|
Spindle Taper |
ISO40 |
|
Range of Spindle Speed (r.p.m) |
65 - 5440 r.p.m |
|
Weight (kg) |
1500 |
|
Warranty |
1 Year |
|
Max. Table Load (kg) |
200 |
|
Place of Origin |
Shandong, China |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical Specifications:
|
Specifications |
Specification Details |
|
Table size |
1370×305 mm |
|
Longitudinal travel (X) |
780 mm |
|
Cross travel (Y) |
400 mm |
|
Vertical travel (Z) |
415 mm |
|
T-slot number and size |
3×16 mm |
|
Ram travel |
470 mm |
|
Distance from spindle nose to table surface |
0-405 mm |
|
Spindle hole taper |
Standard: R8 |
|
Spindle travel |
127 mm |
|
Spindle speed |
Standard: 16 stepsShift grade (50Hz): 65-4500 rpm |
|
Auto quill feed |
Three steps: 0.04/0.08/0.15 mm/revolution |
|
Telescopic stroke |
470 mm |
|
Spindle Motor |
2.2 kW |
|
Head swivel |
90° |
|
Head tilting |
45° |
|
Dimension of package |
1750×1600×2260 mm |
|
Gross Weight / Net Weight |
1200 / 1100 kg |
Standard Accessories:
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Optional Accessories:
Power feed
3-axis Digital Reading
Machine Vise
Milling Chuck
Variable milling head
Air drawbar
Dividing Head
Detailed Images:
 |
 |
|

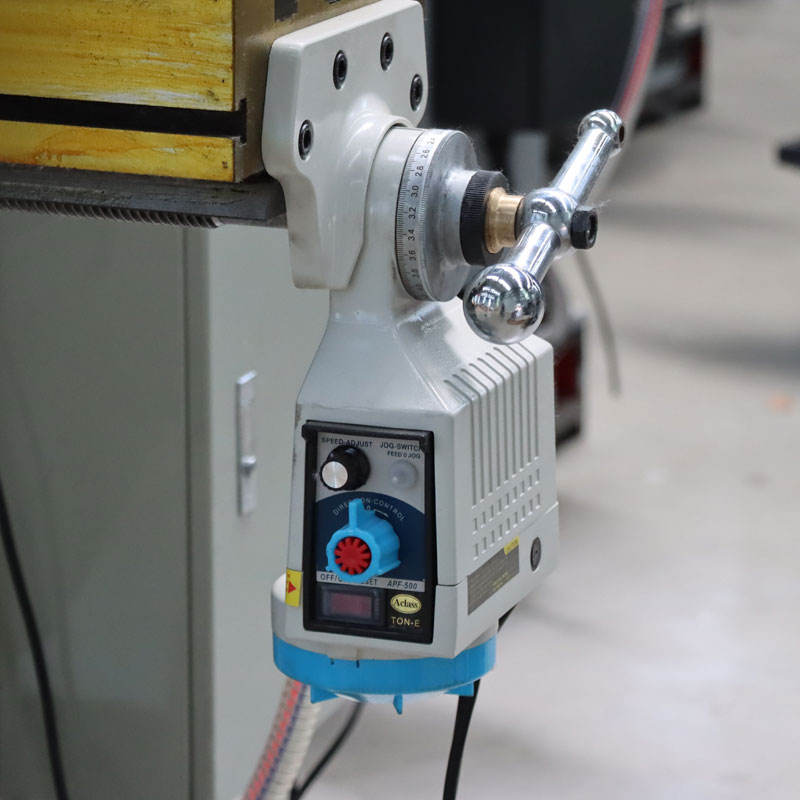

Power Feed & Control Unit
This machine is equipped with a power feed unit (mounted on the ram), which enables stable and adjustable feed rates for precise machining. The control panel features a digital display and emergency stop button, allowing operators to monitor and adjust parameters safely during operation.
|
Worktable & CNC Control System

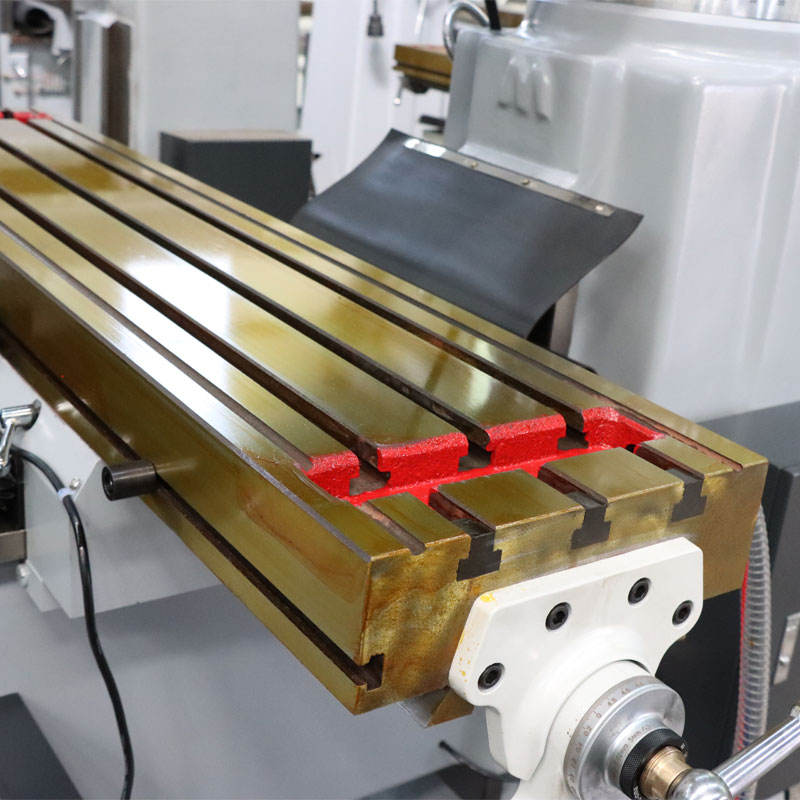

Worktable: The large, rigid table (1370×305 mm) is designed with T-slots (3×16 mm) for secure workpiece clamping. It provides stable support for heavy cutting loads, with longitudinal travel of 780 mm, cross travel of 400 mm, and vertical travel of 415 mm.
|
 |
 |
|

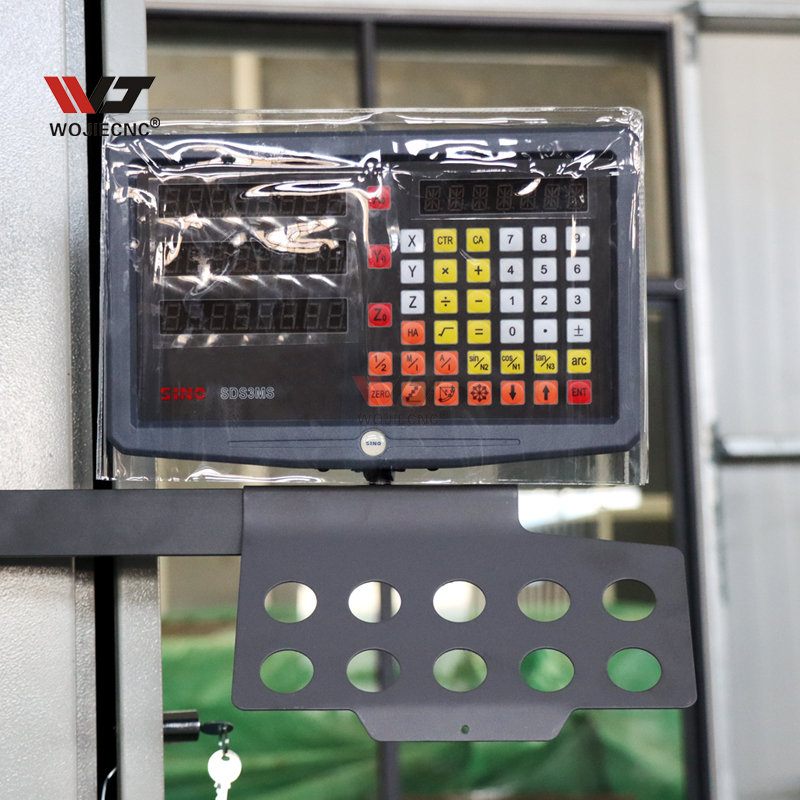

Control System
The CNC control panel (shown in the inset) offers intuitive operation, supporting multi-axis machining and precise parameter settings for complex milling tasks.
|

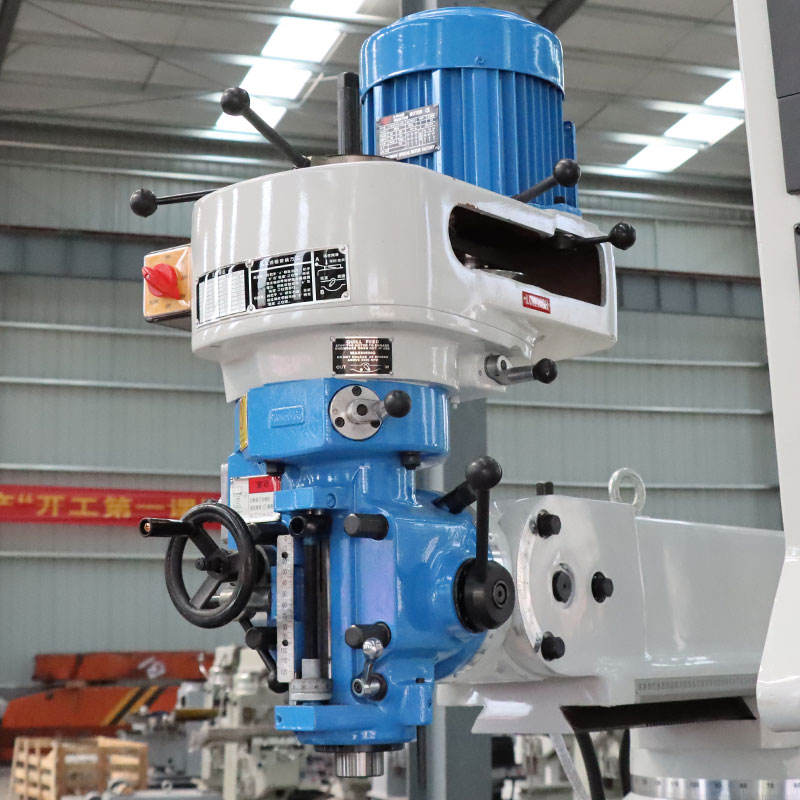

Spindle Head & Ram Assembly
The R8 taper spindle head (with 127 mm spindle travel) delivers high-speed rotation (65-4500 rpm, 16 steps) for versatile cutting operations. The ram travel is 470 mm, and the head can swivel 90° and tilt 45°, enabling angular and complex surface machining. The 2.2 kW spindle motor ensures reliable performance for both light and medium-duty cutting.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
