Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | HMC800 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $82000 |
| 3 sets $79000 | |
| Number of Axes | 3, 4, 5 |
| Spindle Motor Power(kw) | 15,18.5 |
| Packaging Details: | 5400*3600*3300 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
Standard Configuration:

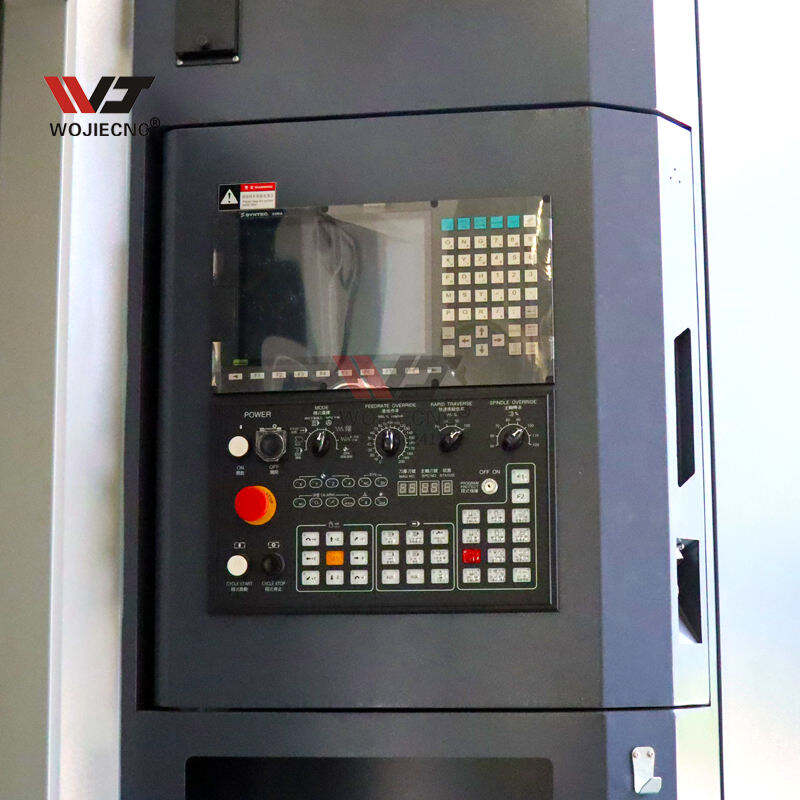

The CNC system: FANUC 0i MD
The knife: 24 the mechanical hand knife
The spindle:High rigidity and precision spindle unit
Select The Configuration:
M70B/M70A Mitsubishi OR SIEMENS 828D
Automatic chip system

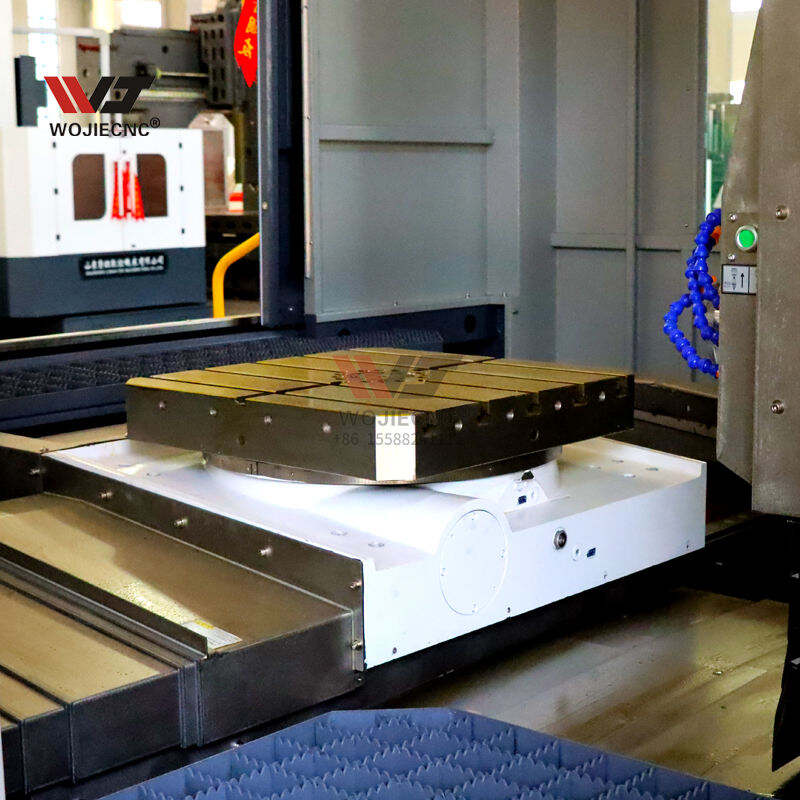

CNC continuous indexing table (not suitable for heavy cutting)
The knife: Chain knife library
Specifications:
| Specifications | Units | HMC800 |
| Table size | mm | 800×800 |
| X-axis travel | mm | 1200 |
| Y-axis travel | mm | 900 |
| Z-axis travel | mm | 1000 |
| Spindle nose to table | mm | 160-1260 |
| Rapid traverse (X/Y/Z) | mm/min | 12000 |
| Feed rate(X/Y) | mm/min | 1-5000 |
| Max. load of worktable | Kg | 2500 |
| T-slot (slot number×width×pitch) | mm | 5-22-160 |
| Spindle speed | rpm | 4000 |
| Spindle taper | BT50 | |
| ATC | 42 | |
| Magazine type | Mechanical hand knife | |
| Maximum tool diameter | mm | Φ127/Φ178 |
| Maximum tool length | mm | 300 |
| Maximum tool weigh | Kg | 15 |
| Tool change time | s | 3 |
| Positioning accuracy | mm | ±0.003 |
| Repeat accuracy | mm | ±0.001 |
| Machine weight | kg | 18000 |
| Dimensions | mm | 5380*3550*3200 |

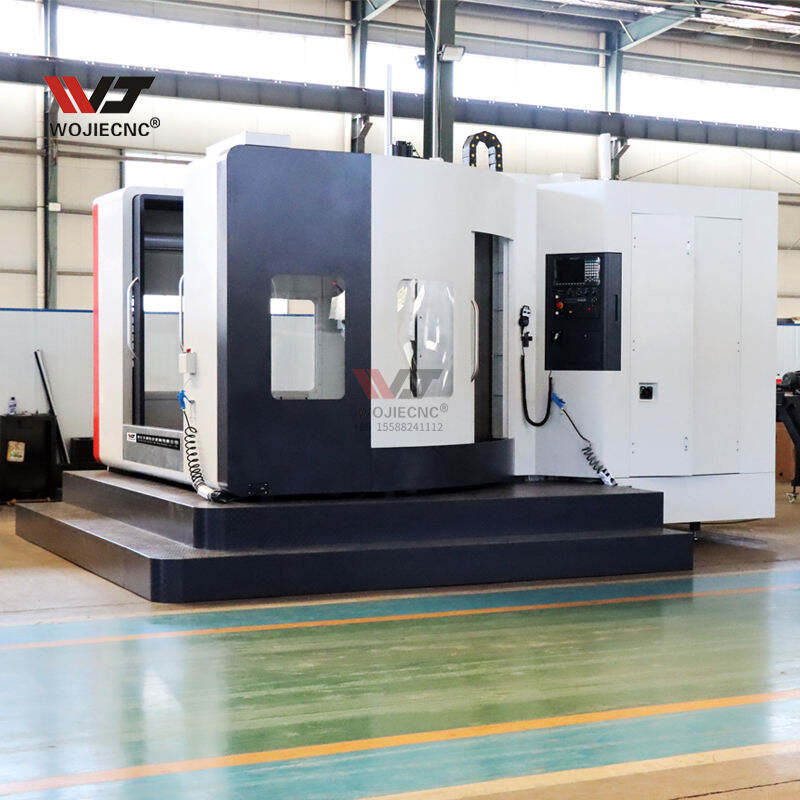

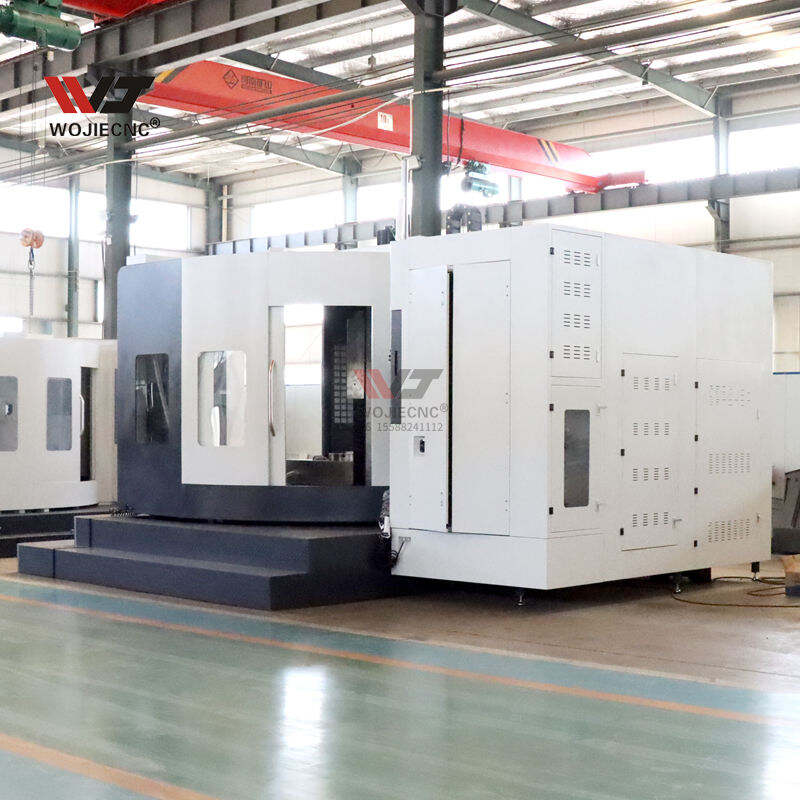

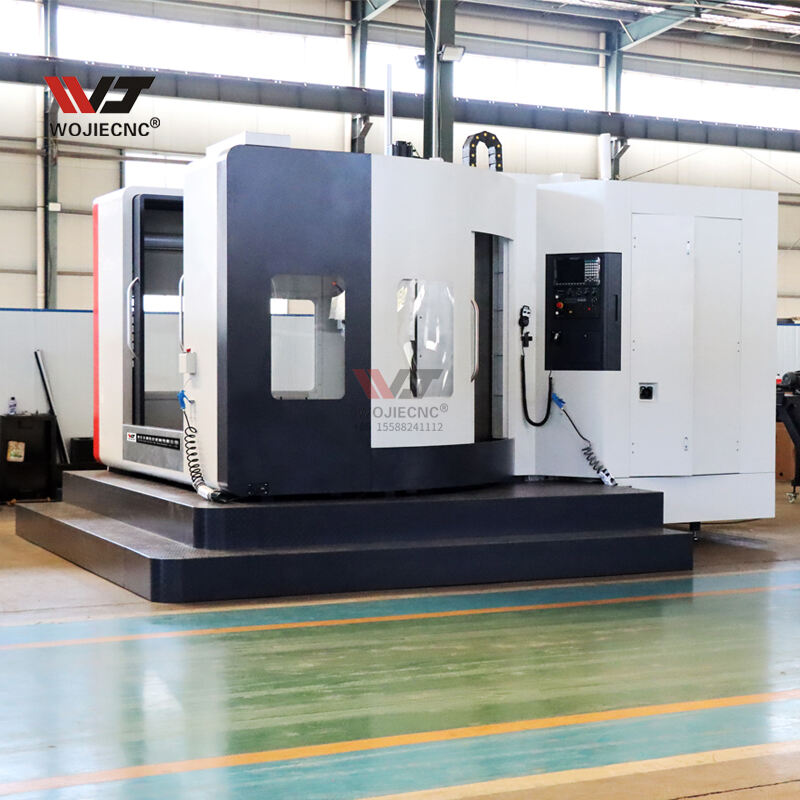

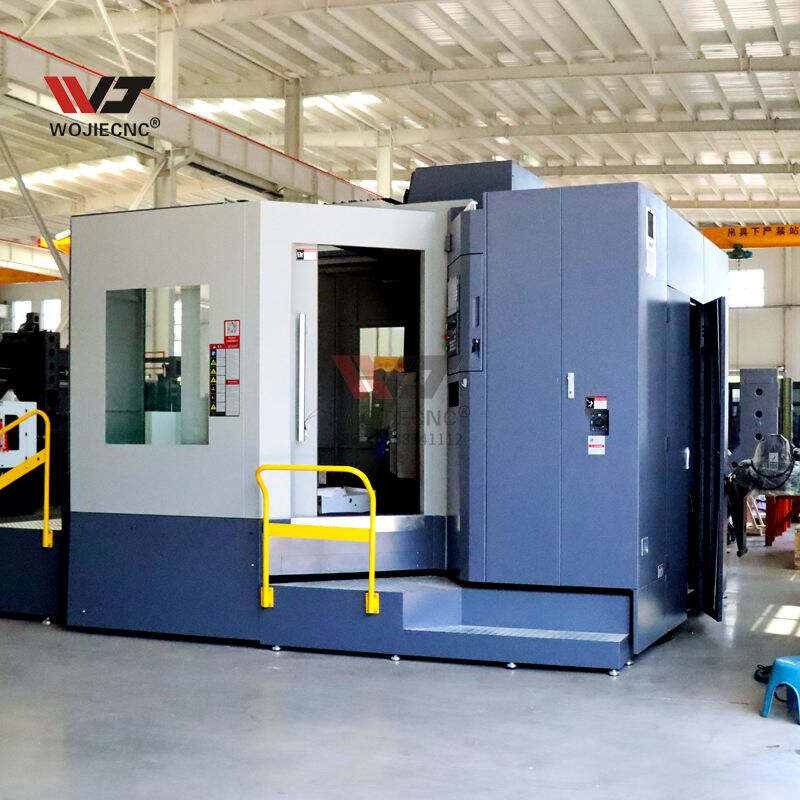

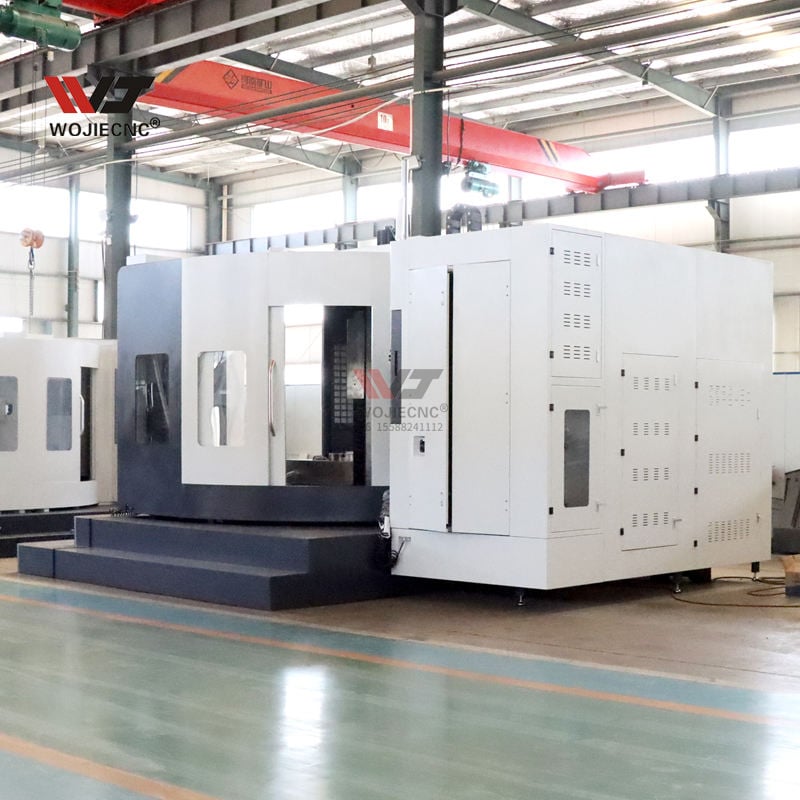

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A:T/T,30% initial payment when order ,70% balance payment before shipment ;Irrevocable L/C at sight .
When we receive the advance payment,
we will start to make production.when the machine is ready ,
we will take pictures to you.after we got your balance payment.
we will send the machine to you.
2. What is your trade terms ?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time ?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty ?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the package of the machines ? A: The machines standard will be packed in plywood case.
