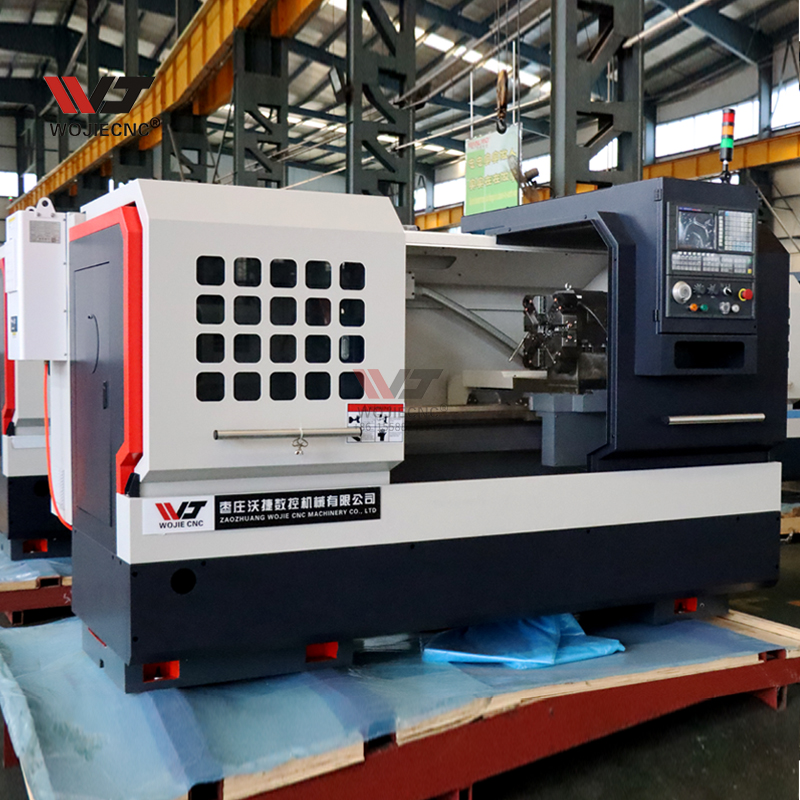

New Horizontal Medium Duty CK6140 CNC Flat Bed Lathe Machine Competitive Price GSK Control System
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.
Specifications:
| SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 |
| Swing over bed | mm | 360 | 400 | 500 |
| Swing over cross slide | mm | 190 | 210 | 260 |
| Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
| Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) |
| Spindle bore taper | - | MT6 | MT6 | MT6 |
| Spindle nose type | - | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) |
| Spindle speed steps | rpm | Stepless | Stepless | Stepless |
| Spindle speed range | - | 1800 | 1800 | 1800 |
| Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
| Tool size | mm | 20*20 | 20*20 | 25*25 |
| X axis travel | mm | 180 | 200 | 250 |
| Z axis travel | mm | 500/750/1250/1750 | 500/750/1250/1750 | 500/750/1250/1750 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
| Tailstock quill diameter | mm | 65 | 65 | 65 |
| Tailstock quill taper | - | MT4 | MT4 | MT5 |
| Tailstock quill travel | mm | 140 | 140 | 140 |
| Main spindle motor | kw | 5.5 | 5.5 | 5.5 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 |
| Weight for 750 | kg | 1500 | 1550 | 1600 |
| Weight for 1000 | kg | 1600 | 1650 | 1700 |
| Weight for 1500 | kg | 1800 | 1850 | 1900 |
| Weight for 2000 | kg | 2000 | 2050 | 2100 |
| Dimension for 750 | mm | 2.20016E+11 | 2.20017E+11 | 2.20017E+11 |
| Dimension for 1000 | mm | 2.50016E+11 | 2.50017E+11 | 2.50017E+11 |
| Dimension for 1500 | mm | 3.00016E+11 | 3.00017E+11 | 3.00017E+11 |
| Dimension for 2000 | mm | 3.50016E+11 | 3.50017E+11 | 3500170017 |
Standard Accessories:
1.System: GSK
2.3-jaw manual chuck
3.4-station electric turret
4.Frequency spindle motor
5.Stepless speed changer
6.Manual tailstock
7.Lighting system
8.Cooling system
Detailed Images:
 |
|
|

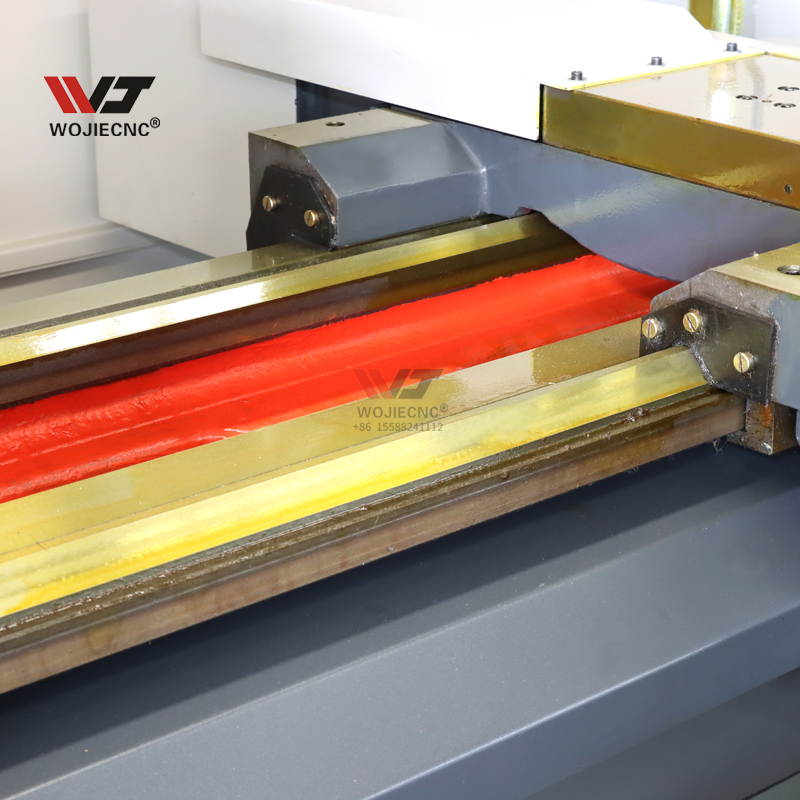

HARD GUIDEWAY
1. High frequency quenching guide rail with hardness HRC52
2. One mountain, one flat guideway
|

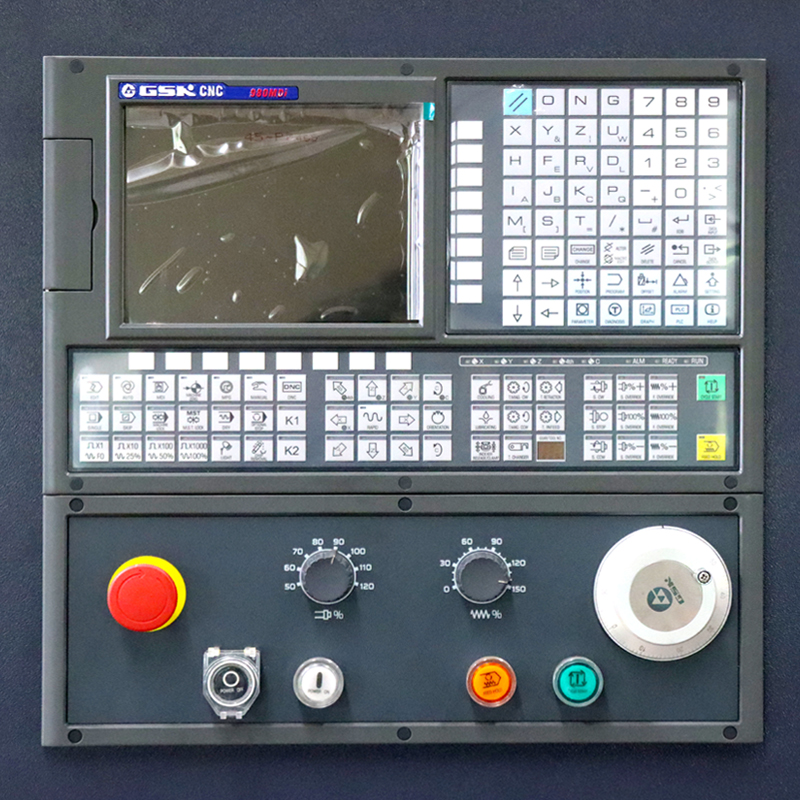

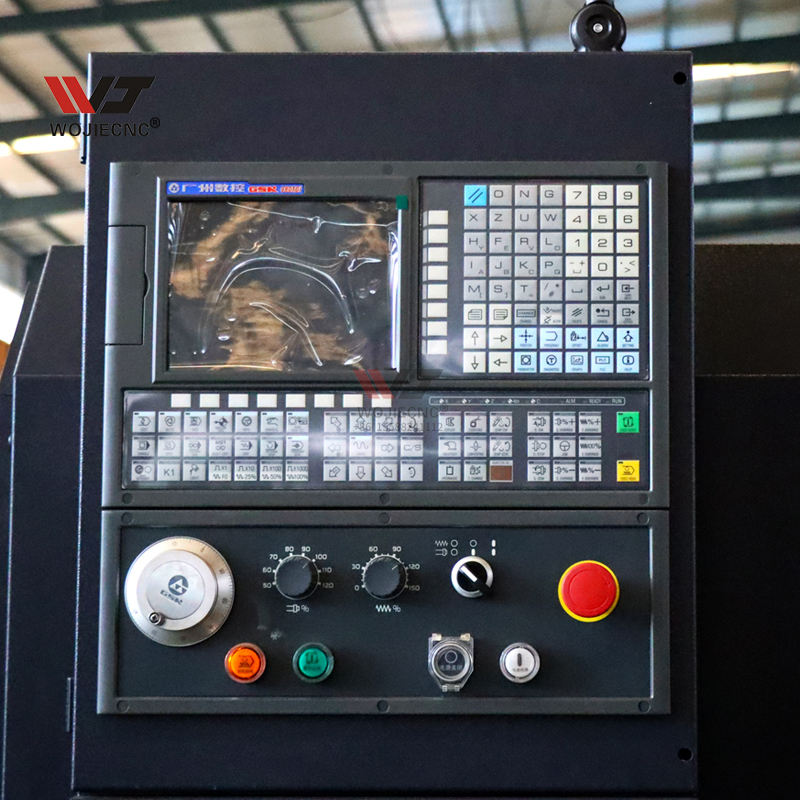

SYSTEM
Standsrd is GSK System
Optional : Fanuc/Siemens/KND...
|
|
|
 |
|

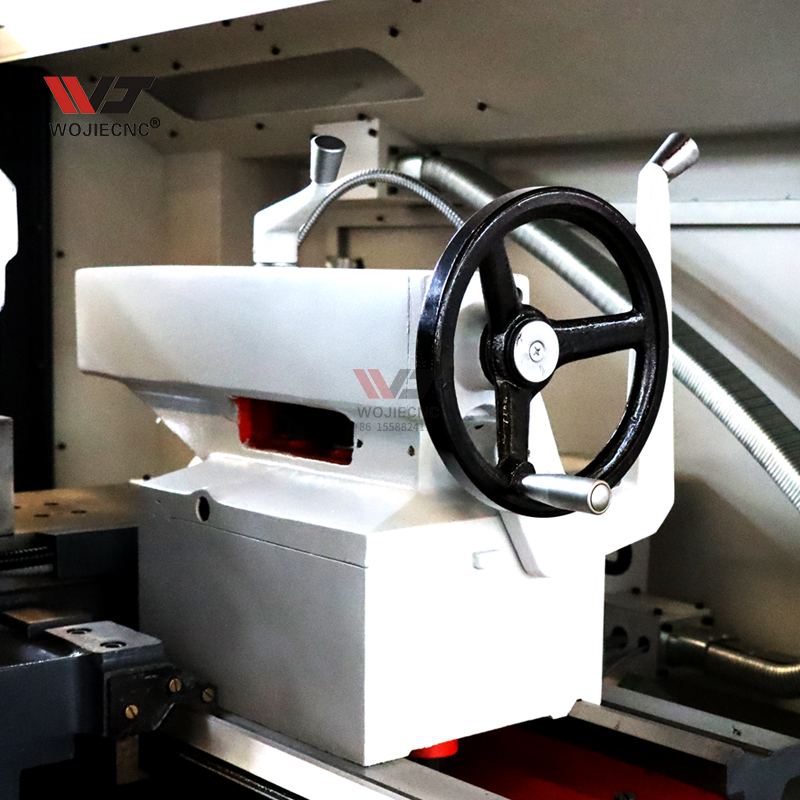

TAILSTOCK
Standard with Manual tailstock
|

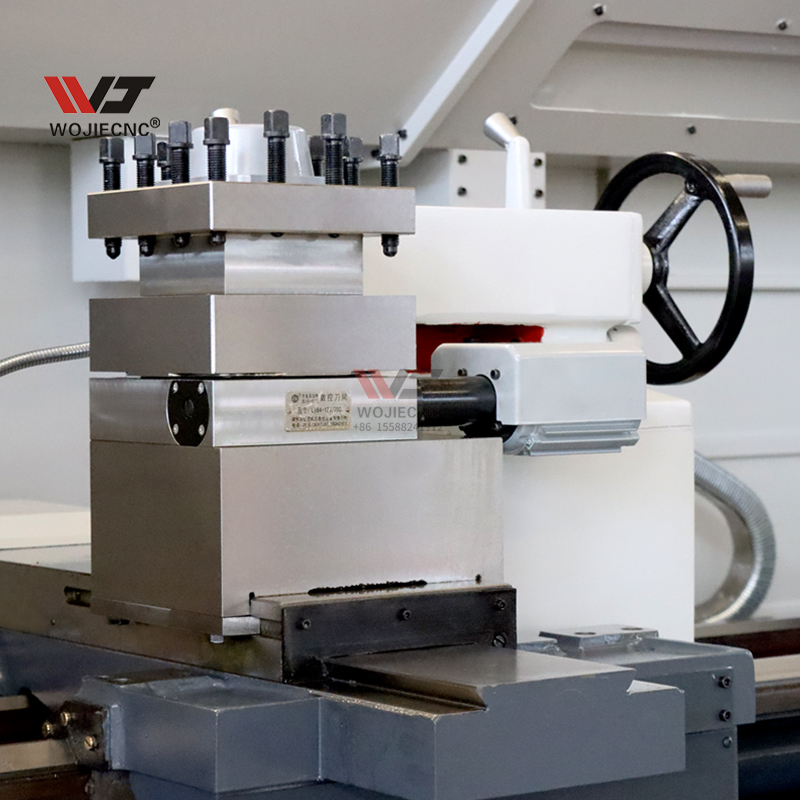

ELECTRIC TOOL POST/TURRET
Standard with 4 position electric tool post
|
 |
|
|

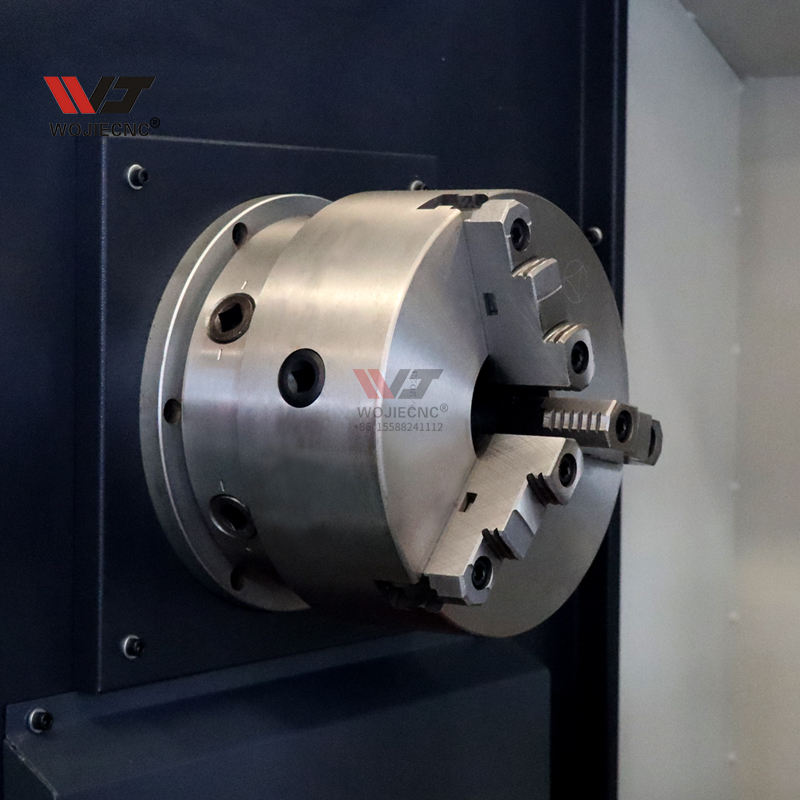

MANUAL CHUCK
Standard: 3-jaw manual chuck
|
SPINDLE BORE
Standard Spindle bore 52mm, 80mm as optional
|
