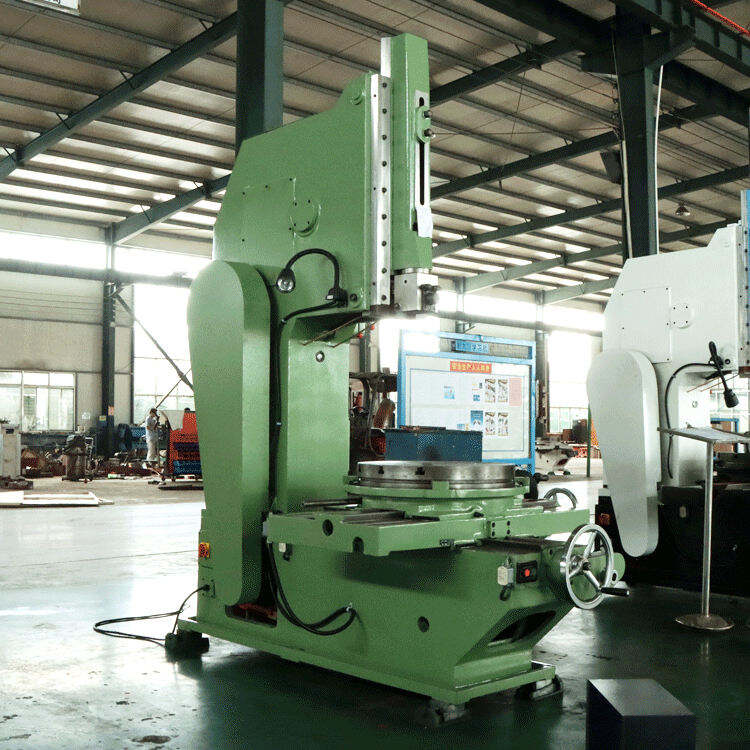

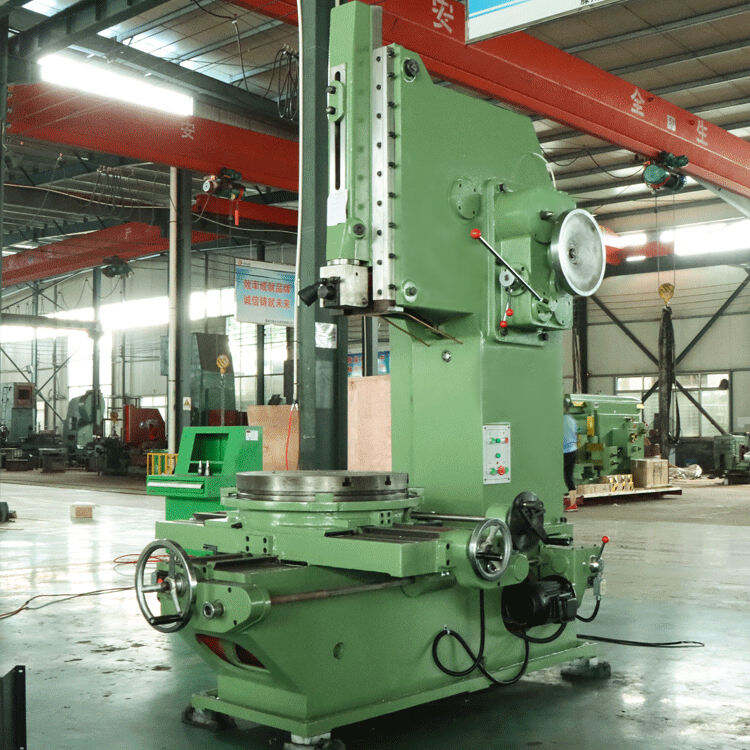

High-Accuracy Angle Steel Metal Automatic Vertical Slotting Machine B5040

High-Accuracy Angle Steel Metal Automatic Vertical Slotting Machine B5040

The main performance characteristics:

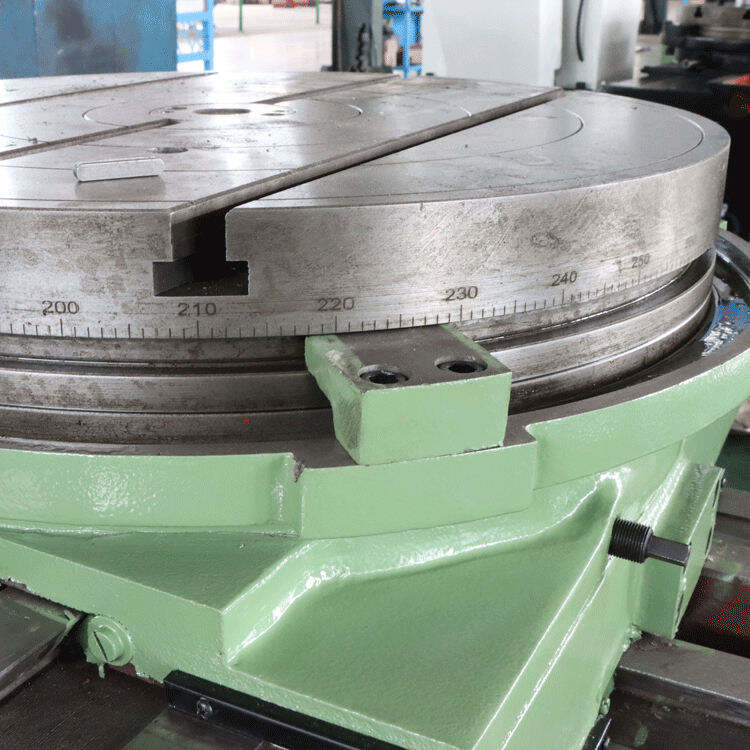

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),therefore work object go through once clamping, Several surfaces in the machine tool machining

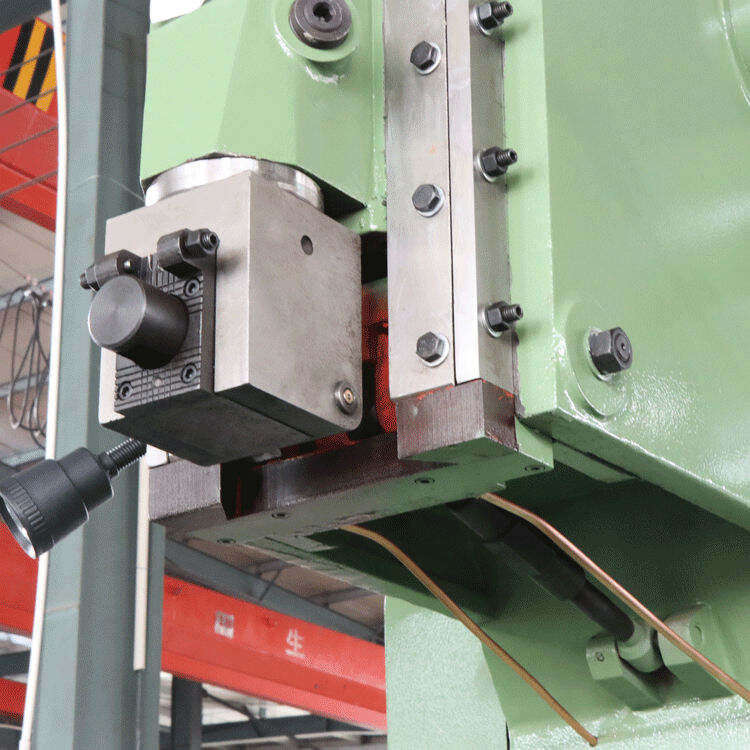

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

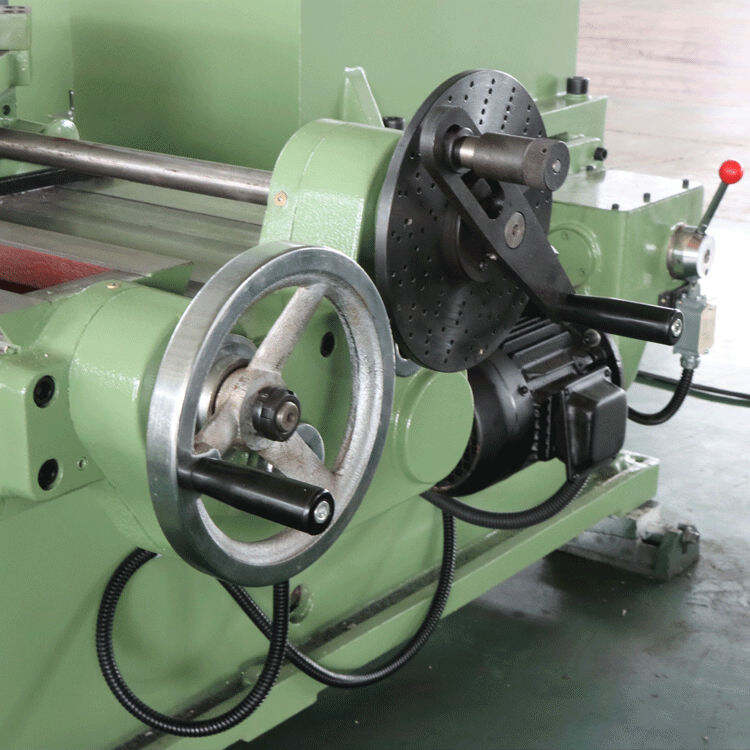

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed,Therefore be better thanmechanical slotting machine used drum wheel feed.

Description
Specifications

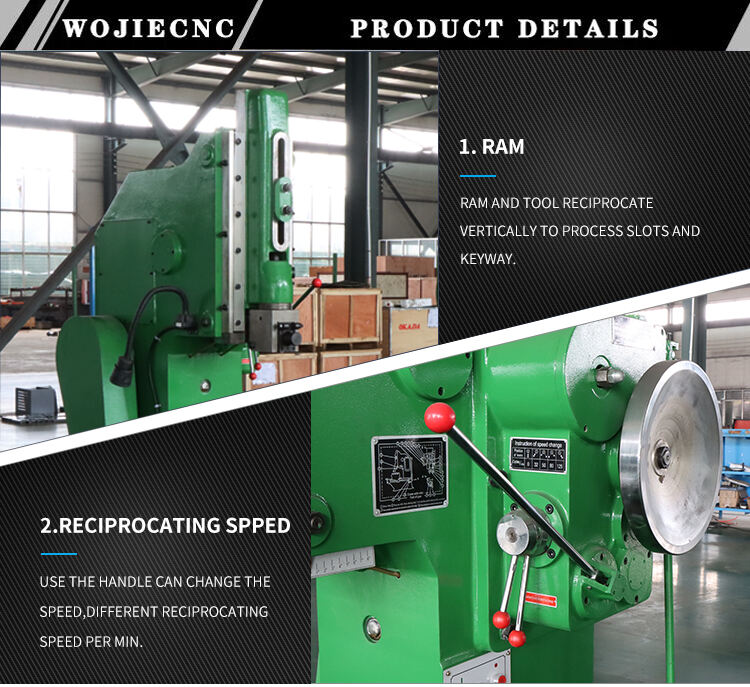

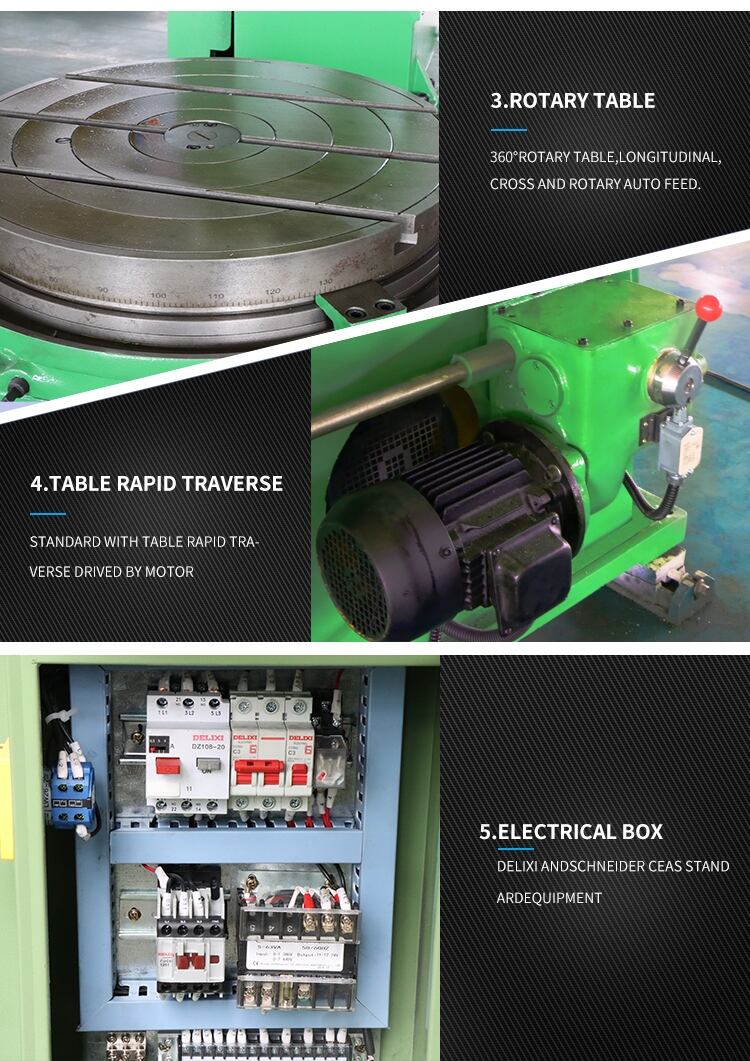

Detailed Images:
Company Introduction

Description:

Place of Origin:	China
Brand Name:	WOJIE
Model Number:	B5040
Certification:	Provided
Minimum Order Quantity:	1 set
Price:	1 - 3 sets $12000
Price:	5 sets $11000
Packaging Details:	230016002500 mm
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	Unlimited stock

Application:

1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter.
2. Enterprise suitable for single or small batch production.

Specifications:

Item	Units	B5020		B5032	B5040
Max.slotting length	Mm	200		320	400
Number of ram reciprocation per minute	No./min	32,50,80,125		20,32,50,80	20,32,50,80
Inclination of ram	°	0-8		0-8	0-8
Diameter of worktable	Mm	500		630	630
Adjusting vertical distance of slide block	Mm	215		370	380
Distance from tool holding surface to column front	Mm	480		600	600
Distance from worktable surface& to underside of slide rack	Mm	320		470	690
Max. longitudinal travel of worktable	Mm	500		630	620
Max. transverse travel of worktable	Mm	500		560	560
Max. rotary angle of worktable	°	360		360	360
Feed range of worktable in longitudinal& transverse direction	Mm	0.054-1.24		0.054-1.24	0.054-1.24
Rotary feed range of worktable	°	0.035-0.805		0.035-0.805	0.035-0.805
Max size of slotting tool (LengthXLigh)	Mm	25x40		25x40	25x40
Max. slotting force	KN	8		8	8
Max loading weight on worktable	Kg	500		500	500
T-slot with in the center of worktable	Mm	18H8		18H8	18H8
Power supply of main electric motor	KW	3		3	3
Speed of main motor	m/min	960		960	960
Power of motor for rapid traverse	KW	0.75		0.75	0.75
Speed of motor for rapid traverse	m/min	1390		1390	1390
Net weight	Kg	2200		3000	3700

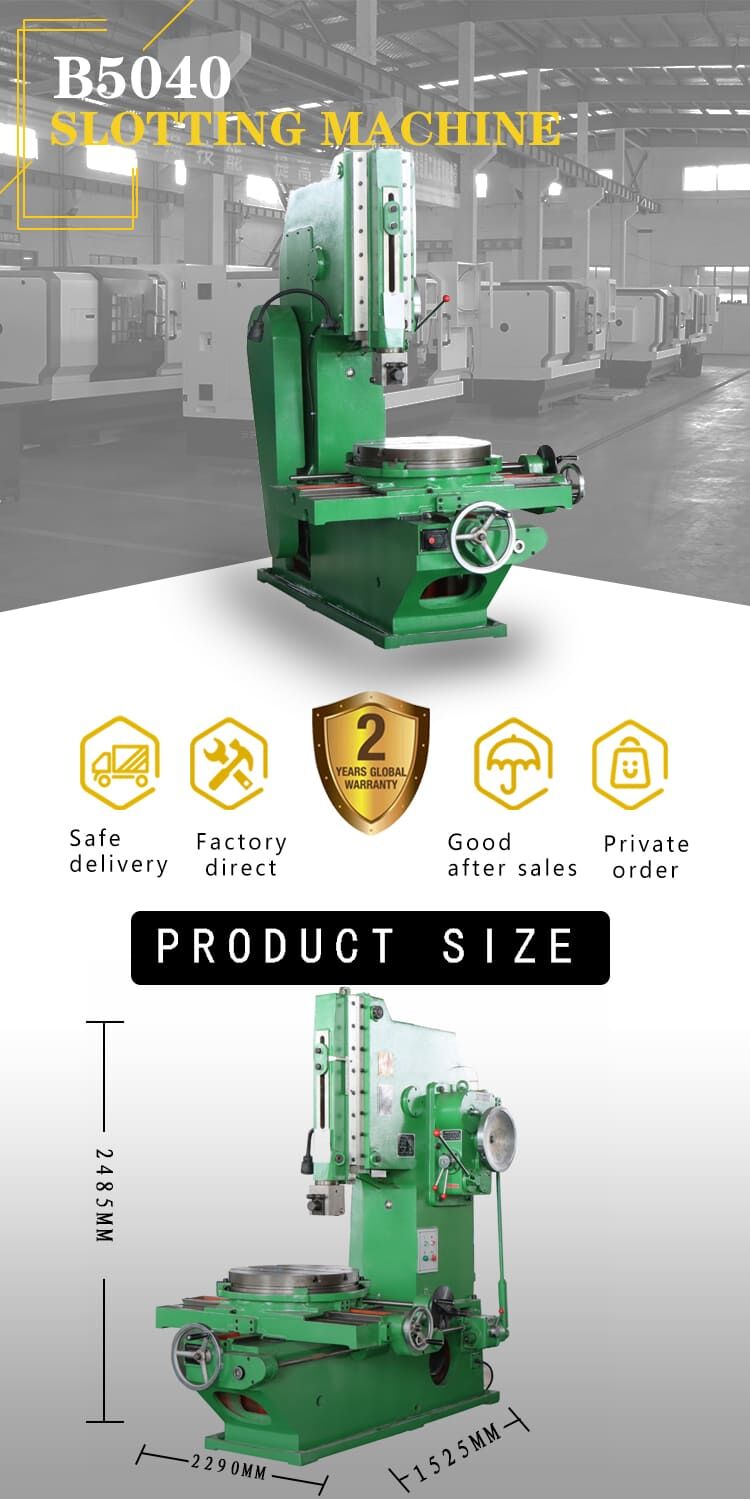

Dimension of machine tool (LW H)	mm	191613051995		226114952245	229015252485
Flatness of machined surfaces on tested workpiece			0.015mm
Verticality of machined surface on tested workpiece			0.025mm
Surface roughness on tested workpiece			6.3
Verticality of machined side surface on tested workpiece against base			0.02mm
