Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | M7132 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | $6,500 |
| Packaging Details: | 3000*2200*2300 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology. Grinding head vertical rapid lifting, improve production efficiency. The grinding head lateral movement driven by hydraulic motor, which can also be manually. The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Specifications:
| Description | Units | M7132x1000 | M7132x1600 | M7132x2000 | |
| Size of work table(L x W x H) | mm | 1000x320 | 1600x320 | 2000x320 | |
| Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 | |
| Max. Distance from the spindle centerline to the worktable surface | mm | 570 | 570 | 570 | |
| Max. Cross movement of grinding herd | mm | 350 | 350 | 350 | |
| Max. Vertical movement of grinding head | mm | 400 | 400 | 400 | |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
| Each turn | mm | 1 | 1 | 1 | |
| Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | R/min | 1440 | 1440 | 1440 | |
| Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 | |
| Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | |
| Total power of motor | KW | 9 | 10 | 12 | |
| Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | |
| Power of oil pump motor | KW | 3 | 4 | 5.5 | |
| Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
| Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 | |
| Net weight | Kg | 3500 | 3550 | 3600 | |
| Working precision | The parallelism of working surface to base level | mm | 00:00.0 | ||
| Surface roughness | μm | Ra0.32 | |||
| Weight | Net | kg | 850 | ||
| Gross | kg | 950 | |||
| Overall dimension (L*W*H) | mm | 1680*1140*1760 | |||
| Package dimension(L*W*H) | mm | 1630*1170*1940 | |||

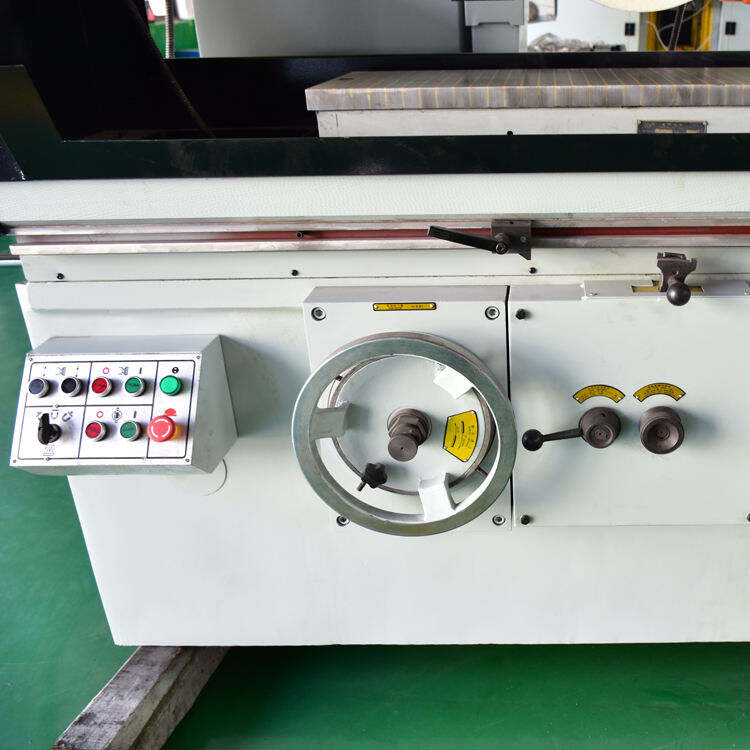

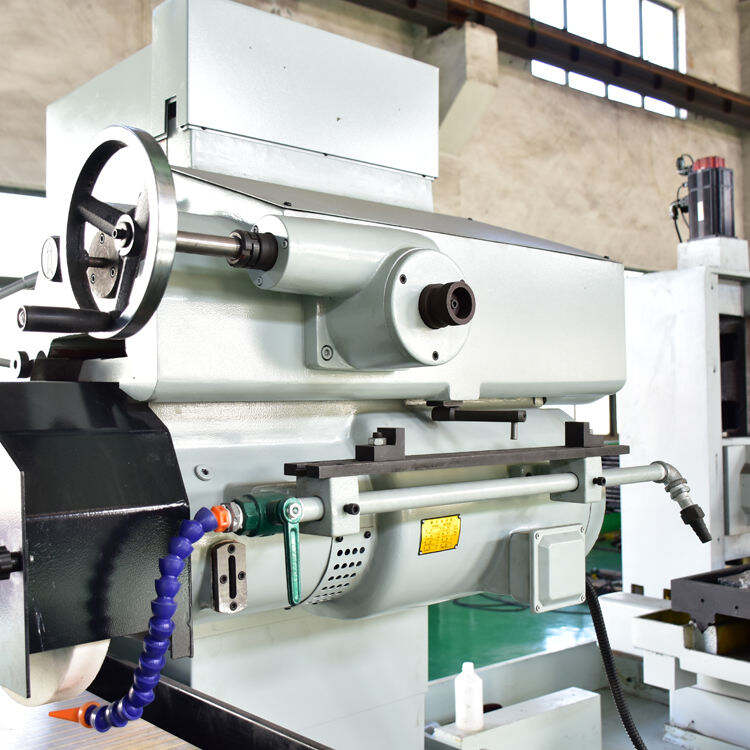

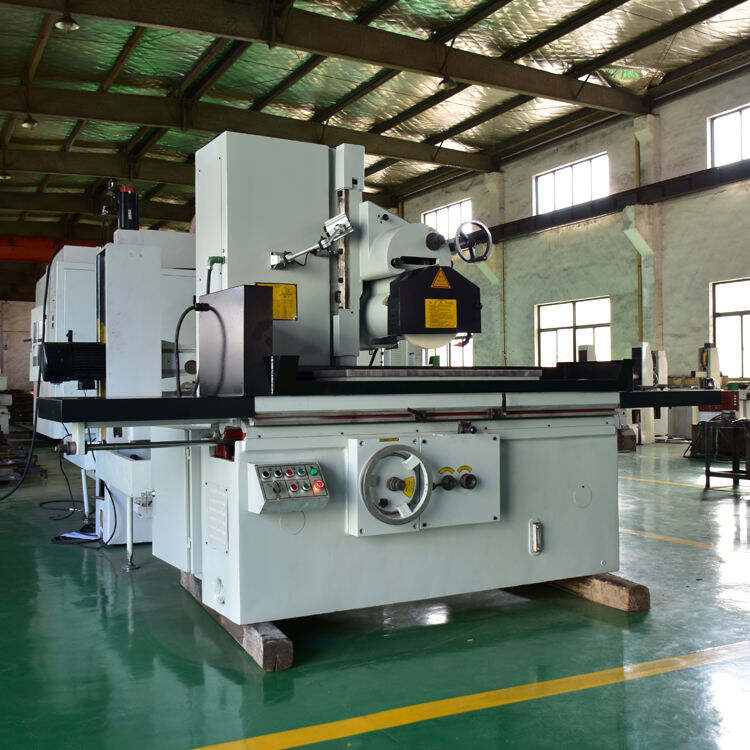

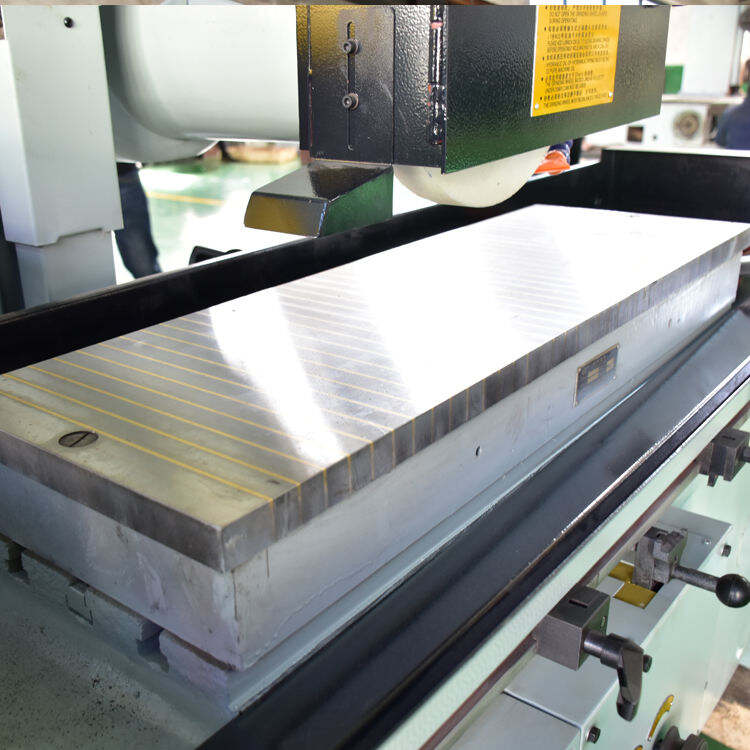

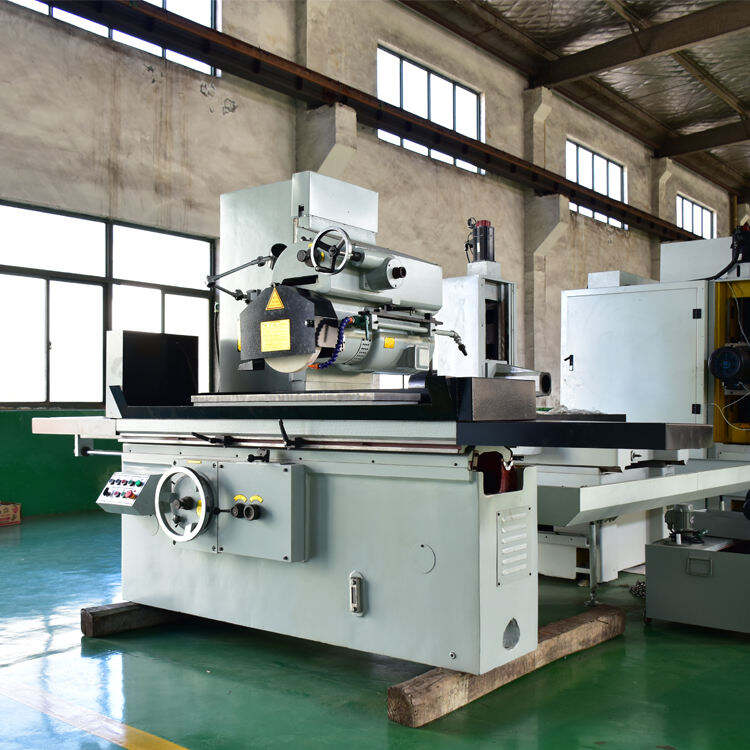

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready ,
we will take pictures to you.after we got your balance payment.
we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days. if some special machines will be some longer.
The ship time is about 30 days to Europe, America.
If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.
we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
