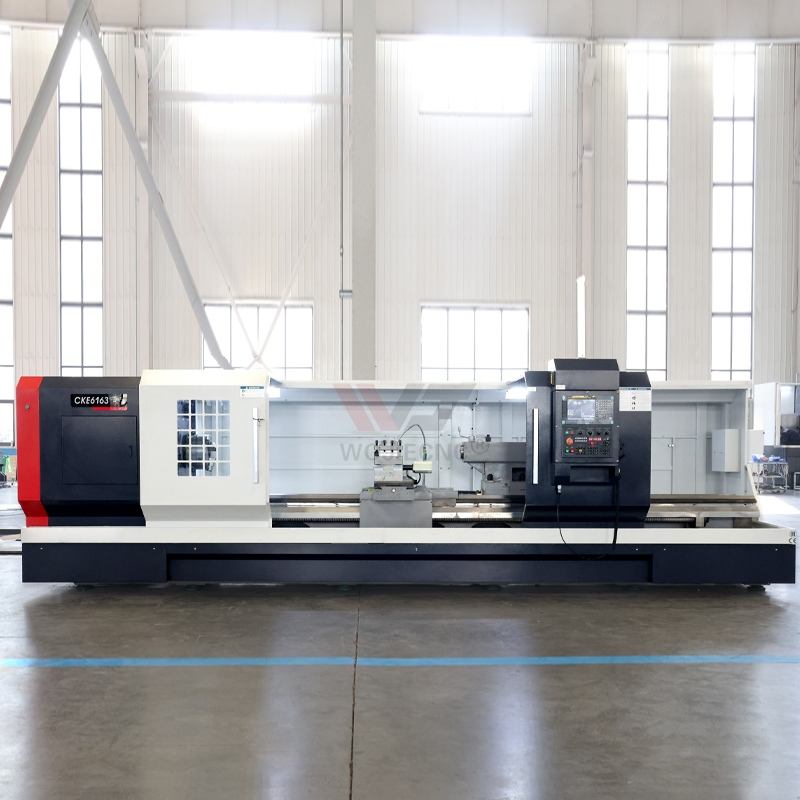

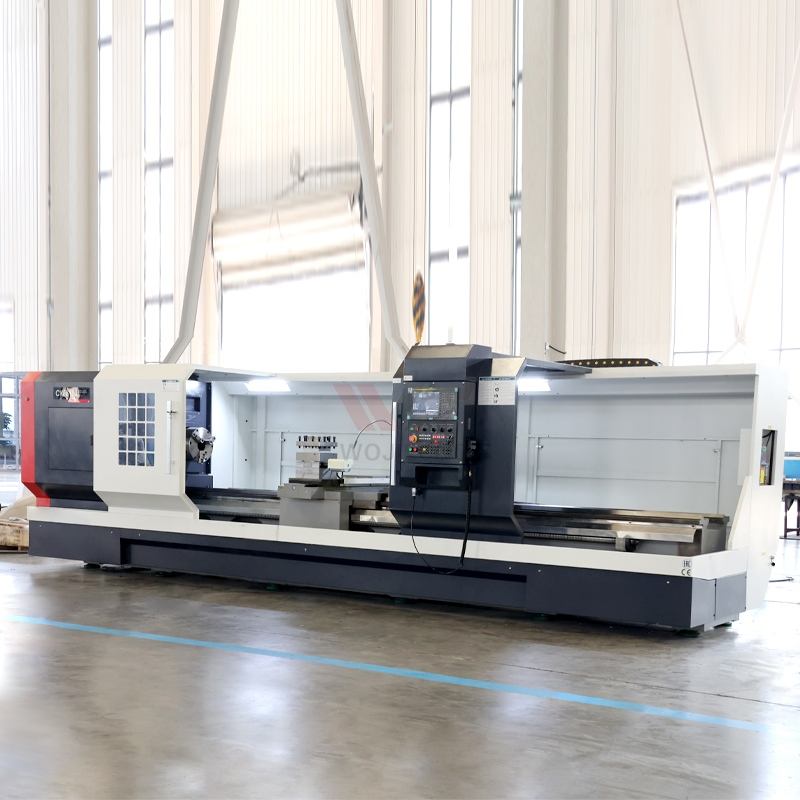

CK6163 CNC Lathe Machine for Industrial Applications and Metalworking

Description:

Product Application

The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.

Specifications:

SPECIFICATIONS	Units	CK6163
Swing over bed	mm	630
Swing over cross slide	mm	650
Distance between centers	mm	750/1000/1500/2000
Spindle bore	mm	104
Spindle bore taper	-	MT6
Spindle nose type	-	C11/A11
Spindle speed steps	rpm	Stepless
Spindle speed range	-	30-90;70-200;130-380;35-1000
Turret/tool post	-	Electric 4 position
Tool size	mm	20*20
X axis travel	mm	180
Z axis travel	mm	500/750/1250/1750
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	140
Main spindle motor	kw	5.5
Coolant pump motor	kw	0.125
Weight for 750	kg	1500
Weight for 1000	kg	1600
Weight for 1500	kg	1800
Weight for 2000	kg	2000
Dimension for 750	mm	220016001650
Dimension for 1000	mm	250016001650
Dimension for 1500	mm	300016001650
Dimension for 2000	mm	350016001650

Standard Accessories:

1.System: GSK

2.3-jaw manual chuck

3.4-station electric turret

4.Frequency spindle motor

5.Stepless speed changer

6.Manual tailstock

7.Lighting system

8.Cooling system

Detailed Images:

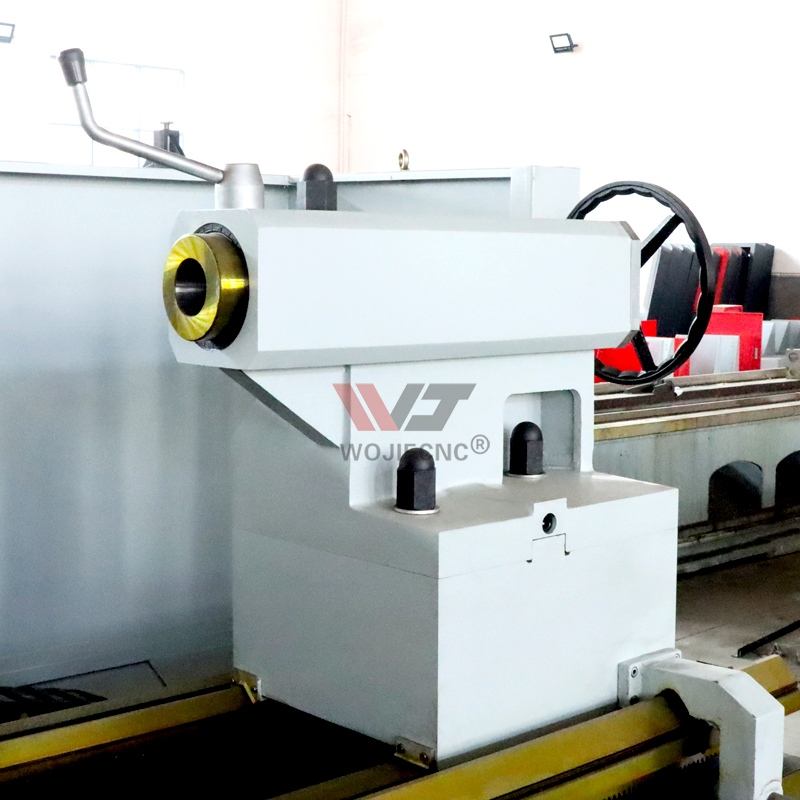

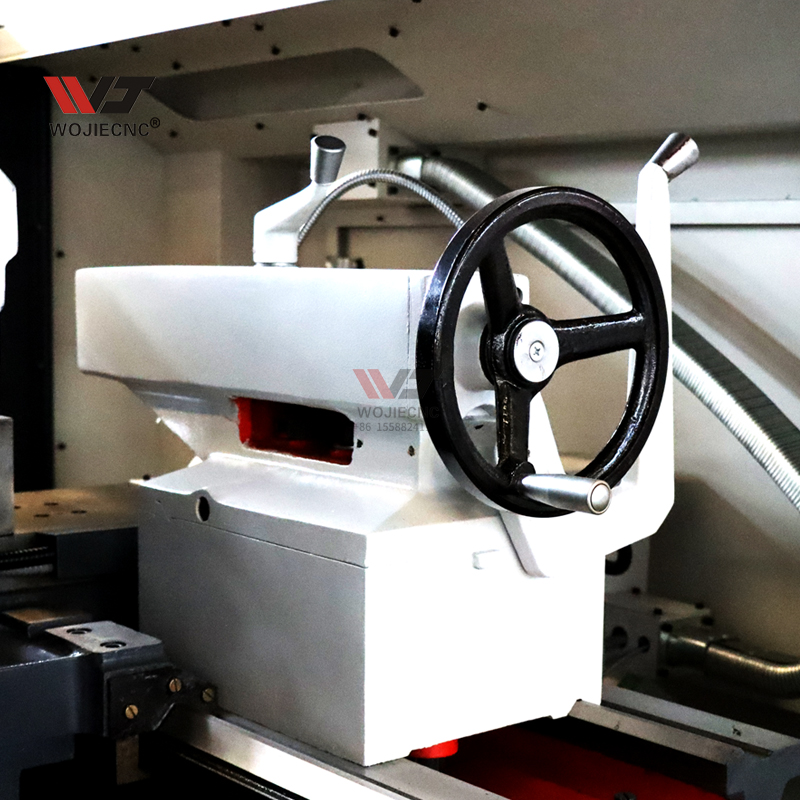

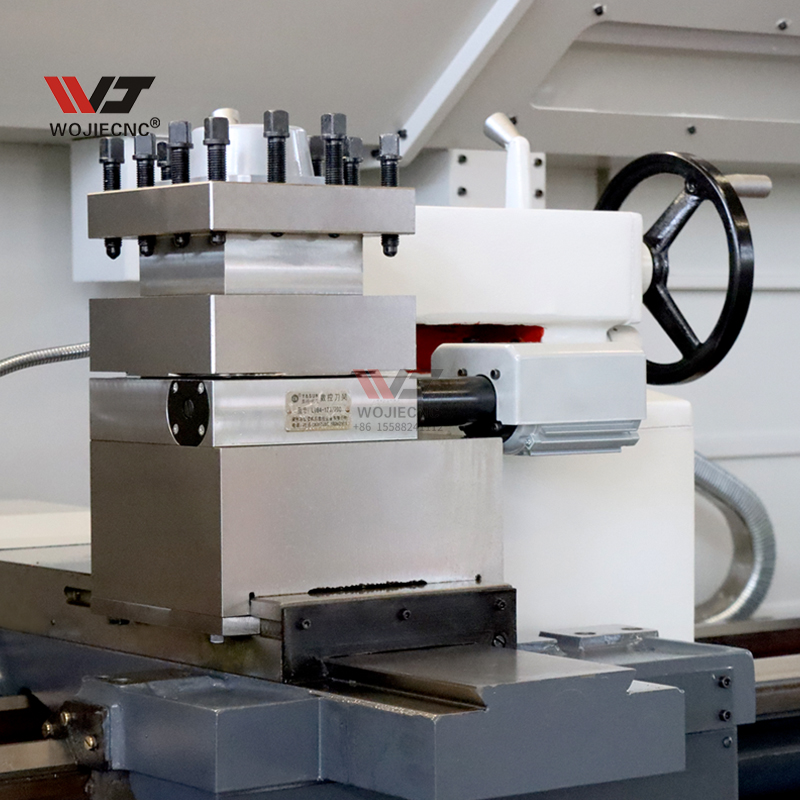

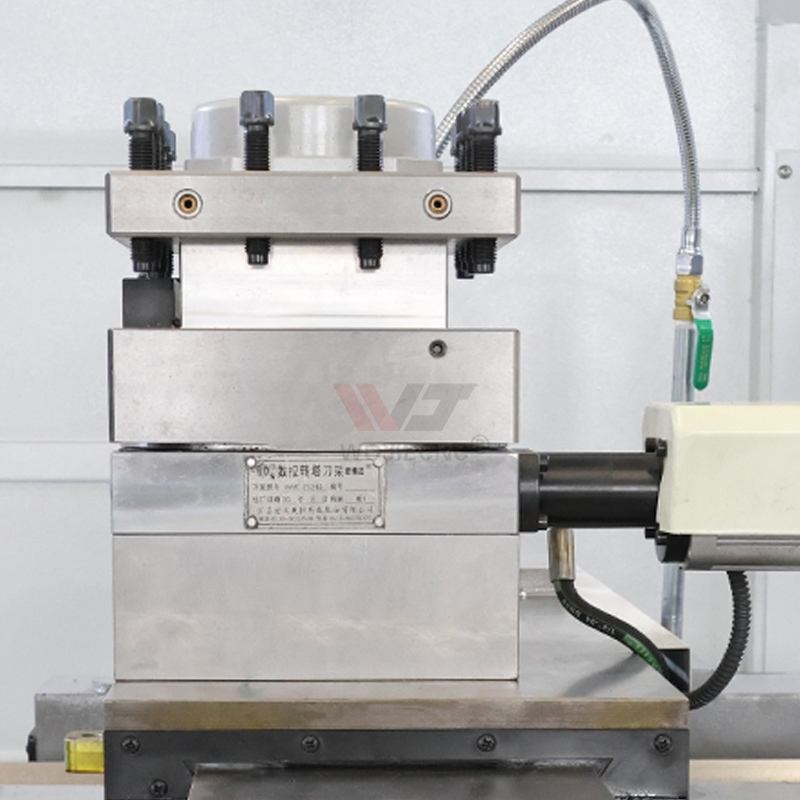

TAILSTOCK Standard with Manual tailstock	ELECTRIC TOOL POST/TURRET Standard with 4 position electric tool post

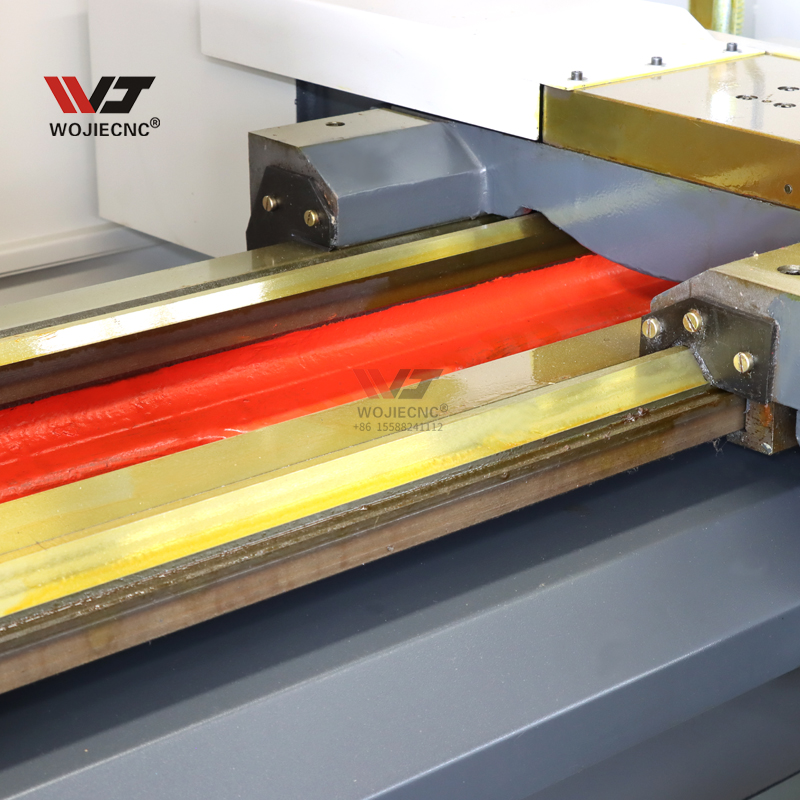

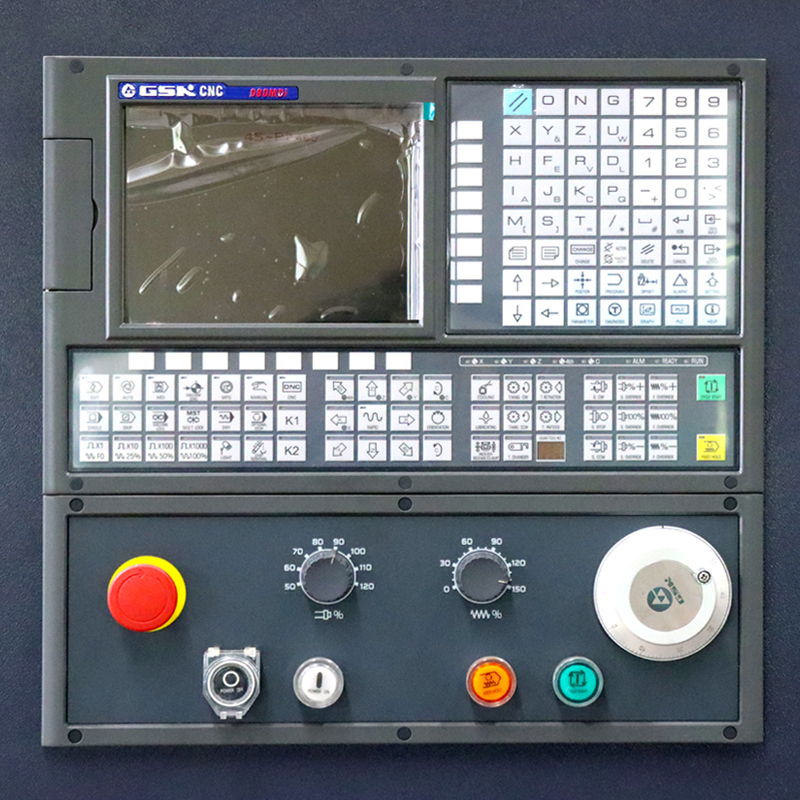

HARD GUIDEWAY 1. High frequency quenching guide rail with hardness HRC52 2. One mountain, one flat guideway	SYSTEM Standsrd is GSK System Optional : Fanuc/Siemens/KND...

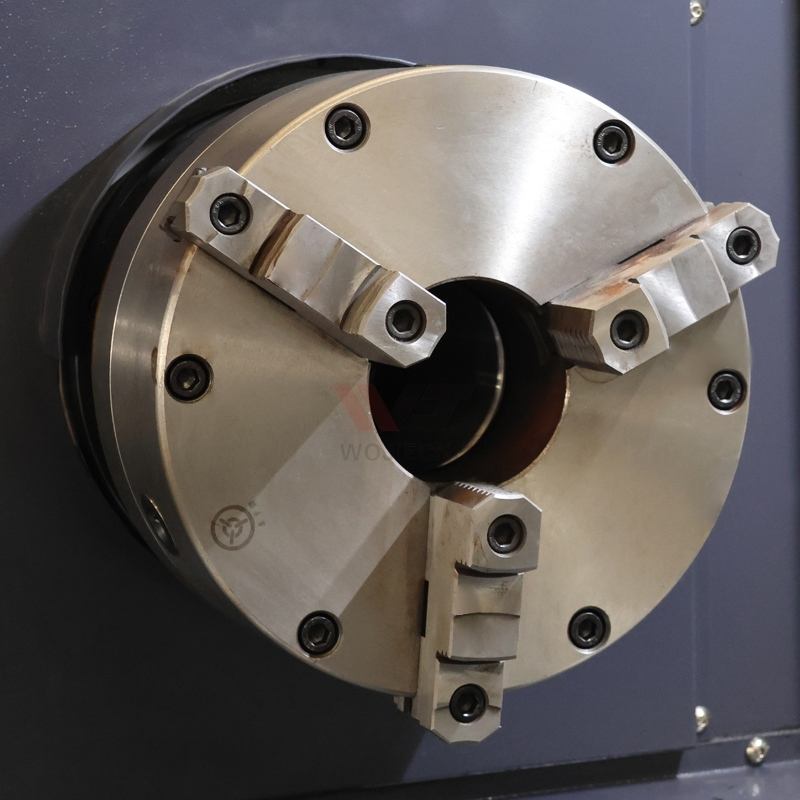

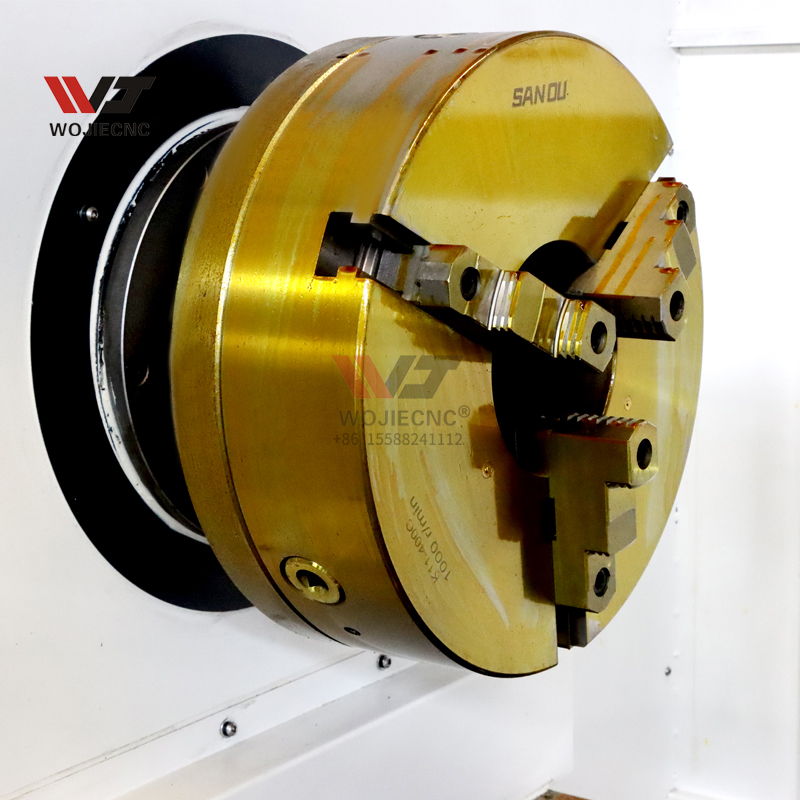

MANUAL CHUCK

Standard: 3-jaw manual chuck

SPINDLE BORE

Standard Spindle bore 52mm, 80mm as optional
