XK6325 China Cheap Knee Type Automatic CNC Turret Milling Machine
|
Attribute |
Value |
|
type |
VERTICAL |
|
number of axes |
3 |
|
voltage |
Customer Requirement |
|
table travel (x) (mm) |
750 mm |
|
table travel (y) (mm) |
400 mm |
|
table travel (z) (mm) |
420 mm |
|
no. of spindles |
Single |
|
repeatability (x/y/z) (mm) |
0.005 |
|
place of origin |
Shandong, China |
|
spindle motor power (kw) |
2.2 |
|
max. table load (kg) |
280 kg |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application

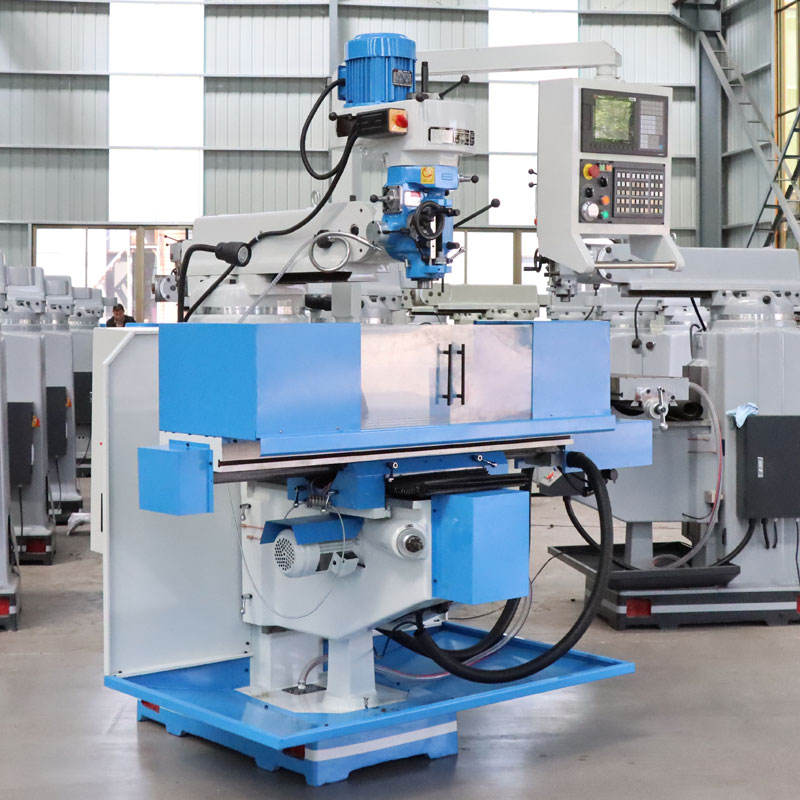

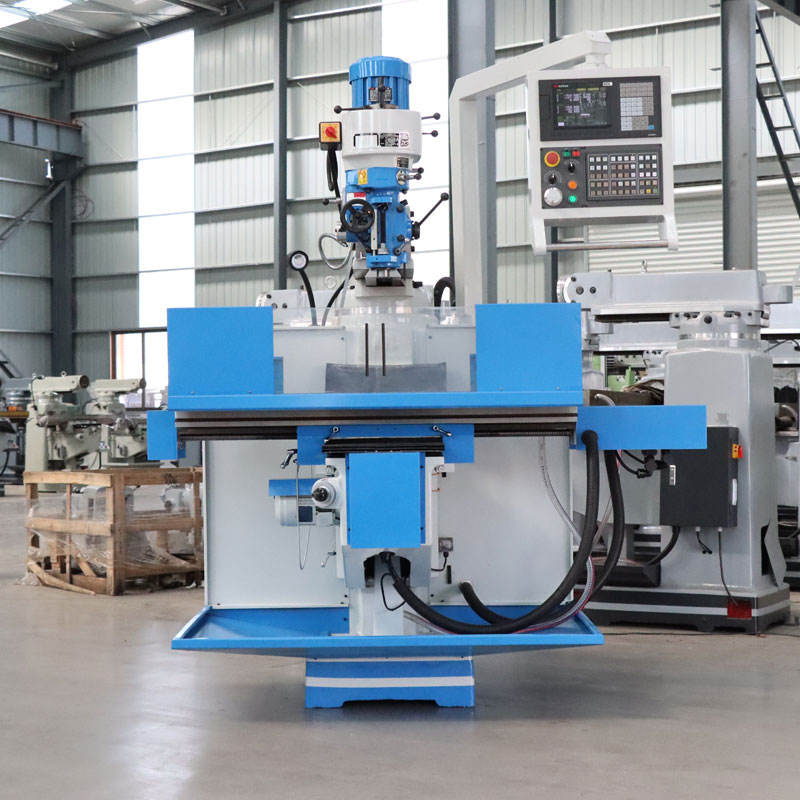

XK6325 is a China CNC milling machine for metal machinery. It is very polular in many countries. Different CNC control system for your choice, such as GSK, SIEMENS, FANUC CNC control system. And for our CNC milling machine, two different table size for your choice 10"x50" and 10"x54". Different cnc milling machine equipments and accessories can meet the different requirements of every customer
Specifications:
|
Specifications |
Unit |
Xk6325 |
|
Table size |
mm |
254×1270 / 254×1370 |
|
Longitudinal travel |
mm |
850 / 950 |
|
Transverse travel |
mm |
420 / 400 |
|
Vertical travel |
mm |
420 |
|
T slot no. and size |
mm |
3×16 |
|
Ram travel |
mm |
470 |
|
Distance from spindle nose to table surface |
mm |
0-405 |
|
Spindle taper |
- |
Standard: R8Optional: ISO30 / ISO40 |
|
Spindle travel |
mm |
127 |
|
Spindle speed |
rpm |
Standard (50Hz): 65-4500Optional (variable): 65-4500 |
|
Auto quill feed |
mm/rev |
0.04 / 0.08 / 0.15 |
|
Spindle motor |
kw |
2.25 |
|
Head swivel |
- |
90° |
|
Head tilting |
- |
45° |
|
Weight |
kg |
1550 |
Standard Accessoires:
Draw bar
Tool box and tools
Hung up control panel
Coolant system
Oil collecting plate
Plastic splashing guard
Auto lubrication system
Working lamp
GSK 980 CNC controller
Operatin manual
Optional Accessoires:
Variable speed milling head
Milling chuck collets
58PCS Clamping kits
Air draw bar
Machine vice
SIEMENS and FANUC CNC control system
Detailed Images:
 |
 |
|

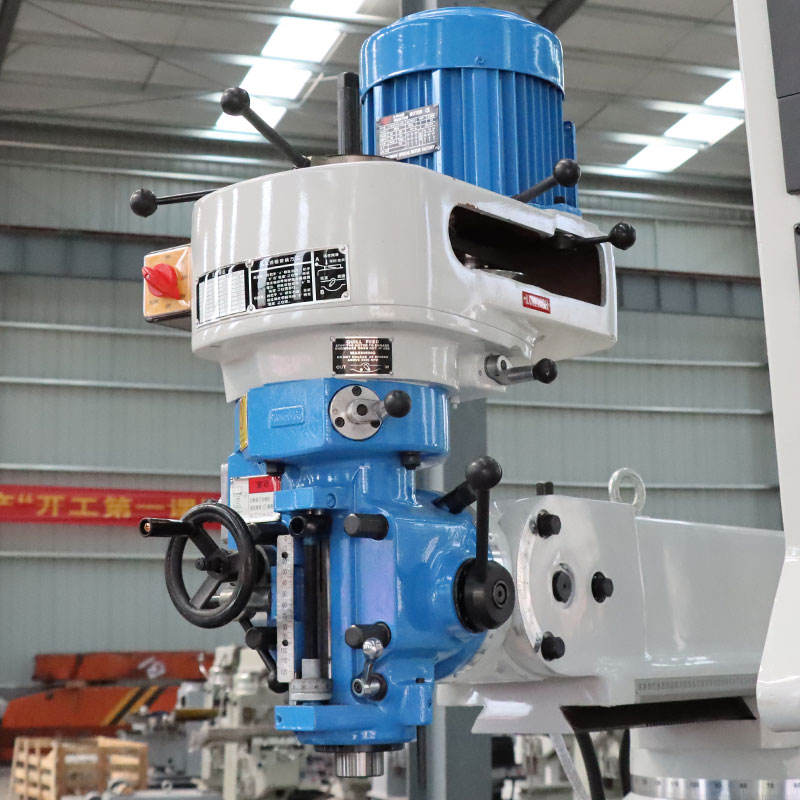

Turret Milling Head Assembly
This photo shows the iconic turret milling head of the XK6325. It features adjustable handles for precise control, a powerful spindle motor, and the ability to swivel and tilt, supporting versatile machining angles.
|

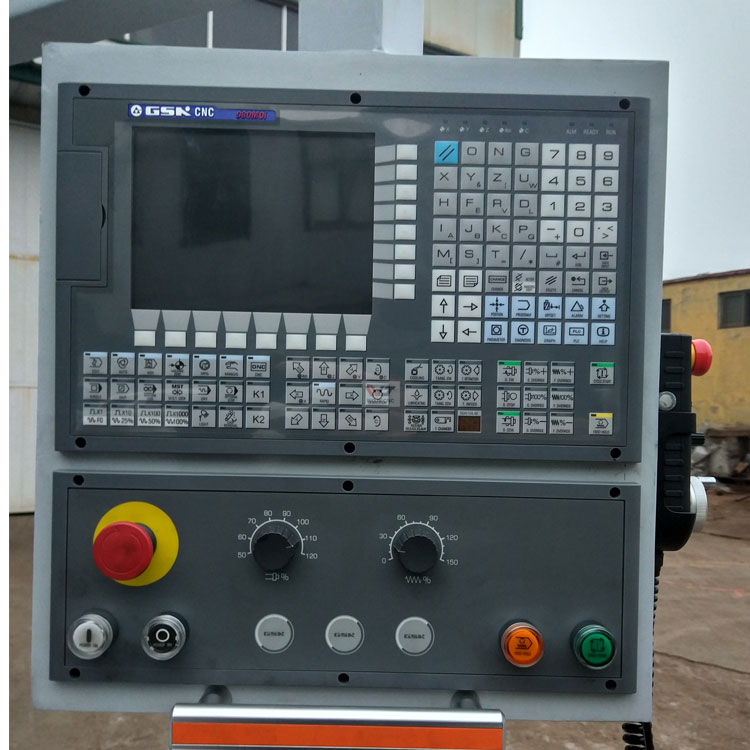

CNC Control Panel
This view highlights the machine’s CNC control system. It includes a clear display, a full-function keypad, and easy-to-use control buttons, allowing for intuitive programming and operation.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
