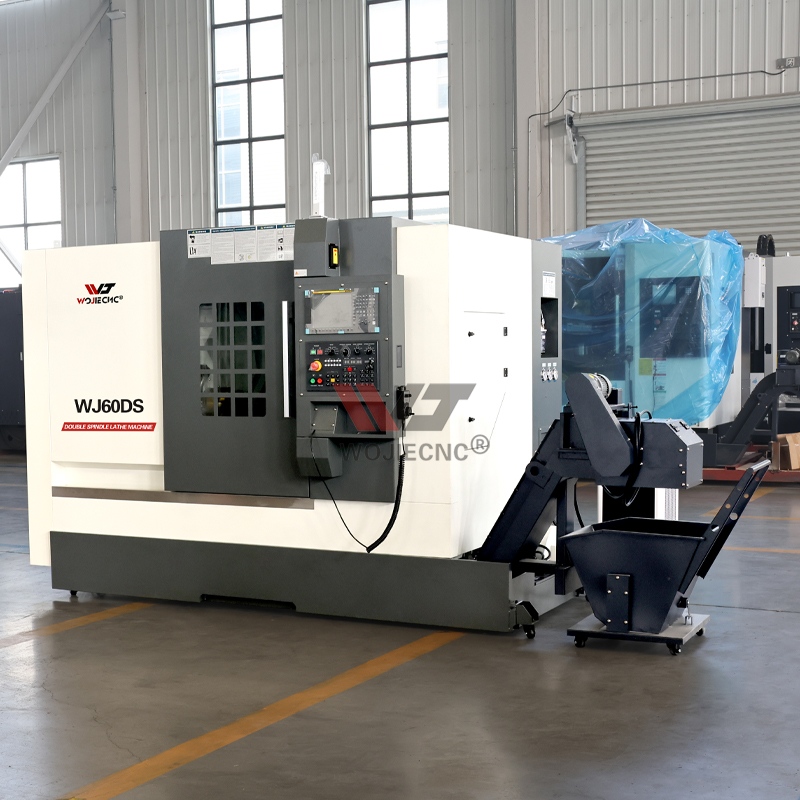

High Precision China Twin Spindle CNC Lathe Machine WJ60DS Slant Bed CNC Lathe Machine for Metal with FANUC System

Description:

Machine Features:

The main difference between a dual-spindle lathe and other lathes is that it has two separate spindles and can process two processes at the same time. Other lathes usually have only one spindle and can only process a single process.

The advantages of a dual-spindle lathe include:

Improve production efficiency: A dual-spindle lathe can process two processes at the same time, greatly shortening the processing time and improving

production efficiency.

Reduce processes: A dual-spindle lathe can complete multiple processes on the same machine tool, reducing the transfer and clamping time between processes and simplifying the production process.

Improve precision: Since a dual-spindle lathe can process two processes at the same time, it can reduce the re-clamping and positioning of the workpiece, thereby improving the processing accuracy.

Save space: Compared with using two single-spindle lathes for processing, a dual-spindle lathe can save floor space, reduce equipment investment and production space occupation.

Dual-spindle lathes have the advantages of high efficiency, precision and space saving. They are suitable for processing tasks that require multiple processes, which can improve production efficiency and reduce production costs.

Specifications:

Item	Unit	WJ60DS-500	WJ60DS-1000
Machine Model	/	WJ60DS-500	WJ60DS-1000
Maximum Swing Over Bed Diameter	mm	600	600
Maximum Machining Diameter (Disc)	mm	300	300
Maximum Machining Diameter on Toolholder (Shaft)	mm	280	280
Maximum Machining Length	mm	400	900
Spindle Type	/	A2-6	A2-6
Chuck size	inch	8	8
Spindle Motor Power	kw	11KW	11KW
Maximum Spindle Speed	rpm	3500rpm	3500rpm
Spindle Hole Diameter	mm	Φ65	Φ65
Bar Feed Diameter	mm	Φ50	Φ50
Sub-Spindle Type	/	A2-5 electric spindle	A2-5 electric spindle
Chuck size (Sub-Spindle)	inch	6	6
Maximum Spindle Speed (Sub-Spindle)	rpm	4000rpm	4000rpm
Spindle Hole Diameter (Sub-Spindle)	mm	Φ55	Φ55
Bar Feed Diameter (Sub-Spindle)	mm	Φ40	Φ40
X/Z Axis Travel	mm	200/505	200/1050
Sub-Spindle Travel	mm	400	850
X, Z, and Sub-Spindle Connections	/	Direct connection	Direct connection
Turret Type	/	BMT55Y	BMT55Y
Y-Axis Travel	mm	±45	±45
Bed Type	/	45°	45°
Overall Dimensions (L x W x H)	mm	330021302320mm	390021302320mm
Overall Dimensions (L x W x H) with Chip Conveyor	mm	404521702490mm	470021702490mm
Weight (Approximate)	kg	4200kg	4800kg
Weight (Approximate) (with Chip Conveyor)	kg	4500kg	5100kg

Detailed Images:

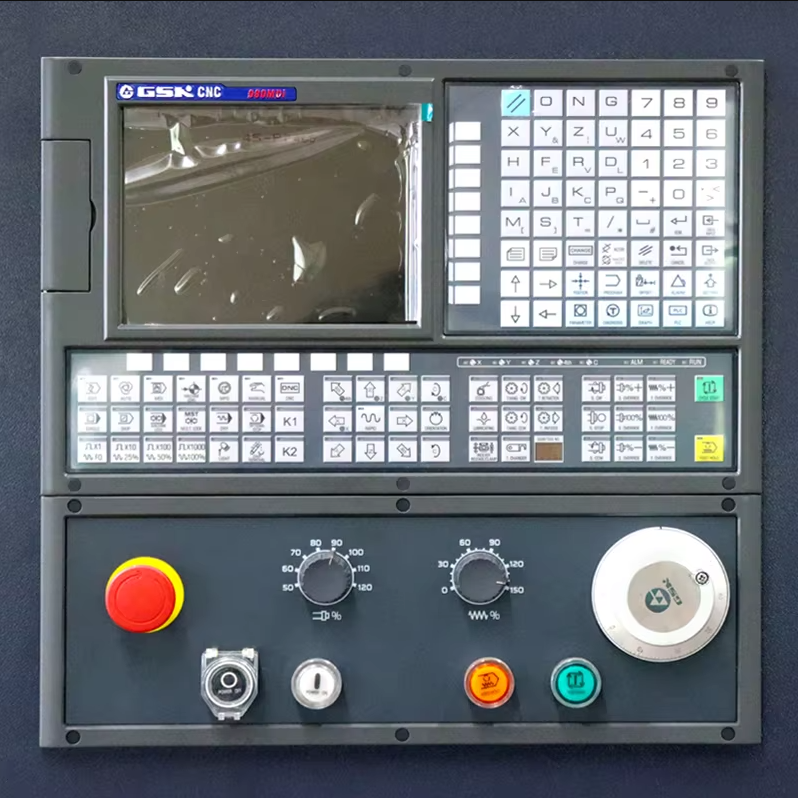

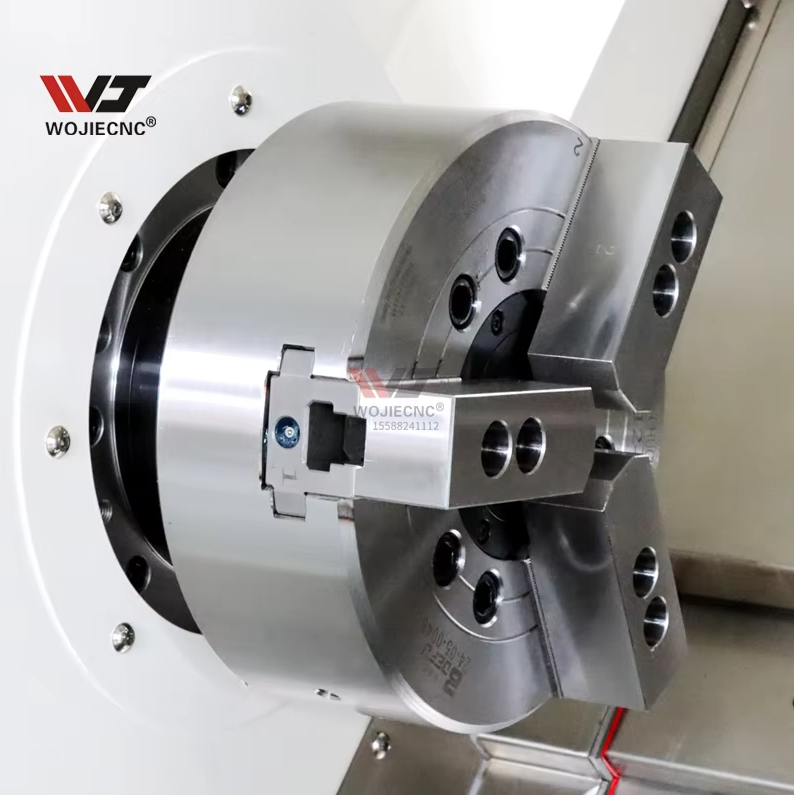

Control system Standard configuration: GSK. Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubishi	Hydraulic chuck Standard configuration:8" Optional configuration: 10" / 12" hydraulic chuck.

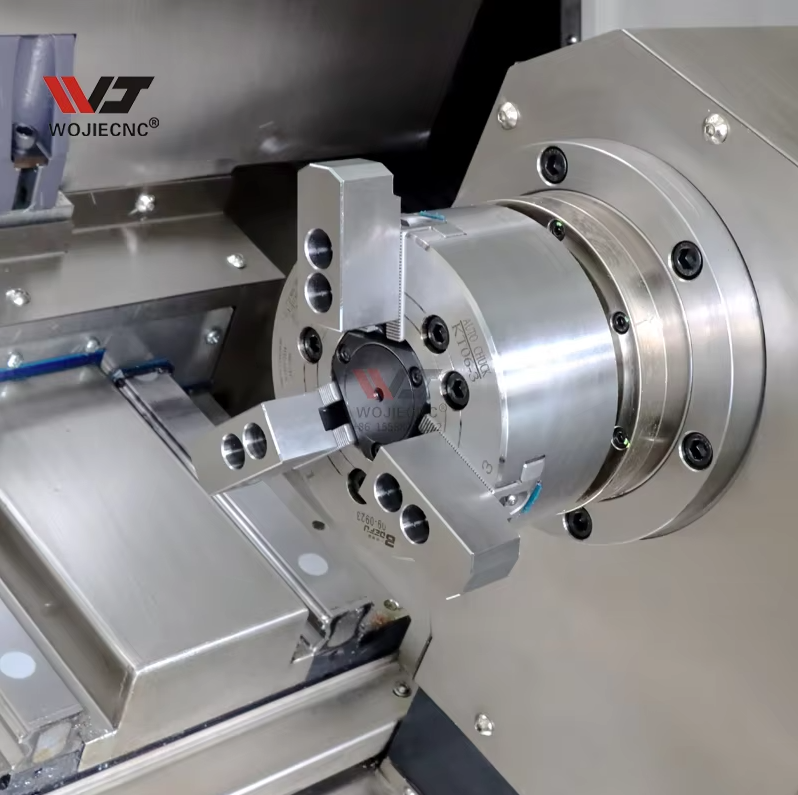

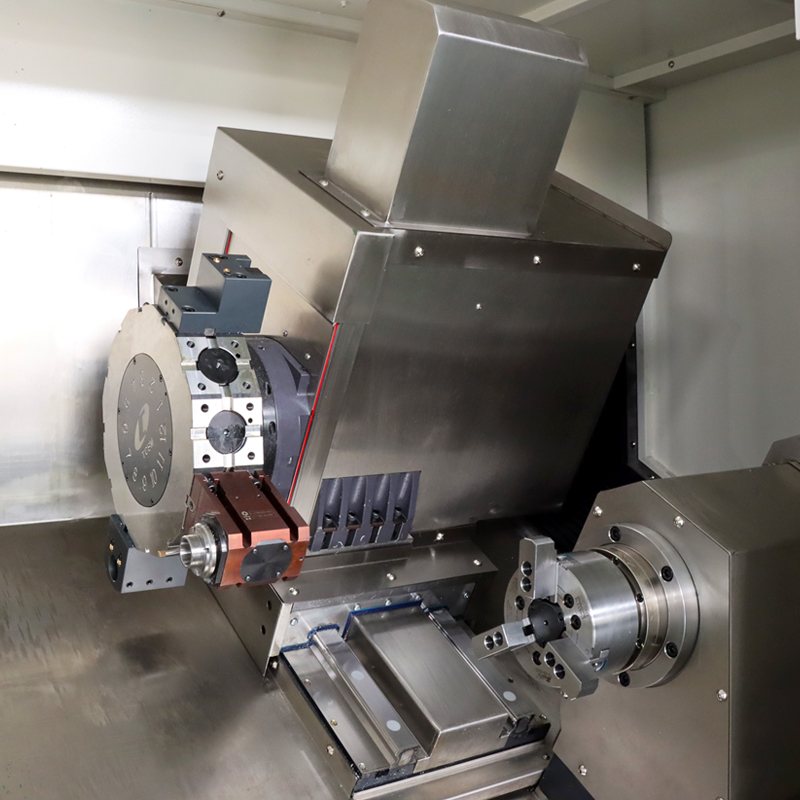

Turret 12 station power Turret.	Sub-spindle 6-inch hydraulic chuck.

Electrical part

Standard configuration: DELIXI.

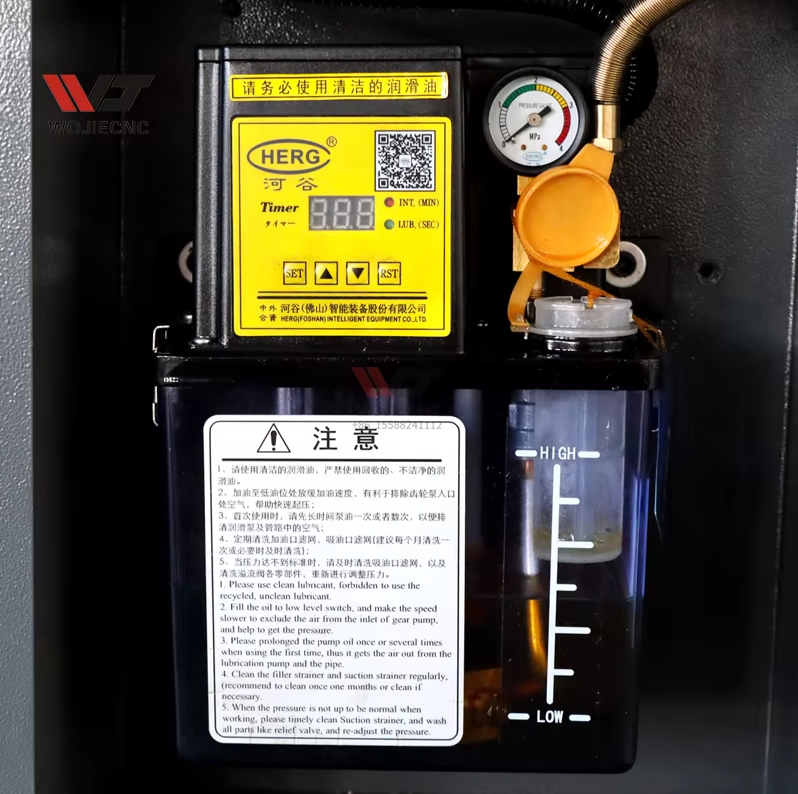

Lubrication system

The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .When we receive the advance payment,

we will start to make production.when the machine is ready , we will take pictures to you.

after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine,

we can ready the machine within 15days.

if some special machines will be some longer.

The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.

You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
